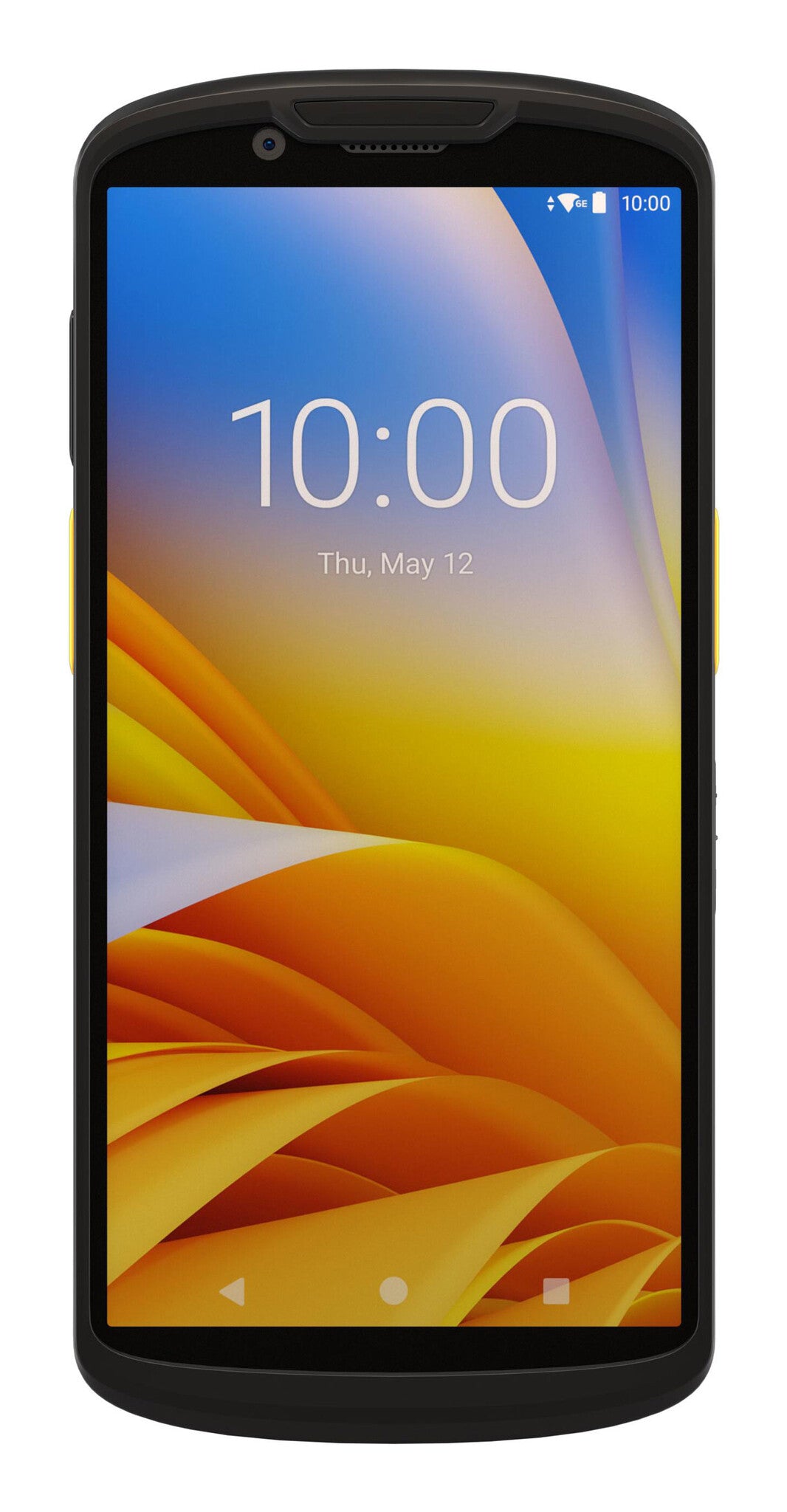

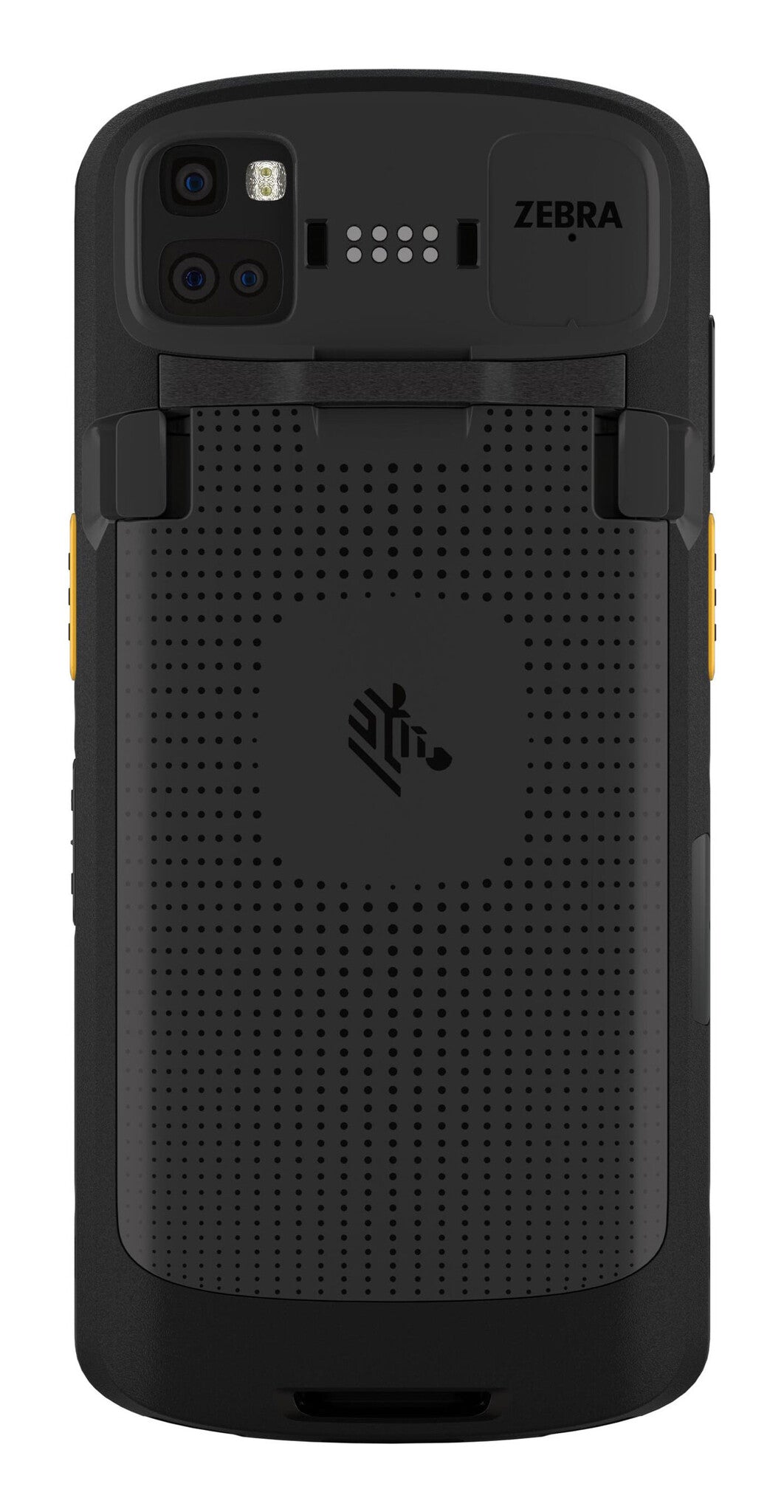

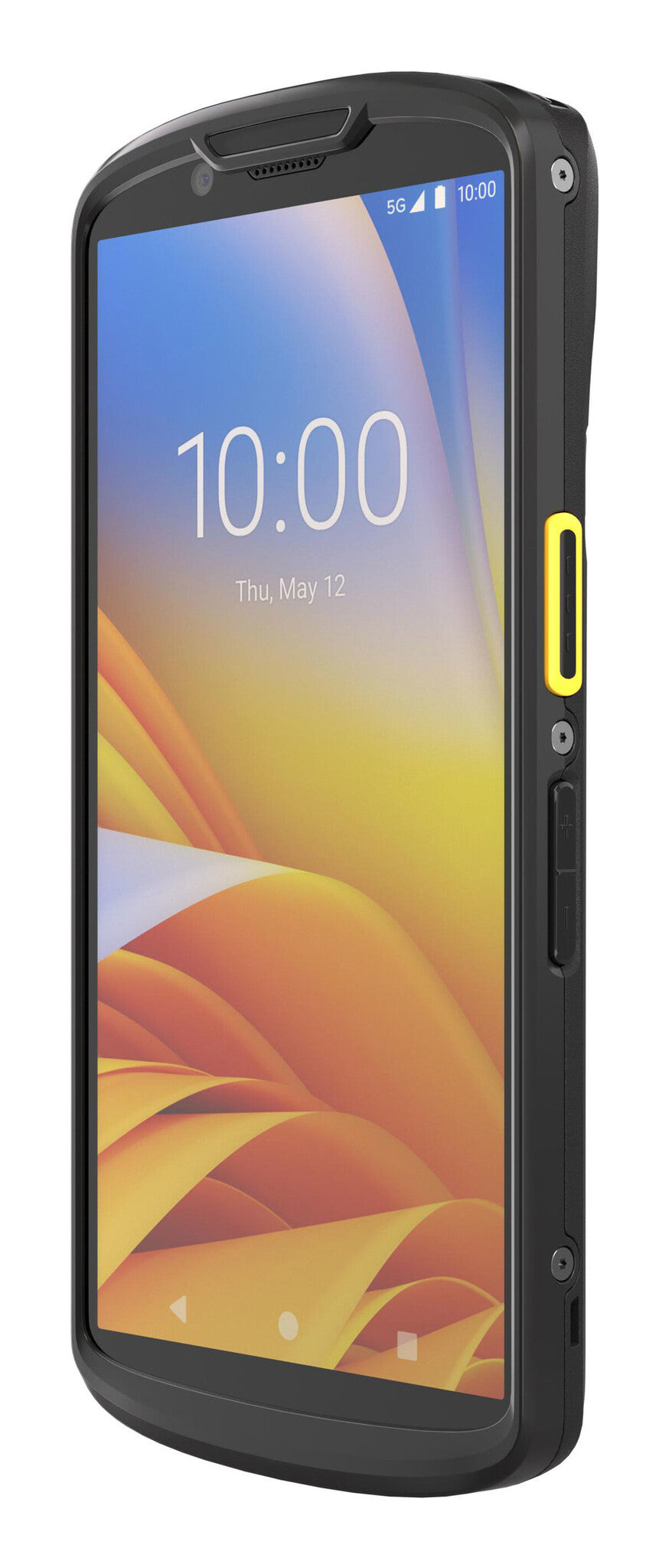

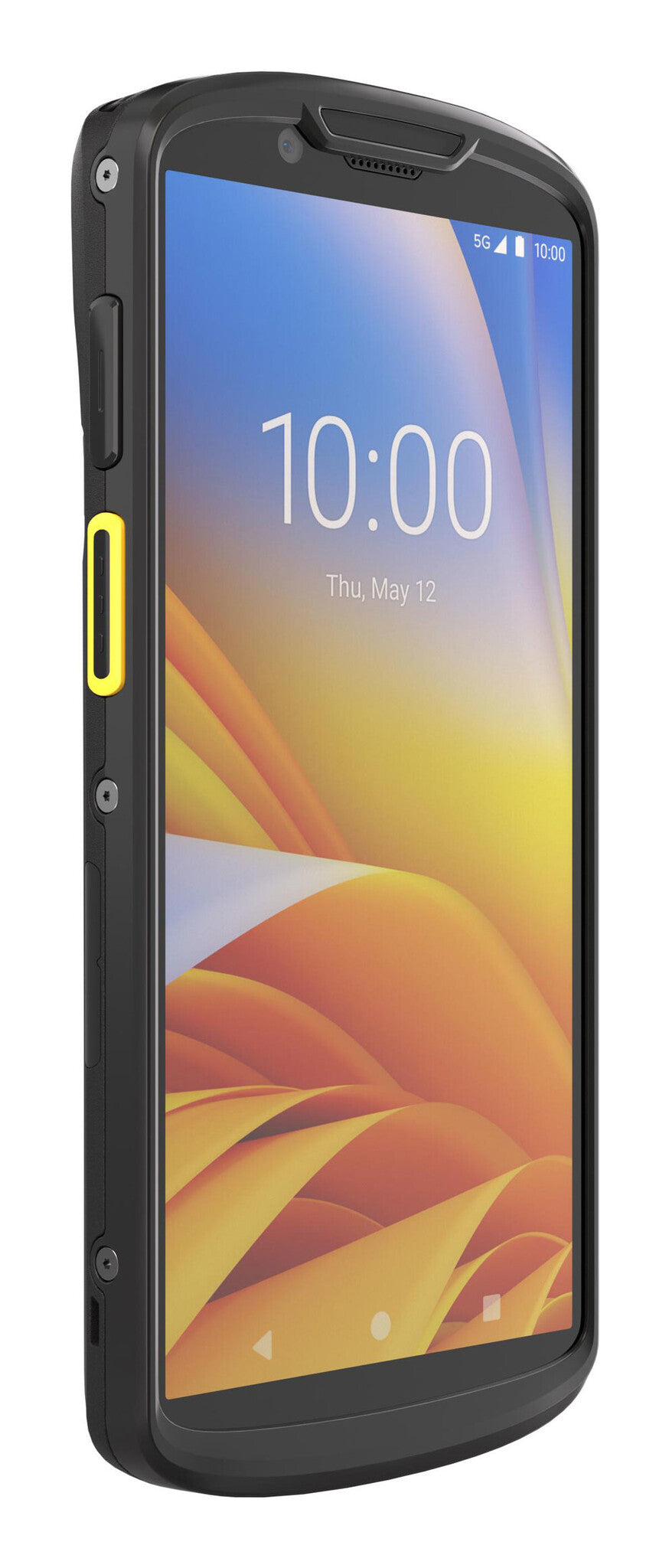

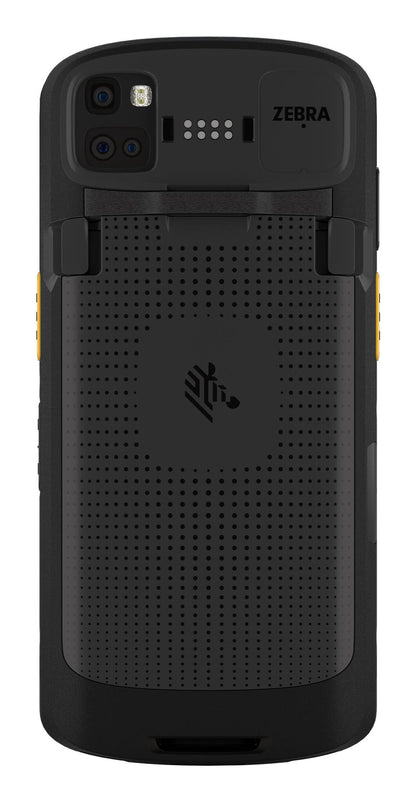

TC58, Premium, WAN, 6.0" Display, 5G FR1, WIFI 6E, 8GB RAM/128GB ROM, SE55 Imager, Time Of Flight, 8MP FFC, 16MP RFC W OIS, True Hot Swap, 4680 MAH Wireless Charge Battery, GMS, ROW
TC5X Series Mobile Computers
The Ultimate in Rugged Design, Performance, Productivity and Ease of Use
The TC5X Series - the Wi-Fi only TC52x with Wi-Fi 5 (802.11ac), the Wi-Fi only TC52ax with Wi-Fi 6, and the Wi-Fi 5/cellular TC57x deliver the ultimate in rugged design, performance, and ease of use. The TC53/TC58, the new generation of the Zebra TC5X series mobile computers, is designed to do more with new hardware and software innovations that redefine mobile computing performance. No matter which models you choose, your workers get a user experience in a class of its own and all the latest technology advancements to work smarter — and faster.
Benefits of the TC5X Series
The Ultimate User Experience
The TC5X Series mobile computers have it all — from the familiarity of Android to the first-time every-time capture of barcodes, more Wi-Fi range and speed, video streaming, secure messaging, and the most powerful family of read-to-use voice solutions.
The Ultimate in Technology Advancements
You get maximum computing power to handle the apps of today and tomorrow, rich locationing support, more reliable Wi-Fi connections; high-quality voice; color cameras to capture ultra-high resolution photos and video intelligence and much more.
The Ultimate in Value-add Features
With Zebra’s powerful Mobility DNA suite, you get more value out of your mobile computers by adding functionality as well as simplifying deployment and management of your mobile devices, driving productivity and device control to a new level.
| Display |
|---|
| Display diagonal |
15.2 cm (6") |
| Display resolution |
1080 x 2160 pixels |
| Touch technology |
Multi-touch |
| Touchscreen type |
Capacitive |
| Touchscreen |
Yes |
| Display brightness |
600 cd/m² |
| Display glass type |
Gorilla Glass |
| Memory |
|---|
| Internal memory |
8 GB |
| Flash memory |
128 GB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
2 TB |
| Processor |
|---|
| Processor frequency |
2.7 GHz |
| Processor family |
Qualcomm |
| Processor model |
6490 |
| Built-in processor |
Yes |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth Low Energy (BLE) |
Yes |
| SIM card type |
NanoSIM |
| Data network |
5G, LTE |
| Near Field Communication (NFC) |
Yes |
| Security algorithms |
EAP-AKA, EAP-PWD, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, MSCHAPv2, WEP, WPA-Enterprise, WPA-TKIP, WPA2-AES, WPA2-Enterprise, WPA2-TKIP, WPA3-Enterprise, WPA3-SAE |
| GPS Performance |
|---|
| GPS (satellite) |
Yes |
| Assisted GPS (A-GPS) |
Yes |
| GLONASS |
Yes |
| BeiDou |
Yes |
| Galileo |
Yes |
| Camera |
|---|
| Built-in camera |
Yes |
| Rear camera resolution (numeric) |
16 MP |
| Front camera |
Yes |
| Front camera resolution (numeric) |
8 MP |
| Video recording |
Yes |
| Built-in flash |
Yes |
| Audio |
|---|
| Noise-canceling |
Yes |
| Number of microphones |
3 |
| Speakers |
stereo |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Headphone outputs |
1 |
| Headphone connectivity |
3.5 mm |
| Performance |
|---|
| Product colour |
Black |
| Barcode reader |
Yes |
| Sensors |
|---|
| Ambient light sensor |
Yes |
| Accelerometer |
Yes |
| Magnetometer |
Yes |
| Proximity sensor |
Yes |
| Pressure sensor |
Yes |
| Gyroscope |
Yes |
| Software |
|---|
| Operating system installed |
Android |
| Power |
|---|
| Battery capacity |
4680 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Weight & dimensions |
|---|
| Weight |
293 g |
| Width |
77.3 mm |
| Depth |
16.8 mm |
| Height |
164.8 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-20 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
