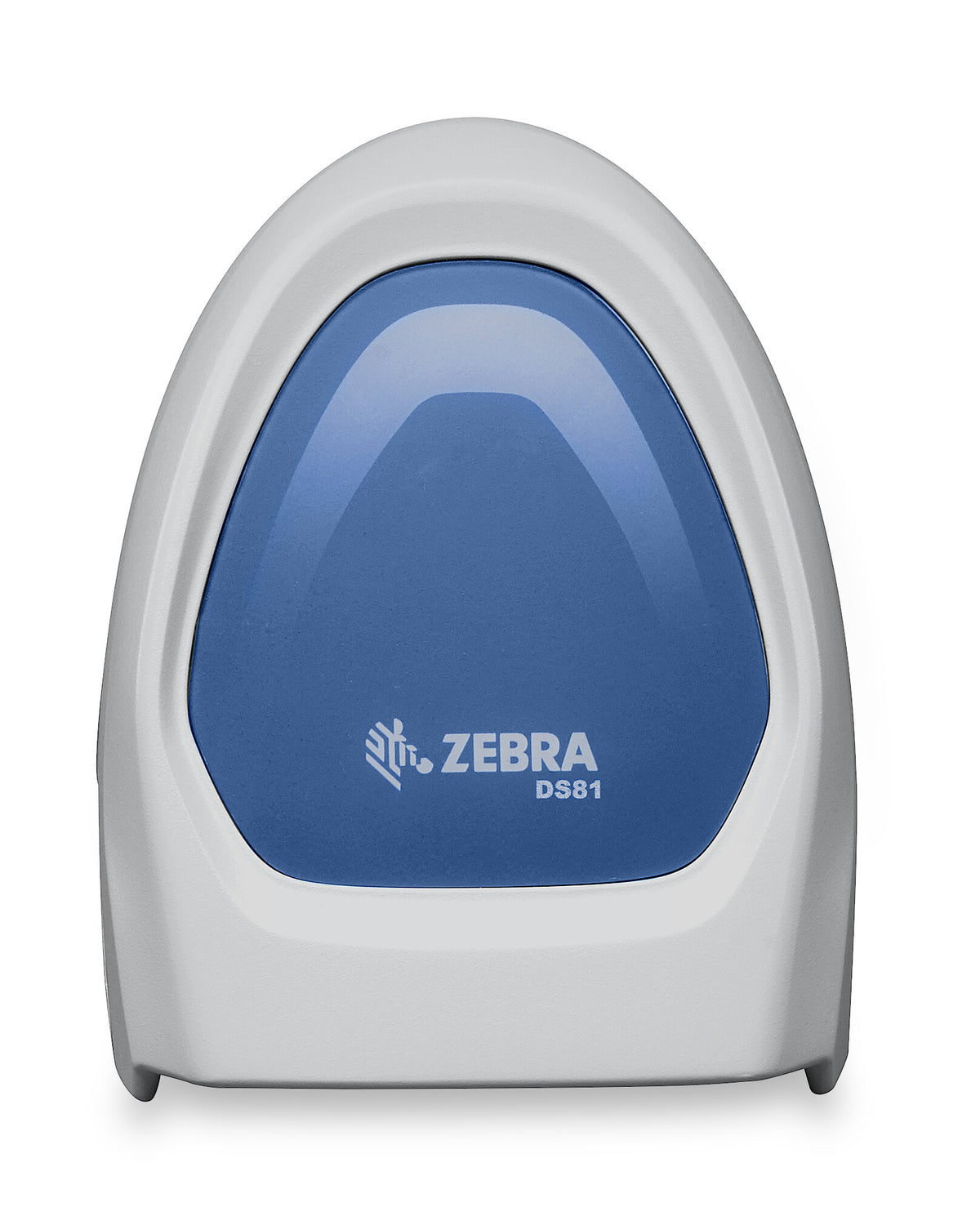

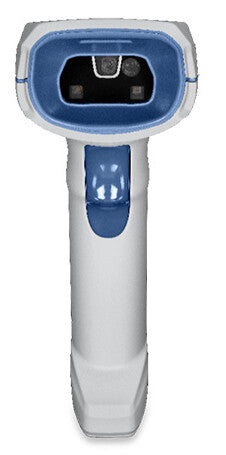

DS8178, Healthcare, USB-kit
Better Workflows for Healthcare Professionals. Better Experiences for Patients.
As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.
This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series — only from Zebra.
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Scanner type |
1D/2D |
| Sensor type |
LED |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| Wavelength |
528 nm |
| Tilt reading angle |
0 - 360° |
| Pitch reading angle |
0 - 60° |
| Yaw reading angle |
0 - 60° |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Standard interfaces |
Keyboard wedge, RS-232, USB |
| Wireless range |
100 m |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Performance |
|---|
| Product colour |
White |
| International Protection (IP) code |
IP42 |
| Power |
|---|
| Power source type |
Battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery type |
Built-in battery |
| Number of batteries supported |
1 |
| Battery capacity |
2500 mAh |
| Number of reads per charge |
65000 |
| Battery life |
83 h |
| Input voltage |
5 V |
| Weight & dimensions |
|---|
| Width |
66 mm |
| Depth |
107 mm |
| Height |
168 mm |
| Weight |
235 g |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84716070 |
