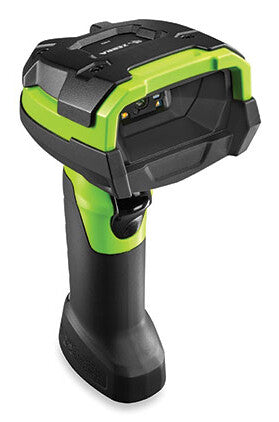

Zebra DS3678-HD Handheld bar code reader 1D/2D Laser Black, Green

R 23,777.40

Skip to product information

DS3678-HD3U42A0SFW

Out of stock
Regular price R 23,777.40
Sale price R 23,777.40 Regular price
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Payment methods

    DS3678-HD, 1D/2D Imager, IUID, 655nm laser, 1280 x 960, Two warm white light LED, Bluetooth 4.0 (LE)

    UNSTOPPABLE PERFORMANCE FOR HIGH DENSITY 1D/2D BARCODES
    As a member of the Zebra Ultra-Rugged 3600 Series of scanners, the practically indestructible 1D/2D DS3608-HD corded and DS3678-HD cordless scanner is ready for one of the world’s toughest environments — the electronics manufacturing production line.

    You get the truly unstoppable performance you need to prevent the high cost of unplanned production line downtime. Your workers get first-time every time capture of the many types of small and high-density barcodes printed on the components in the products you make.

    And since these scanners also capture standard barcodes in virtually any condition, you get a real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to the warehouse.

    SUPERIOR PERFORMANCE
    You get the ultimate in scanning performance — period. Your workers can capture virtually any high-density and standard 1D or 2D barcode at lightning speed, regardless of whether it is printed on a paper label or directly on a product component. Even if barcodes are damaged, dirty or poorly printed, no problem — this intelligent scanner can handle it all.

    ULTRA-RUGGED DESIGN
    The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

    UNRIVALED MANAGEABILITY
    With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

    Scanning
    Type Handheld bar code reader
    Scanner type 1D/2D
    Sensor type Laser
    2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
    Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
    Wavelength 655 nm
    Tilt reading angle -65 - 65°
    Pitch reading angle -65 - 65°
    Yaw reading angle -45 - 45°
    Optical sensor resolution 1280 pixels
    Ports & interfaces
    Connectivity technology Wired & Wireless
    Standard interfaces RS-232, USB, Keyboard wedge
    Wireless range 100 m
    Bluetooth Low Energy (BLE) Yes
    Bluetooth version 4.0
    Ethernet LAN Yes
    Performance
    Product colour Black, Green
    International Protection (IP) code IP67
    Protection features Dust resistant, Shock resistant, Water resistant
    LED indicators Yes
    Programming function Yes
    Power
    Power source type Battery
    Battery technology Lithium-Ion (Li-Ion)
    Battery capacity 3100 mAh
    Number of reads per charge 100000
    Weight & dimensions
    Width 142 mm
    Depth 76 mm
    Height 185 mm
    Weight 411 g
    Operational conditions
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Operating temperature (T-T) -20 - 50 °C
    Technical details
    Compliance certificates RoHS
    Logistics data
    Harmonized System (HS) code 84716070
