Zebra

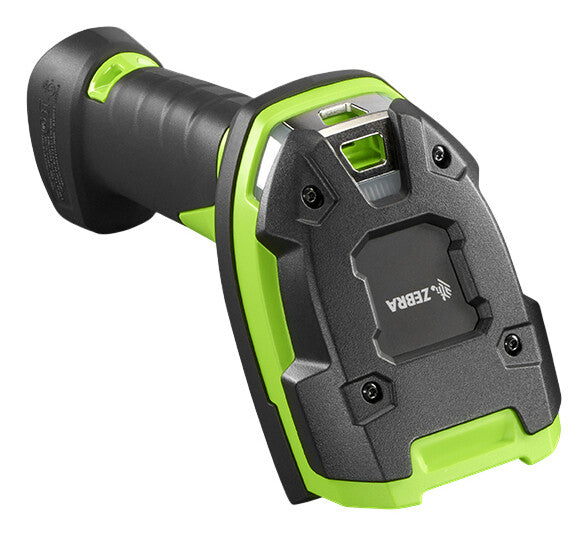

Zebra DS3678-DP Handheld bar code reader 1D/2D Laser Black, Green

R 39,330.00

Skip to product information

DS3678-DP2RF50BS1W

Out of stock
Regular price R 39,330.00
Sale price R 39,330.00 Regular price
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

Payment methods

    DS3678-DP, 1D/2D, 655nm laser, 1280 x 960, Direct Two warm white light LED, 634nm LEDs, Bluetooth 4.0

    UNSTOPPABLE PERFORMANCE FOR 1D/2D DIRECT PART MARKS (DPM) AND BARCODES
    As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-DP corded and DS3678-DP cordless scanner brings the dependable lightning-fast capture of virtually every direct part mark to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required.

    And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.

    SUPERIOR PERFORMANCE
    When it comes to capturing barcodes in the manufacturing plant, the DS3608-DP and DS3678-DP deliver the ultimate in scanning performance — period. Capture direct part marks regardless of size, surface, contrast, density or type — including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And workers can capture any 1D or 2D barcode displayed on a screen or printed on a label in practically any condition for superior barcode capture flexibility in a single scanner.

    ULTRA-RUGGED DESIGN
    The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.

    UNRIVALED MANAGEABILITY
    With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.

    Scanning
    Type Handheld bar code reader
    Scanner type 1D/2D
    Sensor type Laser
    2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
    Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
    Wavelength 655 nm
    Tilt reading angle -65 - 65°
    Pitch reading angle -65 - 65°
    Yaw reading angle -45 - 45°
    Optical sensor resolution 1280 pixels
    Ports & interfaces
    Connectivity technology Wired & Wireless
    Standard interfaces RS-232, USB, Keyboard wedge
    Wireless range 100 m
    Bluetooth Low Energy (BLE) Yes
    Bluetooth version 4.0
    Ethernet LAN Yes
    Performance
    Product colour Black, Green
    International Protection (IP) code IP67
    Protection features Dust resistant, Shock resistant, Water resistant
    LED indicators Yes
    Programming function Yes
    Power
    Power source type Battery
    Battery technology Lithium-Ion (Li-Ion)
    Battery capacity 3100 mAh
    Number of reads per charge 100000
    Weight & dimensions
    Width 143 mm
    Depth 77 mm
    Height 185 mm
    Weight 402 g
    Operational conditions
    Storage temperature (T-T) -40 - 70 °C
    Operating relative humidity (H-H) 5 - 95%
    Operating temperature (T-T) -20 - 50 °C
    Technical details
    Compliance certificates RoHS
    Logistics data
    Harmonized System (HS) code 84716070
