UNSTOPPABLE PERFORMANCE FOR 1D/2D DIRECT PART MARKS (DPM) AND BARCODES

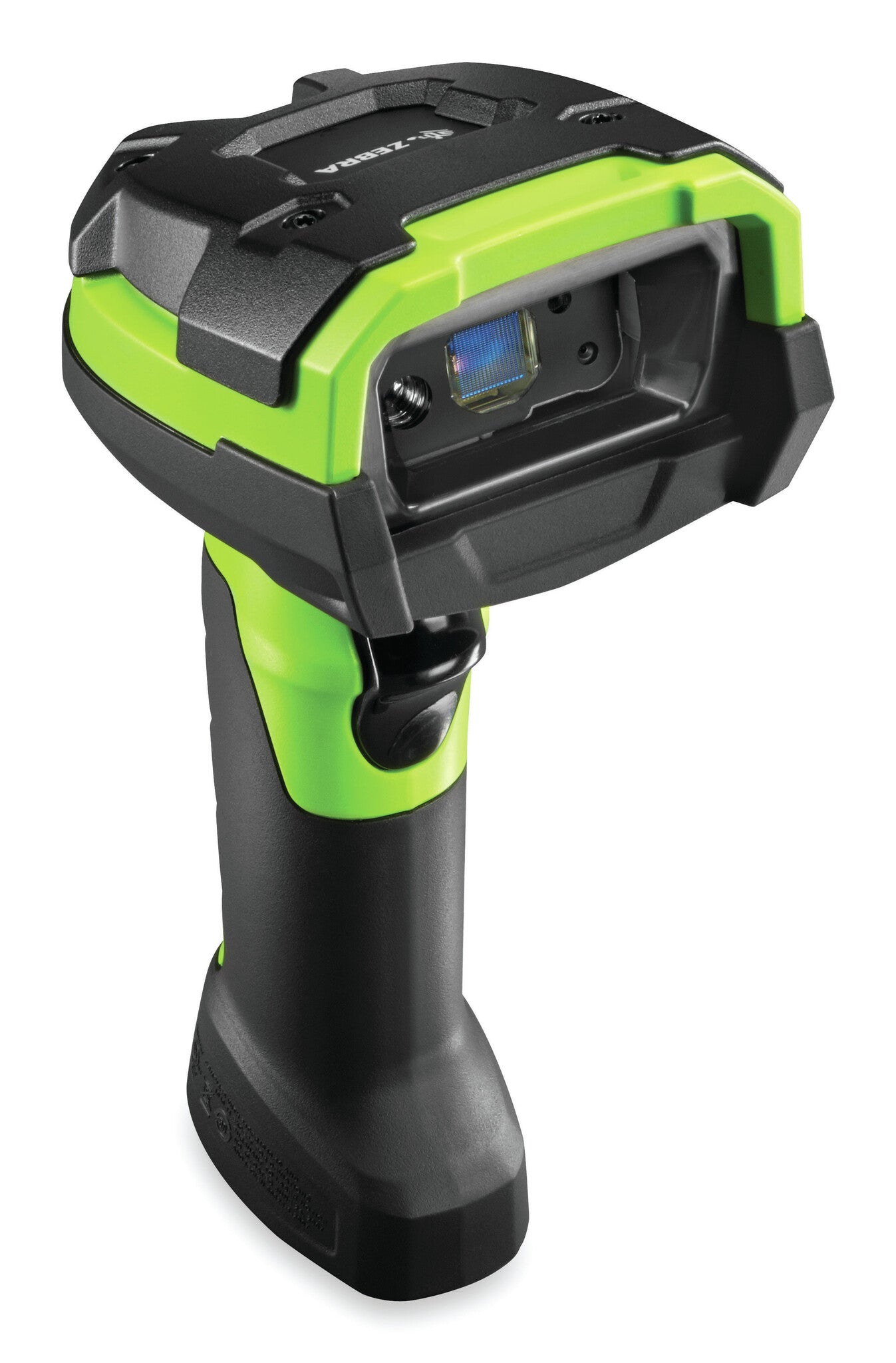

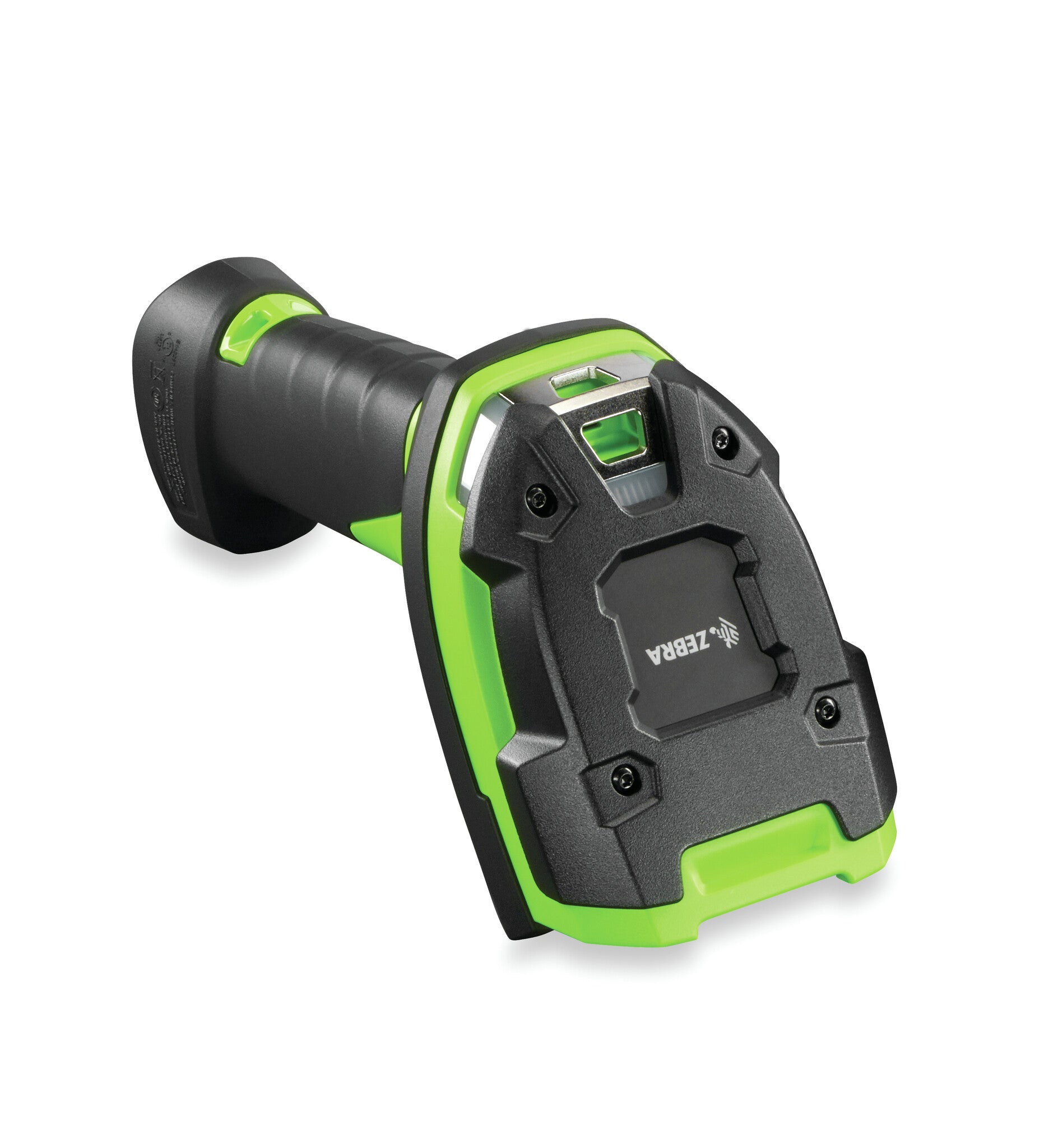

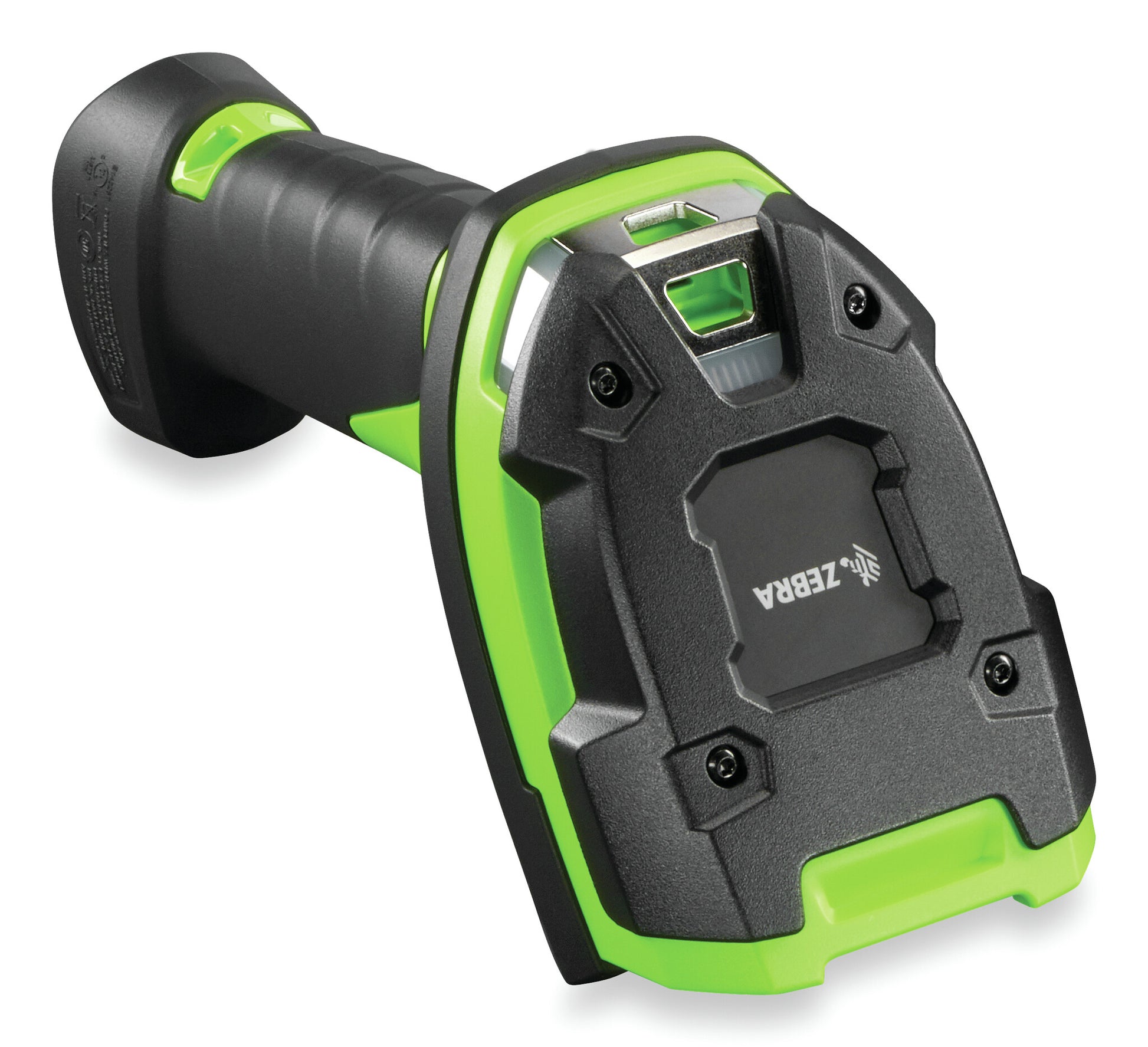

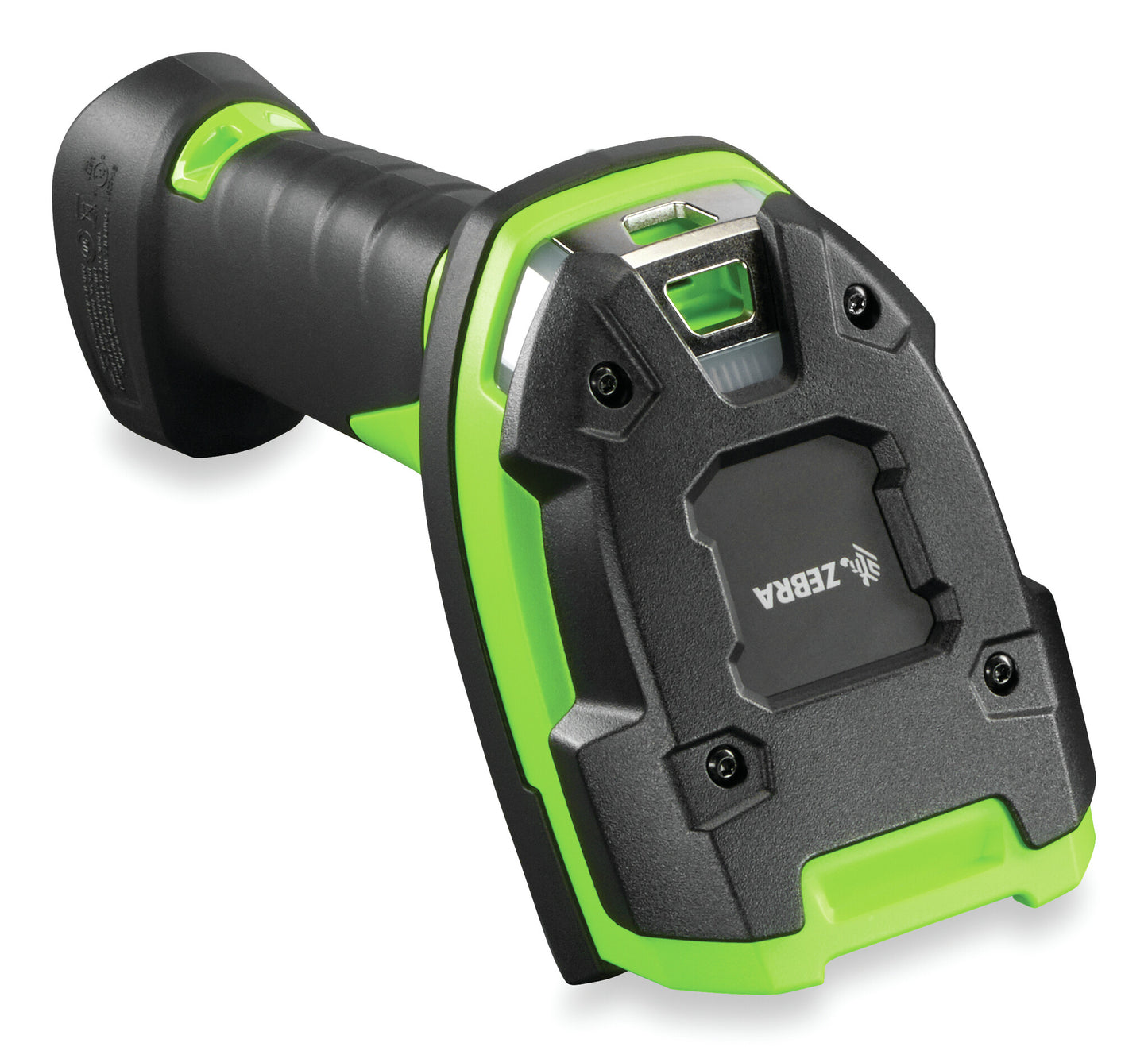

As a member of the Zebra 3600 Ultra-Rugged Series of scanners, the practically indestructible 1D/2D DS3608-DP corded and DS3678-DP cordless scanner brings the dependable lightning-fast capture of virtually every direct part mark to aerospace, automotive and other manufacturing plants where end-to-end traceability of every product component is required.
And since the DS3608-DP and DS3678-DP also captures any 1D and 2D barcode displayed on a screen or printed on a label, you get real value — unstoppable performance in a single flexible device that can meet scanning needs from the assembly line to quality control.
SUPERIOR PERFORMANCE
When it comes to capturing barcodes in the manufacturing plant, the DS3608-DP and DS3678-DP deliver the ultimate in scanning performance — period. Capture direct part marks regardless of size, surface, contrast, density or type — including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And workers can capture any 1D or 2D barcode displayed on a screen or printed on a label in practically any condition for superior barcode capture flexibility in a single scanner.
ULTRA-RUGGED DESIGN
The warehouse and manufacturing plant floor is as tough as its gets. That’s why we created a new product category — the ultra-rugged scanner. The corded and cordless models are the only scanners in this class that are dust-tight, sprayproof and waterproofed to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
UNRIVALED MANAGEABILITY
With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless models and more.
| Scanning | |
|---|---|
| Optical sensor resolution | 1280 pixels |
| Yaw reading angle | -45 - 45° |
| Pitch reading angle | -65 - 65° |
| Tilt reading angle | -65 - 65° |
| Wavelength | 655 nm |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Sensor type | Laser |
| Scanner type | 1D/2D |
| Type | Handheld bar code reader |
| Ports & interfaces | |
|---|---|
| Ethernet LAN | Yes |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Programming function | Yes |
| LED indicators | Yes |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| International Protection (IP) code | IP67 |
| Product colour | Black, Green |
| Power | |
|---|---|
| Number of reads per charge | 100000 |
| Battery capacity | 3100 mAh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power source type | Battery |
| Weight & dimensions | |
|---|---|
| Weight | 304 g |
| Height | 185 mm |
| Depth | 76 mm |
| Width | 132 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -30 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
