Zebex

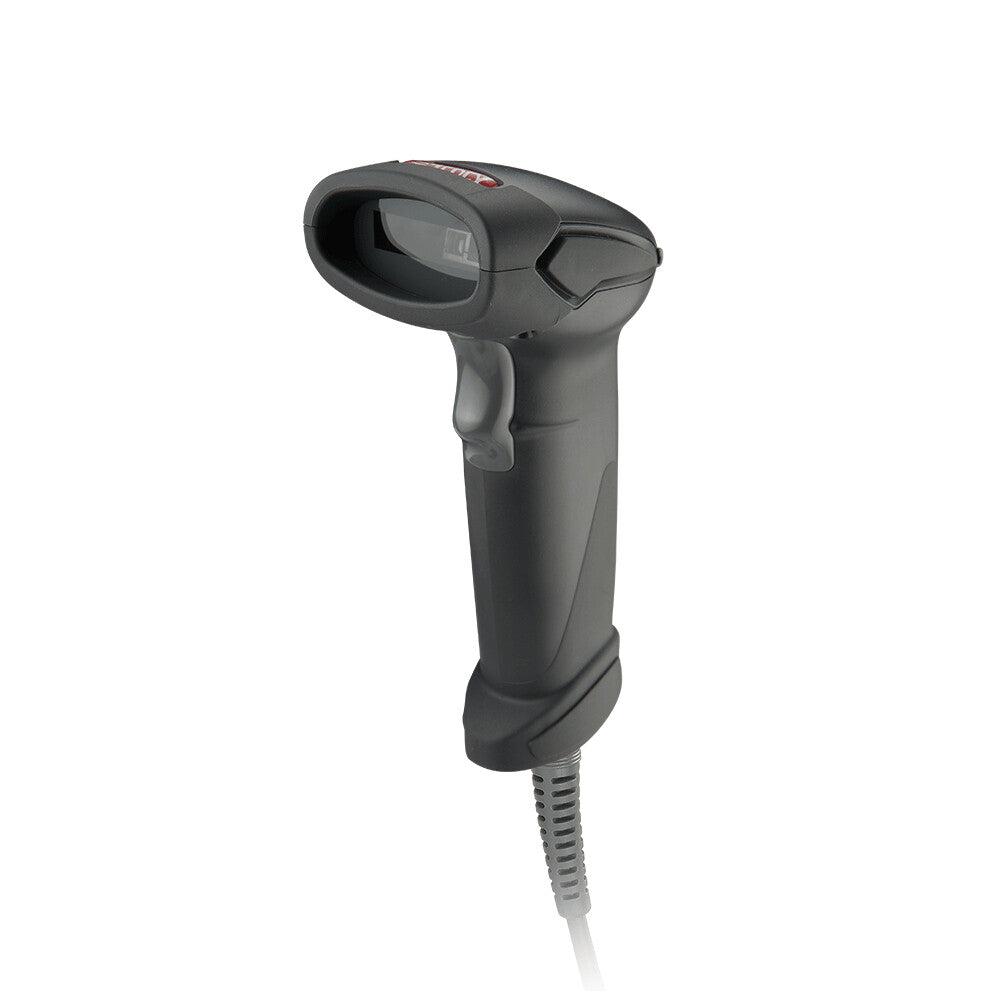

Zebex Z-3190 barcode reader Handheld bar code reader 1D LED Black

R 1,577.34
R 1,577.34
R 1,577.34
Shipping calculated at checkout.

Incl VAT

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
LED, 617 nm, 3 mil, 330 scans, 0.6 W, 110 mA, 5 V

Embedded with ZEBEX most advanced decoding technology, it can recognize most of the popular 1D barcodes on the market including GS1 and DataBar with superior scanning performance as high as 330 scans per second. Built with rugged, gun-type design, Z-3190 has a highly reliable exterior that can survive extremes of temperature and shock and vibration; it also includes ZEBEX’ proprietary decoding technology and firmware within the system, which behave reliably and predictably in all situations.

Scanning
Pitch reading angle 75 - 75°
Wavelength 617 nm
Light levels (direct sunlight) 0 - 1000000 lx
Read rate (max) 330 reads/s
Working distance 61.7 cm
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 Databar Limited, IATA, ISBN, ISSN, Industrial 2 of 5, JAN, MSI, Telepen, U.P.C., UPC-A
2D (matrix & stacked) barcodes supported Not supported
Sensor type LED
Scanner type 1D
Type Handheld bar code reader
Ports & interfaces
Cable length 2 m
Standard interfaces Keyboard wedge, RS-232, USB
Connectivity technology Wired
Performance
Certification CE & FCC DOC compliant, VCCI, BSMI
LED indicators Yes
Housing material Plastic
Product colour Black
Power
Input voltage 5 V
Power consumption (typical) 0.6 W
Power source type DC
Weight & dimensions
Weight 135 g
Height 147 mm
Depth 114.5 mm
Width 62 mm
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Operating relative humidity (H-H) 5 - 95%
