16MB, 64MB DDR2, Dual core MT7628DA, 802.11N, 300Mbps, 2.4GHz

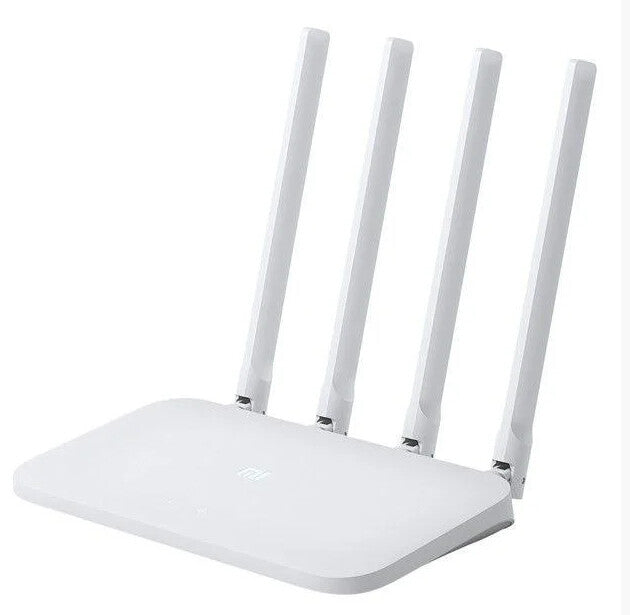

The Xiaomi Mi 4C 300Mbps Wireless Router features 4 omnidirectional external antennas with a signal gain of 5dBi, which can effectively enhance the signal gain effect to improve transmission performance, and can be used easily in various complex real-world environments. With up to 64MB of memory, data transmission is more stable, ensuring the smooth operation of a larger number of functions, and the stable connectivity of more smart devices.
You can choose a router configuration according to the app market or allow the Mi Router 4C to carry out intelligent optimization so that you have a smoother experience playing games, watching videos or browsing the web. For a better online experience, you can also prioritize network bandwidth for a single device.
The majority of unauthorized Wi-Fi access is due to passwords being too simple or network sharing software being installed. The Mi Router 4C can alert you when a new device connects to the network. If a suspicious device tries to join the network, depending on the security level, it will be blocked from connecting, or you will be prompted to add the device to the blacklist if you want to. You can manage your home network at any time using the Mi WiFi app, enabling you to check the status of your home network even when you're out.
FEATURES:
- Wireless speeds of up to 300Mbps
- 4 omnidirectional external antennas
- 64MB memory
- Smart unauthorized access prevention
- Wi-Fi optimization
- Smart control via app
SPECIFICATIONS:
- Processor: MT7628DA
- Internal memory: 64MB DDR2
- 2.4Ghz: Integrated LNA and PA
- 5GHz: Not supported
- Heat dissipation: Natural heat dissipation
- Operating humidity: 10%–90% RH (no condensation)
- Storage humidity: 5%–90% RH (no condensation)
- Protocol standards: IEEE 802.11b/g/n, IEEE 802.3/3u
- ROM: 16MB NorFlash
- 2.4GHz Wi-Fi: 2x2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps)
- 5GHz Wi-Fi: Not supported
- Antennas: 4x external single band antennas
- Signal band: 2.4GHz
- Modulation: 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps), 11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps), 11n: MIMO-OFDM: BPSK,
- QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15
- Reception sensitivity: 11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm
- Operating system: Mi WiFi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software
- Wireless security: WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding
- Management application: Supports web, iOS, and Android
- Dimensions: 18.8 x 10 x 17.5 cm
WHAT'S IN THE BOX:
- Xiaomi Mi 4C 300Mbps Wireless Router - White x1
- Power Adapter x1
- User Manual x1
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
Yes |
| Wireless LAN features |
|---|
| WLAN data transfer rate (max) |
300 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Network |
|---|
| Number of guest networks (2.4 GHz) |
13 |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3u |
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 3G |
No |
| 4G |
No |
| Management features |
|---|
| Reset button |
Yes |
| Web-based management |
Yes |
| Protocols |
|---|
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| Housing material |
Acrylonitrile butadiene styrene (ABS) |
| Product colour |
White |
| Product type |
Tabletop router |
| Antenna |
|---|
| Antenna gain level (max) |
4 dBi |
| Antenna design |
External |
| Features |
|---|
| Processor cores |
2 |
| Built-in processor |
Yes |
| Power |
|---|
| Power source type |
AC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Minimum RAM |
64 MB |
