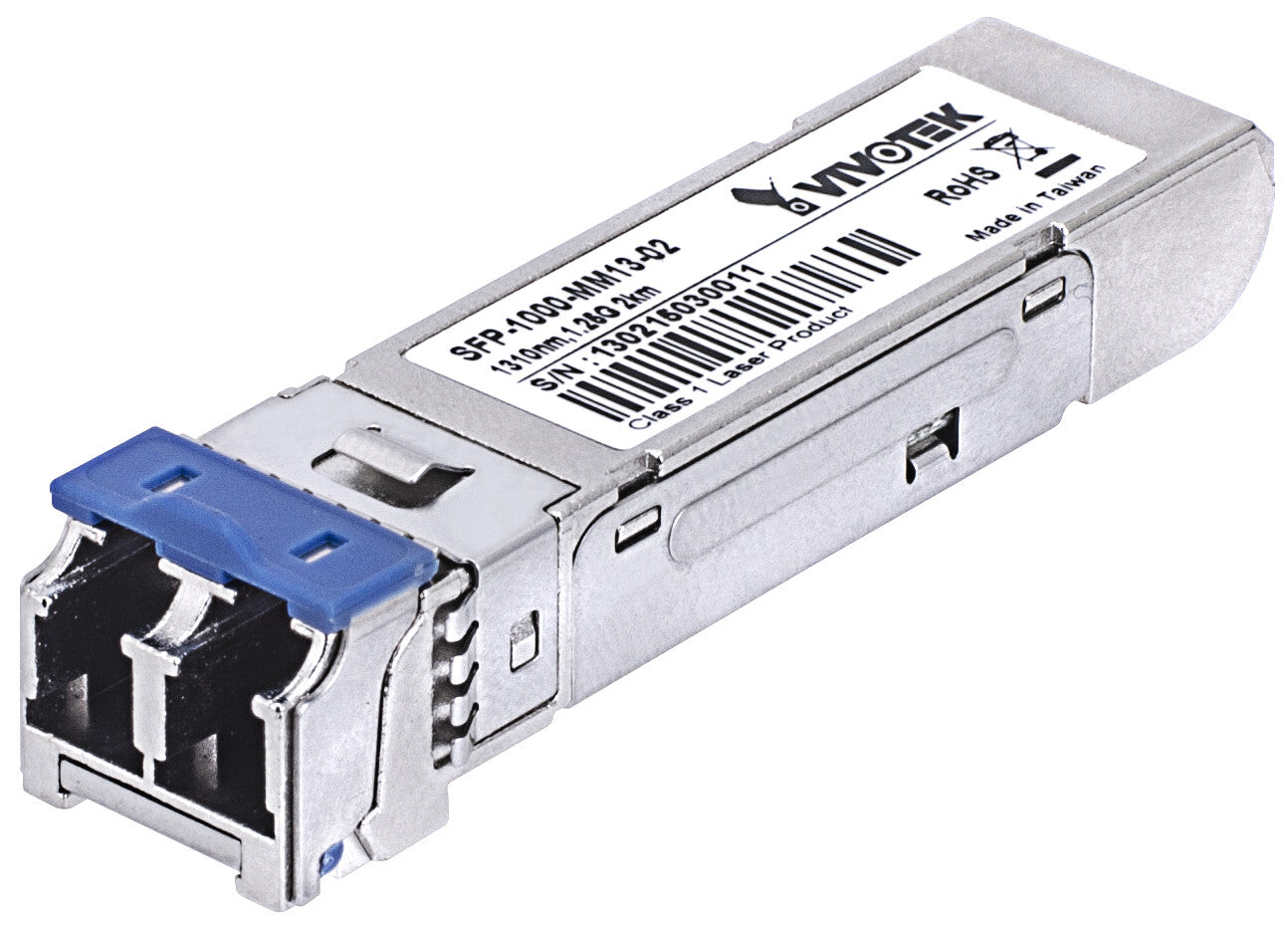

VIVOTEK SFP-1000-MM13-02 network transceiver module Fiber optic 1250 Mbit/s 1310 nm
R 697.07
Regular price
R 697.07
Sale price
R 697.07
Regular price
Unit price
per
Shipping calculated at checkout.
Incl VAT
Couldn't load pickup availability
SFP, 1.25 Gbit/s, 1310 nm, 2km, MMF, LC connector
VIVOTEK Multimode SFP Module
| Performance | |
|---|---|
| Rx power (min) | -20 dBmW |
| Tx power (max) | -5 dBmW |
| Tx power (min) | -15 dBmW |
| Wavelength | 1310 nm |
| Maximum transfer distance | 2000 m |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Fiber optic connector | LC |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP |
| Maximum data transfer rate | 1250 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | IEC 825, EN60825-1, FDA 21 CFR 1040.10, 1040.11 |
| Power | |
|---|---|
| Maximum voltage | 3.3 V |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 12.4 mm |
| Depth | 14.7 mm |
| Width | 55.9 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
