2MP, 1/2.9", CMOS, 1920 x 1080, 2.8 - 12 mm, 48x digital zoom, Fast LAN, IP66 / IK10, 738 g

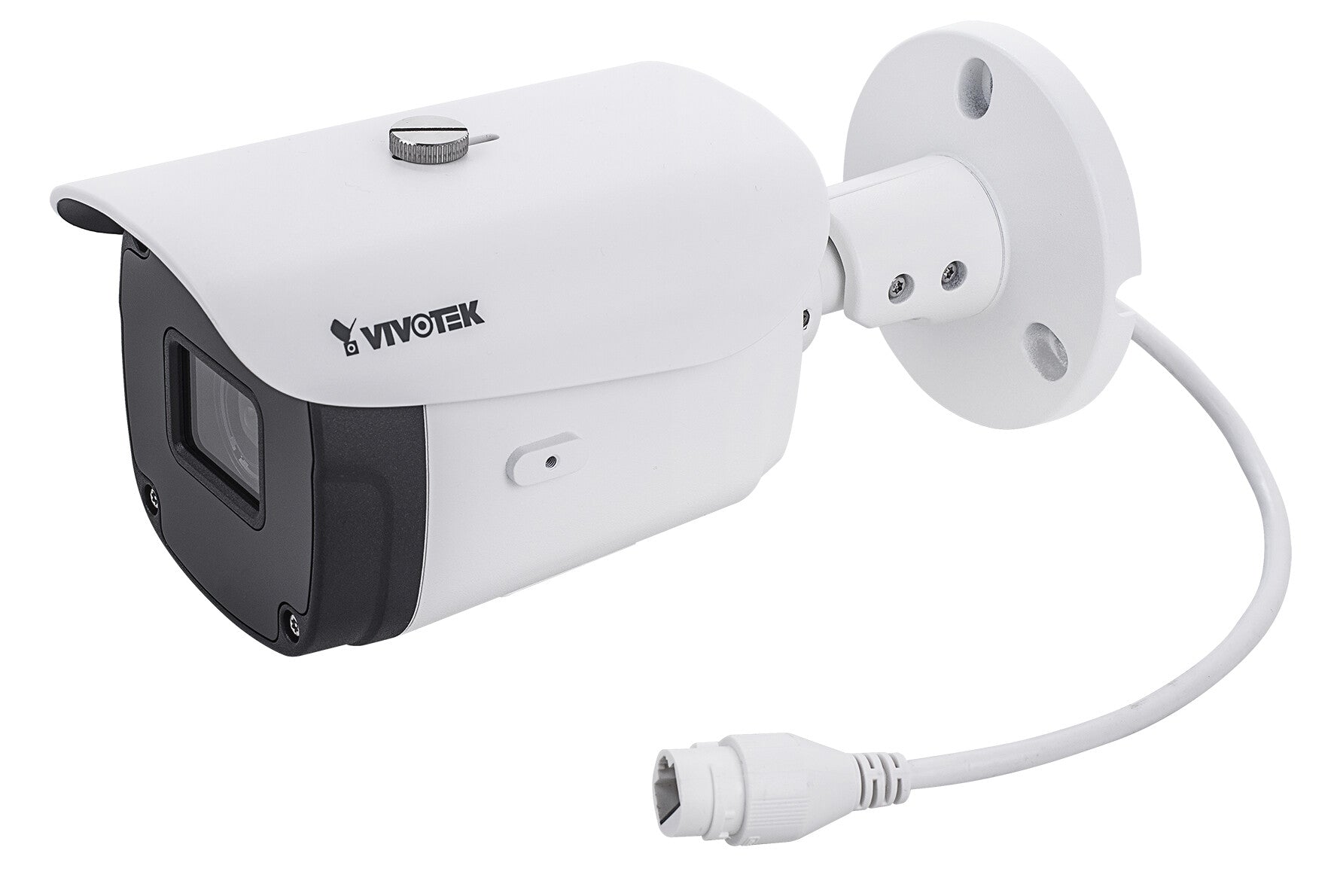

VIVOTEK’s IB9368-HT is a H.265 outdoor bullet network camera equipped with a 2-Megapixel sensor, enabling resolution of 1920x1080 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9368-HT is capable of capturing high-quality imagery in both high contrast and low light environments.
The IB9368-HT deploys a remote focus lens for different user scenarios. IR illuminators are equipped with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9368-HT is encased in robust IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9368-HT is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the everexpanding number of user scenarios in a diversifying surveillance market.
| Performance |
|---|
| Certification |
CE, FCC Class B, UL, LVD, VCCI, C-Tick |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| LED indicators |
Power, Status, System |
| Product colour |
Black, White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
|---|
| Camera shutter speed |
1/5 - 1/32000 s |
| Tilt angle range |
0 - 90° |
| Lens viewing angle, diagonal |
110° |
| Lens viewing angle, vertical |
50° |
| Lens viewing angle, horizontal |
93° |
| Angle of rotation |
180° |
| Minimum illumination |
0.055 lx |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Maximum aperture number |
2.8 |
| Minimum aperture number |
1.4 |
| Focus |
Motorized |
| Focal length range |
2.8 - 12 mm |
| Digital zoom |
48x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
|---|
| Number of illumination LEDs |
2 |
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Image quality adjustment |
Brightness, Contrast, Saturation, Sharpness |
| Flip & mirror |
Yes |
| Privacy masking |
Yes |
| Time stamp overlay |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Supported video modes |
1080p |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Video compression formats |
H.264, H.265, M-JPEG |
| Total megapixels |
2 MP |
| Maximum resolution |
1920 x 1080 pixels |
| Audio |
|---|
| Signal-to-Noise Ratio (SNR) |
68 dB |
| Network |
|---|
| Quality of Service (QoS) support |
Yes |
| Number of users |
10 user(s) |
| Supported network protocols |
802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP, ONVIF |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Ethernet interface type |
Fast Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Internal memory |
256 MB |
| Flash memory |
128 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Video motion detection |
Yes |
| Active tampering alarm |
Yes |
| Management features |
|---|
| Web browser |
Yes |
| Web-based management |
Yes |
| Power |
|---|
| Power consumption (max) |
12.95 W |
| Power consumption (typical) |
9 W |
| Power source type |
PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
-30 - 60 °C |
| System requirements |
|---|
| Mac operating systems supported |
Mac OS X 10.12 Sierra |
| Windows operating systems supported |
Windows 7, Windows 8 |
| Weight & dimensions |
|---|
| Weight |
738 g |
| Height |
85 mm |
| Depth |
85 mm |
| Width |
214.5 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Number of cameras |
1 |
