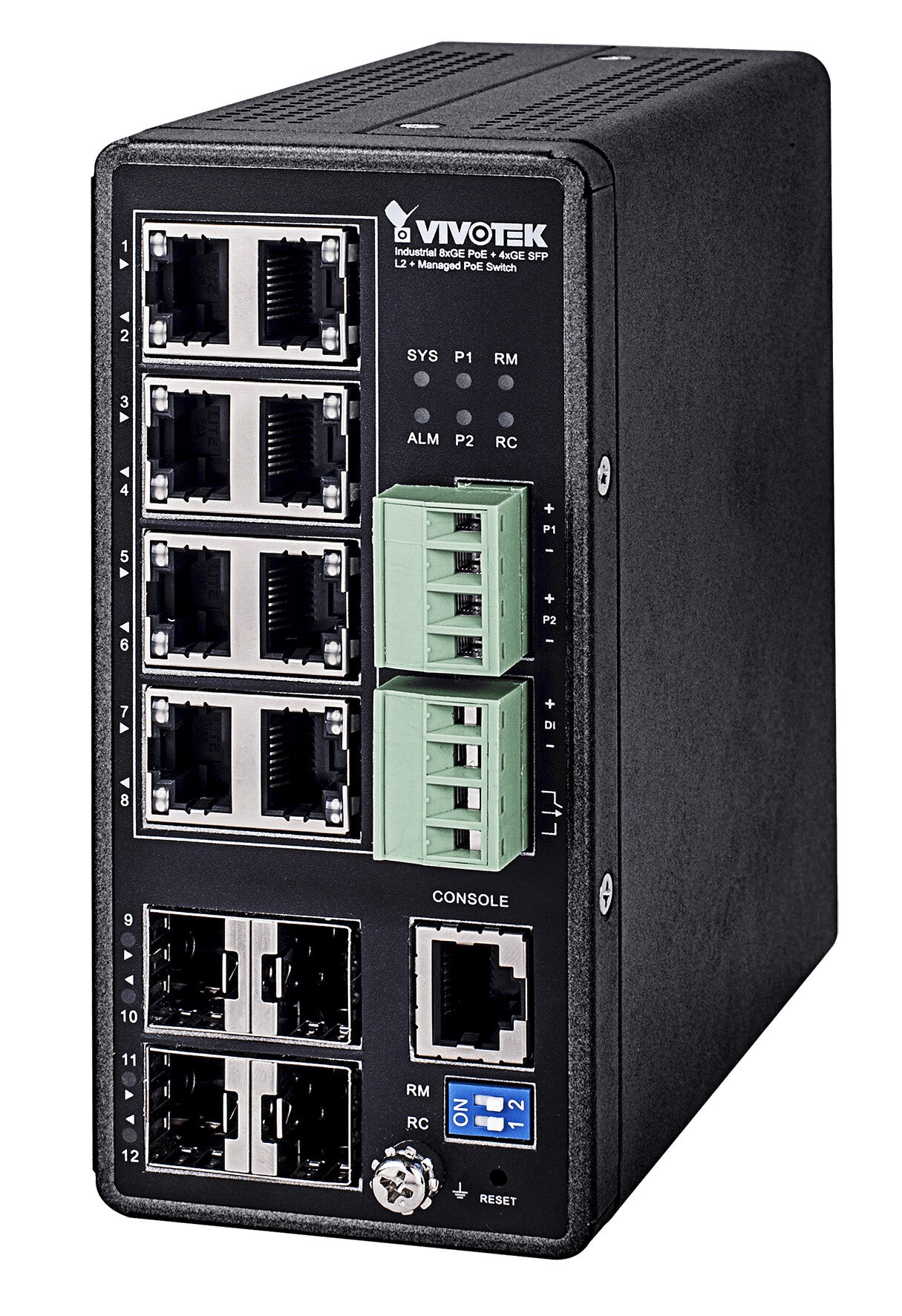

Industrial VivoCam L2+ Managed PoE Switch
The AW-IHT-1271 is an Industrial 8-port Gigabit PoE port (Supports 802.3 at/af, and total up to 240W) + 4-port Gigabit SFP L2 plus managed PoE switch with a wide operating temperature range from -40°C to 75°C and supports surge protection per port up to 6KV. The AW-IHT-1271 combines high hardware performance and environmental flexibility for use in outdoor surveillance, outdoor telecom, heavy industry, factory automation and transportation applications.
The AW-IHT-1271 supports surveillance features such as Topology/Floor/Map views for controlling, understanding network topology and device status. It not only features surveillance network environment set up functions, but also troubleshooting and traffic monitoring functions which help users to clarify and troubleshoot any connection and device issue. In addition, the AW-IHT-1271 also supports Rapid ring, a redundancy proprietary protocol with convergence time within 20ms and up to 250 switches.
| Management features |
|---|
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Installed SFP modules quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
|---|
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| Data transmission |
|---|
| Jumbo frames |
9600 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Number of queues |
8 |
| Forwarding rate |
17856 Mpps |
| Switching capacity |
24 Gbit/s |
| MAC address table |
8000 entries |
| Security |
|---|
| Security algorithms |
802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Loop protection |
Yes |
| IP-MAC-Port binding |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication type |
IEEE 802.1x |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP server, DHCP snooping |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Management protocols |
SNMP v1/v2c/v3ACL |
| Design |
|---|
| Certification |
EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMFFCC Part 15 Class A CE, LVD, VCCIIEC 60068-2-6IEC 60068-2-27IEC 60068-2-32 |
| LED indicators |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power protection features |
Over current, Short circuit |
| DC input voltage |
48 - 57 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
240 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Weight & dimensions |
|---|
| Weight |
680 g |
| Height |
135 mm |
| Depth |
130 mm |
| Width |
62 mm |
