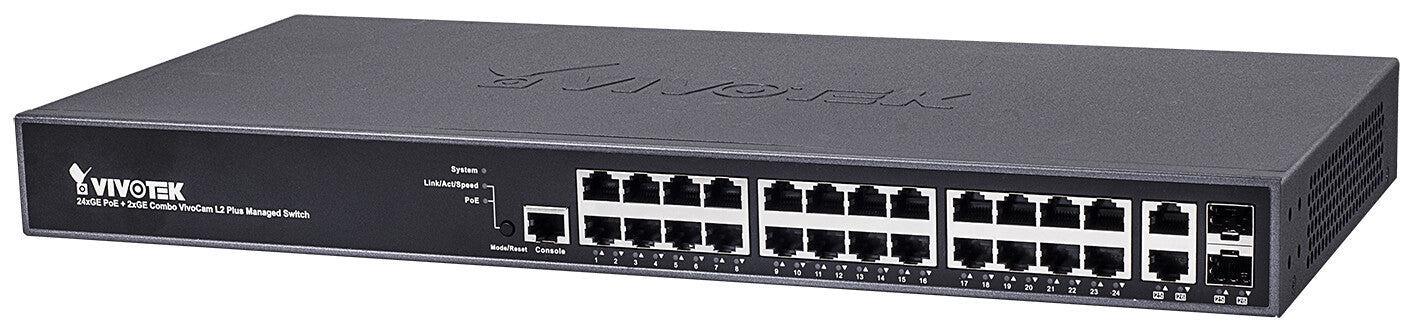

L2+ Managed PoE Switch, 24xGE PoE, 2xGE Combo, 1xRJ45 Console
The VivoCam L2+ series is the Layer 2 Plus managed PoE switch with IP surveillance management functions. This switch is not only a standard Layer 2 Plus managed PoE switch, but also able to set up and configure VIVOTEK IP cameras, Video servers and allows users to find all VIVOTEK devices and deploy a surveillance network system automatically.
The VivoCam L2+ series, also features Graphic View, such as Topology/Map view for controlling and understanding network structure and device situation, and Google Map integration to view system situation status for outdoor applications. It not only features surveillance network environment set up functions, but troubleshooting and traffic monitoring functions also help users to clarify and troubleshoot any connection or device issue. In addition, users can also import and export their VIVOTEK IP camera/Video server configuration files, and batch VIVOTEK cameras firmware upgrade through the VivoCam L2+ Managed PoE switch Web UI. With all of these features and more, the VivoCam L2+ series, is the best PoE solution to install and manage your VIVOTEK surveillance devices.
| Management features |
|---|
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Console port |
RJ-45 |
| Combo SFP ports quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Number of VLANs |
4096 |
| Virtual LAN features |
IP subnet–based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Data transmission |
|---|
| Jumbo frames |
9600 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Throughput |
38.68 Mpps |
| Switching capacity |
52 Gbit/s |
| Security |
|---|
| Security algorithms |
HTTPS, SSH, SSL/TLS |
| Loop protection |
Yes |
| IP-MAC-Port binding |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN |
| Authentication type |
IEEE 802.1x |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP server, DHCP snooping |
| Protocols |
|---|
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6 |
| Management protocols |
SNMP (v1, v2c, v3) |
| Design |
|---|
| Certification |
CE, FCC, LVD, VCCI, C-Tick |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
|---|
| Power protection features |
Over current |
| Power consumption (typical) |
430 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) voltage |
54 V |
| Power over Ethernet (PoE) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
3.1 kg |
| Height |
44 mm |
| Depth |
211 mm |
| Width |
442 mm |
