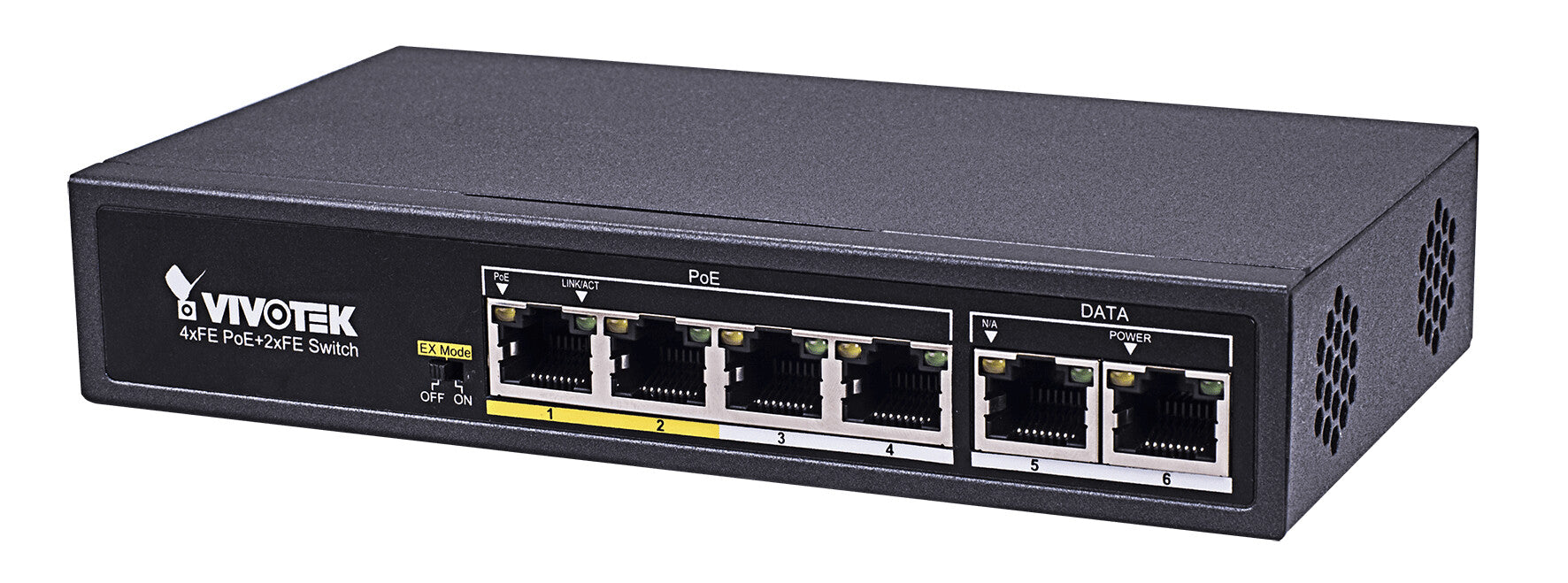

VIVOTEK AW-FET-060C-065 network switch Fast Ethernet (10/100) Power over Ethernet (PoE) Black

R 1,028.10
R 1,028.10
R 1,028.10
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Low stock! Only 6 left
Unmanaged 4 x FE PoE & 2 x FE UTP Switch

VIVOTEK’s FE unmanaged PoE switches quipped with DIP switch provides ST STandard and EX EXtend operational modes. They are specially designed for IP Surveillance applications. Besides
standard 802.3af/at PoE functions in ST mode, the EX mode also transmits data & power on one single cable up to 200 meters at 10 Mbps via specific EX ports for long reach PoE IP cameras.
VIVOTEK’s FE unmanaged PoE switches also feature adding an additional 10% range of input voltage tolerance (280VAC 4hr, 300VAC 1min), lightning surge protection of AC power & PoE
surge protection to prevent damage caused by outside unstable AC power, lightning strikes and power spikes. These unique features help to reduce the costs of replacing damaged units.
VIVOTEK’s FE unmanaged PoE switches provide five sub models consisting of 6, 10, 10,18 and 26 ports with a range of power budgets from 60W to 370W for IP surveillance applications.

Ports & interfaces
Fast Ethernet (copper) ports quantity 6
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity 6
Network
VLAN support No
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Full duplex Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX
10G support No
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Data transmission
Jumbo frames 1536
Jumbo frames support No
Switching capacity 1.2 Gbit/s
MAC address table 2048 entries
Design
Certification CE, FCC, VCCI, C-Tick Class AEN60950-1, IEC60950-1
Product colour Black
Rack mounting No
Power
Surge protection voltage 4 kV
Surge protection Yes
AC input voltage 100 - 240 V
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 60 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 500 g
Height 32 mm
Depth 94.1 mm
Width 168 mm
