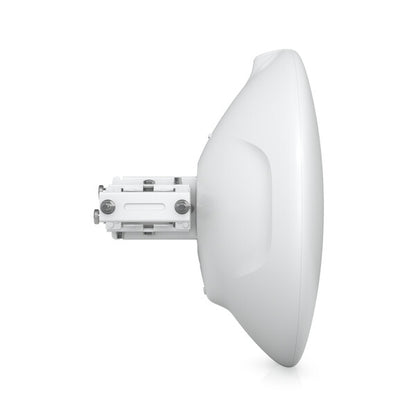

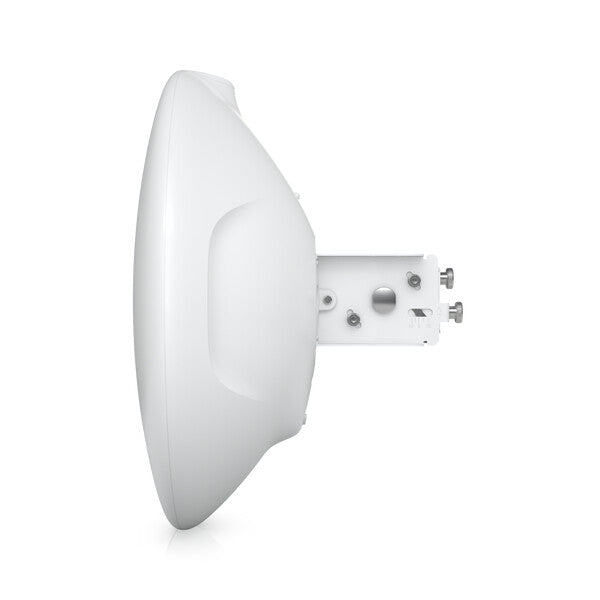

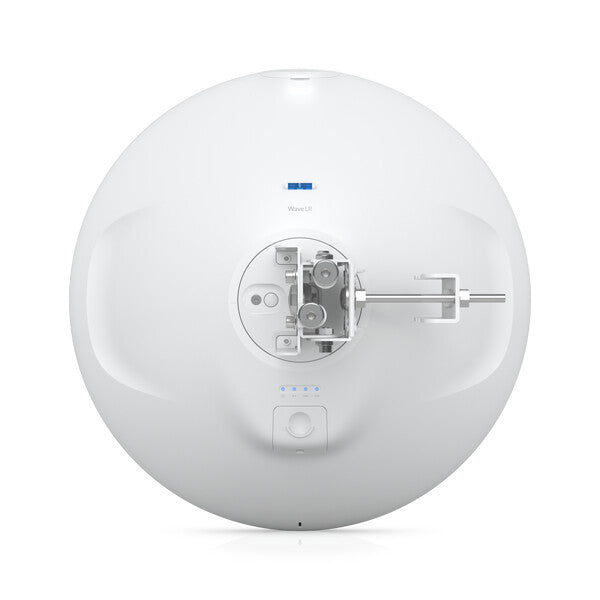

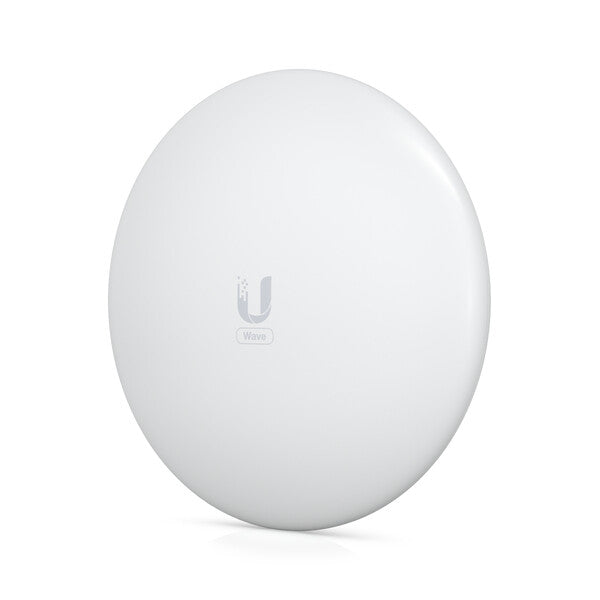

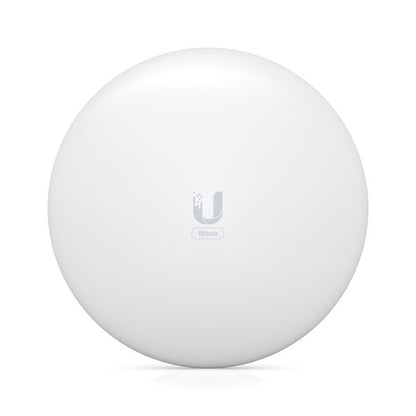

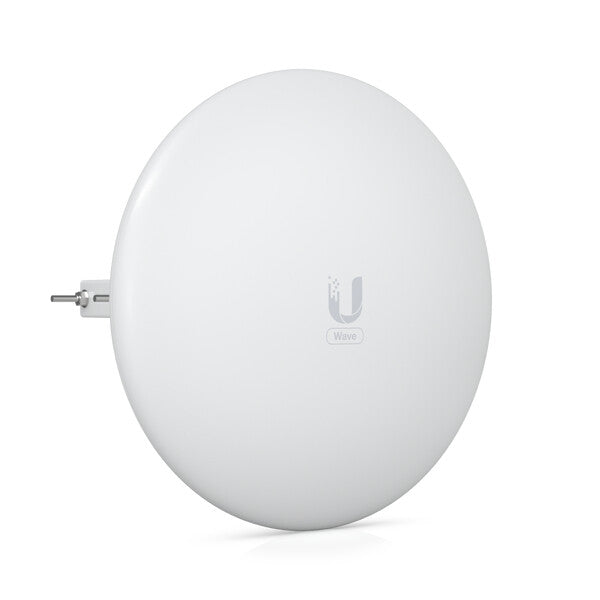

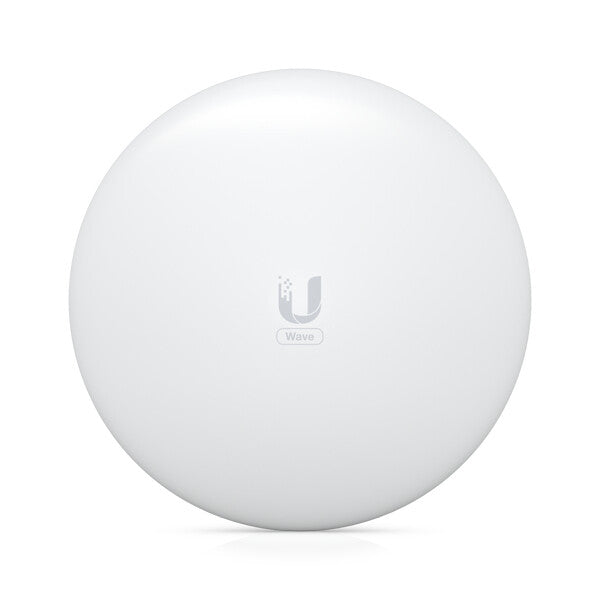

60 GHz PtMP station, 8km max
60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
| Data transmission |
|---|
| Maximum transfer distance |
8000 m |
| Antenna |
|---|
| Antenna gain level (max) |
46 dBi |
| Wireless LAN features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Wi-Fi band |
Single-band (60 GHz) |
| Wi-Fi |
Yes |
| Network |
|---|
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
AES, WPA2-PSK |
| Management features |
|---|
| Web-based management |
Yes |
| Features |
|---|
| Internal memory |
512 MB |
| Reset button |
Yes |
| International Protection (IP) code |
IPX6 |
| LED indicators |
Yes |
| Product colour |
White |
| Rack mounting |
No |
| Mounting type |
Pole |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (max) |
18 W |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 60 °C |
| Certificates |
|---|
| Certification |
FCC, ICE |
| Compliance certificates |
CE |
| Weight & dimensions |
|---|
| Weight |
2.59 kg |
| Height |
424.4 mm |
| Depth |
166.2 mm |
| Width |
424.4 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
