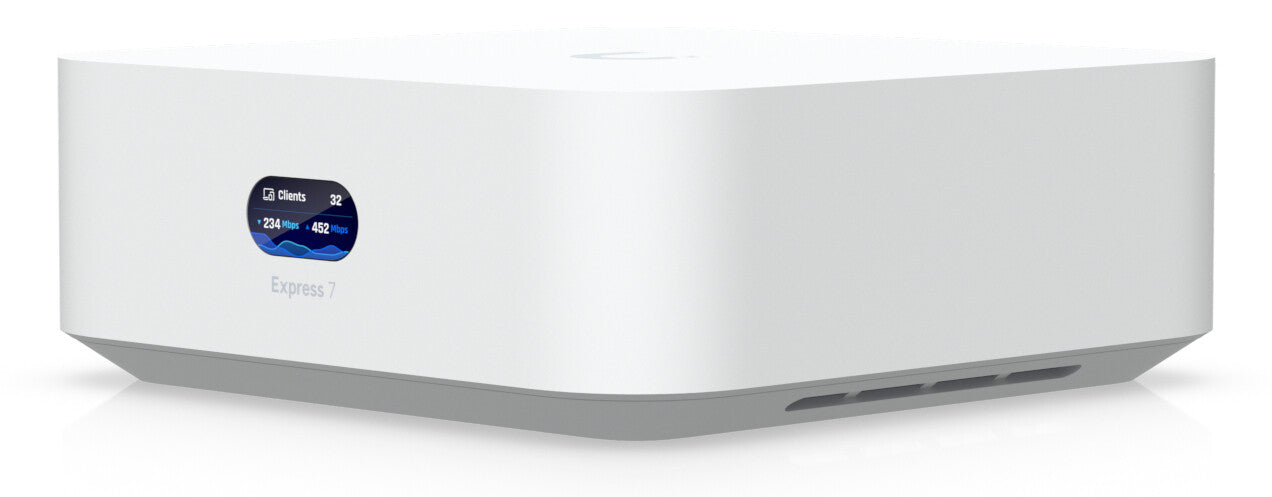

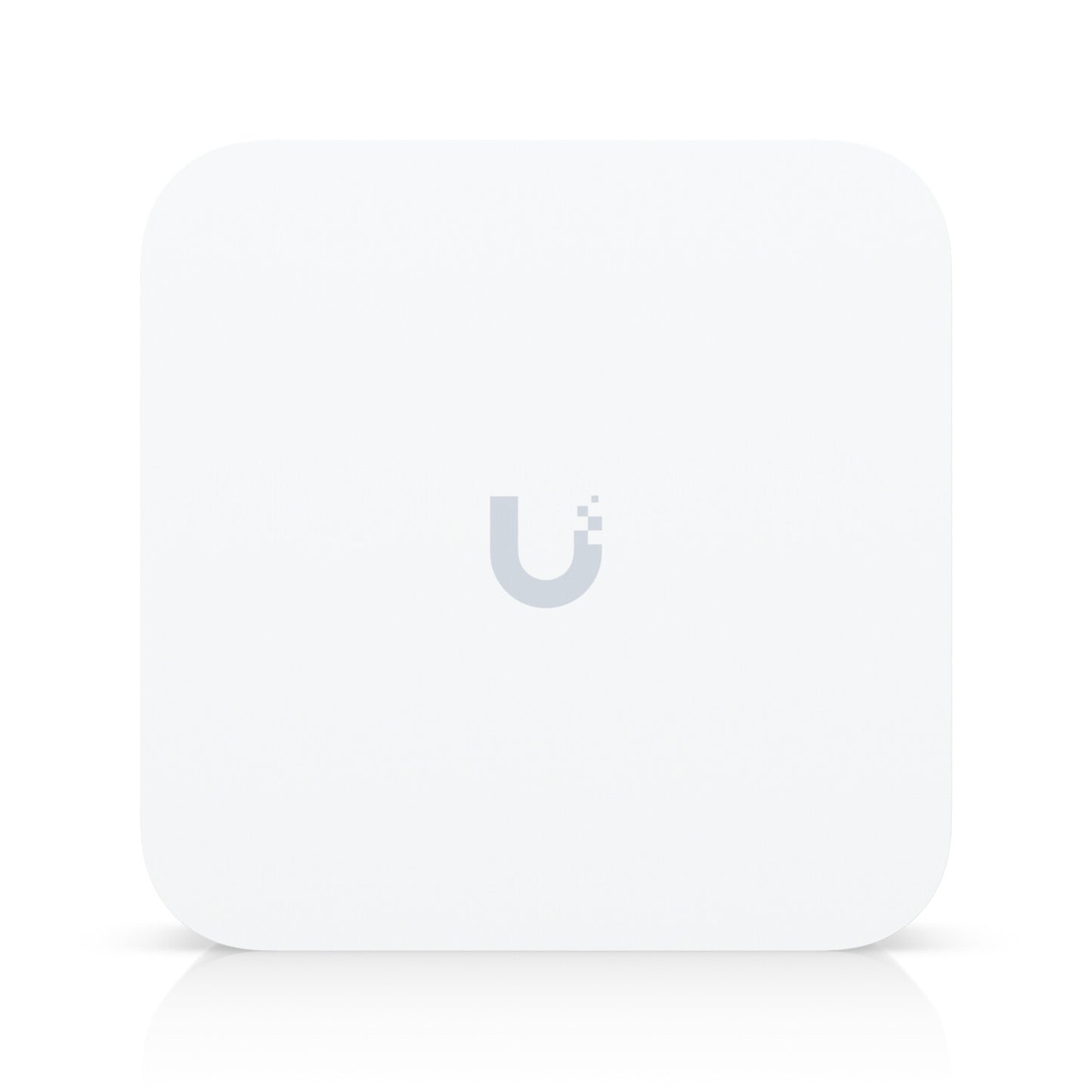

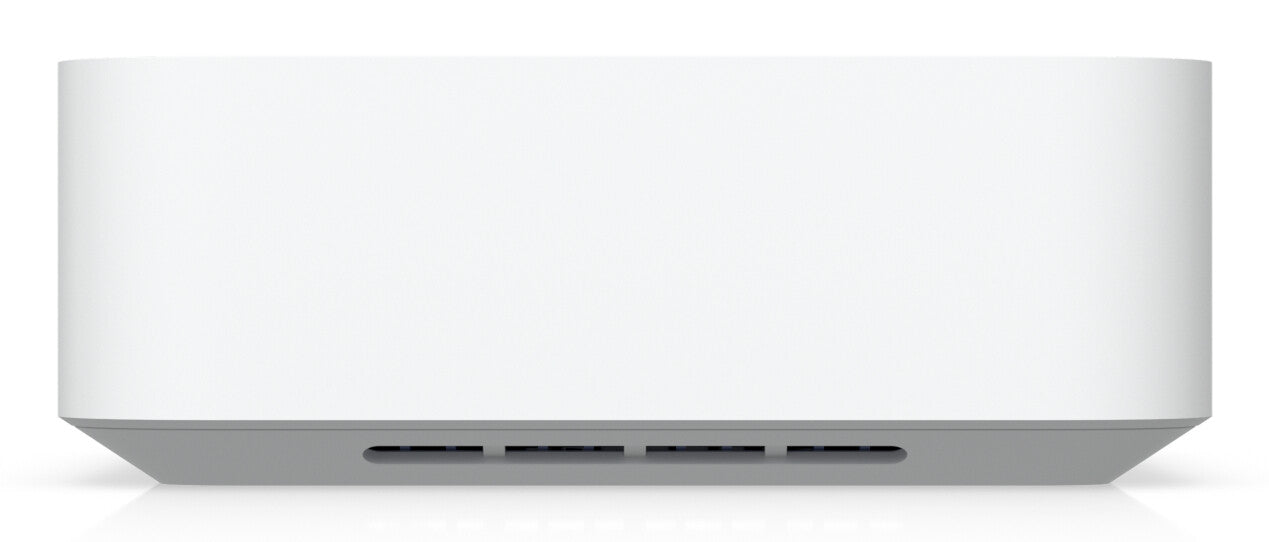

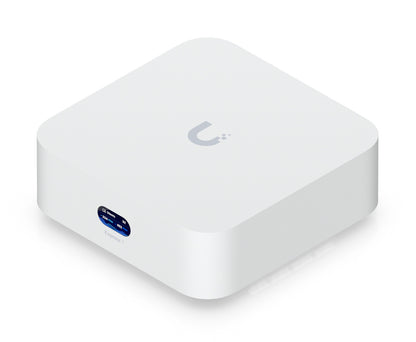

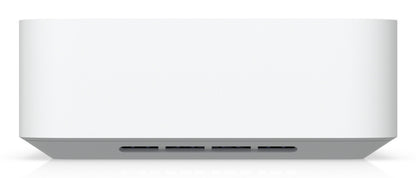

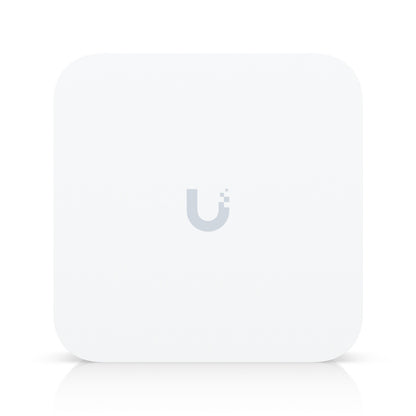

Quad-core ARM Cortex-A53 at 1.5 GHz, 3 GB memory, 10G SFP+, 10 GbE RJ45, 2.5 GbE RJ45, WiFi 7, Bluetooth, 22W, 117 x 117 x 42.5 mm
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
| Design |
|---|
| LED indicators |
Status |
| Enclosure material |
Polycarbonate (PC) |
| Product colour |
White |
| Features |
|---|
| Antennas quantity |
4 |
| Antenna gain level (max) |
6 dBi |
| Antenna type |
Internal |
| Performance |
|---|
| Internal memory |
3000 MB |
| Number of processors installed |
1 |
| Processor frequency |
1500 MHz |
| Built-in processor |
Yes |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Processor model |
Cortex-A53 |
| Display type |
LCM |
| Control display unit |
Yes |
| Protocols |
|---|
| Routing protocols |
OSPF |
| DHCP server |
Yes |
| Network |
|---|
| Data transfer rate |
5.7 Gbit/s |
| Wireless connection |
Yes |
| Load balancing |
Yes |
| Frequency band |
2.4, 5, 6 GHz |
| Bluetooth |
Yes |
| WLAN data transfer rates supported |
1,2,5.5,6,6.5,9,11,12,18,24,36,48,54,300 Mbit/s |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.1Q |
| Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
| Security |
|---|
| Firewall security |
Yes |
| VLAN support |
Yes |
| Security algorithms |
802.1x RADIUS, IPSec, PPSK, TLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
|---|

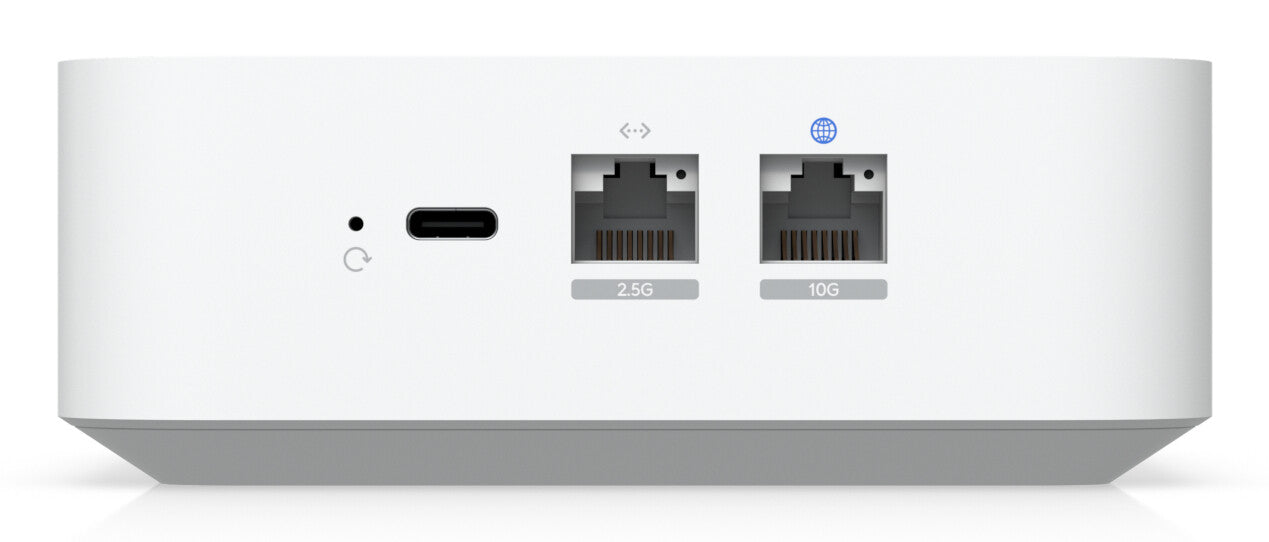

| Ethernet LAN (RJ-45) ports |
2 |
| WAN connection |
Ethernet (RJ-45) |
| Management features |
|---|
| Multicast support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Reset button |
Yes |
| Power |
|---|
| Electromagnetic (EMP) protection (contact) |
4 kV |
| Electromagnetic (EMP) protection (air) |
8 kV |
| Electromagnetic (EMP) protection |
Yes |
| Input current |
5 A |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
22 W |
| Weight & dimensions |
|---|
| Weight |
422 g |
| Width |
117 mm |
| Depth |
117 mm |
| Height |
42.5 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45), Power |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
| Display |
|---|
| Display diagonal |
2.44 cm (0.96") |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
