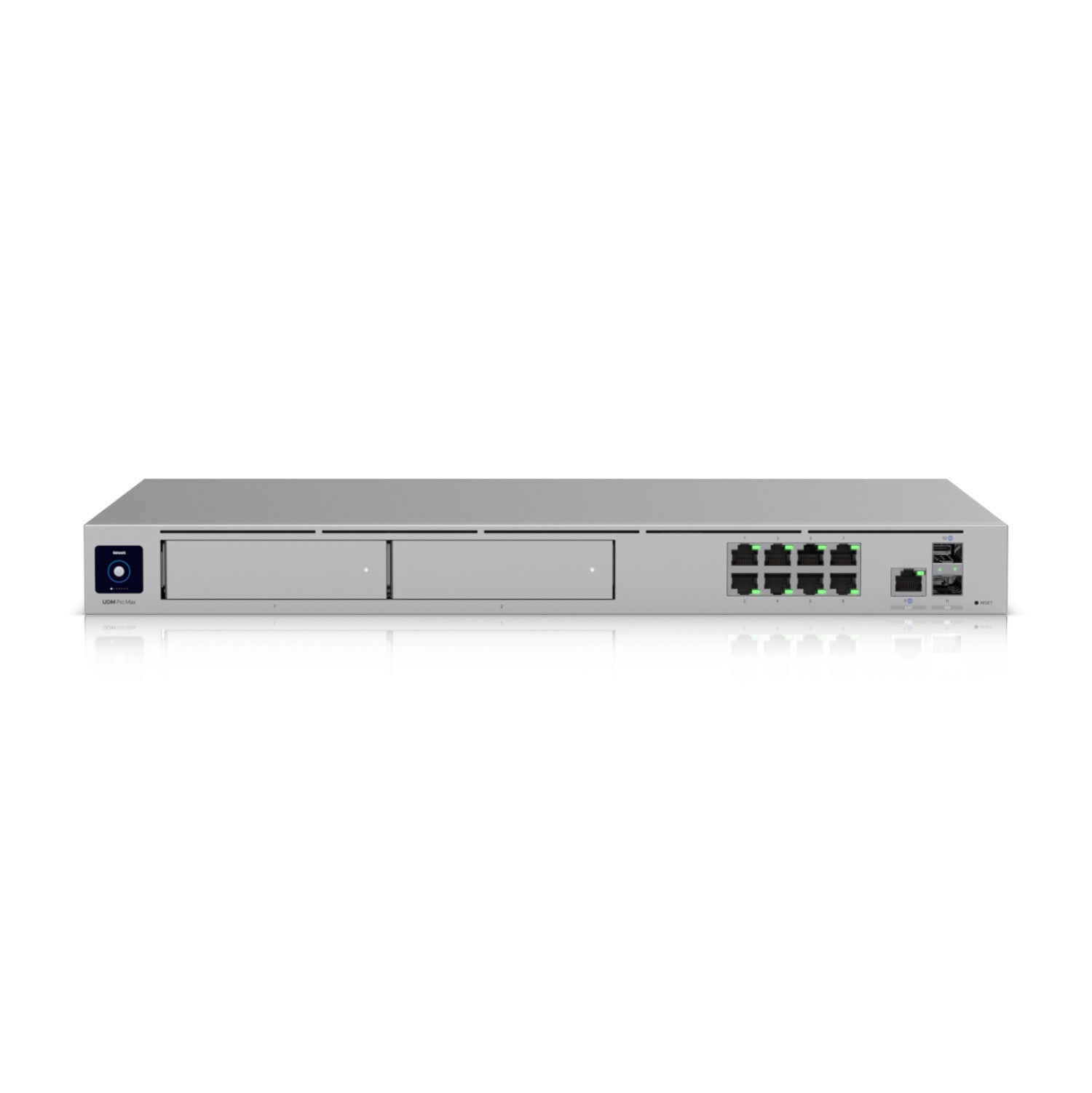

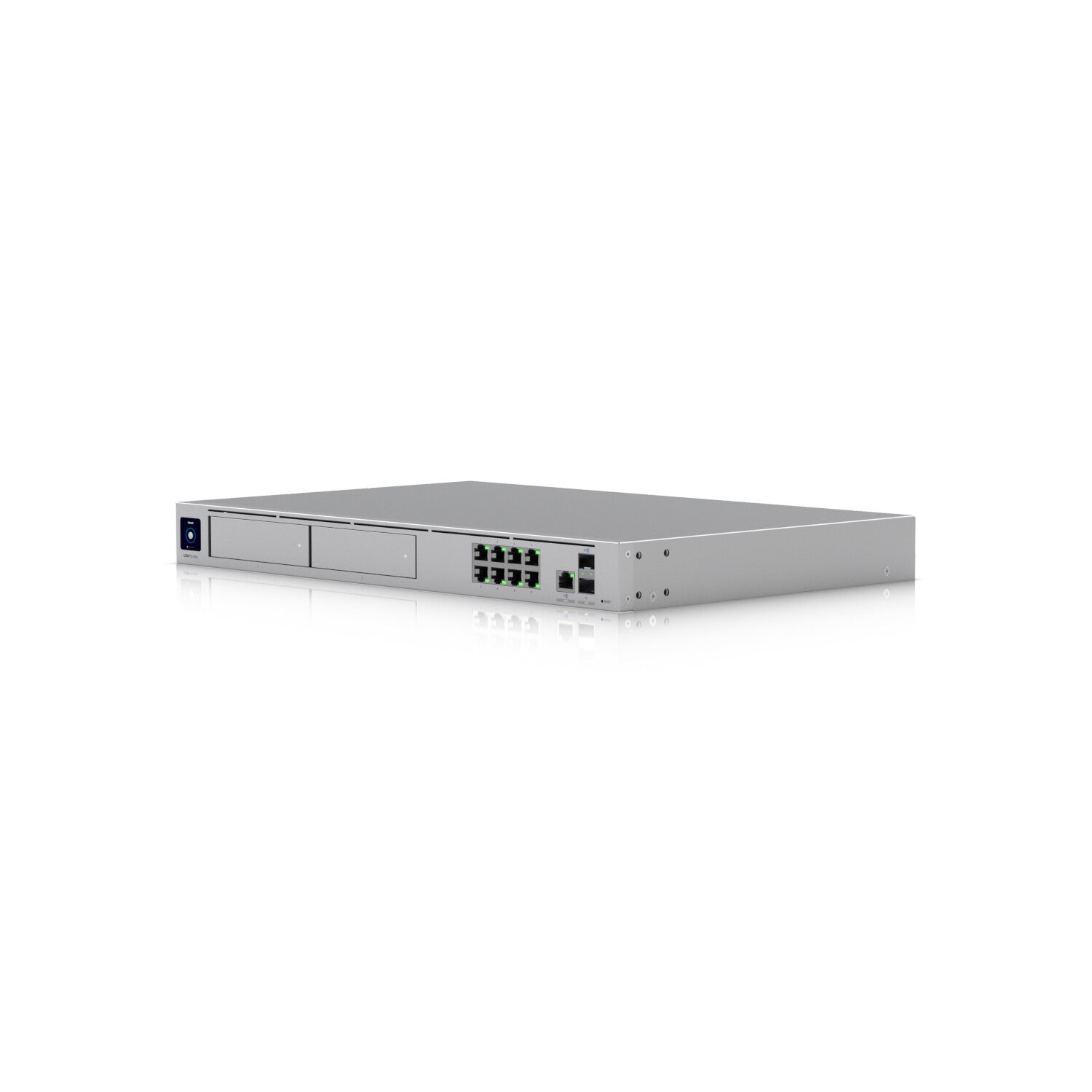

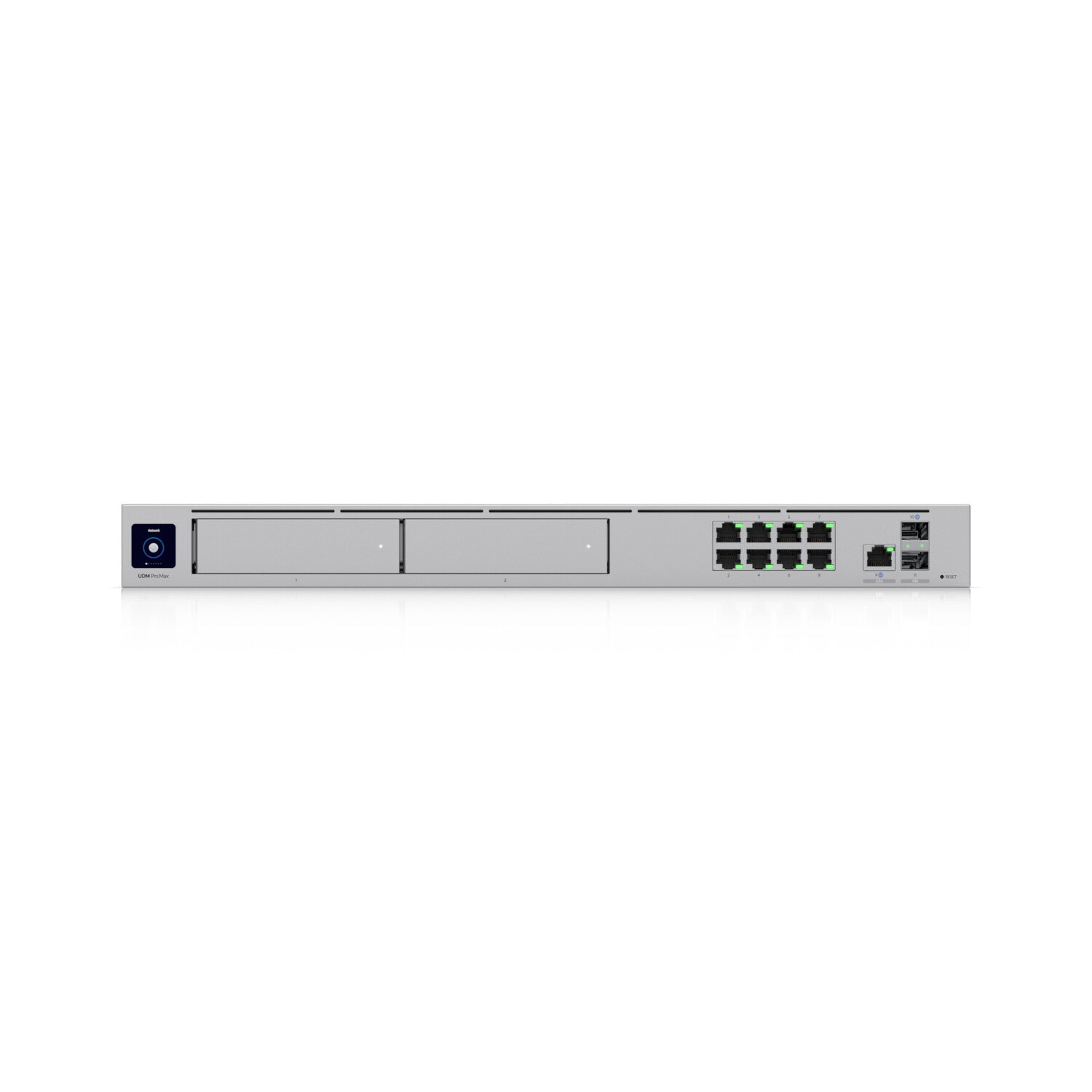

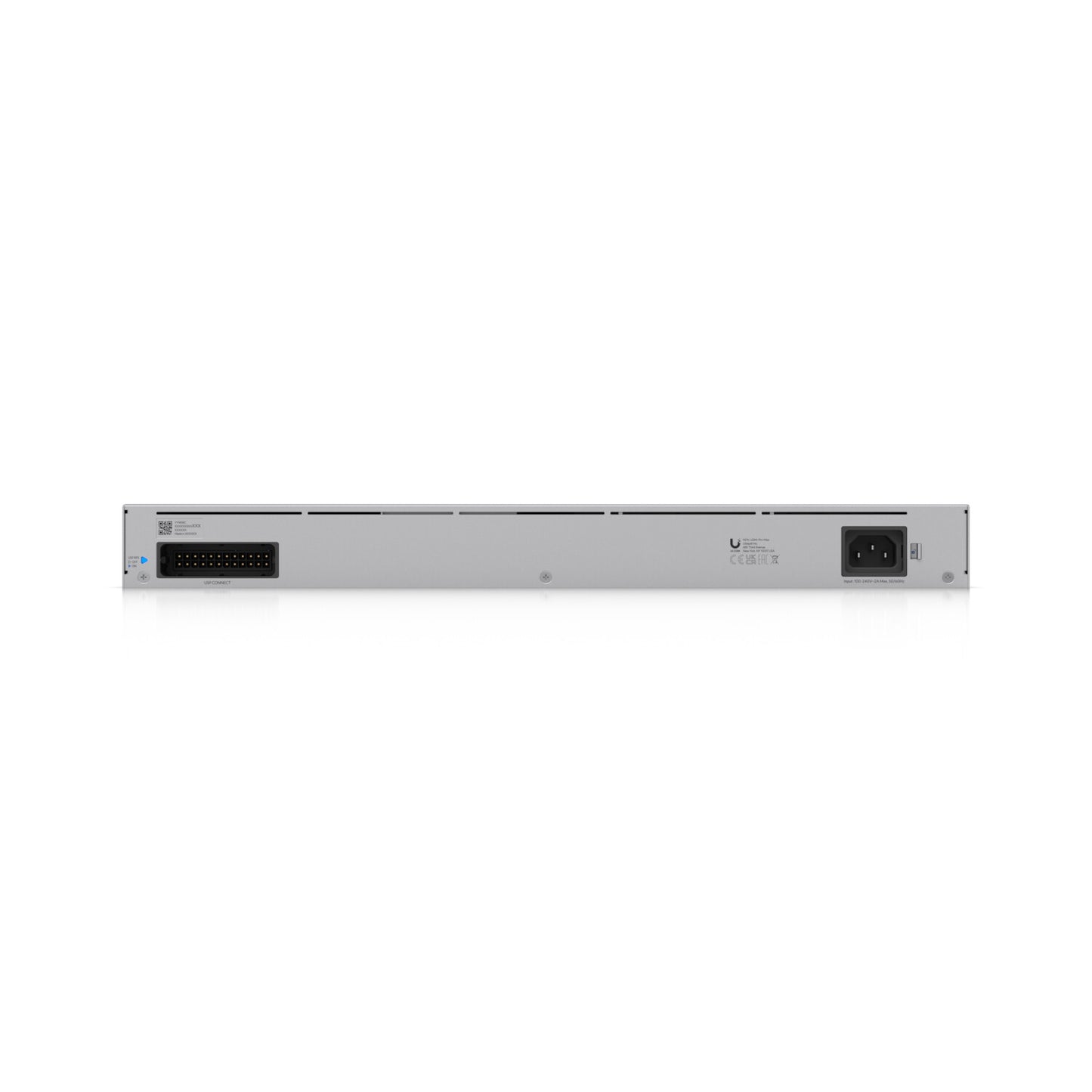

10 Gbps SFP+ LAN / WAN, 8x GbE RJ45 LAN, 2.5 GbE RJ45 WAN, 2x 3.5" NVR HDD bays, 128 GB SSD, 1.3" screen, Aluminium CNC, SGCC steel, EU
Professional-grade, rack-mount Cloud Gateway with 10 Gbps performance, multi-WAN load balancing, and two NVR drive bays designed for large-scale, multi-application UniFi sites.
| Packaging content |
|---|
| User guide |
Yes |
| Rack mount kit |
Yes |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| SFP+ module slots quantity |
2 |
| 2.5G Ethernet (copper) ports quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Network |
|---|
| Virtual LAN features |
IP subnet–based VLAN |
| VLAN support |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Policy-based routing |
Yes |
| 10G support |
Yes |
| Security |
|---|
| IGMP proxy |
Yes |
| DHCP features |
DHCP relay, DHCP server |
| Design |
|---|
| Display type |
LCM |
| LED indicators |
Activity, Error, Link, Ready |
| Reset button |
Yes |
| Housing material |
Aluminium, Galvanized steel |
| Product colour |
Grey |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| General |
|---|
| Product family |
UniFi |
| Performance |
|---|
| Flash memory |
32000 MB |
| Internal memory |
8000 MB |
| Memory type |
DDR4-SDRAM |
| Processor frequency |
2000 MHz |
| Processor model |
ARM Cortex-A57 |
| Built-in processor |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Power |
|---|
| Power consumption (max) |
60 W |
| Input current |
2 A |
| DC input voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
1 |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
4.7 kg |
| Height |
43.7 mm |
| Depth |
285.6 mm |
| Width |
442.4 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Cables included |
AC |
