BLE 4.1, NFC, PoE, 1x 10/100 MbE RJ45 port, 48V DC, 5W, Proximity sensor, Polycarbonate, glass, IP55, black

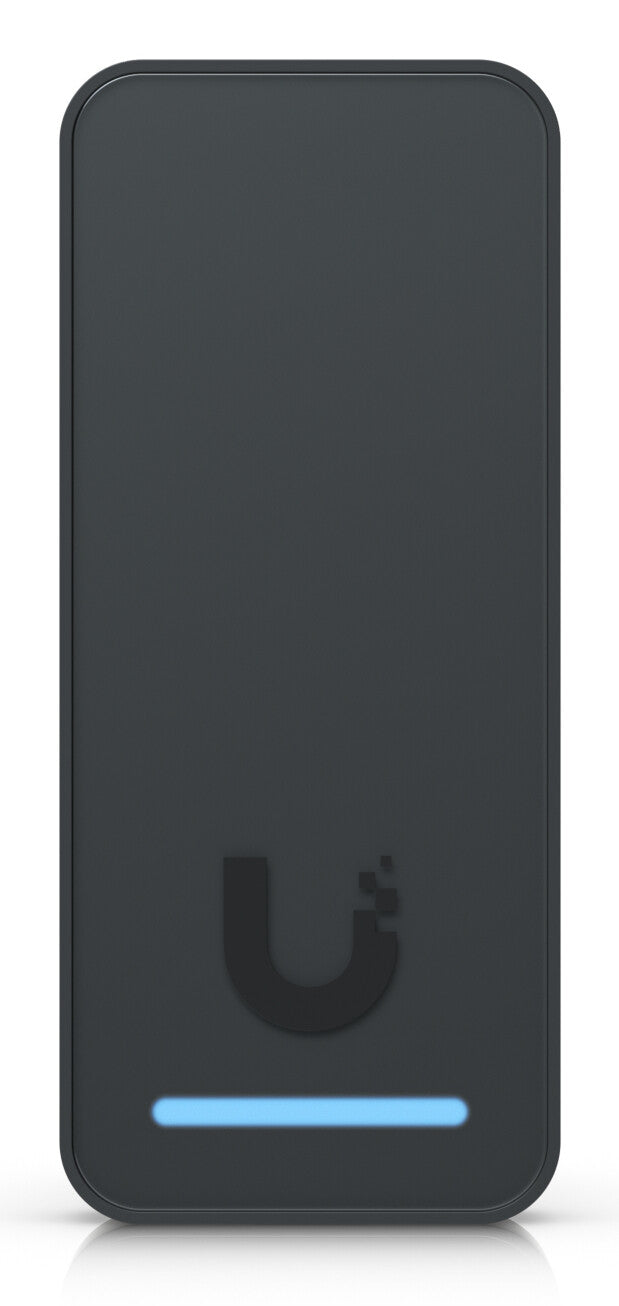

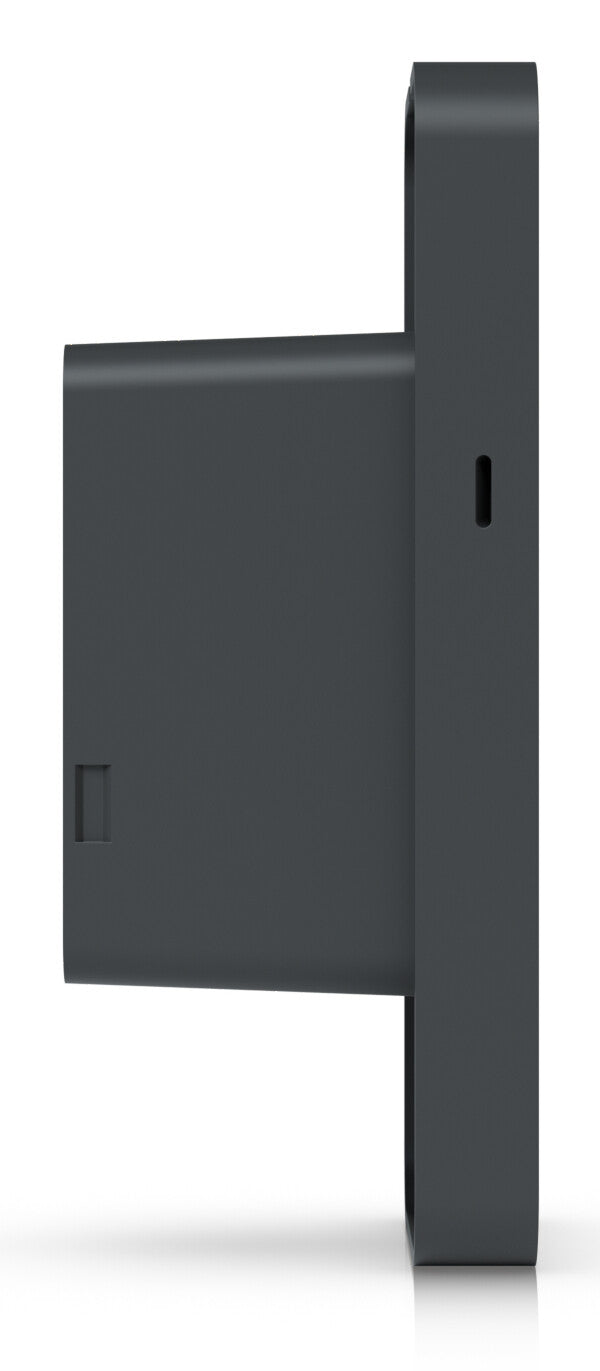

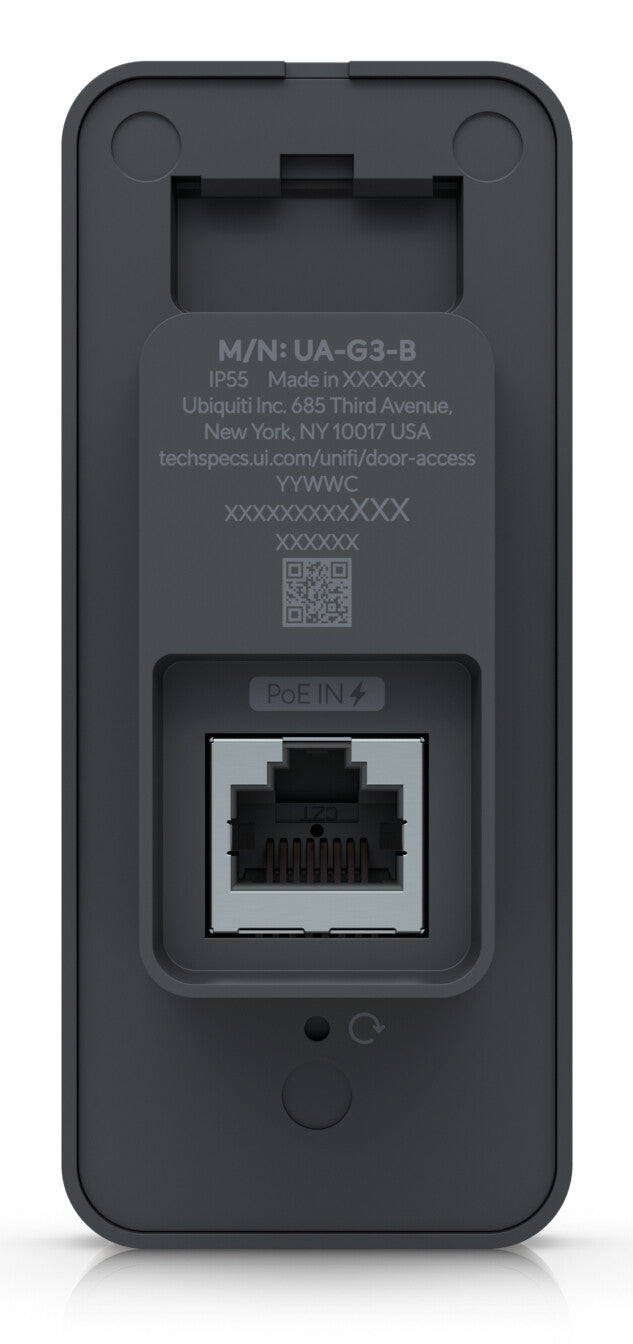

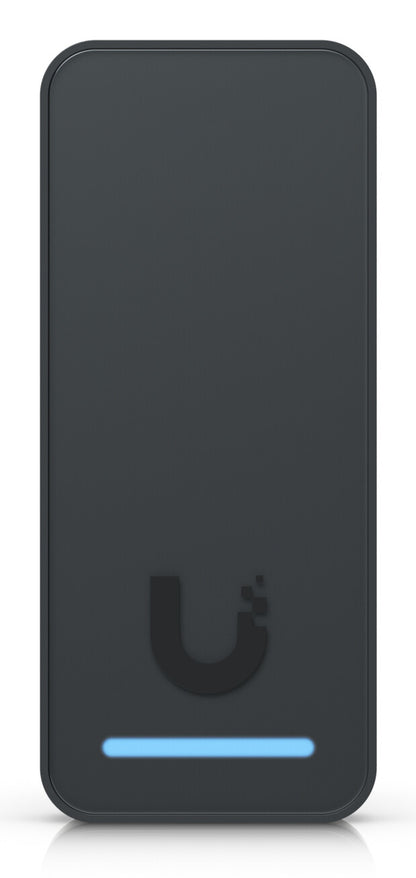

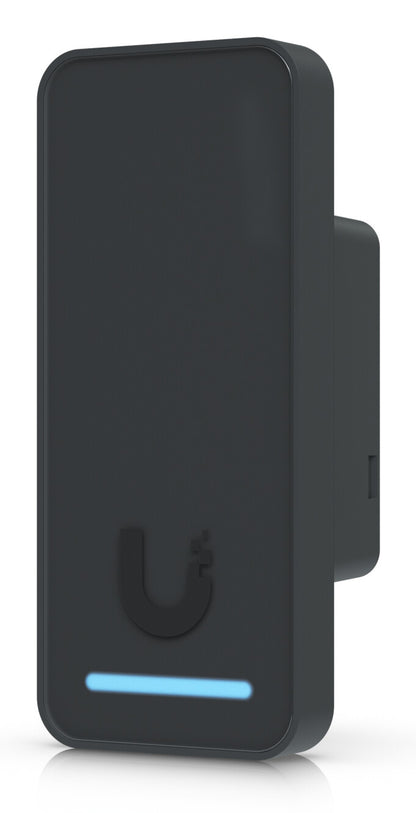

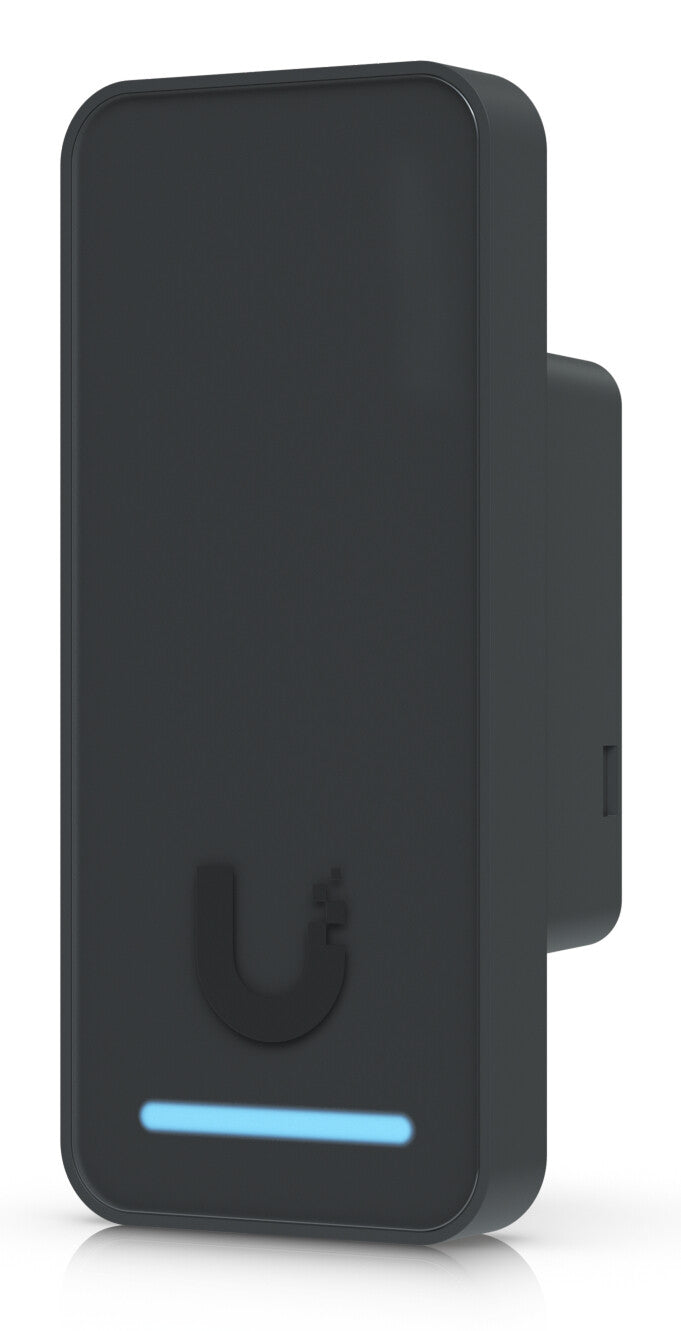

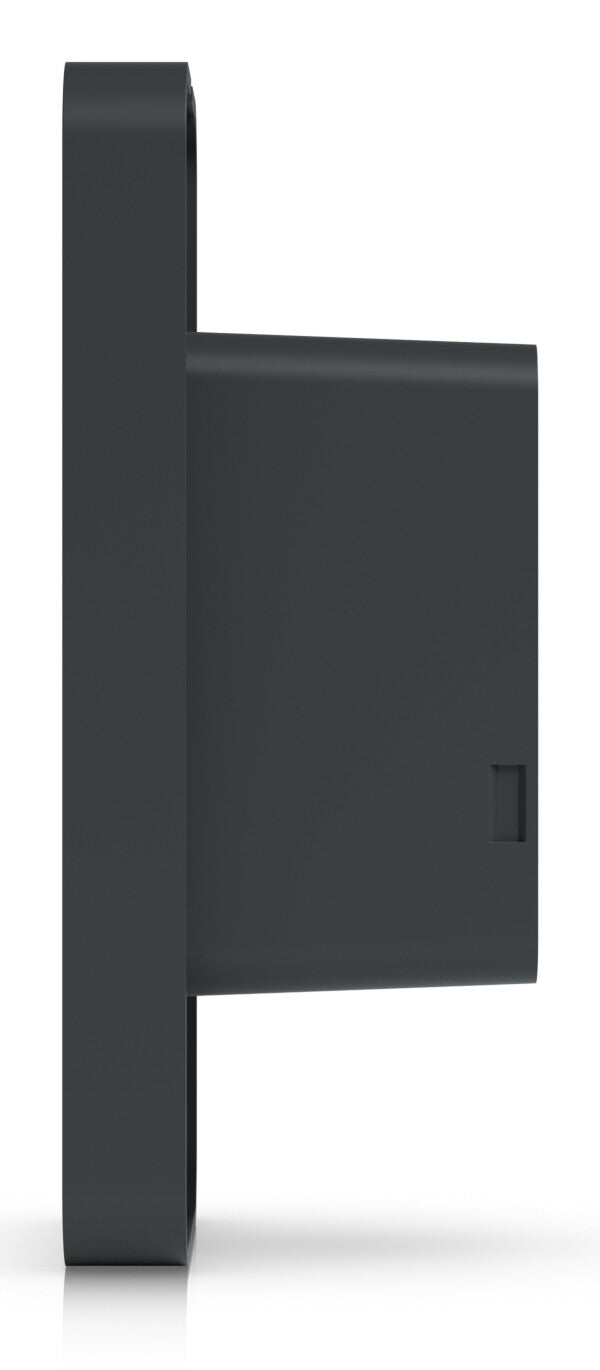

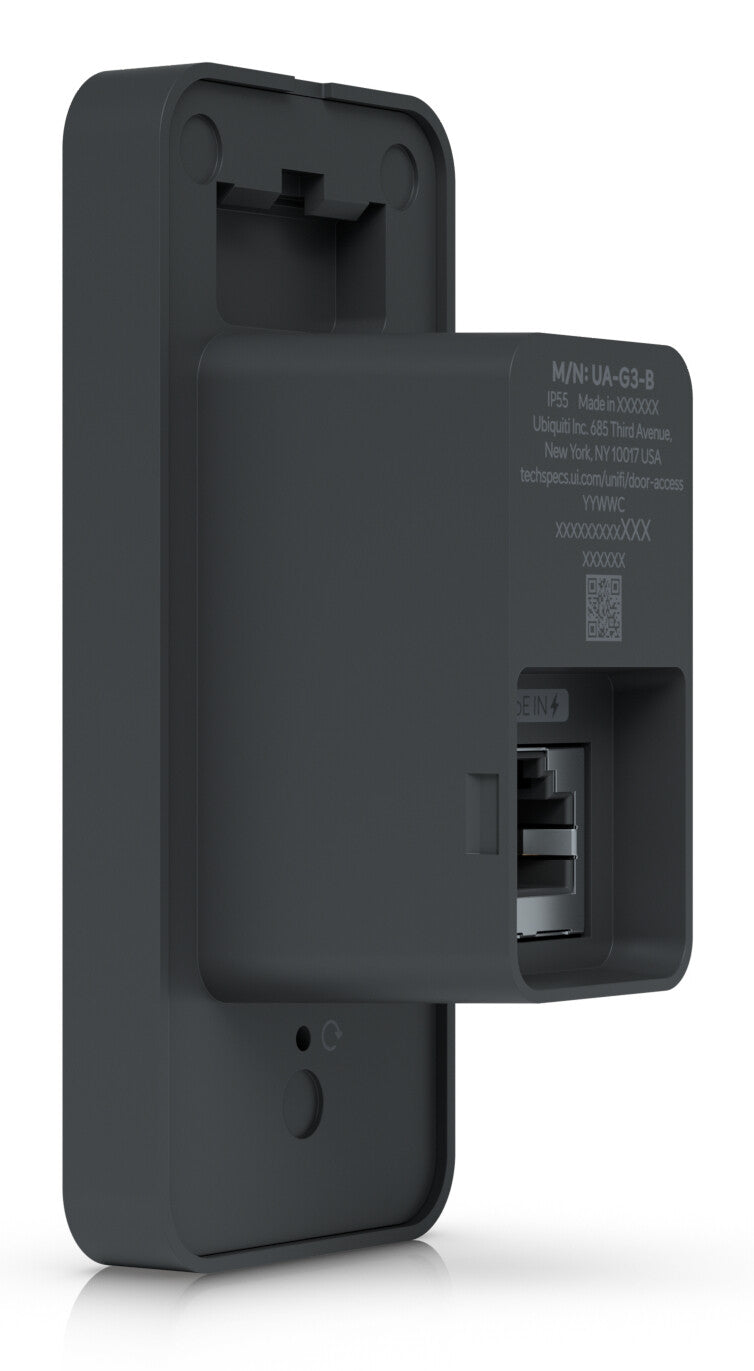

Compact third-generation access reader with Apple Touch Pass support.
| Technical details |
|---|
| International Protection (IP) code |
IP55 |
| Housing material |
Glass, Polycarbonate (PC) |
| Product colour |
Black |
| Fingerprint reader |
No |
| Access code reader |
No |
| Access chip/card reader |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), UL |
| LED indicators |
Status |
| Authentication type |
Access chip/card |
| Type |
Basic access control reader |
| Display |
|---|
| Built-in display |
No |
| Performance |
|---|
| Speaker power |
0.7 W |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Near Field Communication (NFC) |
Yes |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Power |
|---|
| DC voltage range |
48 V |
| Power consumption (max) |
5 W |
| Power over Ethernet (PoE) ports quantity |
1 |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
|---|
| Width |
40 mm |
| Depth |
36.5 mm |
| Height |
93 mm |
| Weight |
82 g |
| Packaging content |
|---|
| Mounting bracket(s) included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 45 °C |
| Operating relative humidity (H-H) |
5 - 90% |
