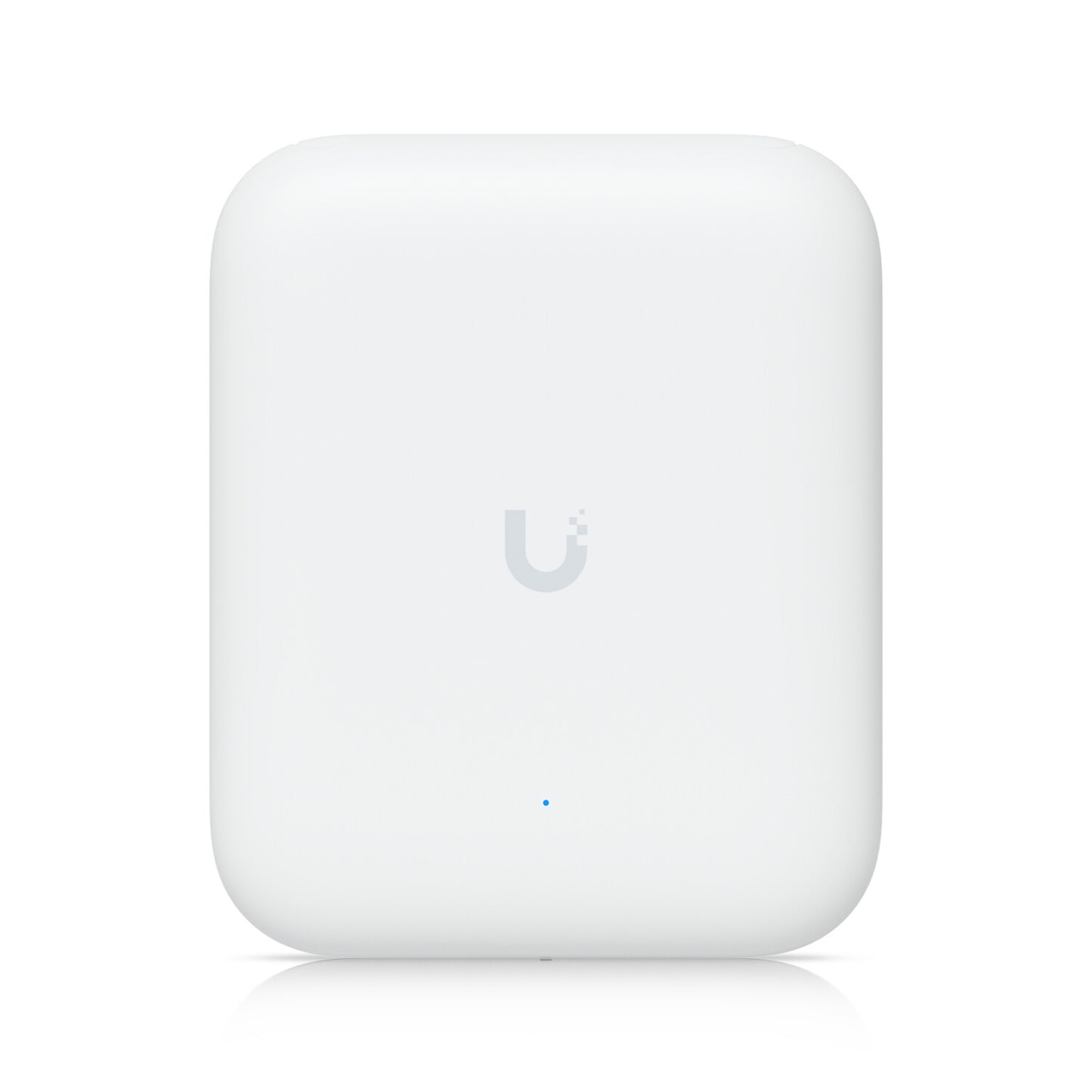

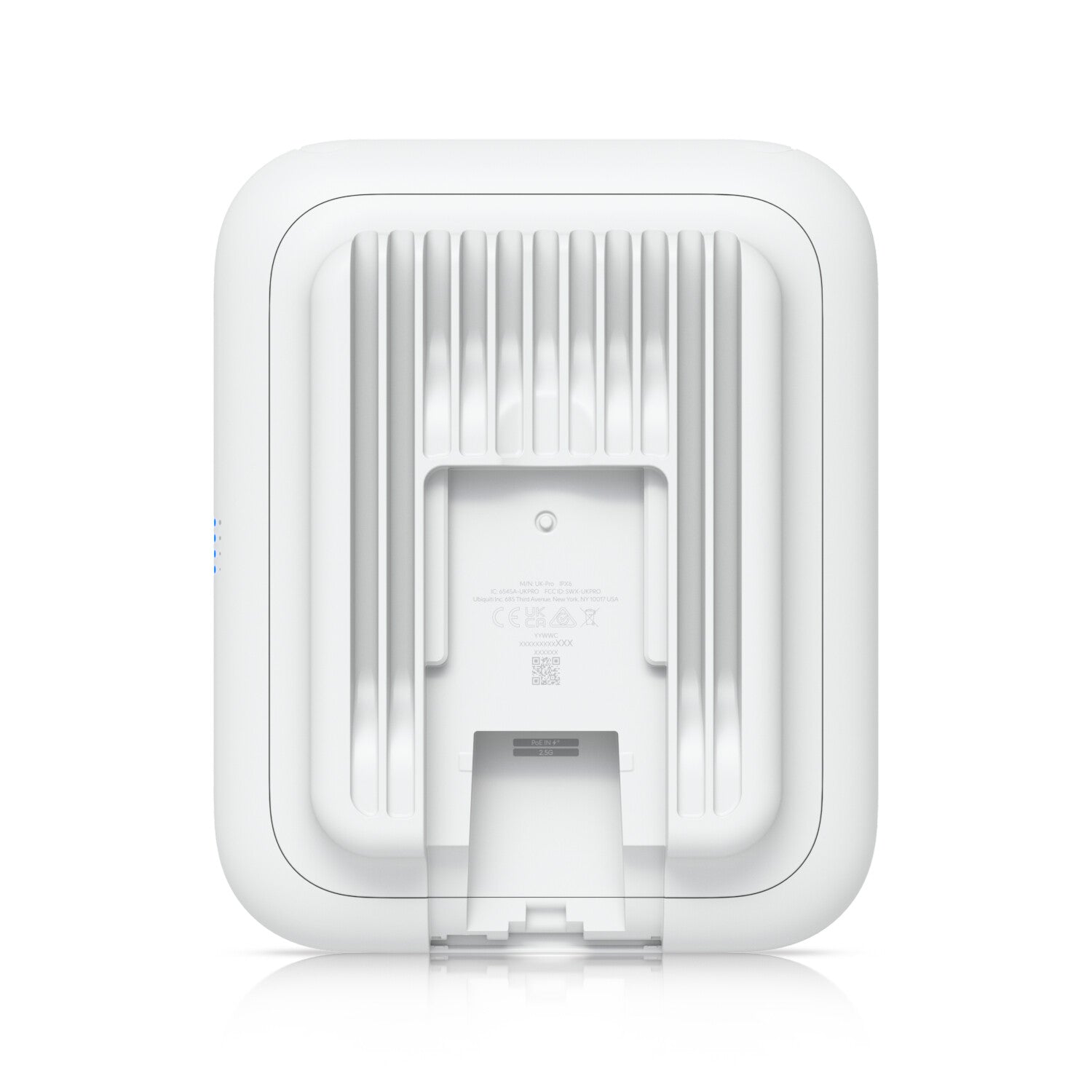

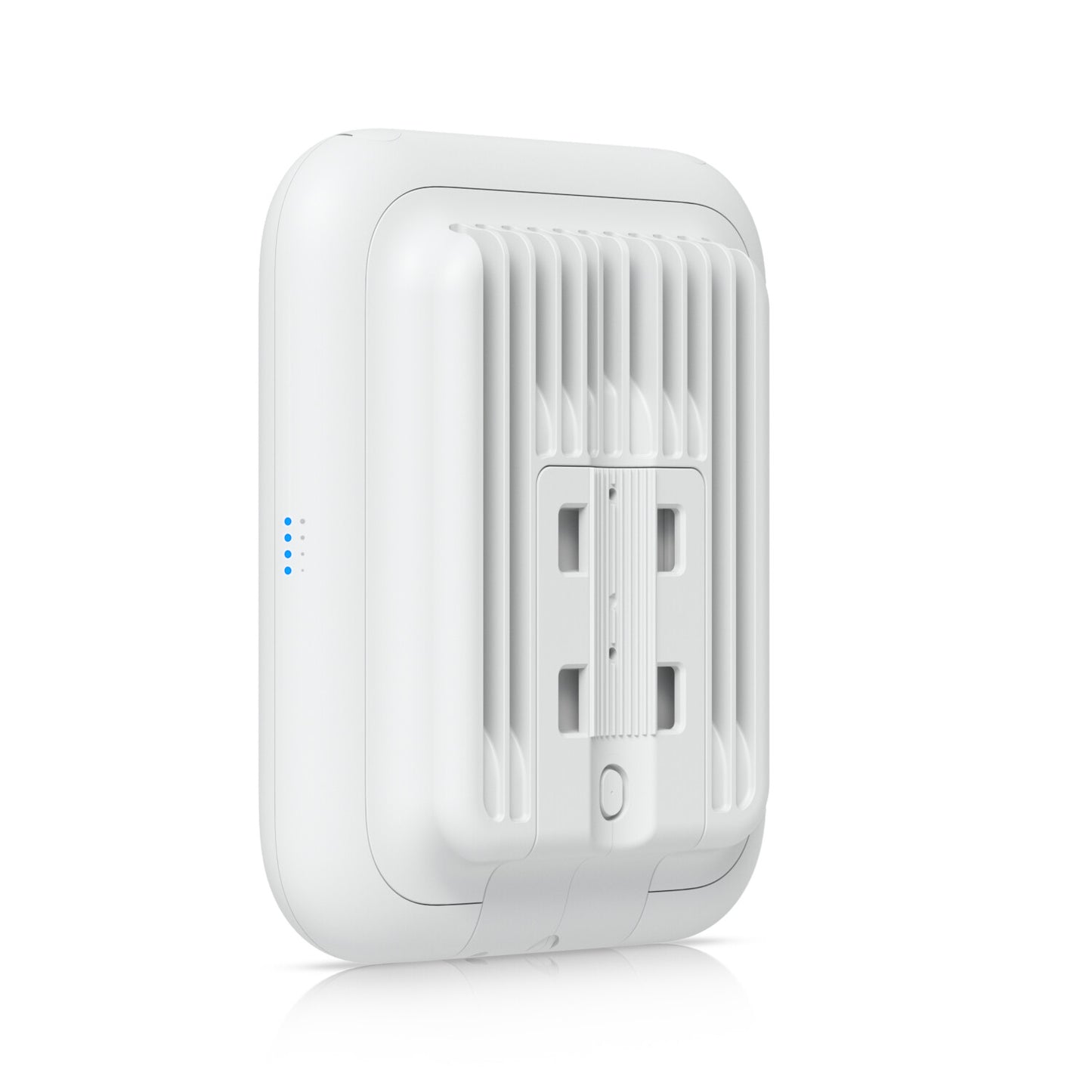

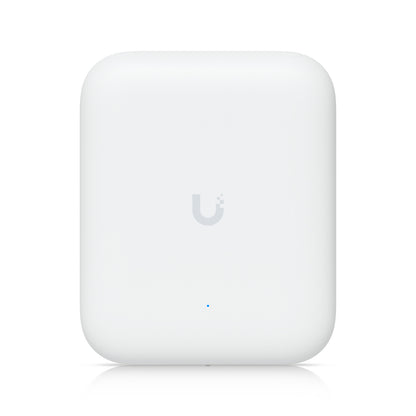

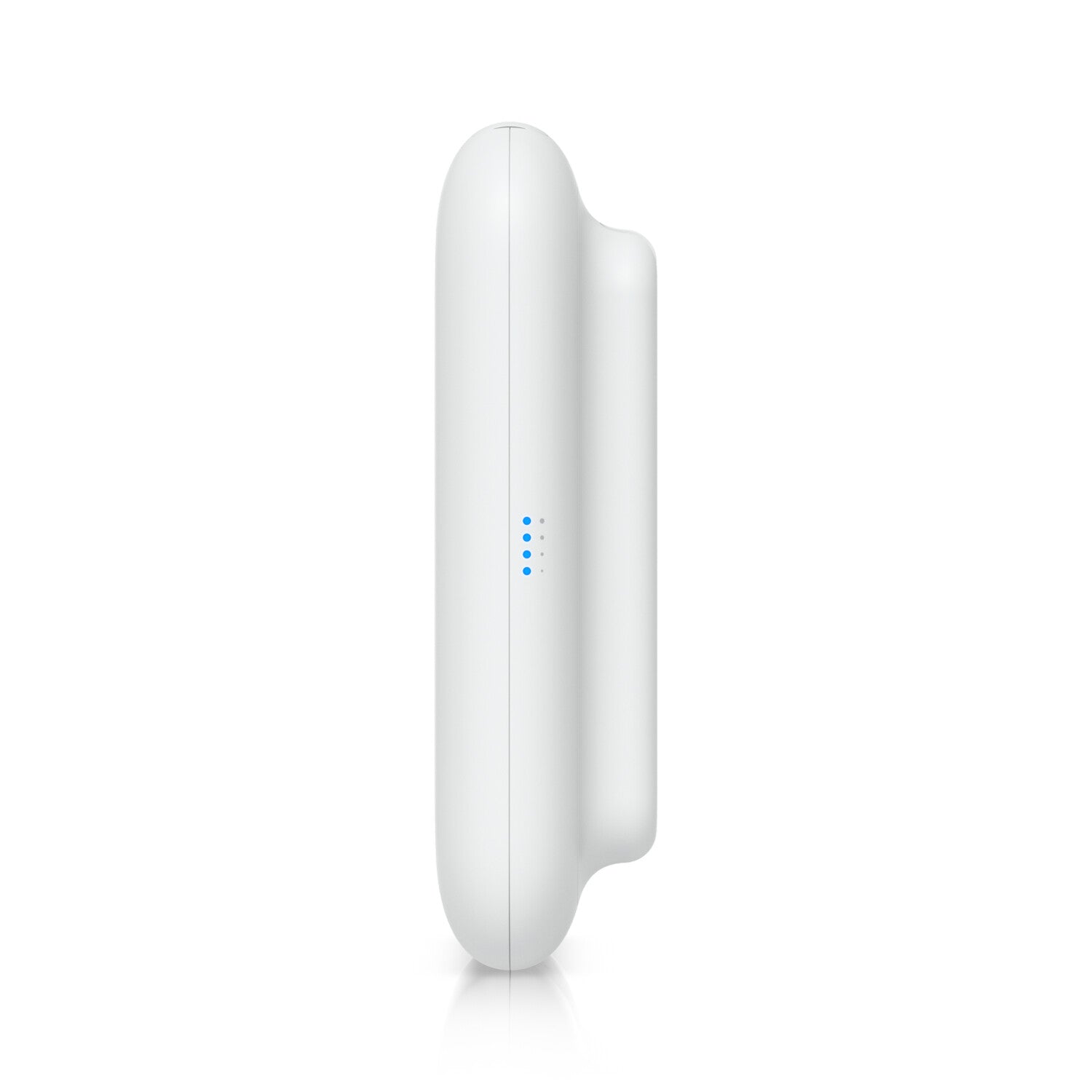

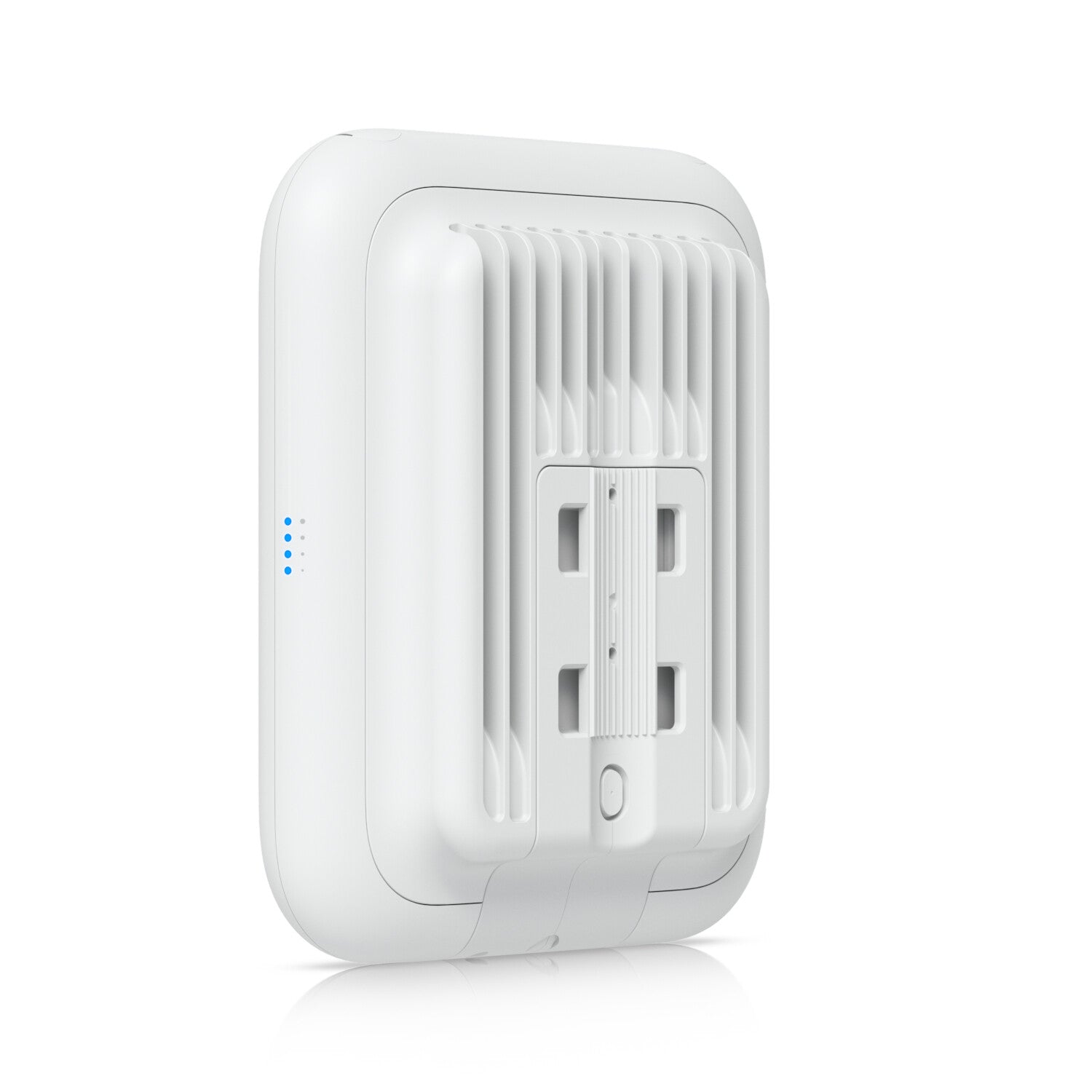

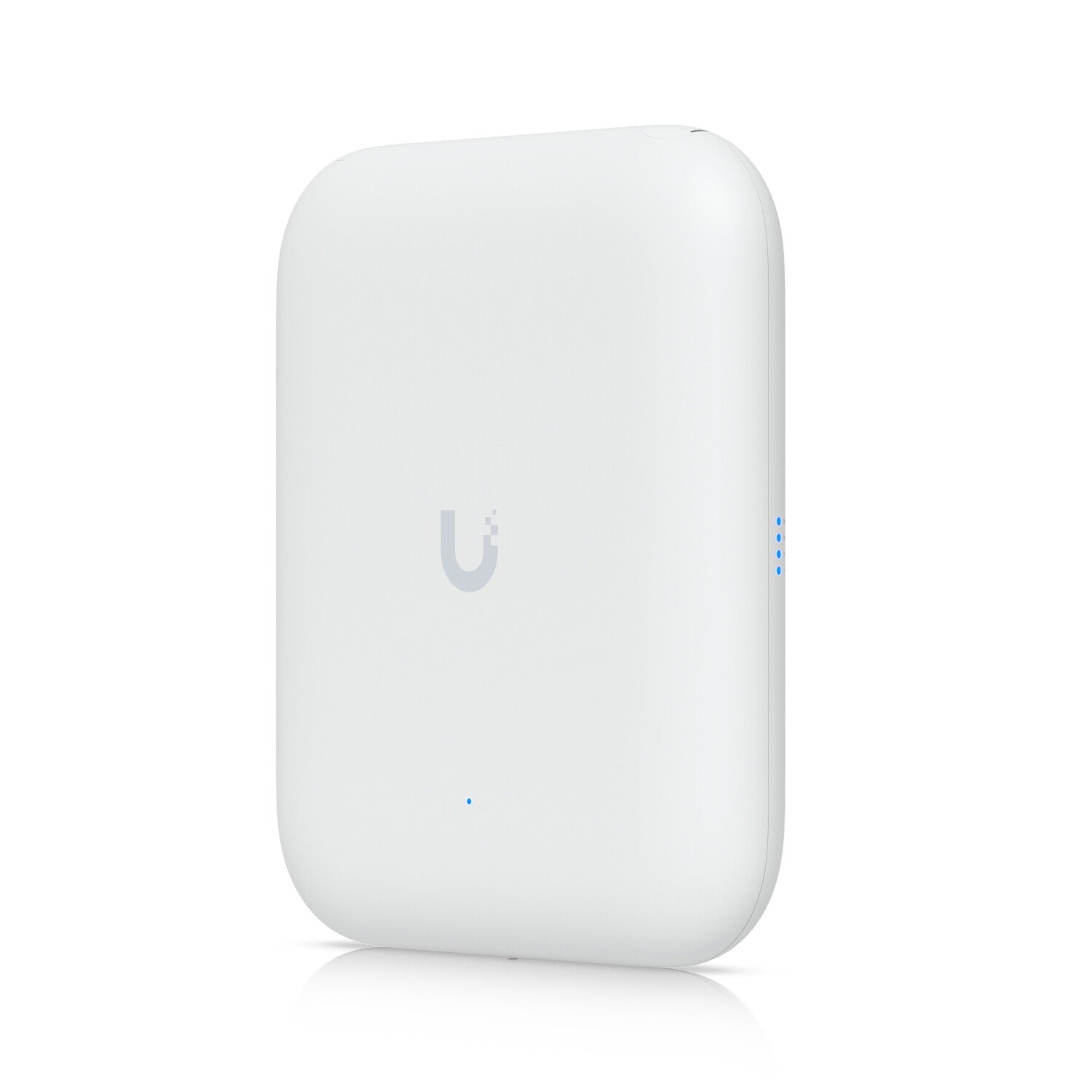

WiFi 7, 4 spatial streams, 2.5 GbE RJ45 port, PoE+, 19W, IPX6, UV-stabilized polycarbonate, aluminum alloy, white
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
| Features |
|---|
| Quality of Service (QoS) support |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Spatial streams |
4 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Frequency band |
2.4 - 5 GHz |
| Throughput data rate |
4324 Mbit/s |
| Ethernet LAN data rates |
2500 Mbit/s |
| Maximum data transfer rate |
4300 Mbit/s |
| 6 GHz |
No |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Security algorithms |
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
19 W |
| DC voltage range |
44 - 57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Recommended usage |
Outdoor |
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IPX6 |
| Housing material |
Aluminium, Polycarbonate (PC) |
| Product colour |
White |
| Placement |
Ceiling, Pole, Wall |
| Antenna |
|---|
| Number of connectors |
2 |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
12.5 dBi |
| Antennas quantity |
2 |
| Antenna features |
Detachable antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
External |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Weight & dimensions |
|---|
| Weight |
1.2 kg |
| Height |
208 mm |
| Depth |
54.5 mm |
| Width |
170 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
