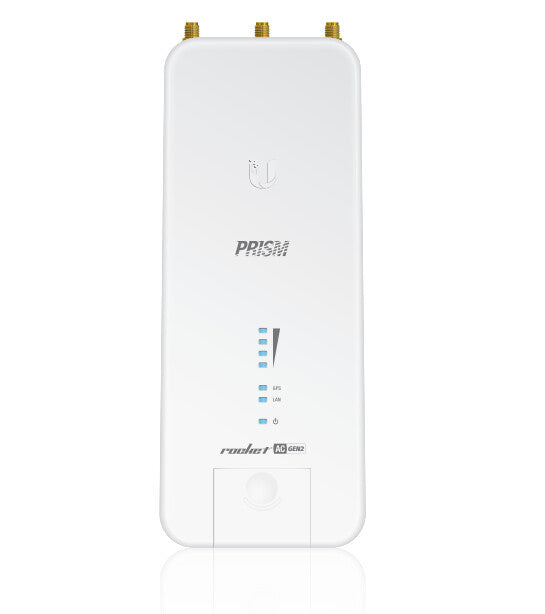

RP-5AC-Gen2, 10/100/1000 Ethernet Port, Die‑Cast Aluminum with White Powder Coating, 128 MB DDR2 SDRAM
Management Wi-Fi Radio
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
| Features |
|---|
| Quality of Service (QoS) support |
Yes |
| VLAN support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| 5 GHz |
Yes |
| Security |
|---|
| Security algorithms |
WPA2-AES |
| Protocols |
|---|
| DHCP client |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
9.5 W |
| Input current |
1 A |
| AC input voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Certification |
FCC, IC, CE |
| LED indicators |
LAN, Power, Signal strength |
| Product colour |
White |
| Performance |
|---|
| Internal memory |
128 MB |
| Built-in processor |
Yes |
| Weight & dimensions |
|---|
| Weight |
400 g |
| Height |
230 mm |
| Depth |
40 mm |
| Width |
88 mm |
| Packaging content |
|---|
| Bundled software |
Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 80 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
