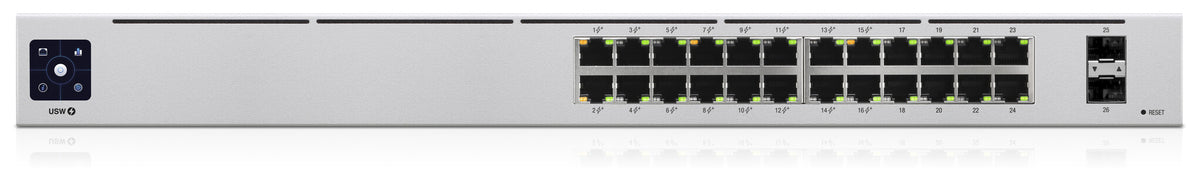

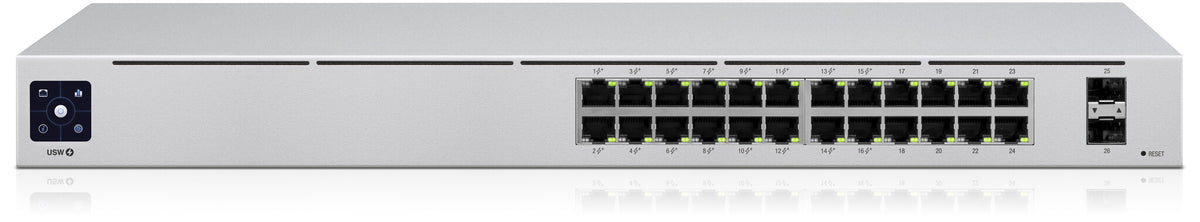

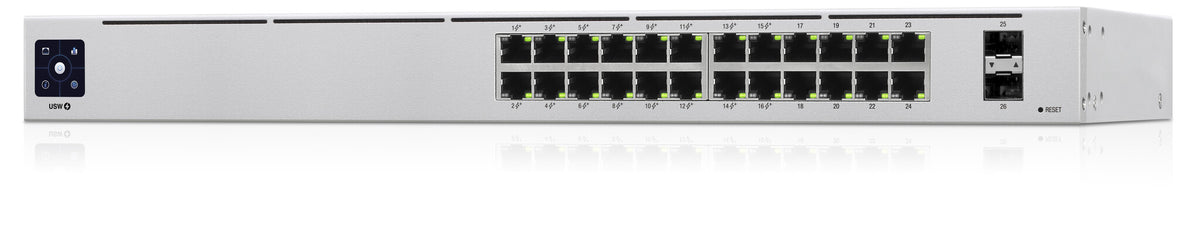

USW-24-POE Gen 2, AC/DC, Internal, 120W, (24) 10/100/1000 RJ45 Ports, (2) 1G SFP, 442.4 x 200 x 43.7 mm
Second-Generation UniFi Switching
We’ve redesigned our UniFi Switches from the ground up.
Near Silent Cooling
Our new airflow design reduces the need for fan usage.
Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.
Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.
UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
2 |
| Network |
|---|
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Spanning tree protocol |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| Switching capacity |
52 Gbit/s |
| Throughput |
26000 Mpps |
| Forwarding rate |
38.69 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Security |
|---|
| Authentication type |
IEEE 802.1x, RADIUS |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Silver |
| LED indicators |
Activity, Link, PoE, Speed, System |
| Certification |
CE, FCC, IC |
| General |
|---|
| Product family |
UniFi |
| Power |
|---|
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| DC input voltage |
44 - 57 V |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) power per port |
32 W |
| Total Power over Ethernet (PoE) budget |
92 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
200 mm |
| Height |
43.7 mm |
| Weight |
3 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
