Quad-core ARM Cortex-A53 at 1.5 GHz, 3 GB DDR4, 512 GB NVMe SSD, USB type C (5V DC/5A), 100–240V AC, 16.1W
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 1.5 Gbps IPS routing, and selectable NVR storage.
| Design |
|---|
| Product colour |
White |
| Enclosure material |
Polycarbonate (PC) |
| LED indicators |
Activity, LAN |
| Performance |
|---|

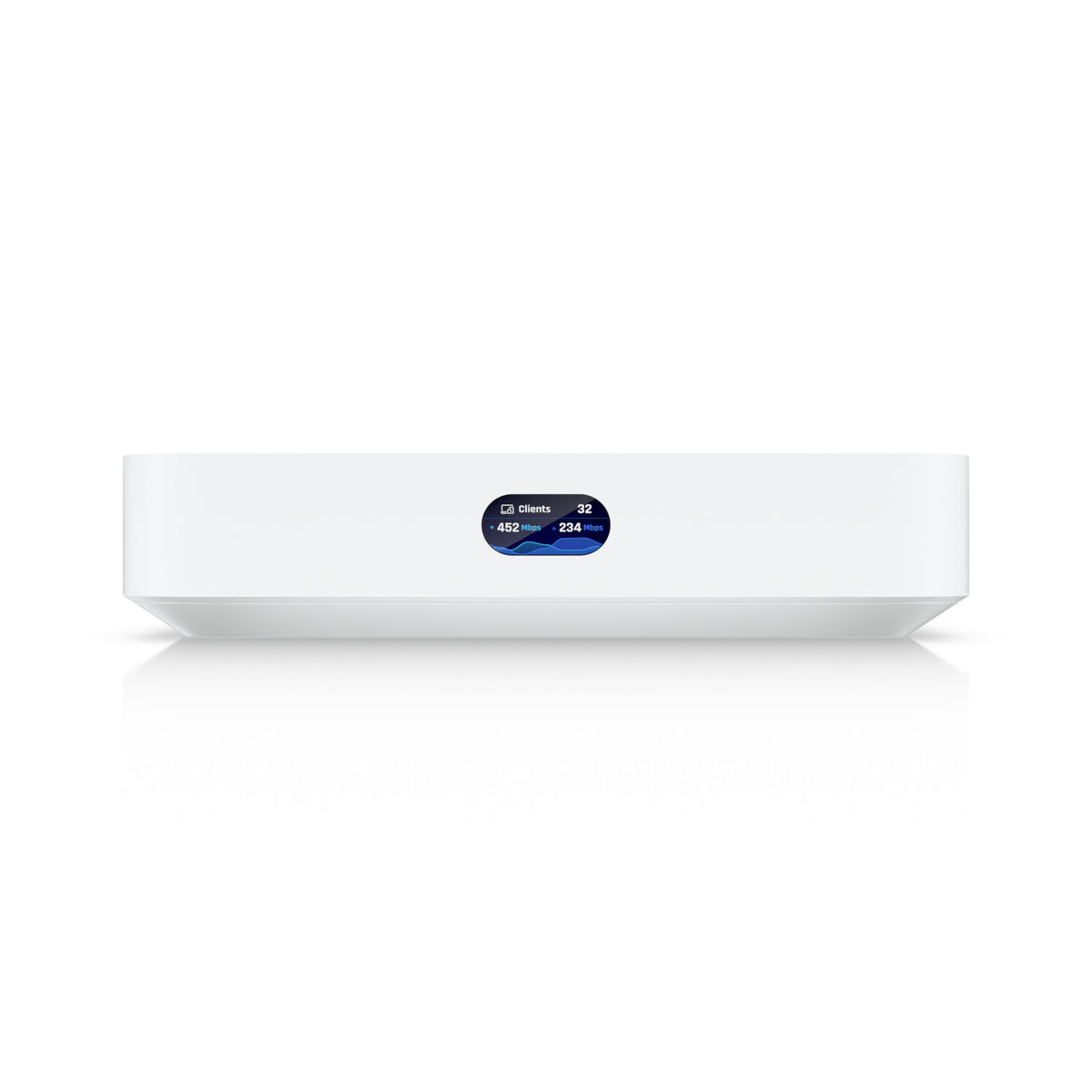

| Control display unit |
Yes |
| Display type |
LCM |
| Processor model |
Cortex-A53 |
| Processor family |
ARM Cortex |
| Processor manufacturer |
ARM |
| Built-in processor |
Yes |
| Processor frequency |
1500 MHz |
| Number of processors installed |
1 |
| SSD capacity |
512 GB |
| Internal memory type |
DDR4 |
| Internal memory |
3072 MB |
| Protocols |
|---|
| DHCP server |
Yes |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Bluetooth |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Security |
|---|
| VLAN support |
Yes |
| Firewall security |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Power |
|---|
| Power consumption (max) |
16.1 W |
| Input voltage |
100 - 240 V |
| Output voltage |
5 V |
| Output current |
5 A |
| Weight & dimensions |
|---|
| Height |
30 mm |
| Depth |
127.6 mm |
| Width |
141.8 mm |
| Weight |
519 g |

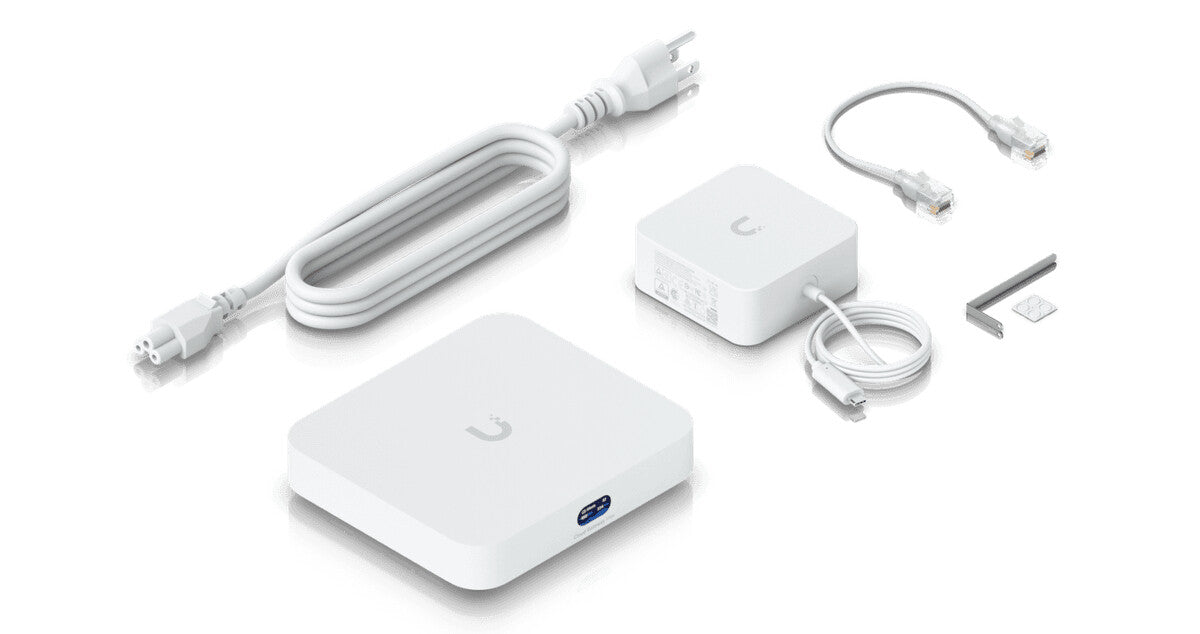

| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| Manual |
Yes |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
