2.4/5Ghz, 4.8 Gbit/s, PoE, 13W, IP54
Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

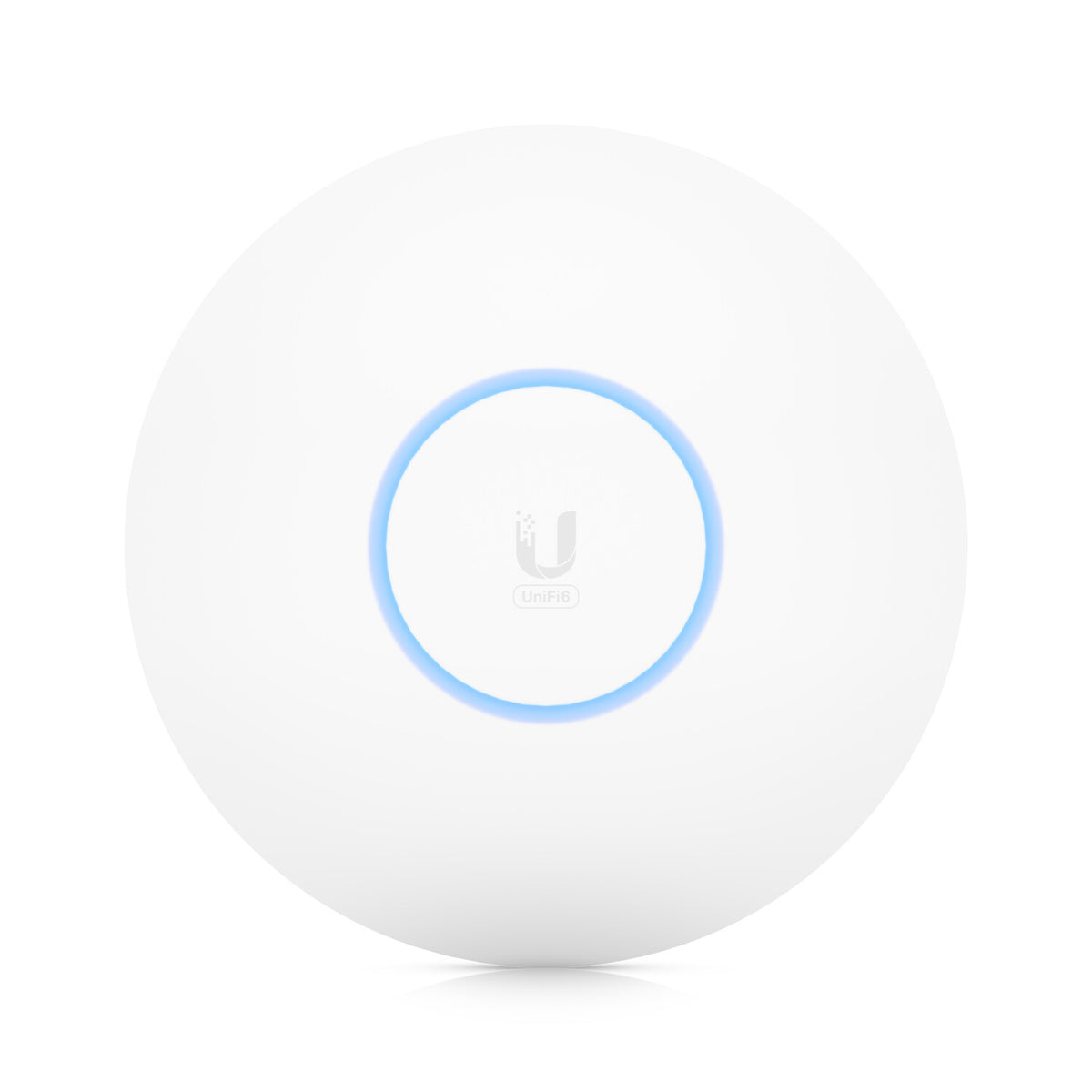

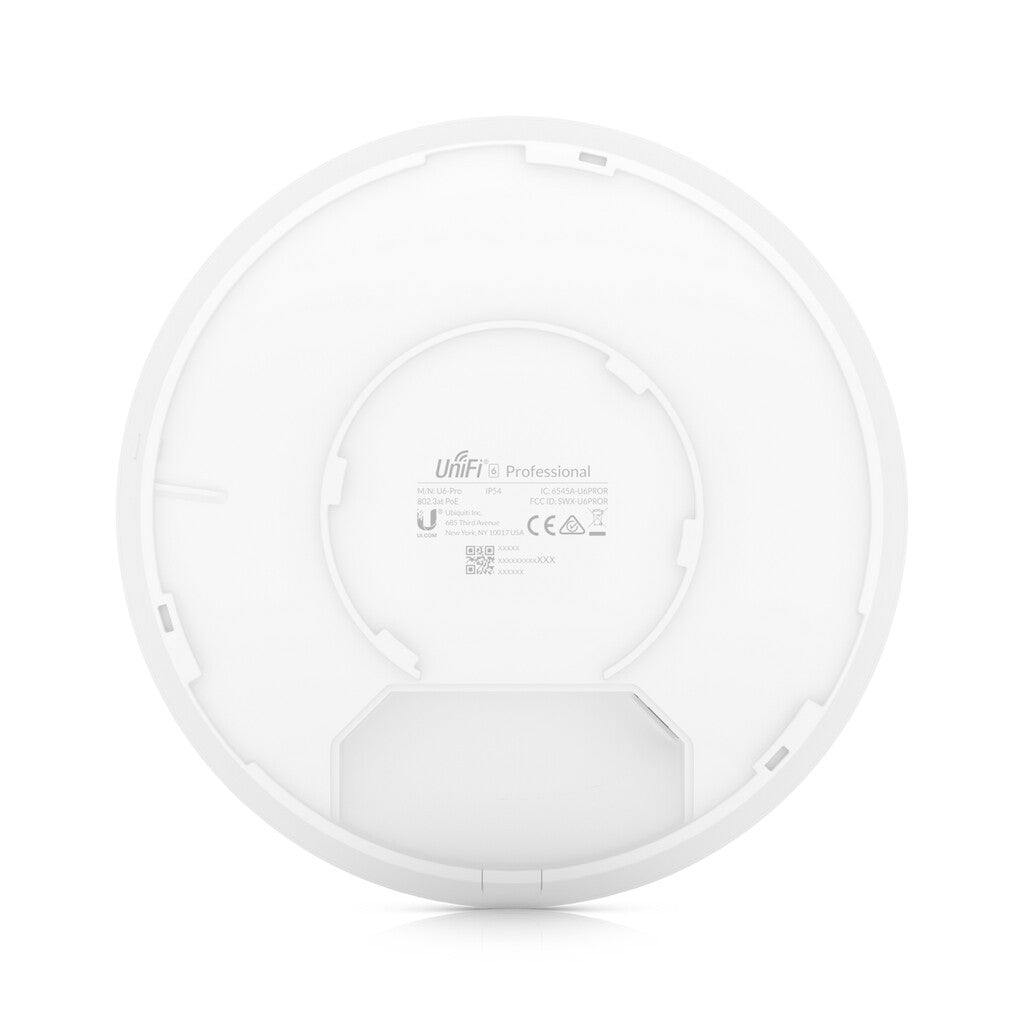

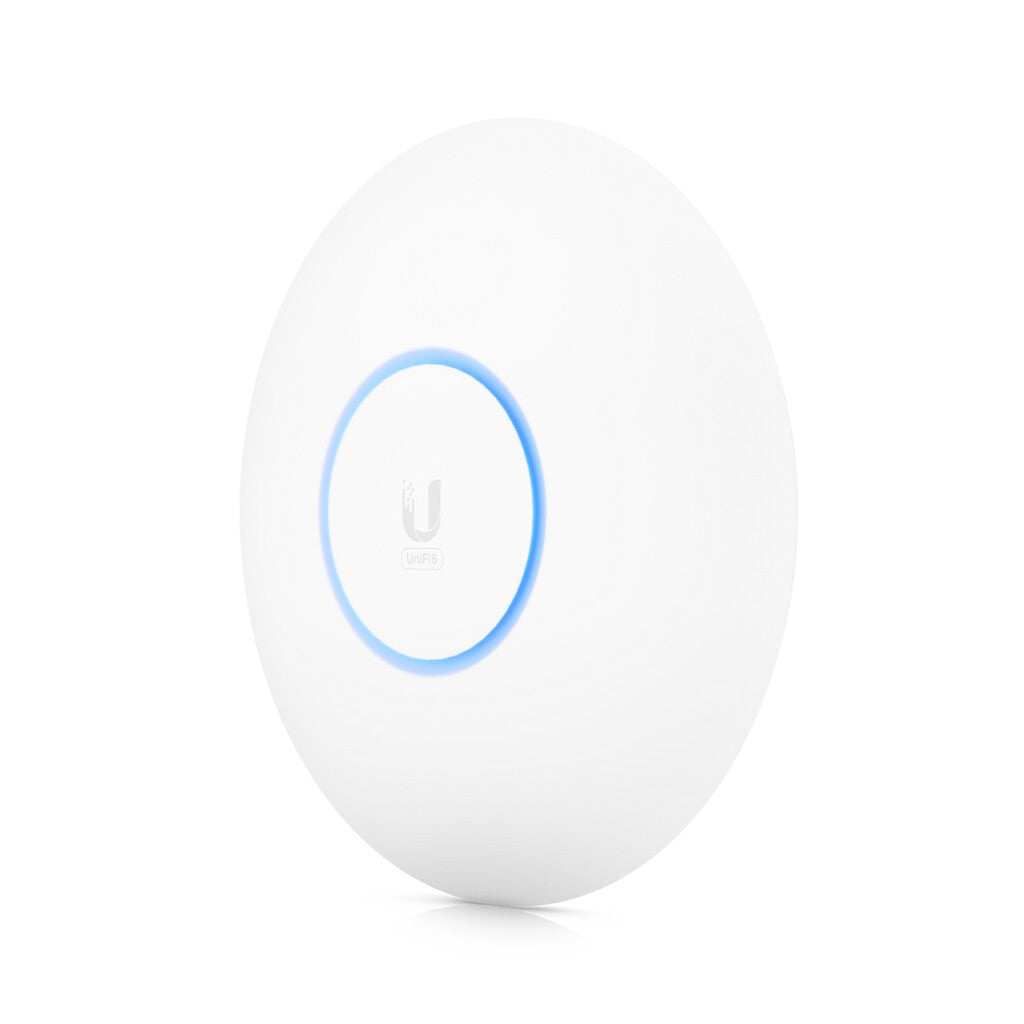

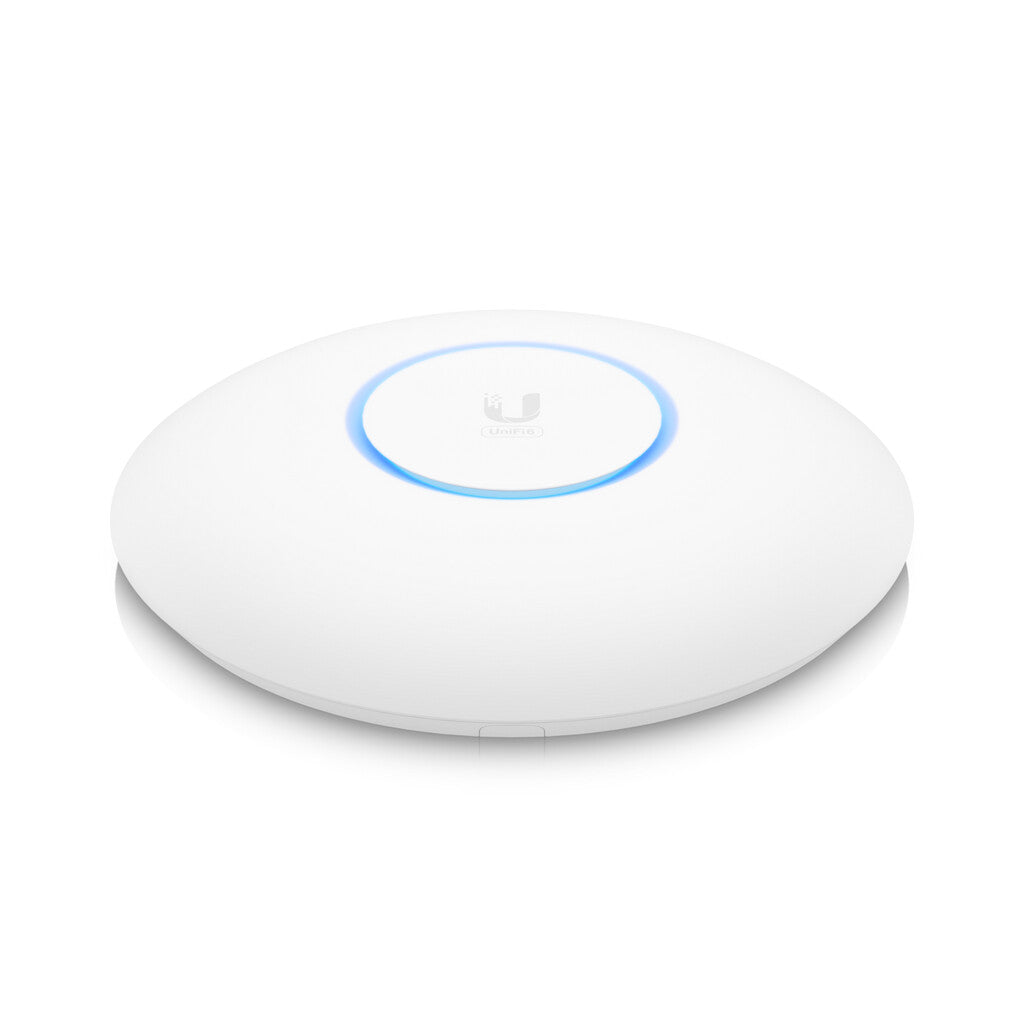

The Access Point WiFi 6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Maximum data transfer rate |
4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) |
4800 Mbit/s |
| Ethernet LAN data rates |
1000 Mbit/s |
| Throughput data rate |
5300 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Bluetooth |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Quality of Service (QoS) support |
Yes |
| Security |
|---|
| Security algorithms |
WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power consumption (typical) |
13 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Housing material |
Plastic |
| International Protection (IP) code |
IP54 |
| Reset button |
Yes |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna gain level (max) |
6 dBi |
| Weight & dimensions |
|---|
| Width |
197 mm |
| Depth |
197 mm |
| Height |
35 mm |
| Weight |
460 g |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 60 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
