LiteBeam AC All-in-one, 802.3AC AirMax Radio with 23dBi 5GHz 802.11ac directional Antenna
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional Antenna
The LiteBeam AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design

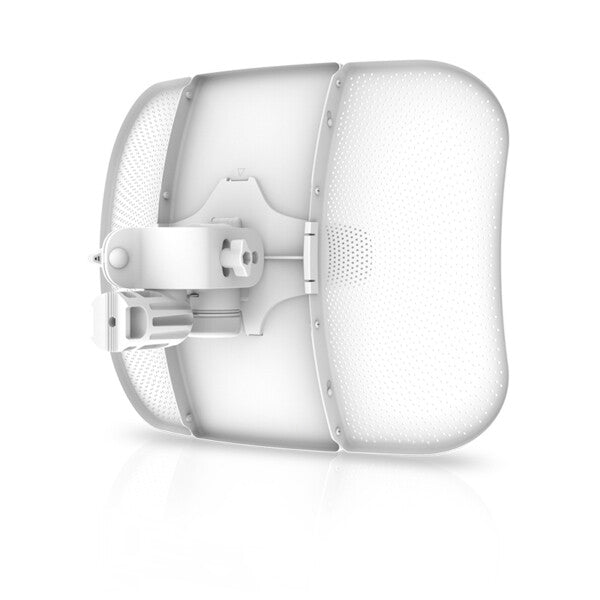

Featuring the freedom of three-axis alignment, the LiteBeamM fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam AC is ideal for shipping and logistics.
| Antenna |
|---|
| Antenna design |
External |
| Antenna gain level (max) |
23 dBi |
| Antennas quantity |
1 |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Frequency band |
5.15 - 5.875 GHz |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Networking standards |
IEEE 802.11ac, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3u |
| Cabling technology |
10/100/1000Base-T(X) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Product type |
Network bridge |
| Material |
Polycarbonate (PC), SGCC |
| Mounting type |
Pole |
| Rack mounting |
No |
| Product colour |
White |
| LED indicators |
LAN, Power |
| Reset button |
Yes |
| Processor manufacturer |
Qualcomm |
| Processor model |
MIPS 74Kc |
| Processor family |
Atheros |
| RAM type |
DDR2 |
| Internal memory |
64 MB |
| Power |
|---|
| Power source type |
PoE |
| Power consumption (max) |
7 W |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) voltage |
24 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
358 mm |
| Depth |
272.5 mm |
| Height |
271.9 mm |
| Weight |
800 g |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
