8x LAN, WAN, PoE/PoE+, Bluetooth, 4 GB DDR4, 16 GB eMMC, 128 GB SSD
All-in-one router and security gateway with an integrated PoE switch and network video recorder.

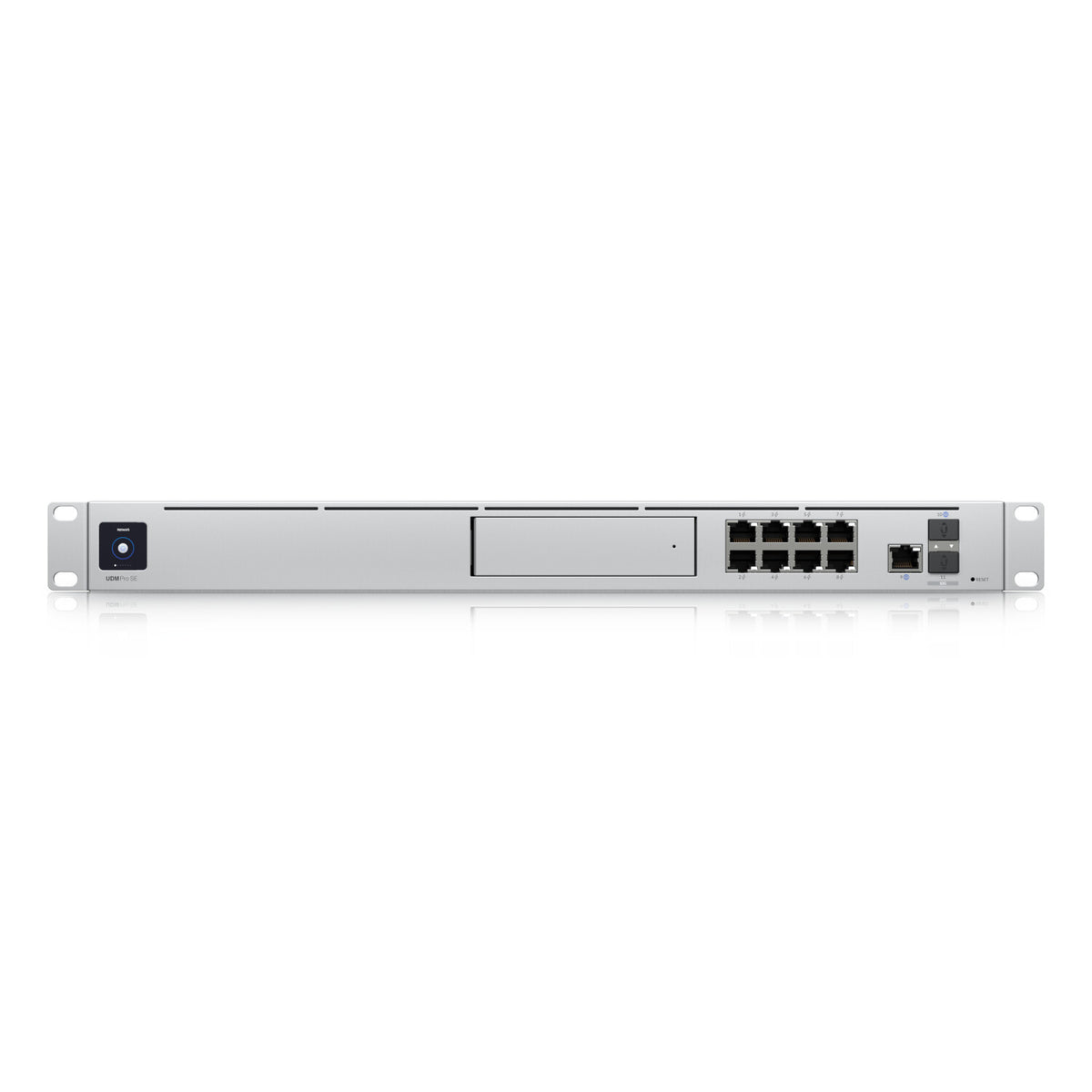

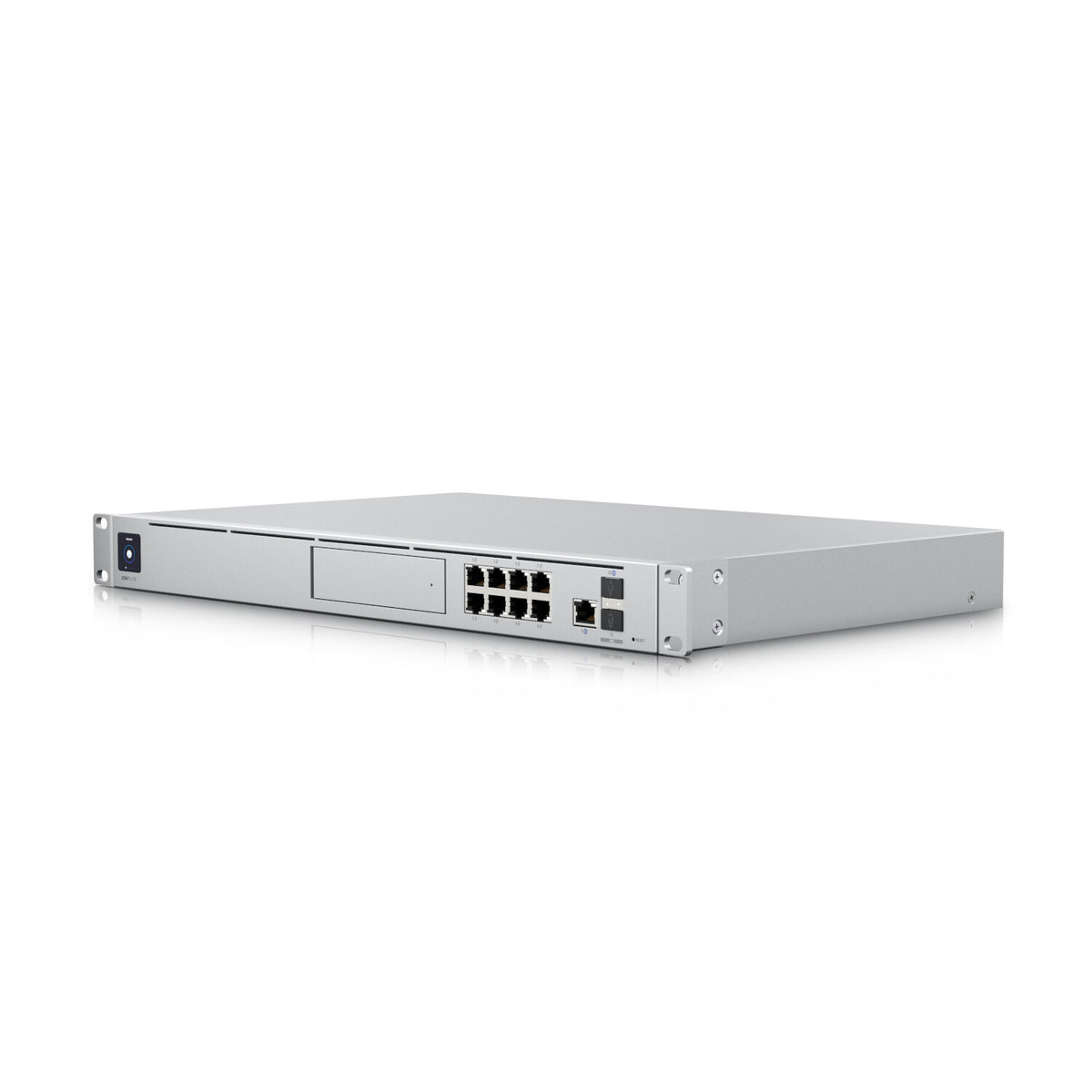

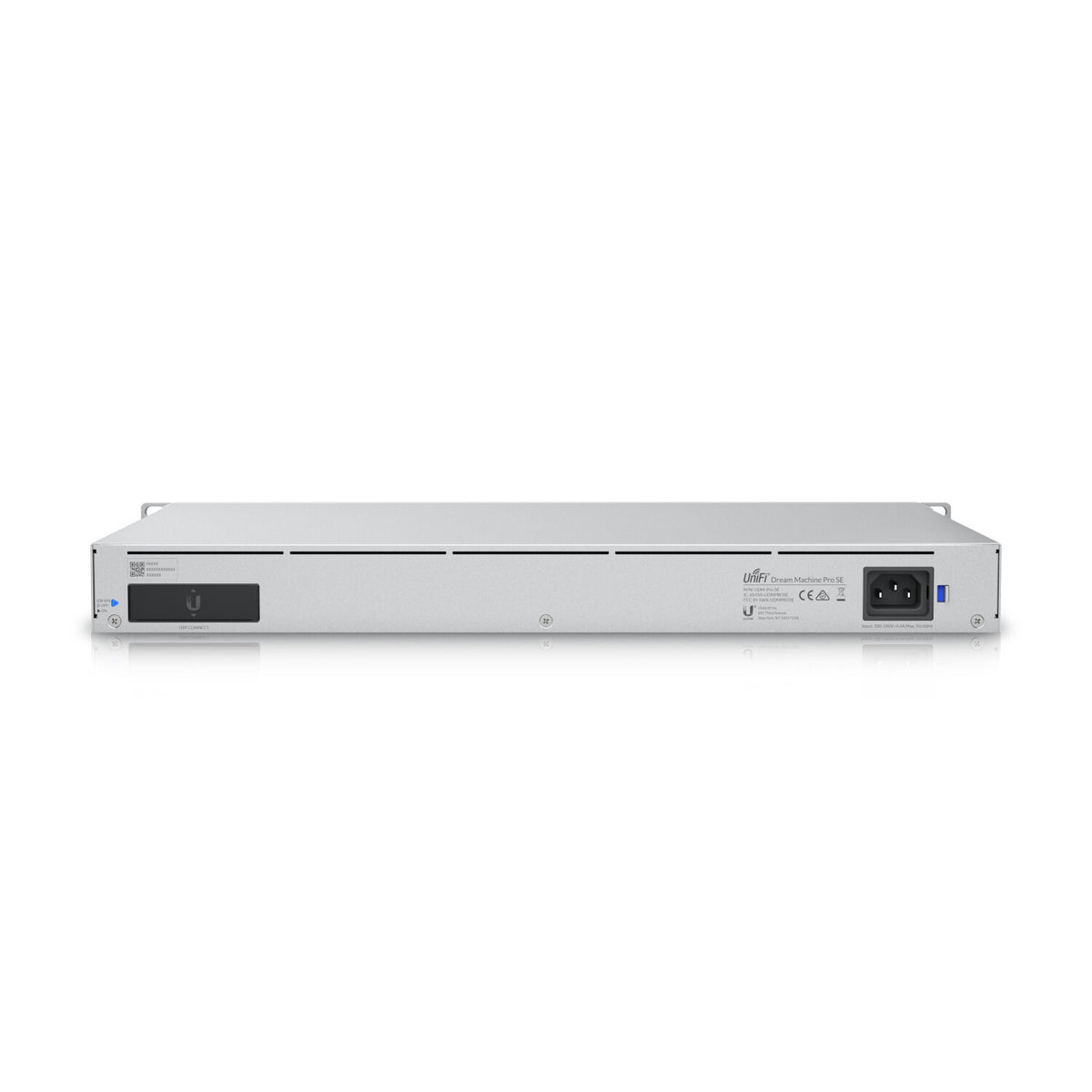

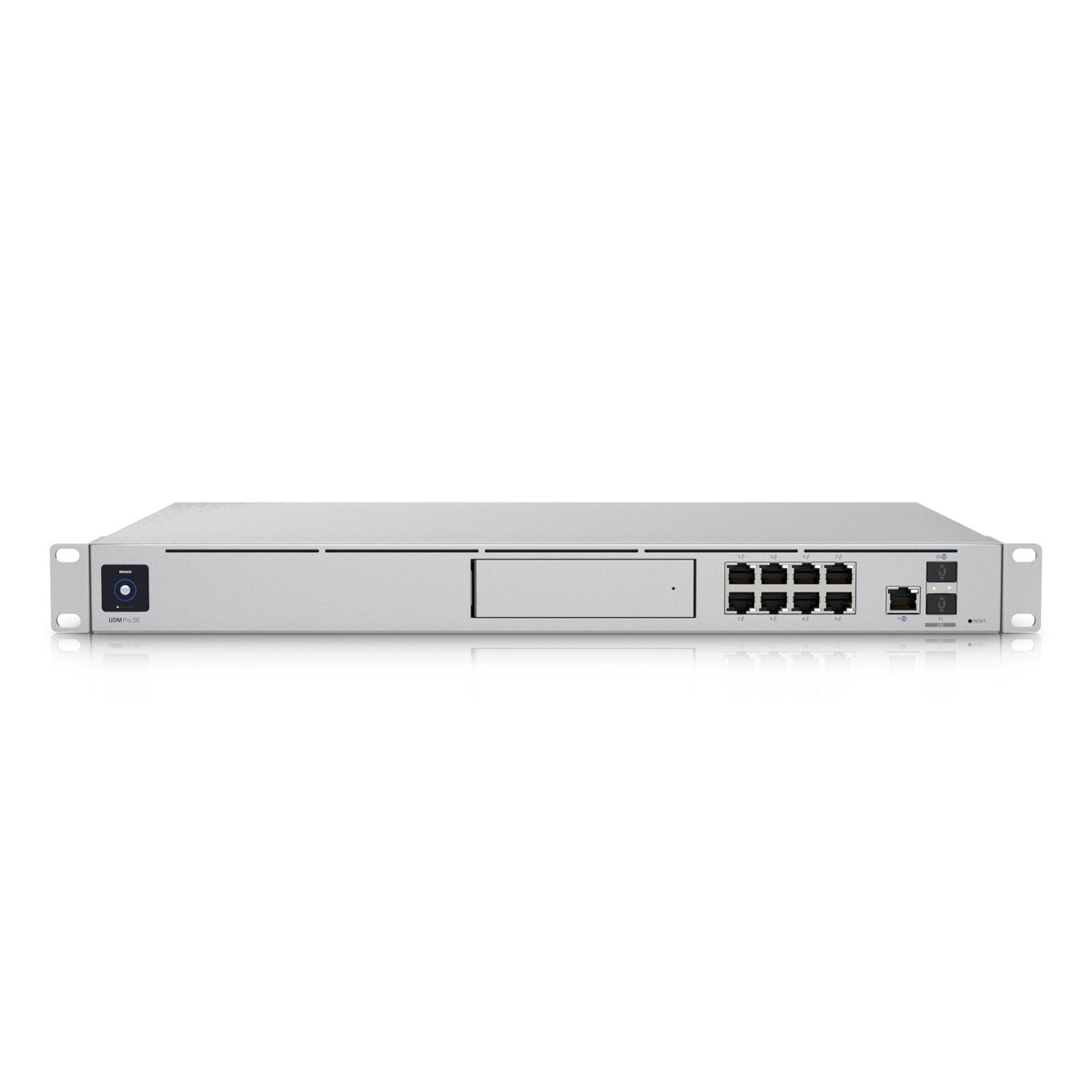

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).
| Design |
|---|
| Product colour |
Stainless steel |
| Rack capacity |
1U |
| Enclosure material |
Aluminum |
| Mounting type |
Rack mounting |
| LED indicators |
Activity, Link, Ready |
| Performance |
|---|
| Control display unit |
Yes |
| Built-in processor |
Yes |
| Processor frequency |
1700 MHz |
| Number of processors installed |
1 |
| Internal memory type |
DDR4 |
| Internal memory |
4096 MB |
| Flash memory |
16384 MB |
| Network |
|---|
| Ethernet LAN data rates |
1000 Mbit/s |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
Yes |
| Ports & interfaces |
|---|
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
8 |
| Management features |
|---|
| Reset button |
Yes |
| Power |
|---|
| Power consumption (typical) |
50 W |
| Input voltage |
100 - 240 V |
| Input frequency |
50 - 60 Hz |
| Input current |
4.4 A |
| Power supply |
240 W |
| Power over Ethernet (PoE) |
Yes |
| Weight & dimensions |
|---|
| Height |
43.7 mm |
| Depth |
285.6 mm |
| Width |
442.4 mm |
| Weight |
4.95 kg |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Display |
|---|
| Touchscreen |
Yes |
| Display diagonal |
3.3 cm (1.3") |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
