720W, 8 x 2.5 GbE RJ45, 16 x 10GbE RJ45, 2 x 25G SFP28, 460 Gbps, 1.3" touchscreen, Rack mount (1U), SGCC steel, 442 x 480 x 44 mm

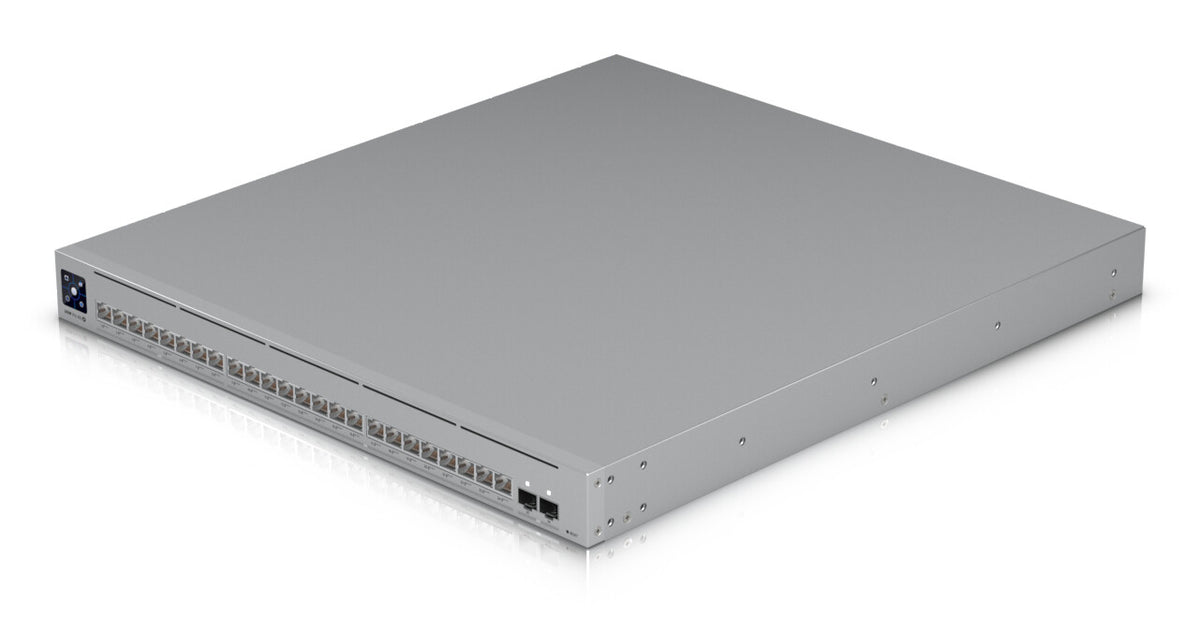

Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| 2.5G Ethernet (copper) ports quantity |
8 |
| 10G Ethernet (copper) ports quantity |
16 |
| SFP28 ports quantity |
2 |
| Power connector |
AC/DC |
| Network |
|---|
| 10G support |
Yes |
| Port mirroring |
Yes |
| IPv4 routes |
256000 |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Interface-based VLAN, Voice VLAN |
| Number of VLANs |
1000 |
| Data transmission |
|---|
| MAC address table |
128000 entries |
| Switching capacity |
460 Gbit/s |
| Forwarding rate |
342 Mpps |
| Static route |
Yes |
| Jumbo frames support |
Yes |
| Packet buffer memory |
8 MB |
| Security |
|---|
| DHCP features |
DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping |
| Access Control List (ACL) IPv4 entries |
256 |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Product colour |
Grey |
| Housing material |
SGCC |
| Reset button |
Yes |
| Backlight display |
Yes |
| Display type |
LCM |
| General |
|---|
| Product family |
UniFi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Power |
|---|
| Power source |
AC/DC |
| Power supply included |
Yes |
| Redundant power supply (RPS) support |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
870 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
PoE+++ |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
24 |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Total Power over Ethernet (PoE) budget |
720 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
442 mm |
| Depth |
480 mm |
| Height |
44 mm |
| Weight |
7.9 kg |
| Packaging data |
|---|
| Cables included |
Power |
