450 Mbps, 23 dBi, MIPS 74Kc, 10/100/1000 Ethernet, 64 MB DDR2, 24V, 0.3A, PoE, 358 x 271.95 x 272.5 mm

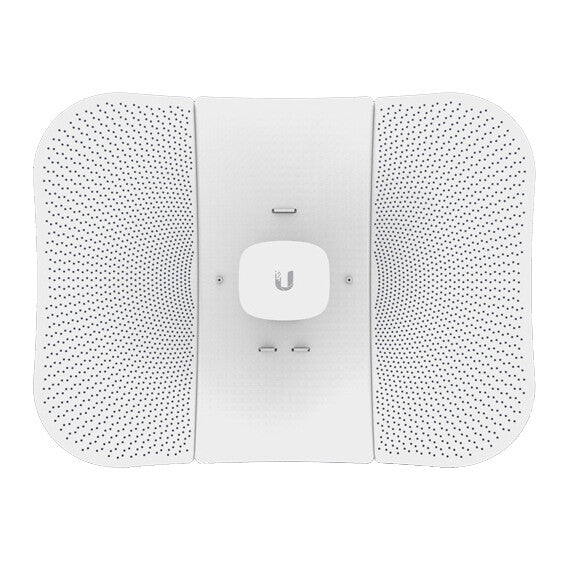

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.
Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.
Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.
Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.
| Data transmission |
|---|
| Maximum data transfer rate |
450 Mbit/s |
| Antenna |
|---|
| Antenna gain level (max) |
23 dBi |
| Wireless LAN features |
|---|
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Frequency band |
2.412 - 2.462, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Security algorithms |
WPA2 |
| Management features |
|---|
| Web-based management |
Yes |
| Features |
|---|
| Internal memory |
64 MB |
| LED indicators |
LAN, Power |
| Product colour |
White |
| Material |
Plastic |
| Product type |
Network bridge |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 70 °C |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Weight & dimensions |
|---|
| Weight |
980 g |
| Dimensions (WxDxH) |
358 x 271.95 x 272.5 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
