5 GHz, 22 dBi, 45°

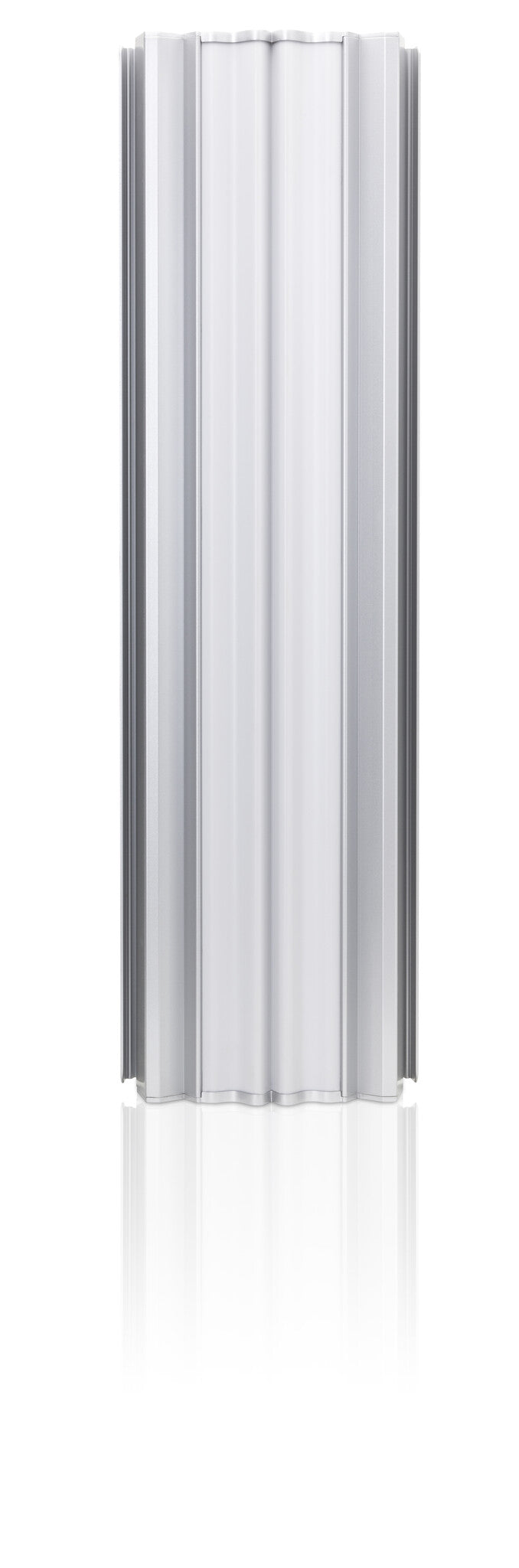

The airMAX®ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Breakthrough Design and Performance
The airMAX®ac Sector Antennas feature carrier-class construction with an innovative deflector design and 2x2, dual-polarity performance for airMAX networks.
Superior Noise Immunity
Featuring reduced sidelobes and backlobes, the airMAX®ac Sector Antennas are engineered to reject noise interference in co‑location deployments.
Market-Leading Beam Performance
Compare the diagram of the airMAX®ac Sector Antenna, model AM-5AC22-45, to the diagram of a standard sector antenna, and note the superior noise immunity and beam performance of the AM-5AC22-45.
Industrial-Strength Construction
airMAX®ac Antennas are designed with robust mechanical design for outdoor application use.
Plug and Play Integration

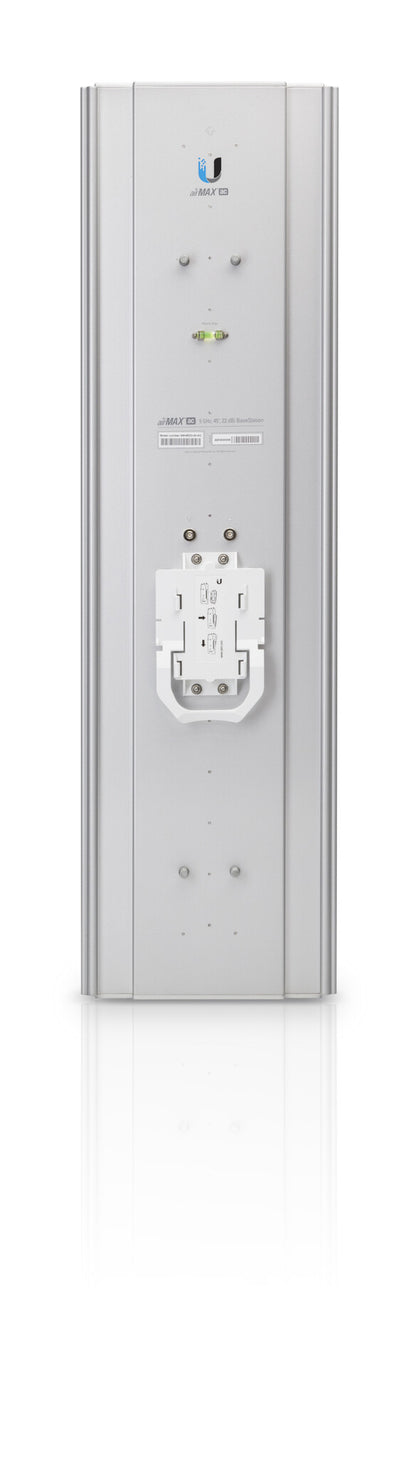

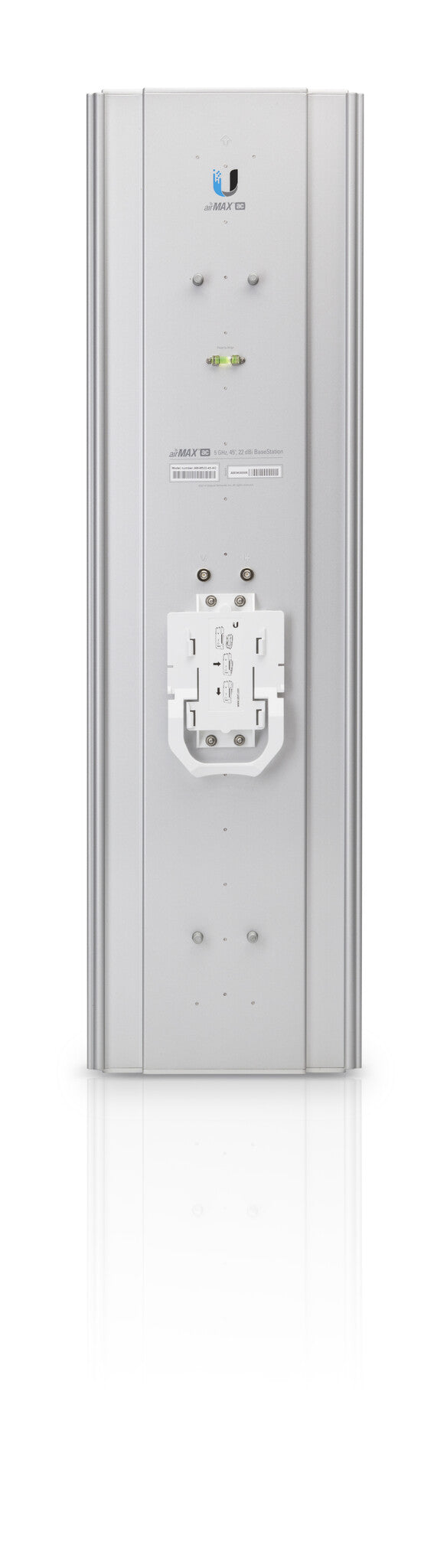

Every airMAX®ac Antenna has a built-in Rocket™mount, so no tools are needed to install the Rocket BaseStation.
| Performance | |
|---|---|
| Horizontal beam width | 45° |
| Vertical beam width | 45° |
| Frequency band | 5.1 - 5.8 GHz |
| Antenna gain level (max) | 22 dBi |
| Features | |
|---|---|
| Mounting | Wall |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Polarization | Dual polarization |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Height | 750 mm |
| Depth | 94 mm |
| Width | 215 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
