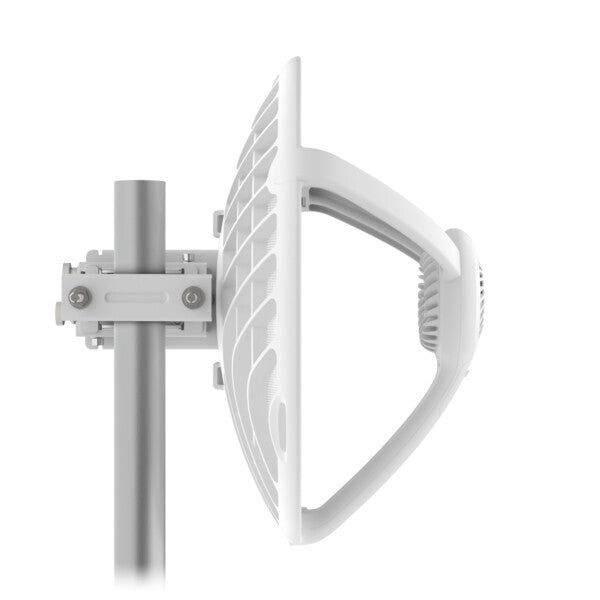

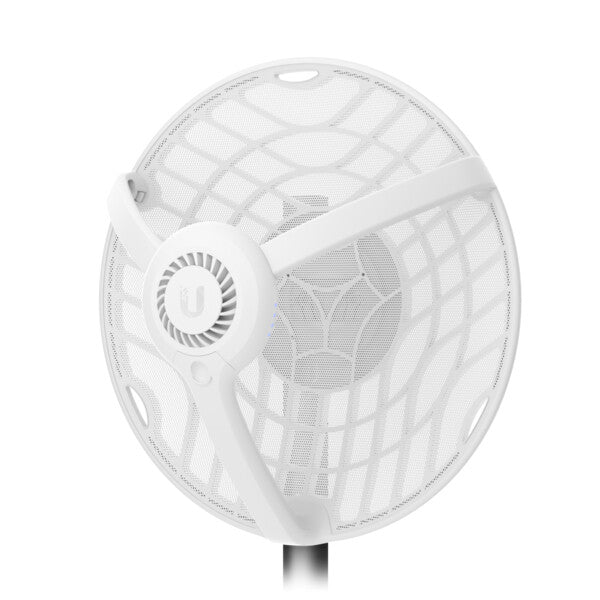

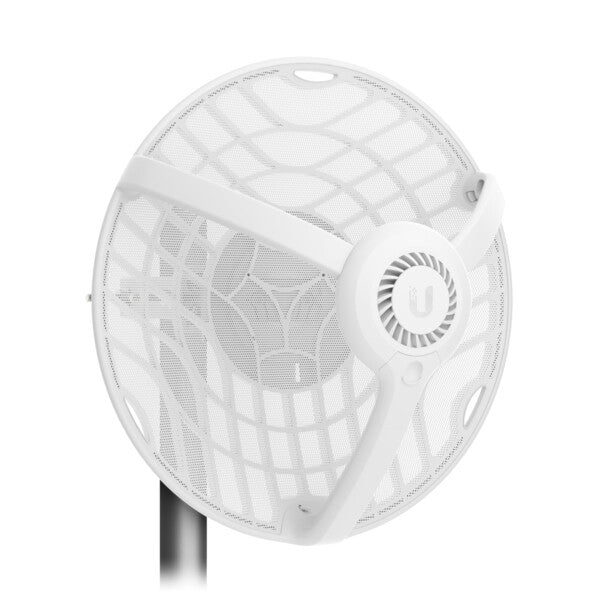

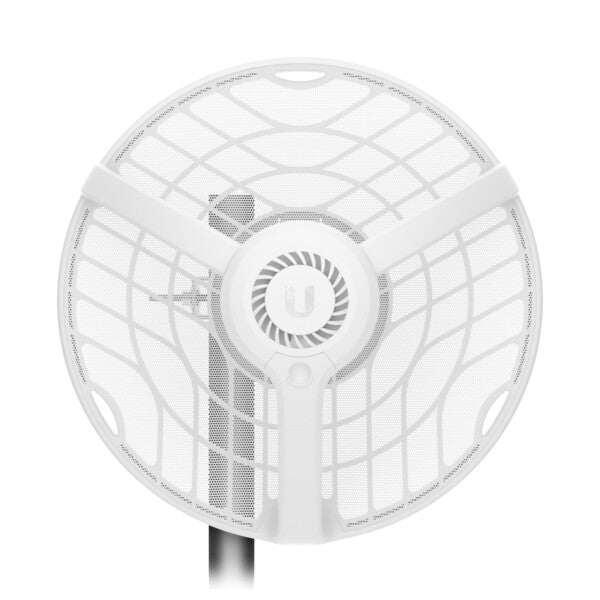

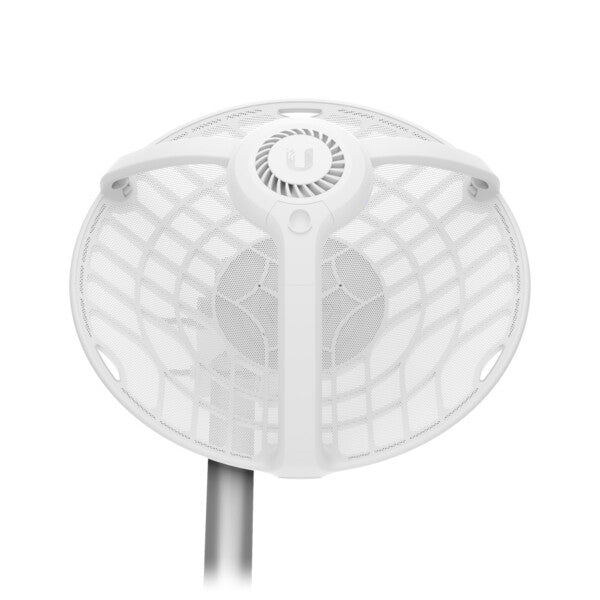

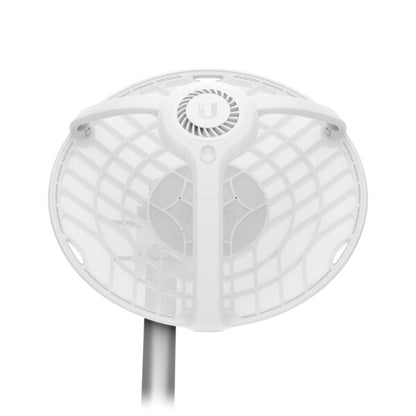

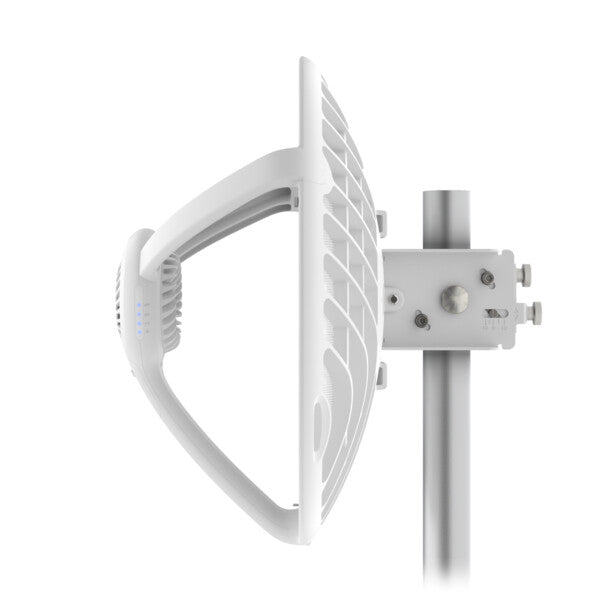

Bridge, 60 GHz, 12 km, 1.8 Gbps, 1x Gigabit Ethernet, GPS, PoE, Precision Alignment Mount, Ø413 x 360 mm, White
airFiber 60 GHz Radio System Featuring Wave Technology with True Duplex Gigabit Performance for PtP Links over 12 km Distances
AF60 LR is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. New WaveTechnology enables incredible long-range performance within the 60GHz spectrum.
Includes a built-in Bluetooth management radio for easy setup.
| Data transmission |
|---|
| Maximum transfer distance |
12000 m |
| Maximum data transfer rate |
1800 Mbit/s |
| Antenna |
|---|
| Antenna design |
External |
| Wireless LAN features |
|---|
| Frequency band |
60 GHz |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Connectivity technology |
Wired & Wireless |
| Security |
|---|
| Security algorithms |
AES, WPA2-PSK |
| Management features |
|---|
| Web-based management |
Yes |
| Features |
|---|
| Internal memory |
256 MB |
| RAM type |
DDR3 |
| Power LED |
Yes |
| LED indicators |
LAN |
| Product colour |
White |
| Mounting type |
Pole |
| Material |
Aluminium, Polycarbonate (PC) |
| Product type |
Network bridge |
| System requirements |
|---|
| Minimum system requirements |
Modern Web Browser or Android/iOS Smartphone |
| Power |
|---|
| Power over Ethernet (PoE) voltage |
48 V |
| Power consumption (max) |
18 W |
| Power source type |
PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 60 °C |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Weight & dimensions |
|---|
| Weight |
2.7 kg |
| Depth |
360 mm |
| Antenna diameter |
41.3 cm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
