1/1.8" 8MP, 4K 3840 x 2160 (16:9), IP66, IK08, IR LED, Quad-core Arm Cortex-A53, GbE RJ45, PoE+, D 118 x 111 mm

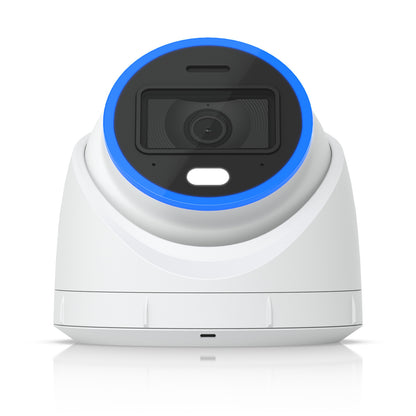

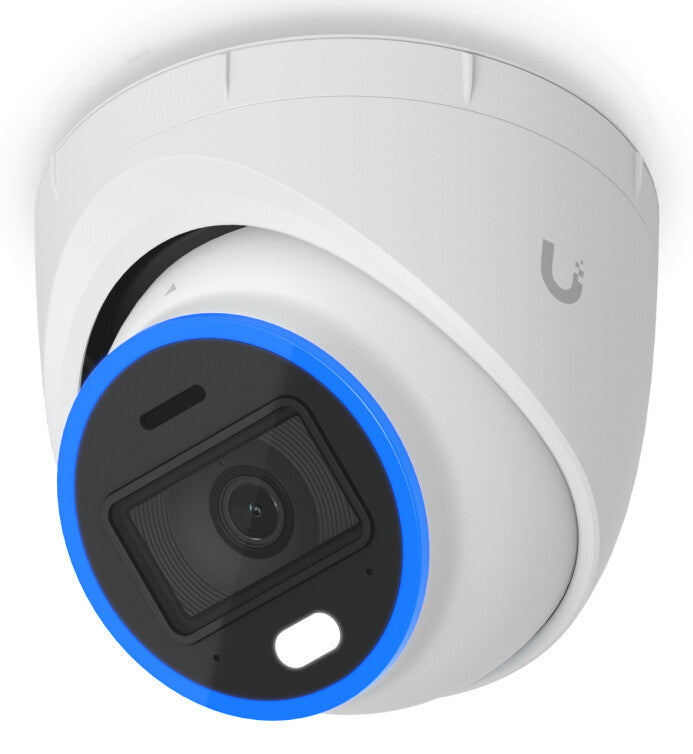

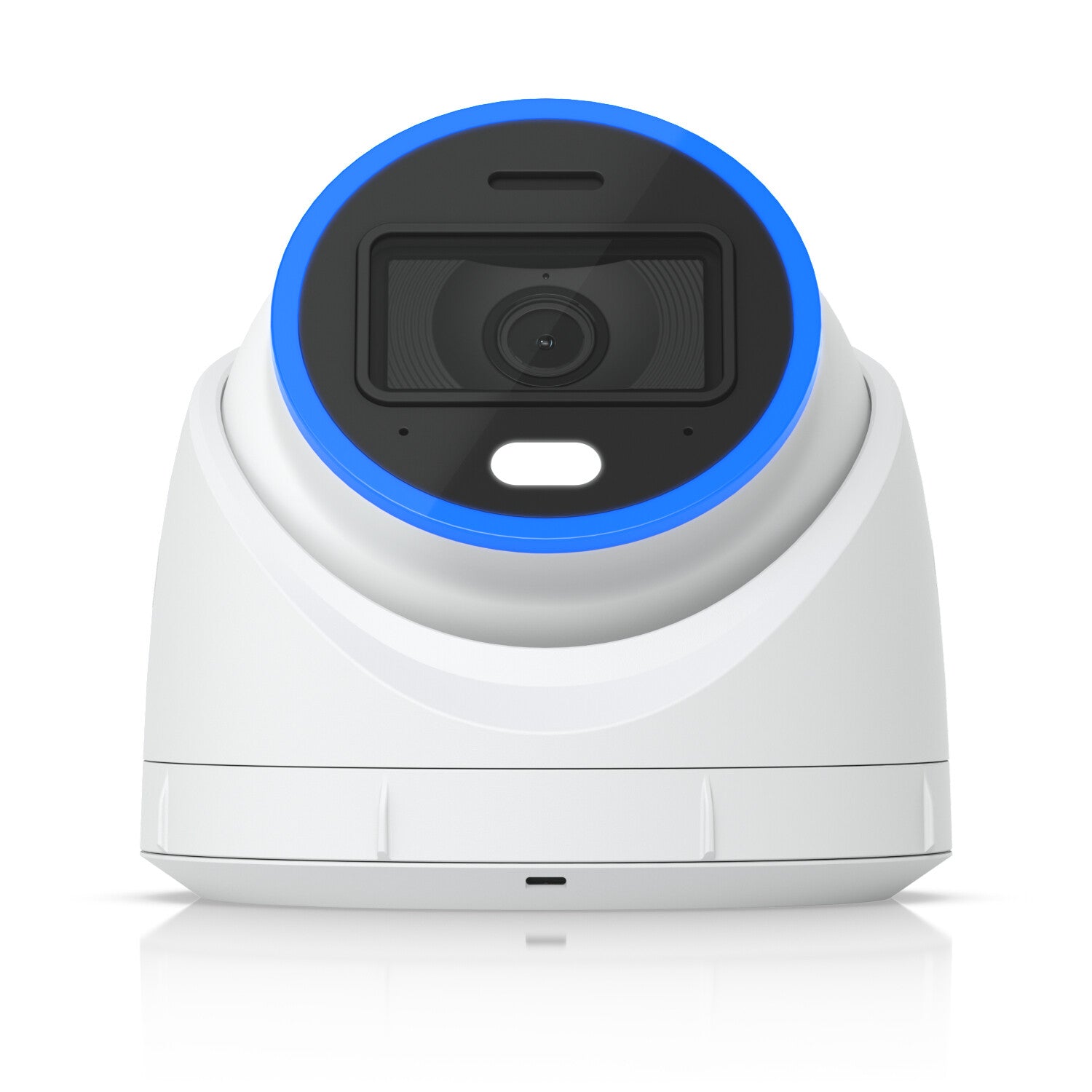

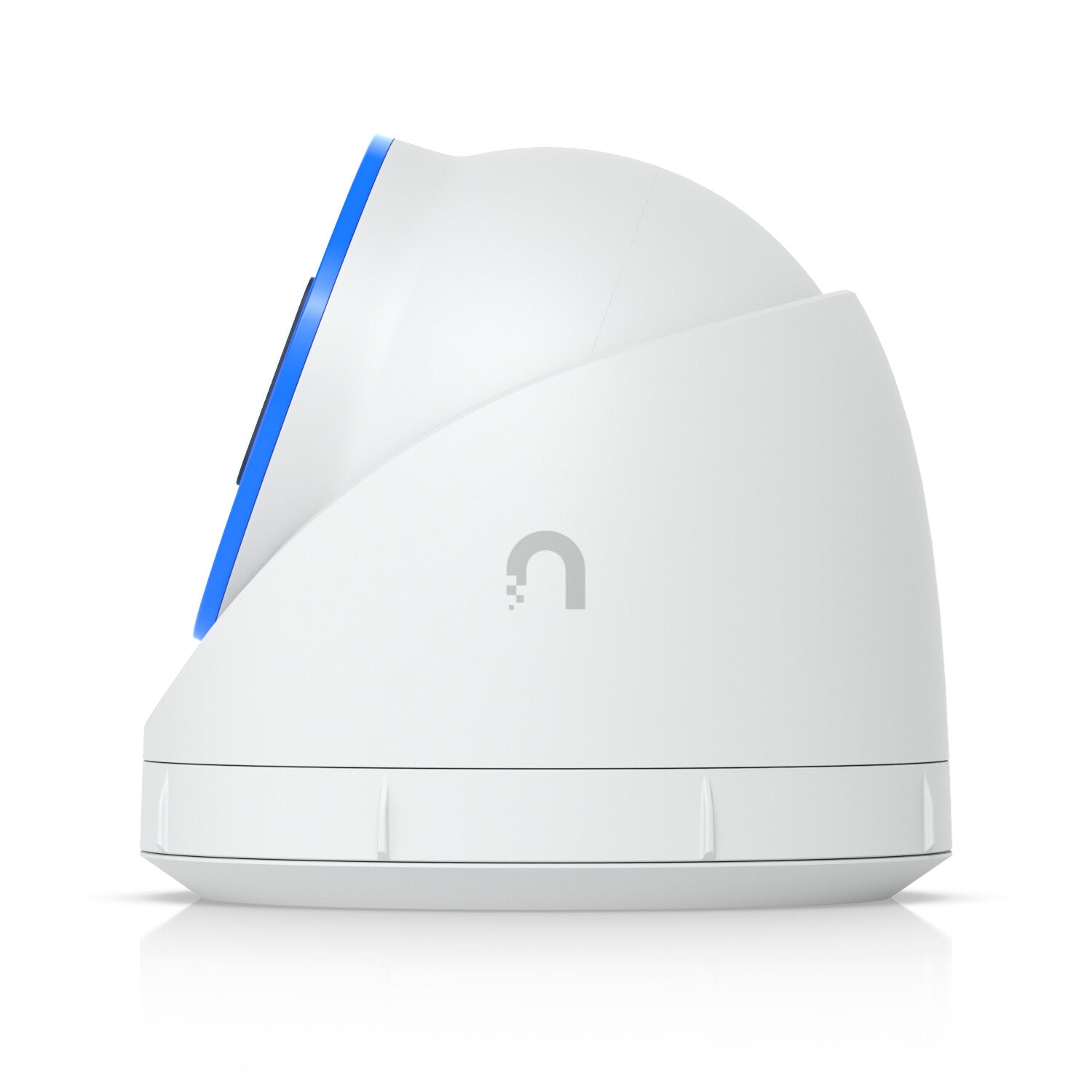

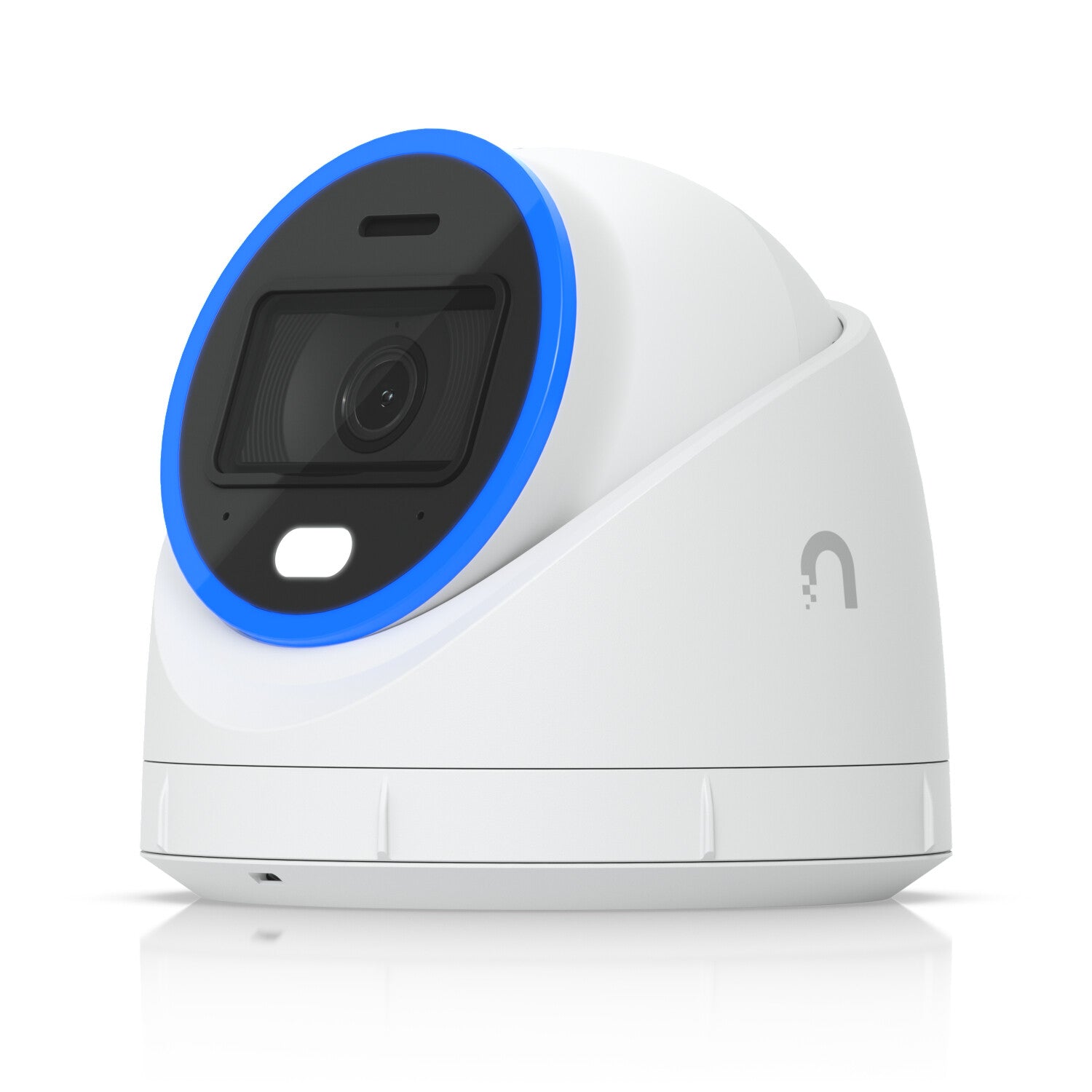

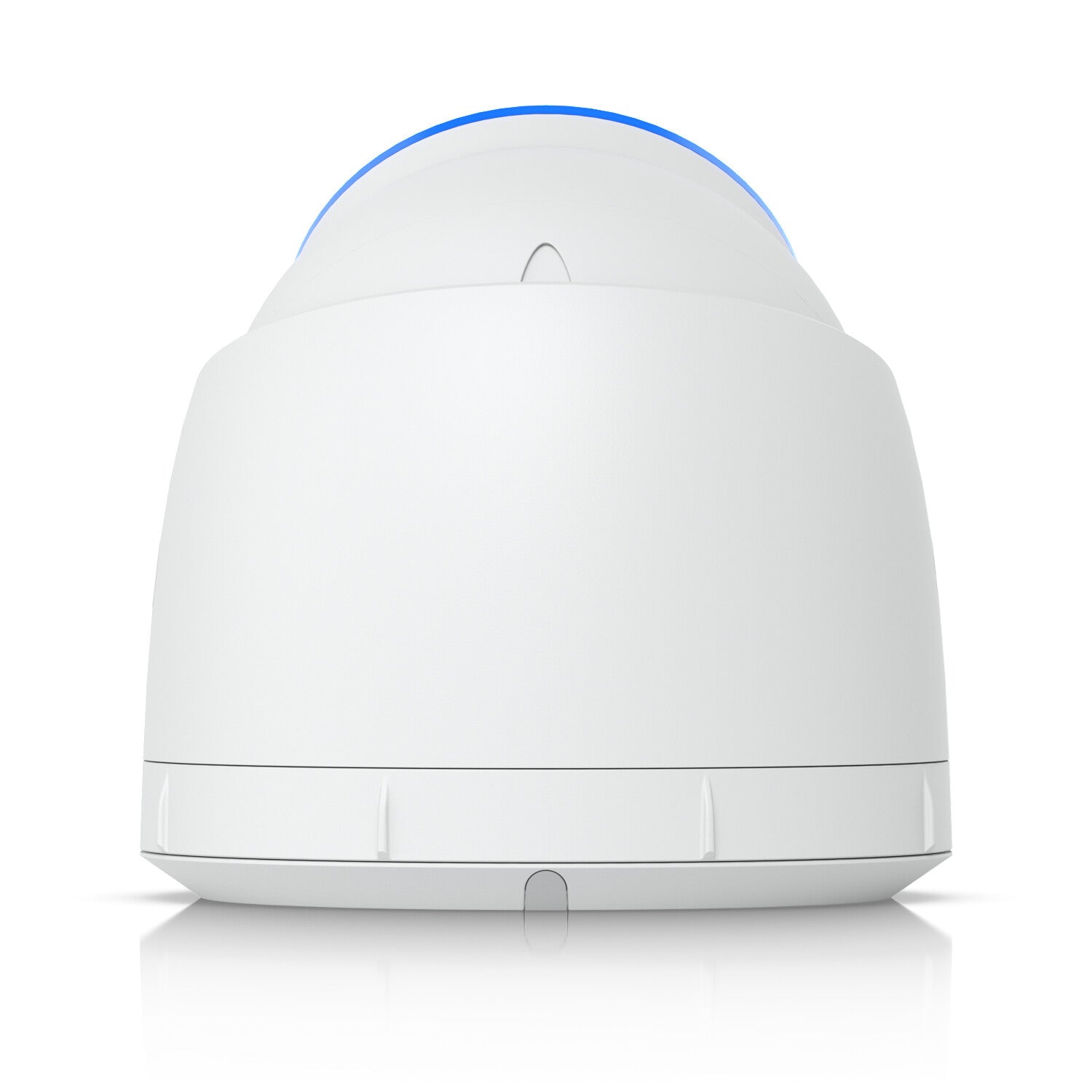

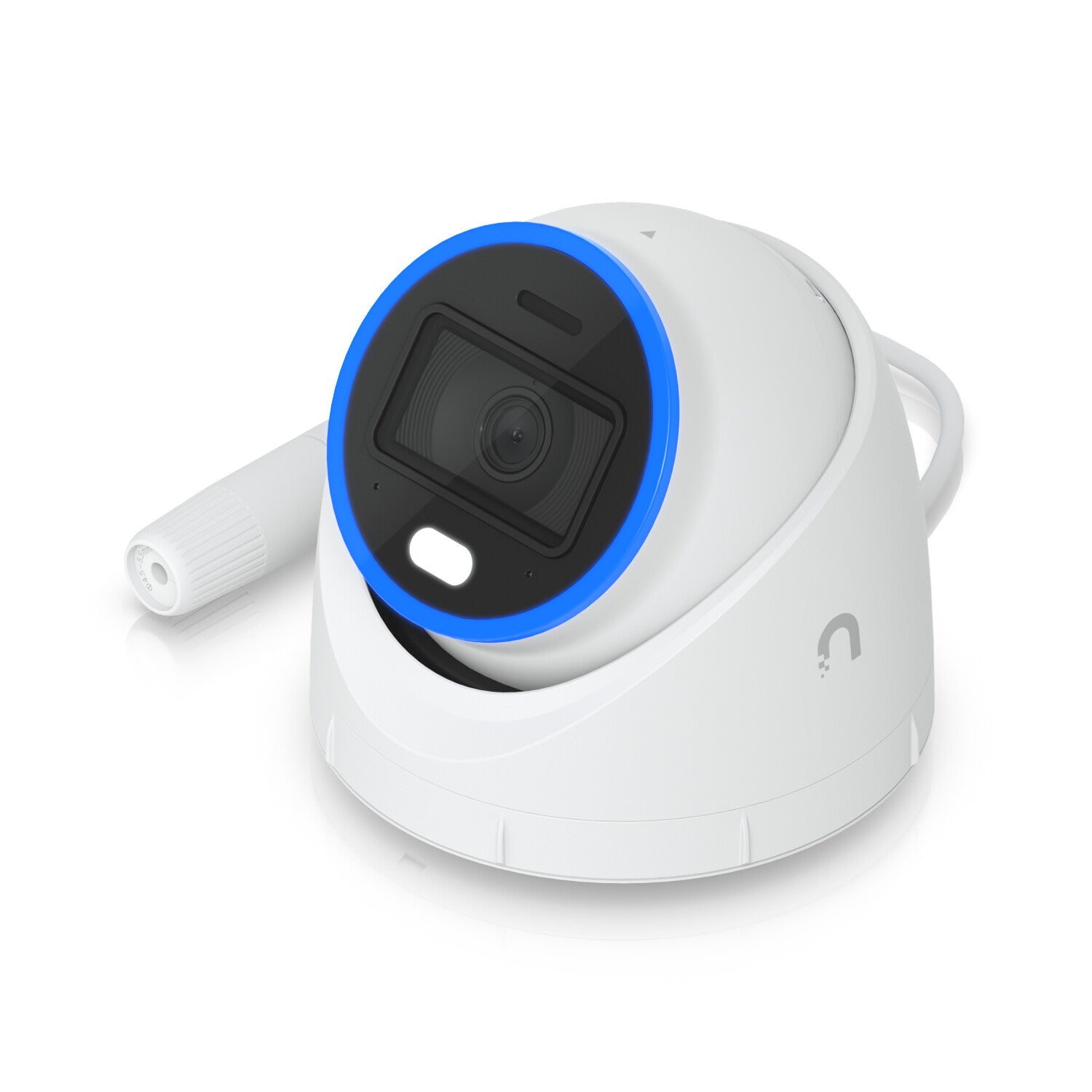

All-weather, vandal-proof 4K PoE+ turret camera with enhanced AI capabilities and IR and visible LEDs for night vision.
| Performance |
|---|
| Processor model |
ARM Cortex-A53 |
| Built-in processor |
Yes |
| Luminous flux |
400 lm |
| Built-in light |
Yes |
| Remote viewing |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| Weatherproof |
Yes |
| IK code |
IK08 |
| International Protection (IP) code |
IP66 |
| Protection features |
Vandal proof |
| Housing material |
Aluminium, Polycarbonate (PC) |
| LED indicators |
Yes |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Turret |
| Camera |
|---|
| Pan range |
0 - 360° |
| Tilt angle range |
0 - 70° |
| Lens viewing angle, diagonal |
134.1° |
| Lens viewing angle, vertical |
56.7° |
| Lens viewing angle, horizontal |
109.9° |
| Angle of rotation |
360° |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
|---|
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Lens system |
|---|
| Number of lenses |
1 |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
40 m |
| Night vision |
Yes |
| Video |
|---|
| Text caption overlay |
Yes |
| Image quality adjustment |
Brightness, Colour depth, Contrast, DNR, Sharpness, HDR |
| Privacy masking |
Yes |
| Frame rate |
30 fps |
| Supported video modes |
2160p |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
|---|
| Built-in microphone |
Yes |
| Audio system |
2-way |
| Built-in speaker(s) |
Yes |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
|---|
| Light sensor |
Yes |
| Management features |
|---|
| Smartphone/tablet remote support |
Yes |
| Reset button |
Yes |
| Web-based management |
Yes |
| Power |
|---|
| DC output voltage |
42.5, 57 |
| Power consumption (max) |
20 W |
| Power source type |
DC, PoE |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-30 - 50 °C |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Weight & dimensions |
|---|
| Cable length |
0.3 m |
| Weight |
990 g |
| Diameter |
11.8 cm |
| Height |
111 mm |
| Sustainability |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Features |
|---|
| License plate recognition |
Yes |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
