Transcend PCIe M.2 SSDs 512 GB PCI Express 4.0 NVMe 3D NAND

R 11,144.88
R 11,144.88
R 11,144.88
Shipping calculated at checkout.

Sorry, it's out of stock.

But we can let you know when it's back in.

Out of stock
512GB, M.2 2280, NVMe PCIe Gen4 x4, 80 x 22 x 3.58 mm, 9 g

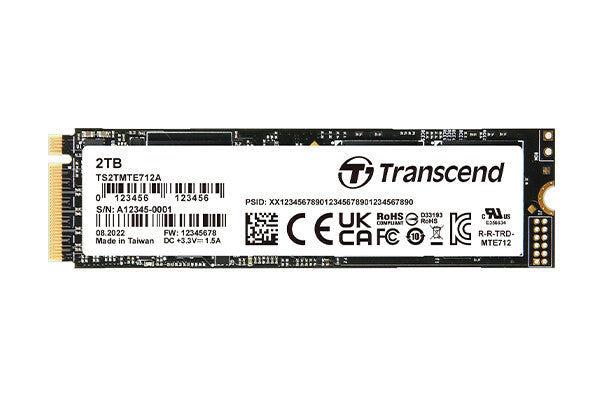

Transcend's M.2 SSD MTE712A is a self-encrypting drive (SED) that complies with the TCG Opal 2.0 standards. Data is protected using the hardware-based AES 256-bit encryption and LBA (Logical Block Address)sector-specific permissions.

The MTE712A features the 112-layer 3D NAND flash and the PCI Express (PCIe) Gen 4 x4 interface, achieving never-before-seen transfer speeds. Its built-in DRAM cache allows faster random speeds while the 30µ" gold finger PCB, Corner Bond technology, and anti-sulfur resistor guarantee its reliability in harsh conditions. The MTE712A is fully tested in-house, operating stably in an extended operating temperature range (-20℃~75℃).

Transcend also offers the MTE712A-I with wide temperature (-40℃~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.

Features
TBW rating 4000
Mean time between failures (MTBF) 3000000 h
Drive writes per day (DWPD) 1.84
PCI Express CEM revision 4.0
PCI Express interface data lanes x4
M.2 SSD size 2280 (22 x 80 mm)
Sequential write speed (CDM) 3200 MB/s
Sequential read speed (CDM) 3800 MB/s
Random write (4KB) 330000 IOPS
Random read (4KB) 350000 IOPS
Hardware encryption Yes
Component for Universal
NVMe version 1.4
NVMe Yes
Memory type 3D NAND
Interface PCI Express 4.0
SSD capacity 512 GB
SSD form factor M.2
Power
Power consumption (idle) 1.28 W
Power consumption (read) 5.6 W
Operating voltage 3.3 V
Operational conditions
Vibration resistance 20 G
Operating shock 1500 G
Operating relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -55 - 85 °C
Operating temperature (T-T) -20 - 75 °C
Weight & dimensions
Weight 9 g
Height 3.58 mm
Depth 22 mm
Width 80 mm
