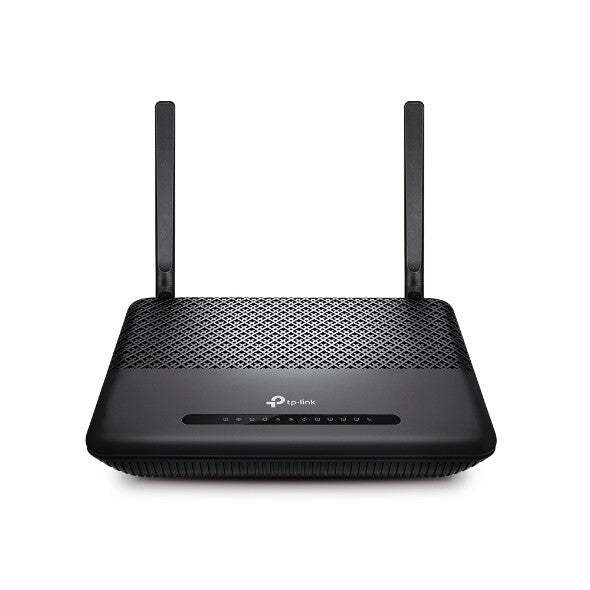

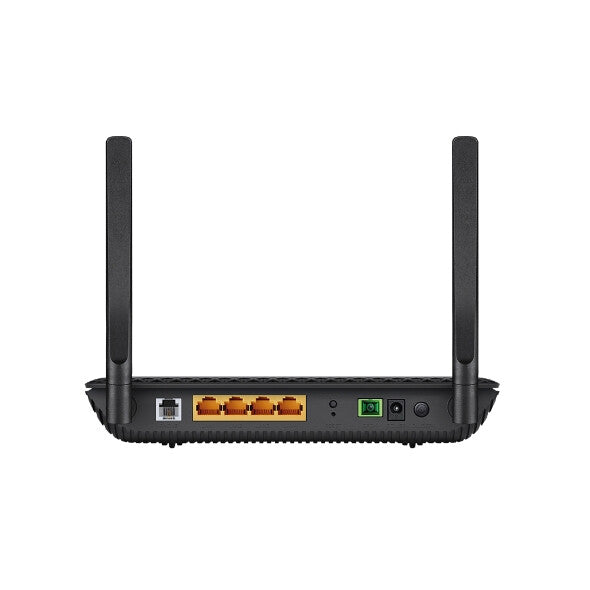

AC1200 Wireless VoIP GPON Router
Superfast Dual Band Wi-Fi
XC220-G3v comes with 11ac Wi-Fi standard, offering total data transfer speeds achieving up to 1167Mbps, with 867Mbps over the clearer 5GHz channel, and 300Mbps over the 2.4GHz Channel.
High-Speed GPON Service
Compliant with the ITU-T G.984/G.988 GPON standards, XC220-G3v supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with four 10/100/1,000Mbps LAN ports, users can enjoy high-speed GPON services and bandwidth-intensive multimedia applications—such as interactive gaming, streaming, and real-time audio—much faster and easier than ever before.
Full Gigabit Wired
With four gigabit LAN ports, speeds can be up to 10x faster than standard Ethernet connections. The XC220-G3v can provide robust and extremely fast connections to all of your favorite wired devices, including game consoles, smart TVs, DVRs, and more.
Supports VoIP Calls
With FXS port, users can make or receive phone calls over the Internet simply by connecting the device to their existing telephone set.
Easy Remote Management
Supports OMCI and TR-069, which make it easy
to activate, configure and manage remotely.
| WAN connection |
|---|
| 3G/4G USB modem compatibility |
No |
| SIM card slot |
No |
| DSL WAN |
No |
| Ethernet WAN |
No |
| Wireless LAN features |
|---|
| Channels quantity |
2 channels |
| WLAN data transfer rate (second band) |
300 Mbit/s |
| WLAN data transfer rate (first band) |
867 Mbit/s |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) |
867 Mbit/s |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Network |
|---|
| VPN Passthrough |
Yes |
| Wireless Distribution System (WDS) bridge |
Yes |
| Wireless radio |
Yes |
| Static route |
Yes |
| Dynamic DNS (DDNS) |
Yes |
| Port forwarding |
Yes |
| Port triggering |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Mobile network |
|---|
| 5G |
No |
| 3G |
No |
| 4G |
No |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| RJ-11 ports quantity |
1 |
| USB port |
No |
| Ethernet LAN (RJ-45) ports |
4 |
| Management features |
|---|
| WPS push button |
Yes |
| Intelligent Mesh technology |
Yes |
| Reset button |
Yes |
| Wireless statistics |
Yes |
| Quality of Service (QoS) support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Web-based management |
Yes |
| Security |
|---|
| Network address translation (NAT) |
Yes |
| DMZ support |
Yes |
| URL filtering |
Yes |
| IP address filtering |
Yes |
| MAC address filtering |
Yes |
| Filtering |
Yes |
| DoS attack prevention |
Yes |
| Parental control |
Yes |
| Firewall security |
NAT Firewall |
| Firewall |
Yes |
| Security algorithms |
WPA, WPA-PSK, WPA2, WPA2-PSK |
| Protocols |
|---|
| Supported network protocols |
IPv4 and IPv6 |
| VoIP protocols |
Call hold, Call forward, Warm call, Do not disturb, Call restriction, Speed dial, etc. Caller ID, 3-party conference, SIP account – up to 8 accounts |
| Management protocols |
Web Based Configuration(HTTP), Remote management, Command Line Interface, SSL for TR-069, Web Based Firmware Upgrade, Diagnostic Tools, OMCI |
| Universal Plug and Play (UPnP) |
Yes |
| DHCP server |
Yes |
| DHCP client |
Yes |
| Design |
|---|
| On/off switch |
Yes |
| LED indicators |
Activity, LAN, Power |
| Indication light |
Yes |
| Product colour |
Grey |
| Product type |
Tabletop router |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Cables included |
LAN (RJ-45) |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna design |
External |
| Features |
|---|
| Firmware upgradeable |
Yes |
| Power |
|---|
| Output current |
1.5 A |
| Output voltage |
12 V |
| Power source type |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| System requirements |
|---|
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
