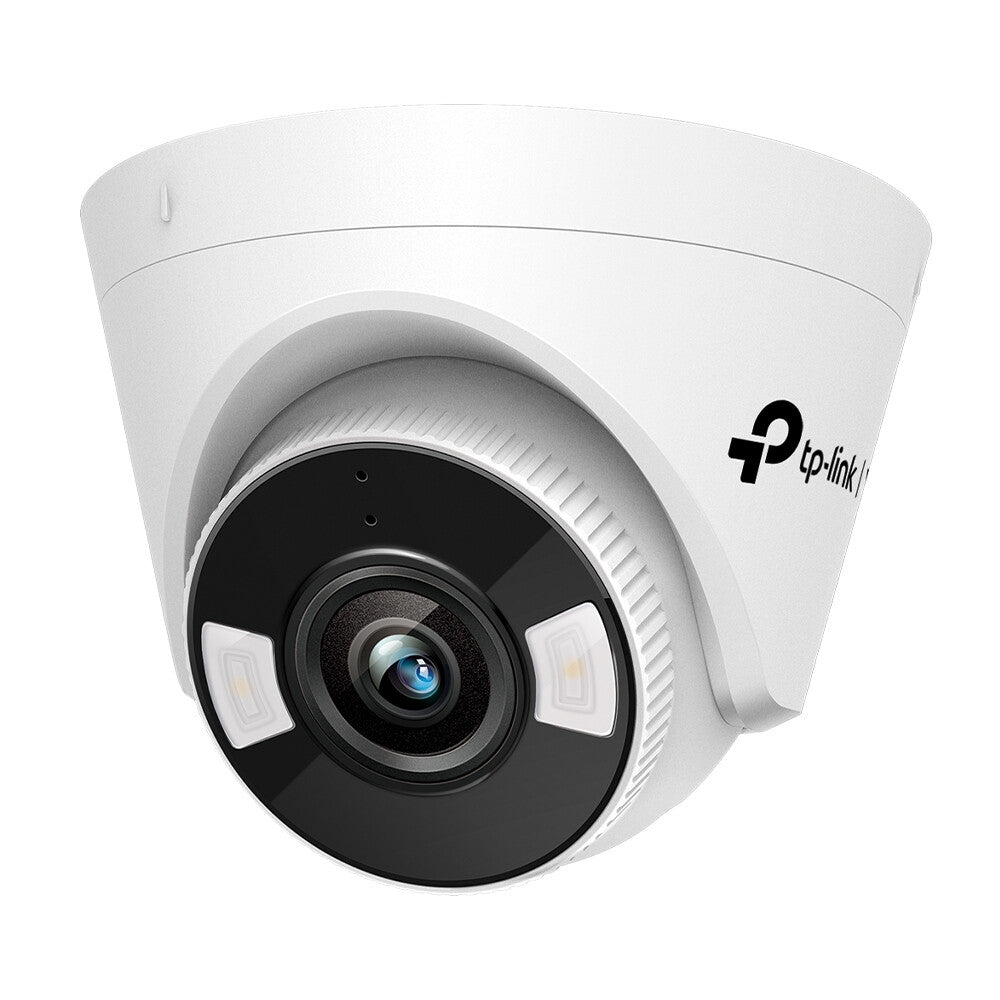

VIGI 3MP Full-Color Turret Network Camera
All The Colors, All The Time
3MP Full-Color Turret Network Camera
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.
Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance |
|---|
| Certification |
CE/BSMI/VCCI/ONVIF |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
|---|
| Housing material |
Plastic |
| Product colour |
Black, White |
| Mounting type |
Ceiling |
| Form factor |
Dome |
| Camera |
|---|
| Lens viewing angle, diagonal |
106.9° |
| Lens viewing angle, vertical |
45.1° |
| Lens viewing angle, horizontal |
89.1° |
| Minimum illumination |
0.005 lx |
| Panoramic camera |
|---|
| Digital Wide Dynamic Range (DWDR) (panoramic camera) |
Yes |
| Image sensor |
|---|
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
|---|
| Maximum aperture number |
1.6 |
| Lens diameter |
4 mm |
| Number of lenses |
1 |
| Night vision |
|---|
| LED type |
IR |
| Night vision distance |
30 m |
| Night vision |
Yes |
| Video |
|---|
| Bit rate |
64 Kbps to 4 Mbps |
| Smart IR |
Yes |
| Image quality adjustment |
Brightness, Contrast, Sharpness |
| Privacy masking |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Noise reduction technology |
3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Total megapixels |
3 MP |
| Maximum resolution |
2304 x 1296 pixels |
| Network |
|---|
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Security |
|---|
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Mirror |
Yes |
| Password reset via email |
Yes |
| Digest authentication |
Yes |
| Password protection |
Yes |
| Management features |
|---|
| Behavior analysis |
Intrusion detection, Line crossing detection |
| Web browser |
Yes |
| Power |
|---|
| DC output voltage |
12 |
| Power source type |
DC, PoE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
|---|
| Height |
123 mm |
| Depth |
83 mm |
| Width |
123 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Number of cameras |
1 |
