32 ch, 320 Mbps In / 320 Mbps Out, H.265+/H.265/ H.264+/H.264, 3840 x 2160
Security Never Shuts Down

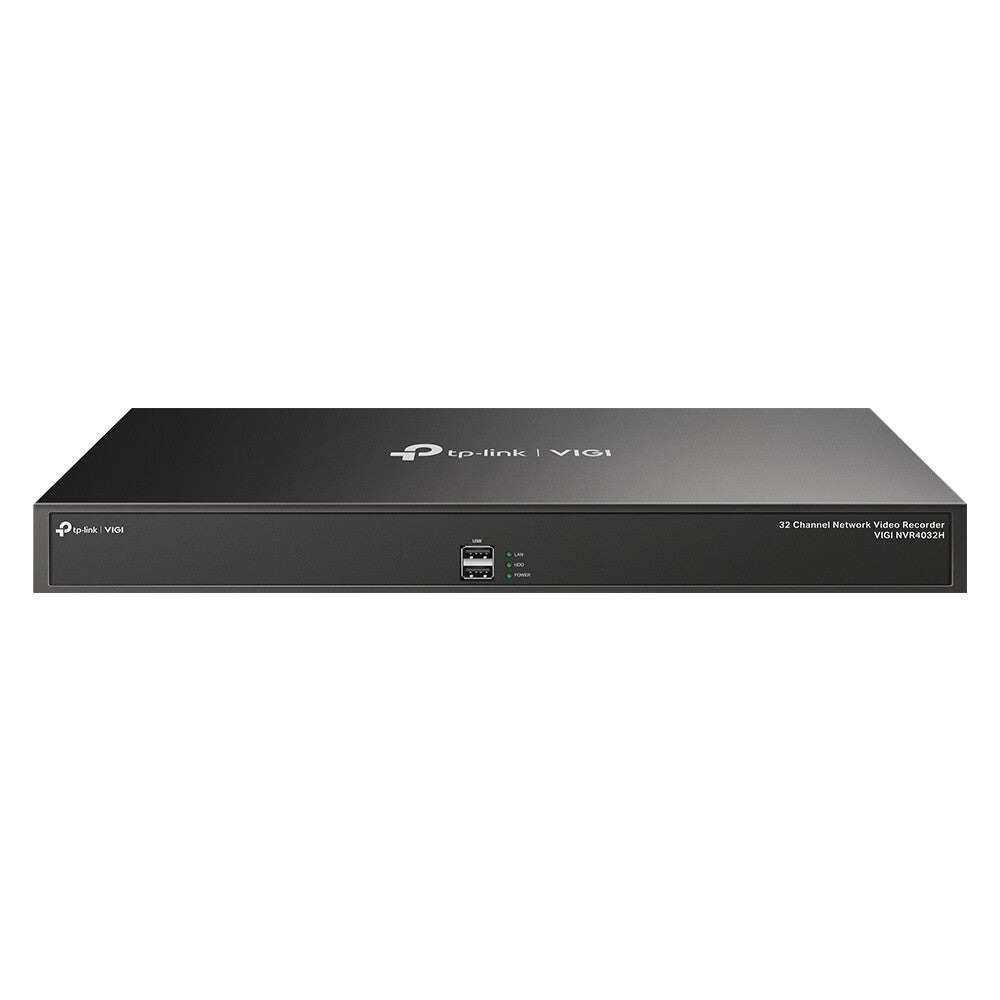

32 Channel Network Video Recorder
Every angle all on one screen.
4K HDMI Video Output & 32MP Decoding Capacity
Sharp image definition up to 8MP ensures you capture every detail. 16-ch@2MP/ 8-ch@4MP decoding capacity allows you to enjoy more-channels live view and playback at the same time

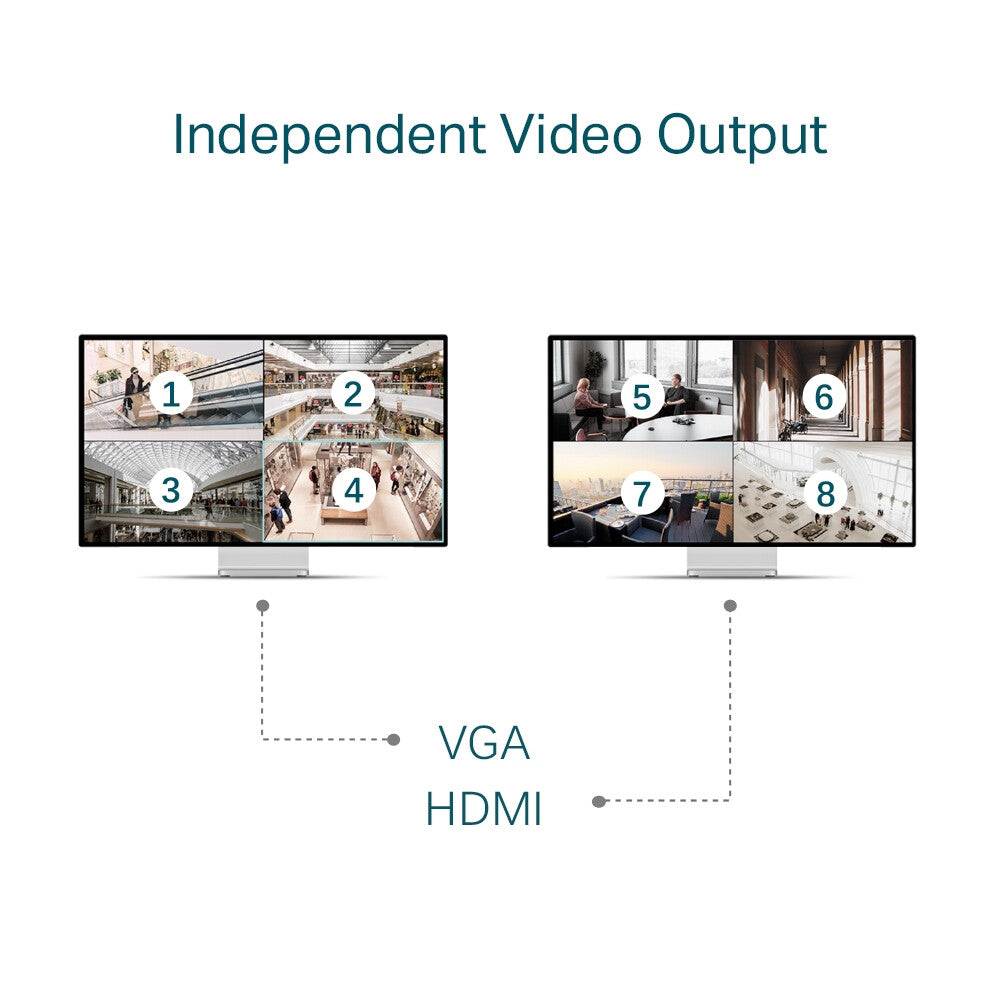

Independent Video Output
Greatly reduces the time spent on switching between screens.
Connect the HDMI and VGA ports to the two different screens and freely choose what live views each screen shows. That way, you will enjoy multi-channels live views simultaneously.
The VGA and HDMI ports display live views and configuration & playback interface, respectively. It will allow users to play back the videos or configure the devices while watching live views at the same time.

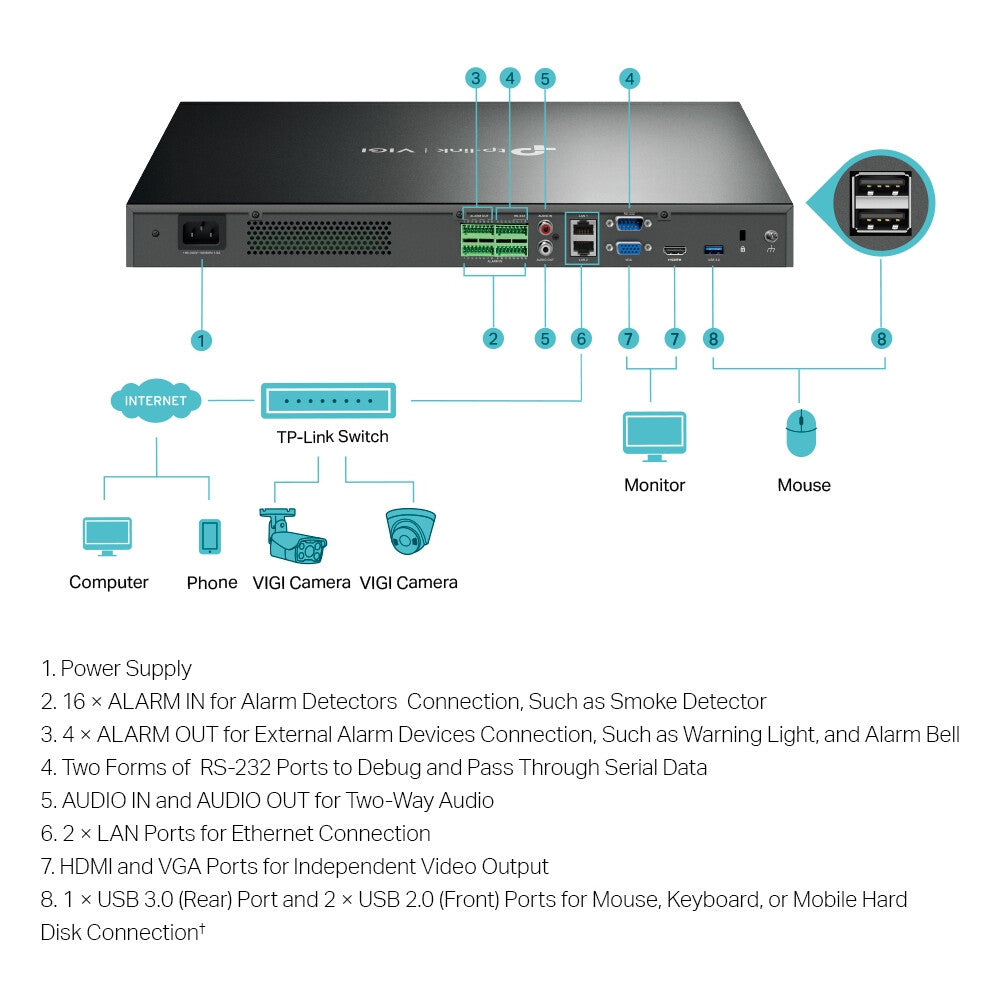

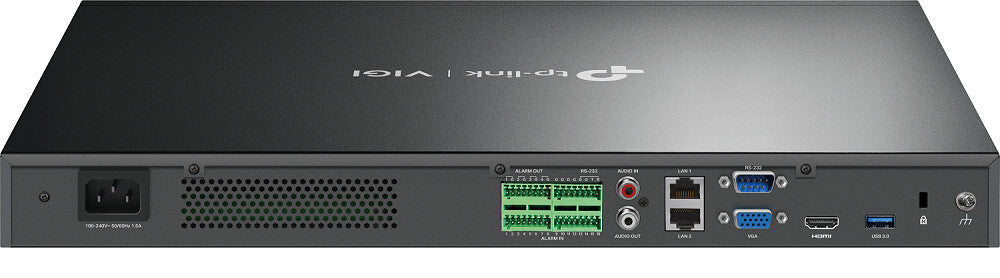

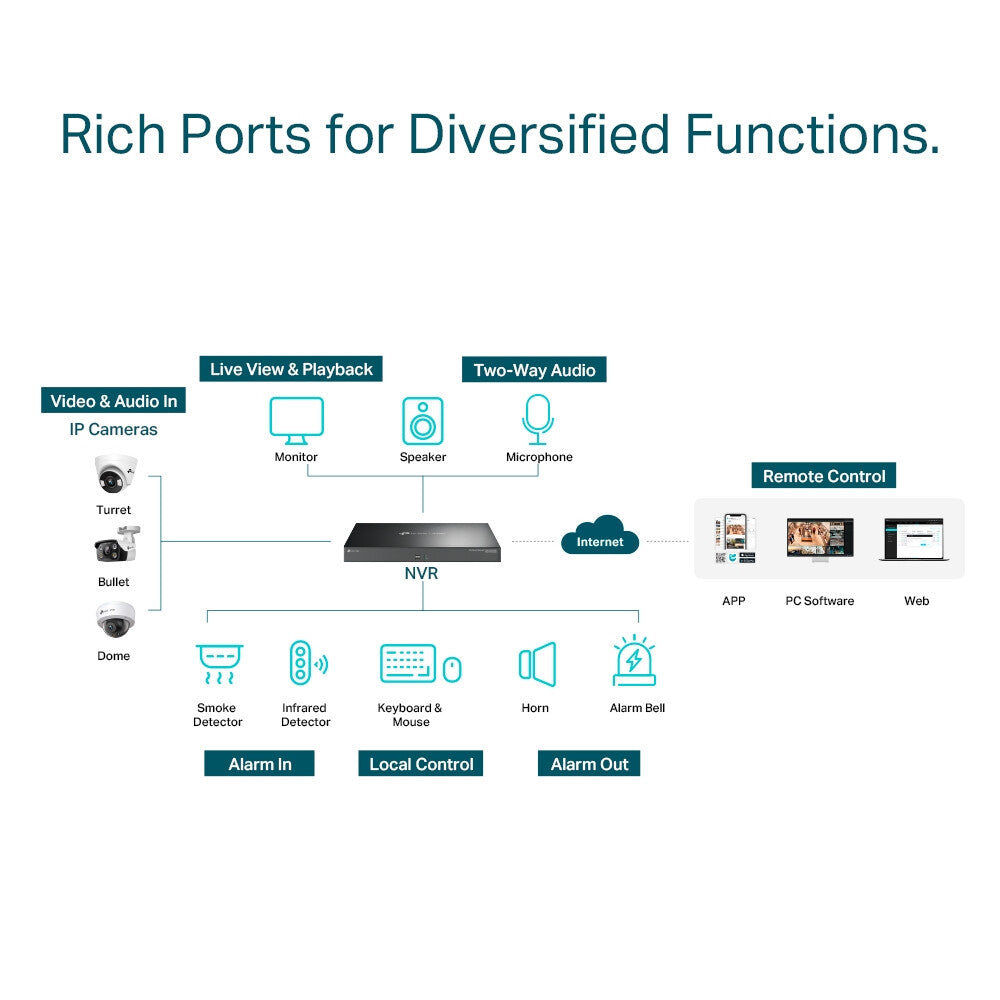

Rich Ports for Diversified Functions.
Equipped with a variety of ports, VIGI NVR4032H integrates 16× alarm in, 4× alarm out, two-way audio, video input, independent video output, and more, suitable for SMB surveillance scenarios.
Dual Ethernet Ports Design
Supports a variety of network modes to meet your different needs.
Higher bandwidth for high-definition cameras.
320 Mbps Video Access Bandwidth
High video access bandwidth ensures your NVR manages more cameras with high resolutions.Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to 32 HD cameras.
Smart Video Coding by H.265+
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
Security for every hour and every day.
4 SATA (1 up to 10TB)
Automatically and continuously stores up to 40 TB of footage from connected cameras to secure your data for quick, convenient access.
Space-saving and easy installation.
Rack Mounting
Just simply plug your NVR into the rack and connect it to the appropriate power and communication cables. Then, it is ready to go. This will give more convenience for many industrial and commercial applications.
No need to check long compatibility lists.
ONVIF Ensures Compatibility
Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance |
|---|
| Video input channels |
32 channels |
| Alarm input channels |
16 |
| Number of simultaneously playbacked channels |
16 channels |
| Alarm output channels |
4 |
| Video recording modes |
720p, 1080p |
| Supported resolutions |
3840 x 2160, 1920 x 1080, 1680 x 1050, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Maximum resolution |
3840 x 2160 pixels |
| Video motion detection |
Yes |
| Video loss detection |
Yes |
| Video formats supported |
H.264, H.264+, H.265, H.265+ |
| Playback modes |
Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop |
| Backup function |
Yes |
| Output bandwidth |
320 Mbit/s |
| Input bandwidth |
320 Mbit/s |
| Recording modes |
Manual, Schedule |
| Audio system |
2-way |
| Hard drive |
|---|
| HDD capacity |
0 GB |
| Number of HDDs supported |
4 |
| Maximum storage capacity |
10 TB |
| HDD interface |
SATA |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| VGA (D-Sub) output ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| RS-232 ports |
1 |
| Line-in |
Yes |
| Audio output |
1 |
| Supported network protocols |
UPnP, NTP, ONVIF, CGI |
| Features |
|---|
| Rack mounting |
Yes |
| Buzzer off |
Yes |
| Product colour |
Black |
| Power |
|---|
| Power consumption (max) |
48 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| System requirements |
|---|
| Mobile operating systems supported |
Android, iOS |
| Browser supported |
Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 55 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| General |
|---|
| Product family |
VIGI |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Weight |
4 kg |
| Package width |
440 mm |
| Package depth |
528 mm |
| Package height |
100 mm |
| Package weight |
5.22 kg |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC, Power |
