300Mbps, Mini USB 2.0, 2.400-2.4835GHz, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Boost Wi-Fi Coverage,
Boost Surfing
Experience

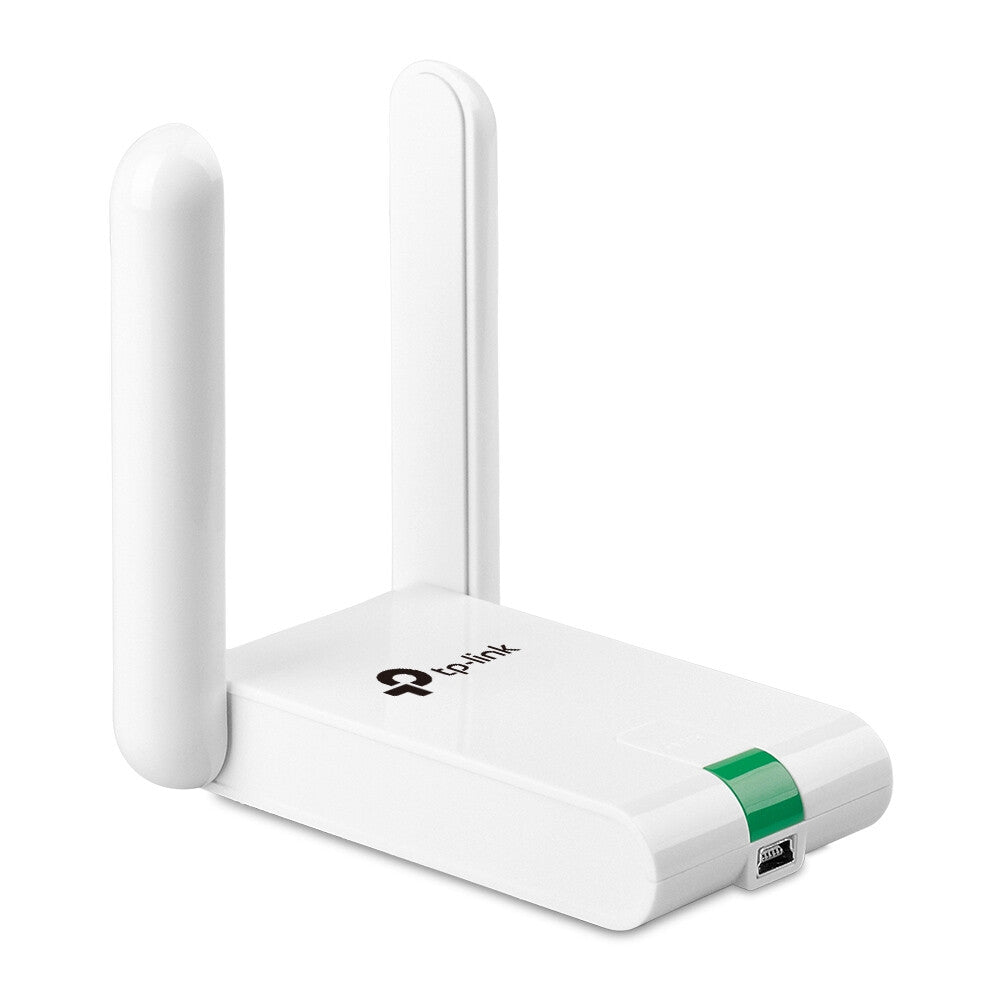

300Mbps High Gain
Wireless USB Adapter

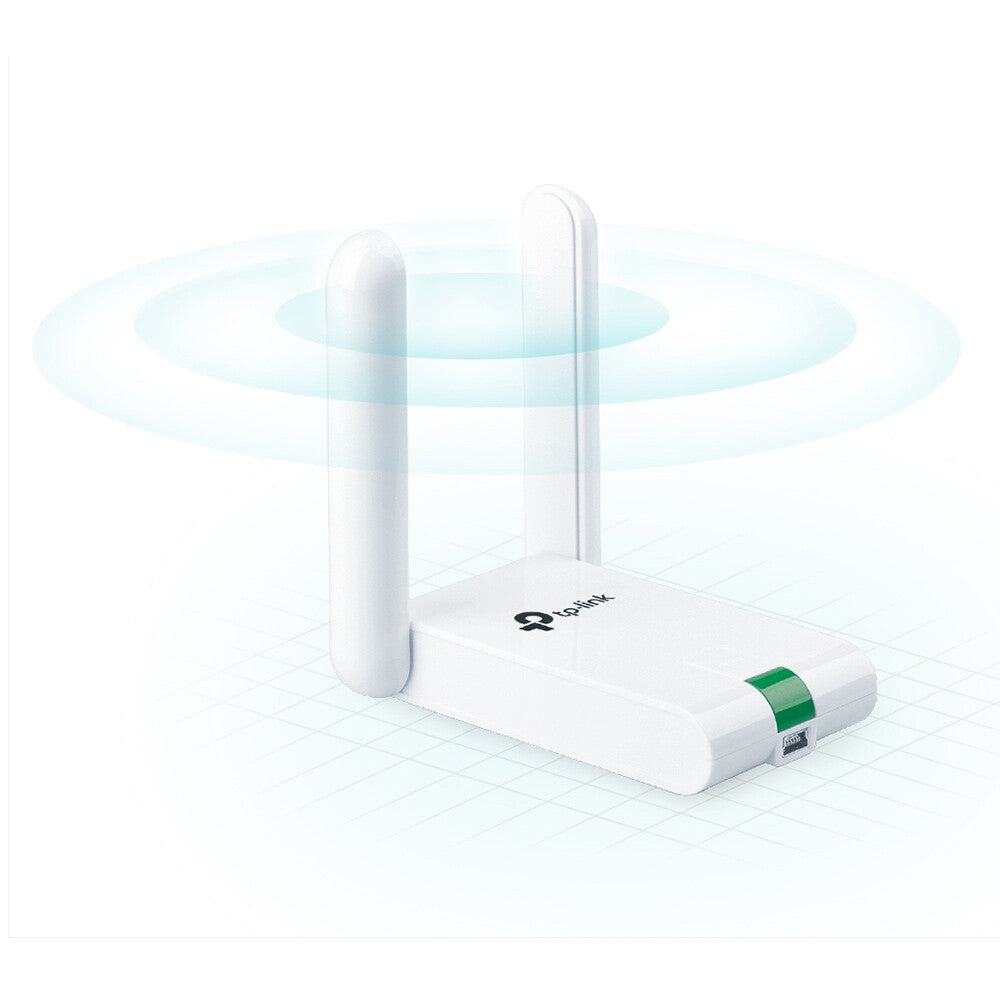

Stronger Coverage with High-Gain External Antennas
The TL-WN822N has two high-gain external antennas to insure stronger signal transmission and reception, which helps you to access a stable Wi-Fi connection across your home, even when your router is on a different floor.

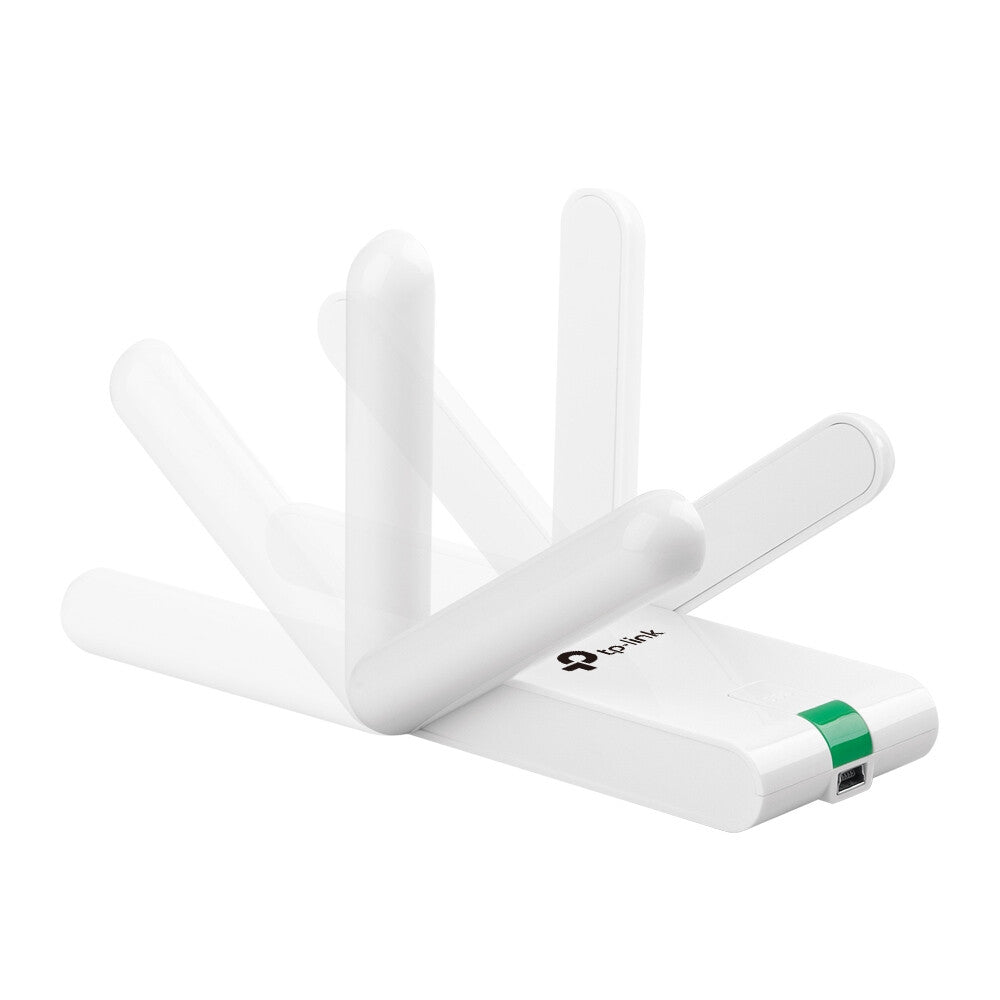

Easy Use with a Friendly Design

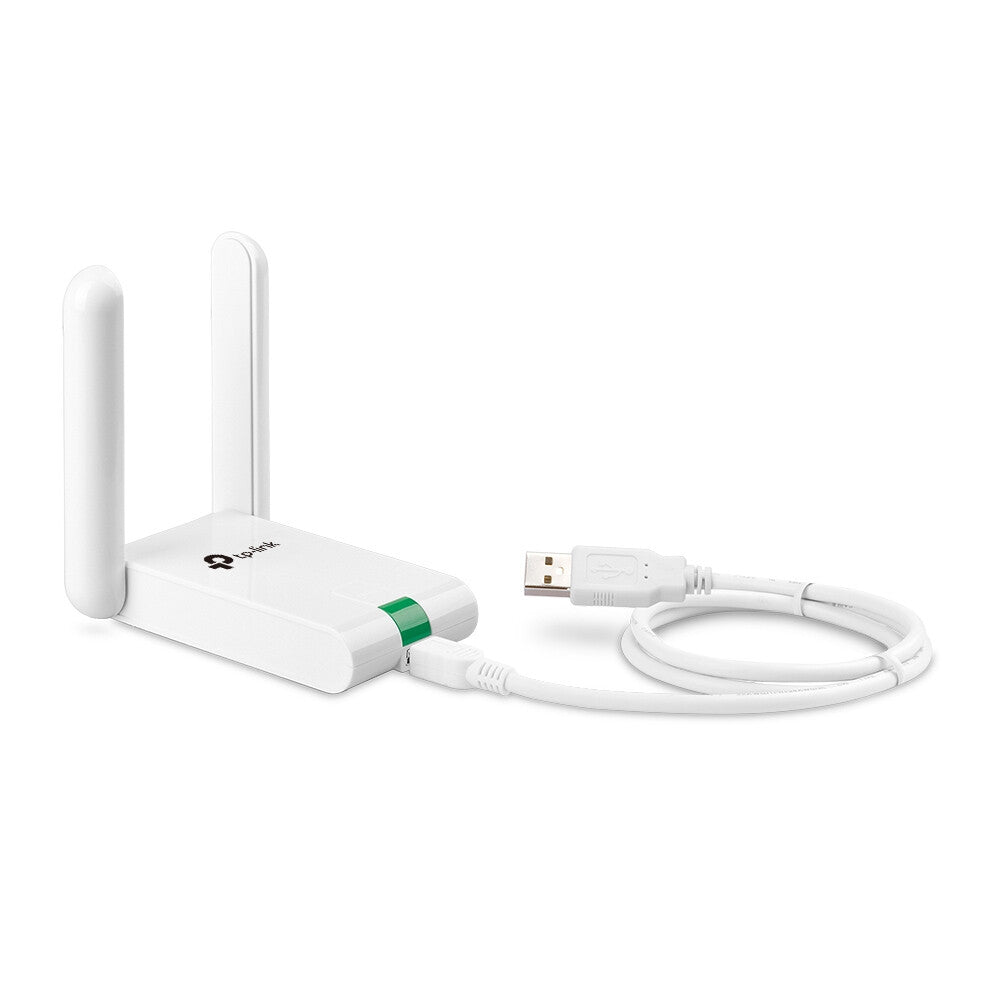

The desktop-style design is beneficial for the signal reception in various application environments. TL-WN822N also provides 1.5m USB extension cable, which is convenient for your installation, even for the desktop equipment.
Easy Setup
A friendly user interface on a CD for simple installation
WPS Button
Easy wireless security encryption at a push of the WPS button
Operating System
Supports Windows, Mac OS, Linux
| Ports & interfaces |
|---|
| USB version |
2.0 |
| USB ports quantity |
1 |
| Interface |
WLAN |
| Host interface |
Mini-USB |
| Connectivity technology |
Wireless |
| Network |
|---|
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Modulation |
16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported |
11,54,300 Mbit/s |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range |
2.4 - 2.4835 GHz |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
300 Mbit/s |
| Design |
|---|
| Certification |
CE, FCC, RoHS |
| Receiver sensitivity |
270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER |
| Antenna gain level (max) |
3 dBi |
| Antenna direction type |
Omni-directional |
| Antenna type |
2x Omni |
| Antenna design |
External |
| Antenna |
Yes |
| Product colour |
White |
| Internal |
No |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Compatible operating systems |
Windows 2000 / XP / Vista / 7 |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
16.8 mm |
| Depth |
68 mm |
| Width |
90 mm |
| Packaging data |
|---|
| Package weight |
210 g |
| Package height |
39 mm |
| Package depth |
150 mm |
| Package width |
200 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Resource CD |
Yes |
| Cables included |
USB |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Dimensions (W x D x H) (imperial) |
88.9 x 68.6 x 17.8 mm (3.5 x 2.7 x 0.7") |
| Dimensions (WxDxH) |
90 x 68 x 16.8 mm |
| Operating temperature (T-T) |
32 - 104 °F |
| Cable length |
1.5 m |
| Compliance industry standards |
IEEE 802.11b/g/n |
| Gain |
3 dBi |
