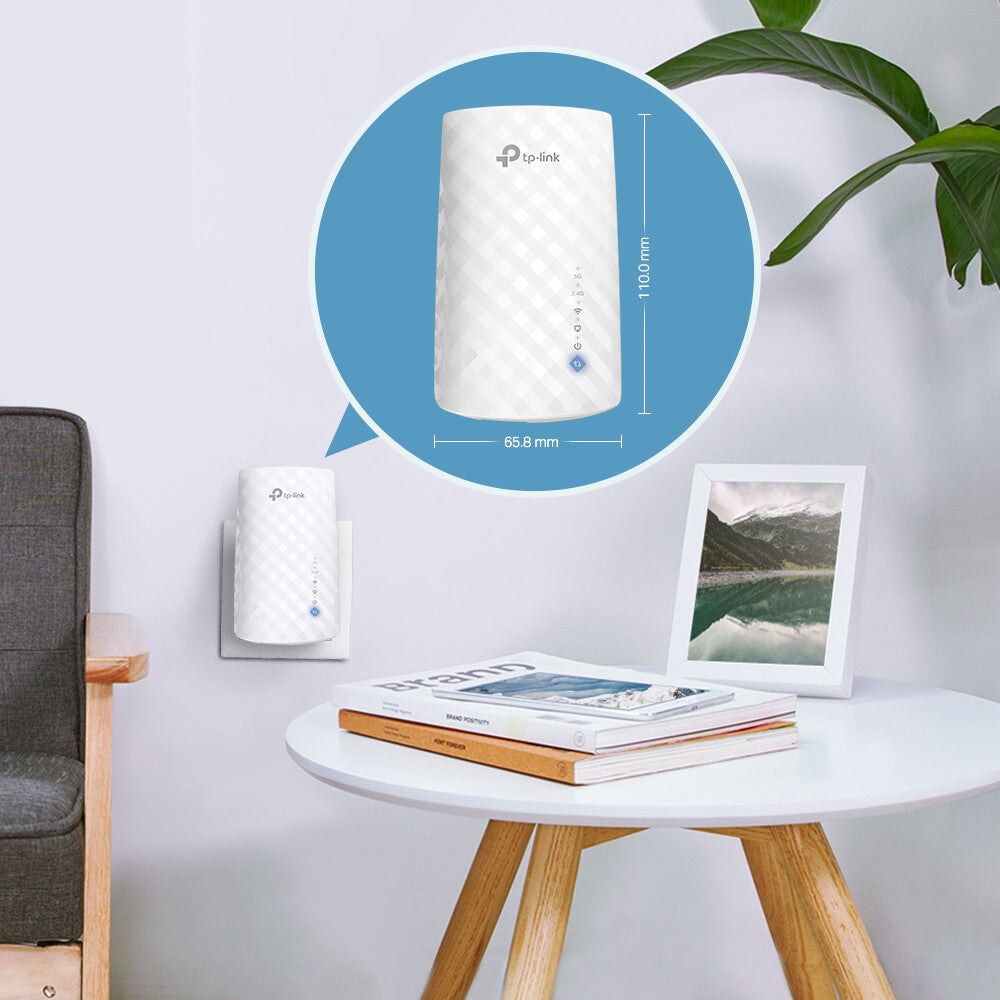

2.4-5 GHz, 300-433 Mbps, 20-30 dBm, WPS, Reset, 100-240V, 50/60Hz, 110 x 65.8 x 38.8 mm

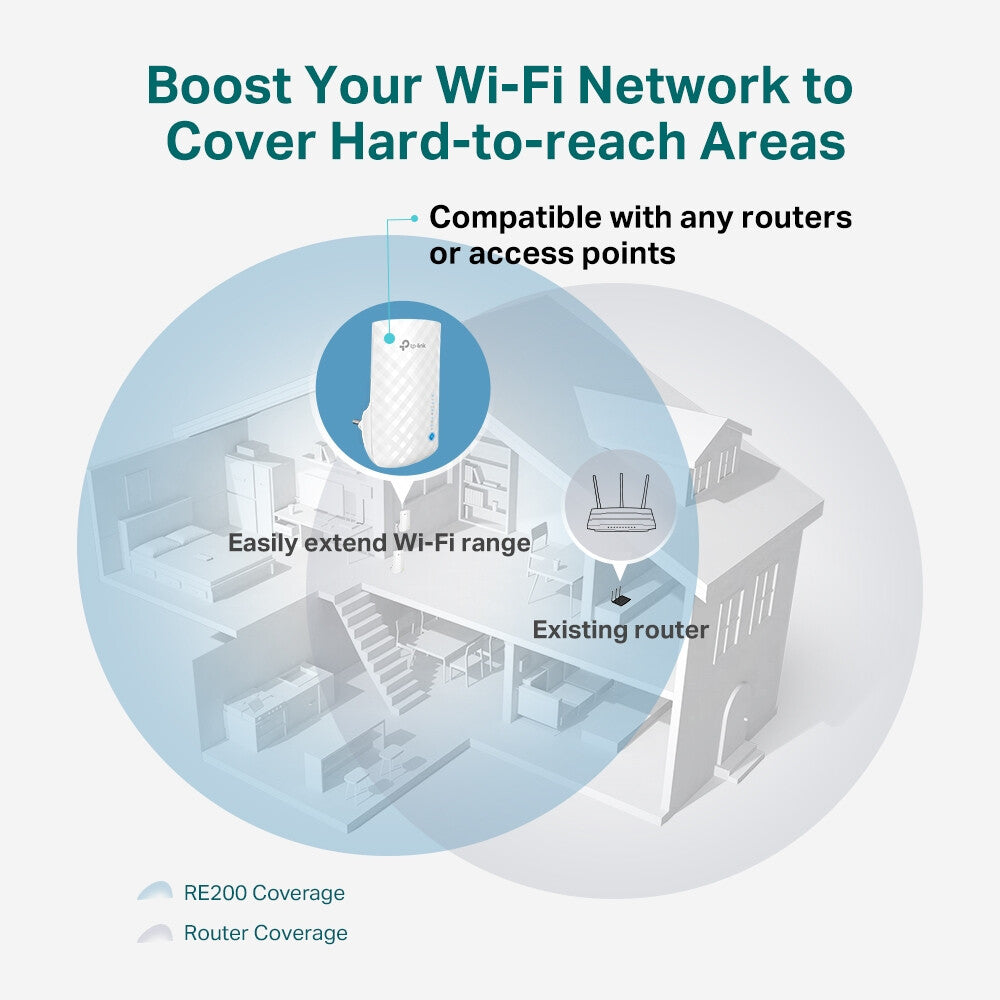

Boost Your Wi-Fi Network to Cover hard-to-reach Areas
Place the RE190 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones. Enjoy a seamless wireless network throughout your home or office. The dual bands Wi-Fi up to 750Mbps not only help extend to 2,000 sq.ft. (185 m2), but also make good use of your high ISP speed — ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.
AC750 Wi-Fi for Compatible Connections
The RE190’s Wireless AC technology create stronger Wi-Fi
connections across your home. Work with any standard
router or access point, making it convenient to provide wide, non-dropping Dual Band Wi-Fi to multiple devices.
One Key Connection

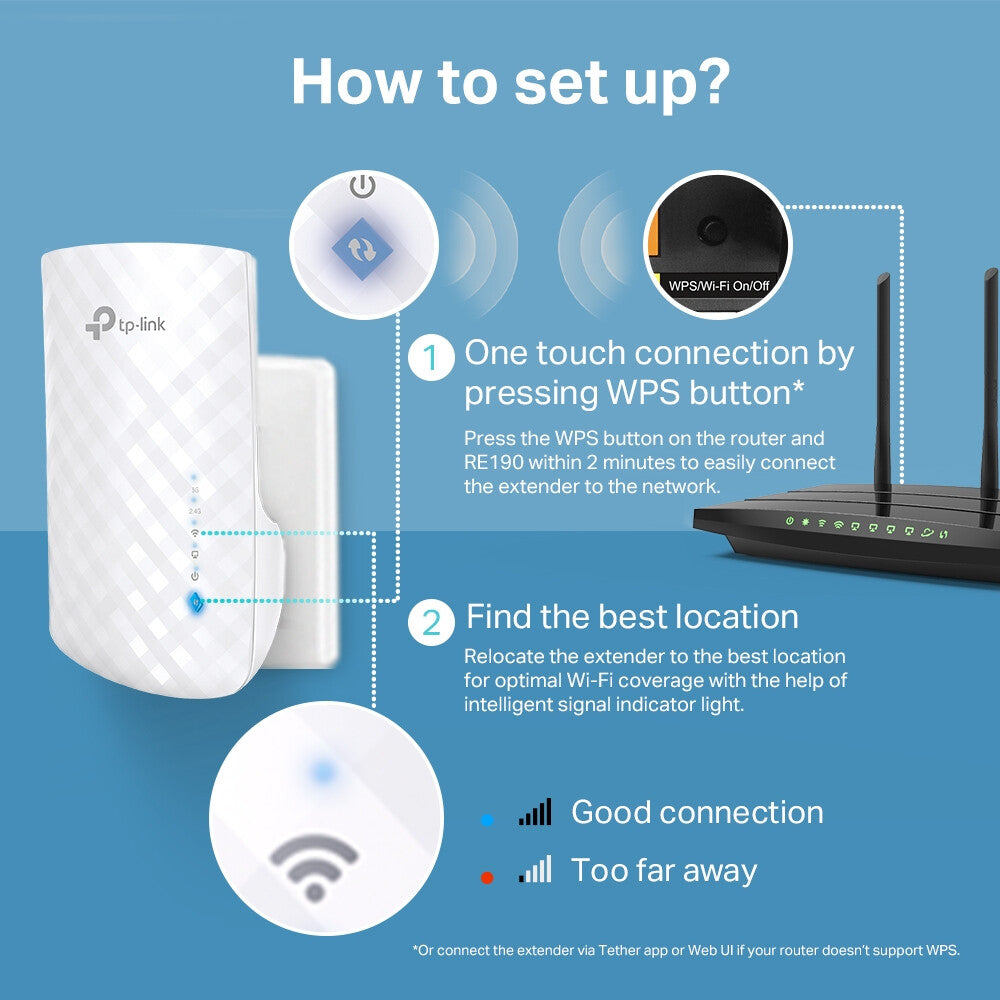

Press the WPS button on your router and RE button on your RE190 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply relocate the RE190 at any location for the best signal strength.
Smart Signal Indicator

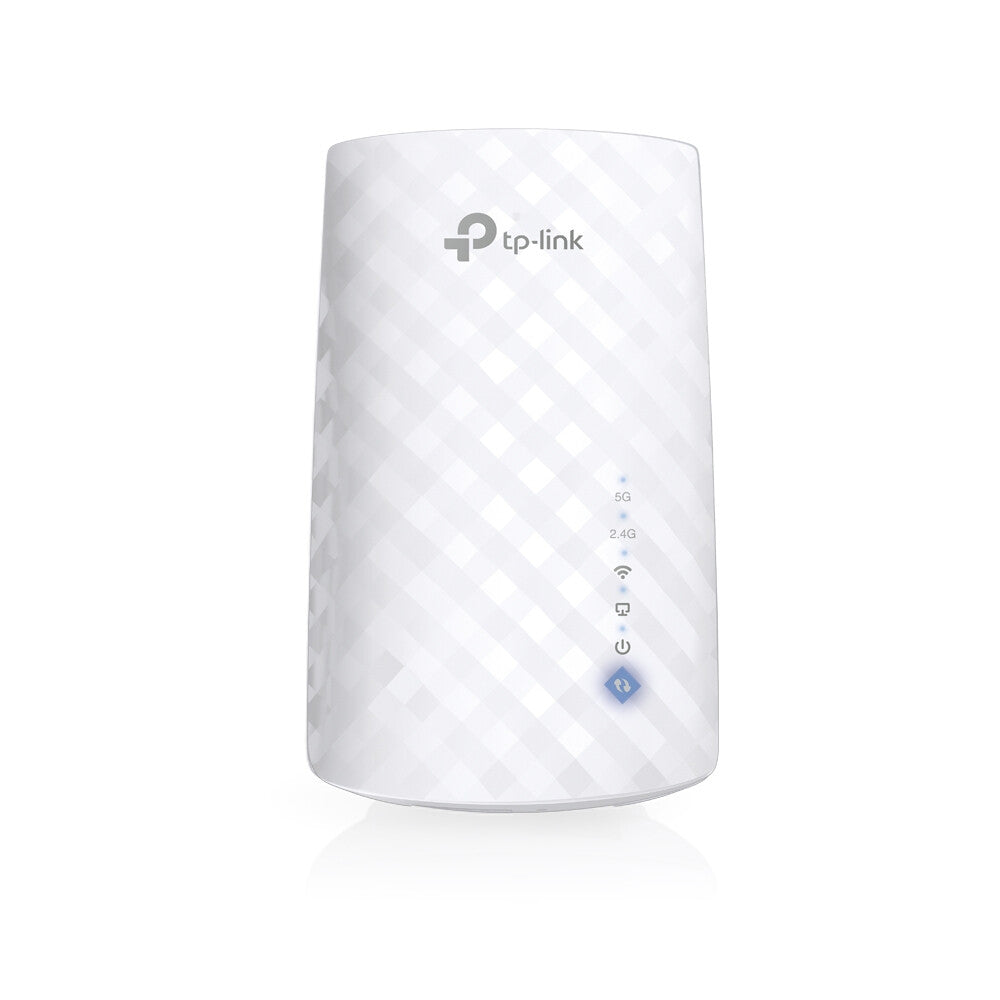

Smart signal lights indicate the signal strength received from the existing router. Read the lights to find the best location for your RE190.
| Performance |
|---|
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Yes |
| WPS push button |
Yes |
| Data transfer rate |
433 Mbit/s |
| Type |
Network repeater |
| Packaging data |
|---|
| Package weight |
190 g |
| Package height |
89 mm |
| Package depth |
101.5 mm |
| Package width |
156.5 mm |
| Package type |
Box |
| Antenna |
|---|
| Transmitting power (CE) |
20dBm(2.4GHz), 23dBm(5.15GHz~5.35GHz); 30dBm(5.47GHz~5.725GHz) |
| Antenna type |
Internal |
| Antennas quantity |
3 |
| Network |
|---|
| Security algorithms |
WEP, WMM, WPA, WPA2-PSK |
| Wi-Fi data rate (max) |
433 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac |
| Design |
|---|

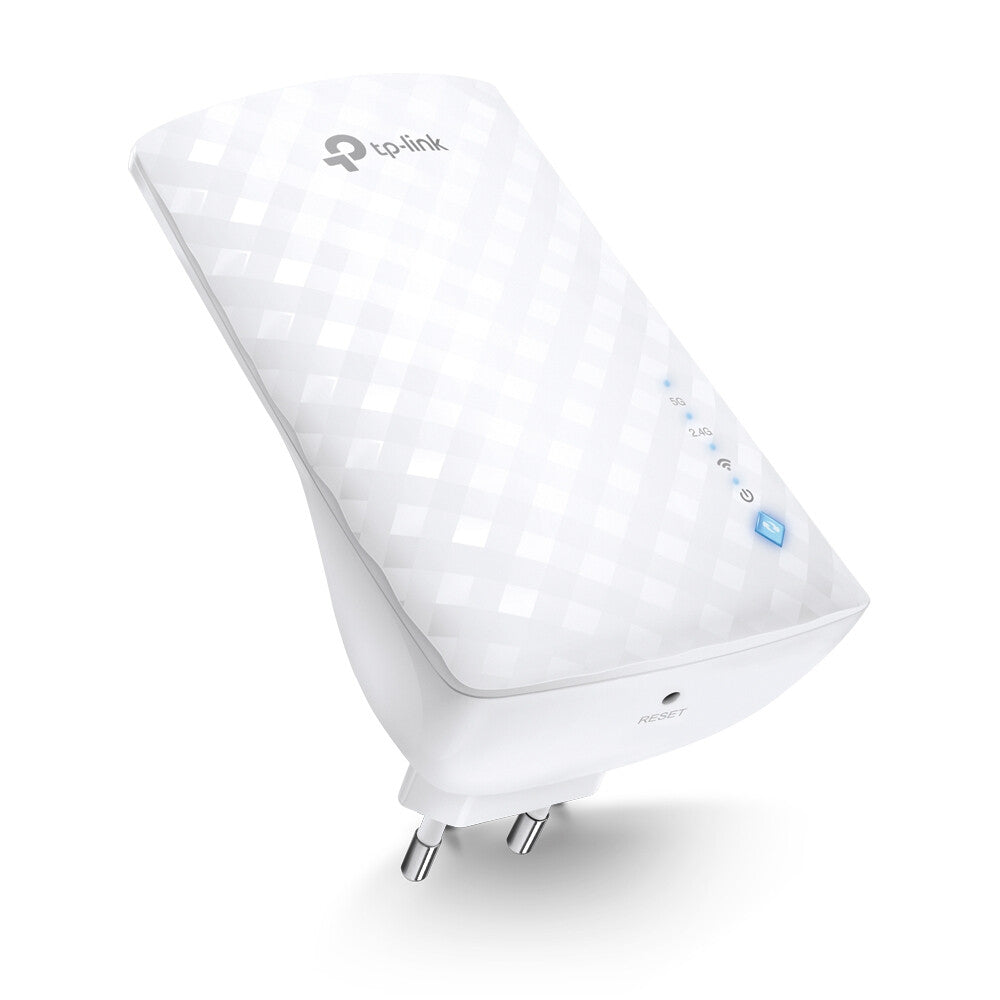

| Reset button |
Yes |
| LED indicators |
Yes |
| Quantity per pack |
1 pc(s) |
| Product colour |
White |
| Power |
|---|
| Power consumption (max) |
7 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
38.8 mm |
| Depth |
65.8 mm |
| Width |
110 mm |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
