802.11 b/g/n, 300Mbps, 2.4 - 2.4835 GHz, 2 x 4 dBi, 1 x Fast LAN, PoE
Flexible Placement
Easy mounting design & PoE

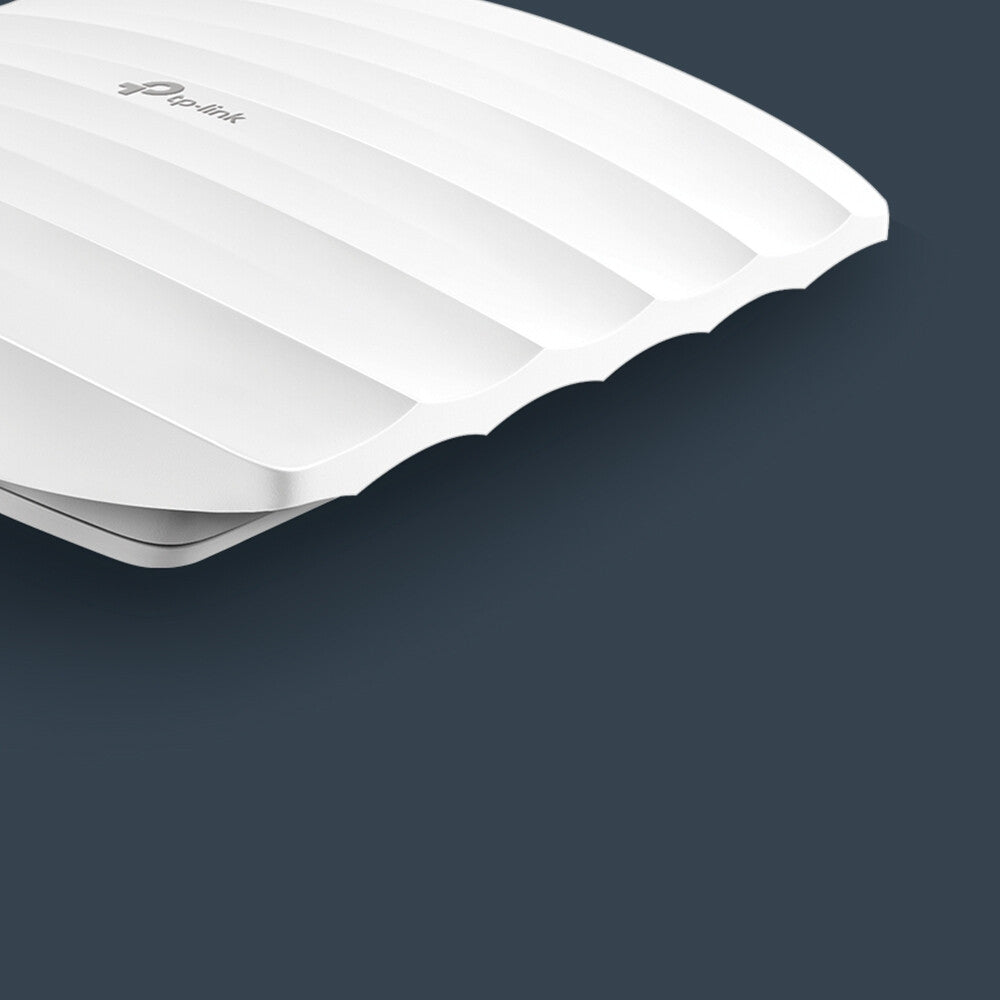

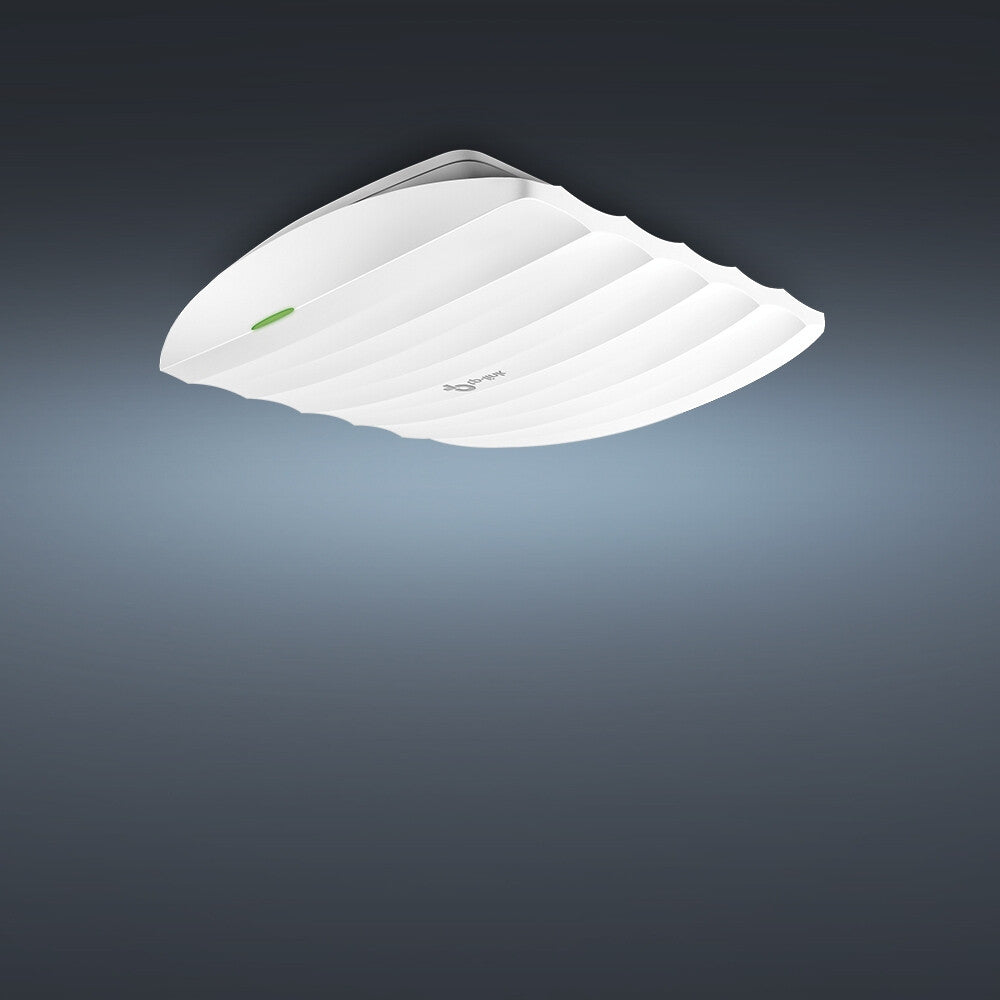

The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
| Features |
|---|
| Receiver sensitivity |
300M: -71dBm@10% PER150M: -75dBm@10% PER54M: -78dBm@10% PER11M: -93dBm@8% PER6M: -92dBm@10% PER1M: -96dBm@8% PER |
| Transmitting power (CE) |
19 dBm |
| Transmitting power (FCC) |
21 dBm |
| Quality of Service (QoS) support |
Yes |
| Wireless isolation |
Yes |
| Rate limiting |
Yes |
| Virtual LAN features |
VLAN mapping |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Frequency band |
2.4 - 2.4835 GHz |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
300 Mbit/s |
| 6 GHz |
No |
| 5 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
|---|
| Access Control List (ACL) |
Yes |
| Number of SSID supported |
8 |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| MAC address filtering |
Yes |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| Management features |
|---|
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
2.8 W |
| AC input voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Design |
|---|
| LED indicators |
Power |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
2 |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| General |
|---|
| Product family |
Omada |
| Certificates |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), CE, RoHS |
| Weight & dimensions |
|---|
| Height |
29.7 mm |
| Depth |
170.5 mm |
| Width |
189.5 mm |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
720 g |
| Package height |
69 mm |
| Package depth |
268 mm |
| Package width |
246 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC |
| PoE adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
