TP-Link Omada 10Gbase-LR SFP+ LC Transceiver

R 675.34

SM5110-LR

15 in stock
R 675.34
R 675.34
Shipping calculated at checkout.

Incl VAT

Shop safely

Secure your shopping experience with various safe and trusted payment methods.

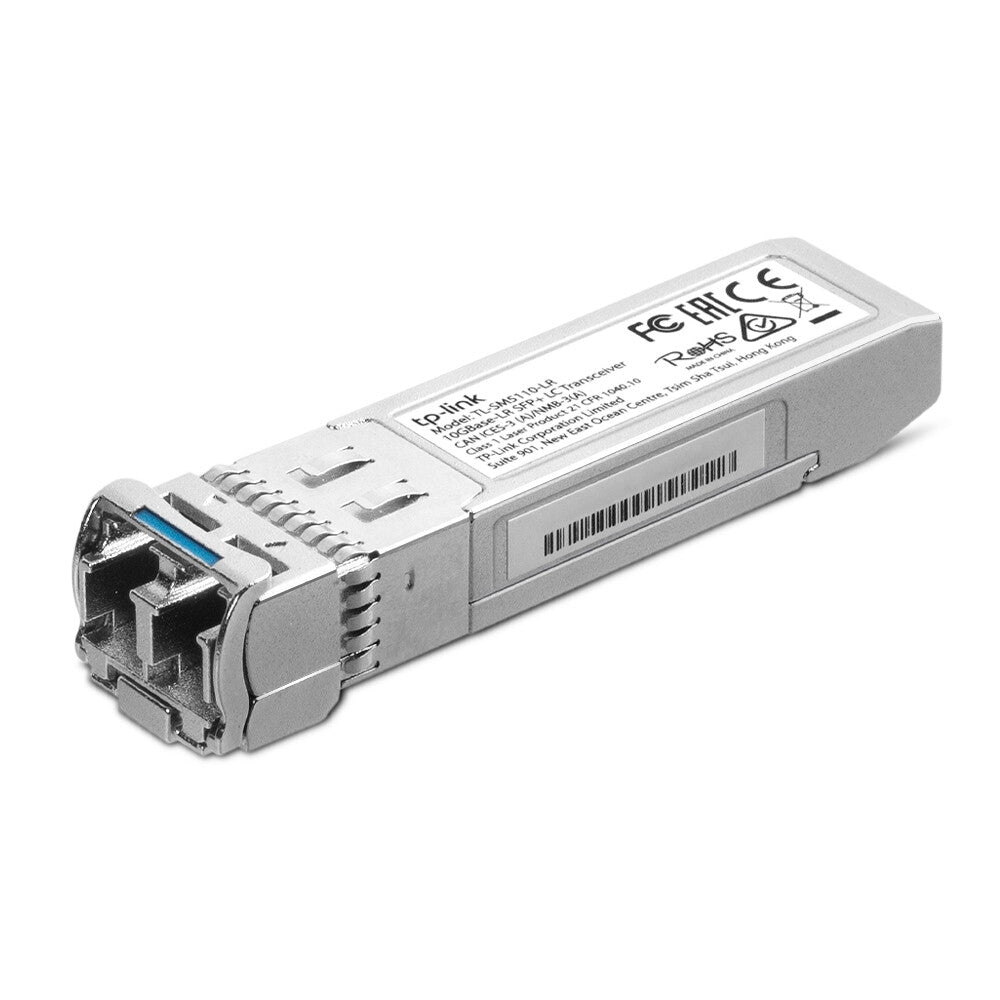

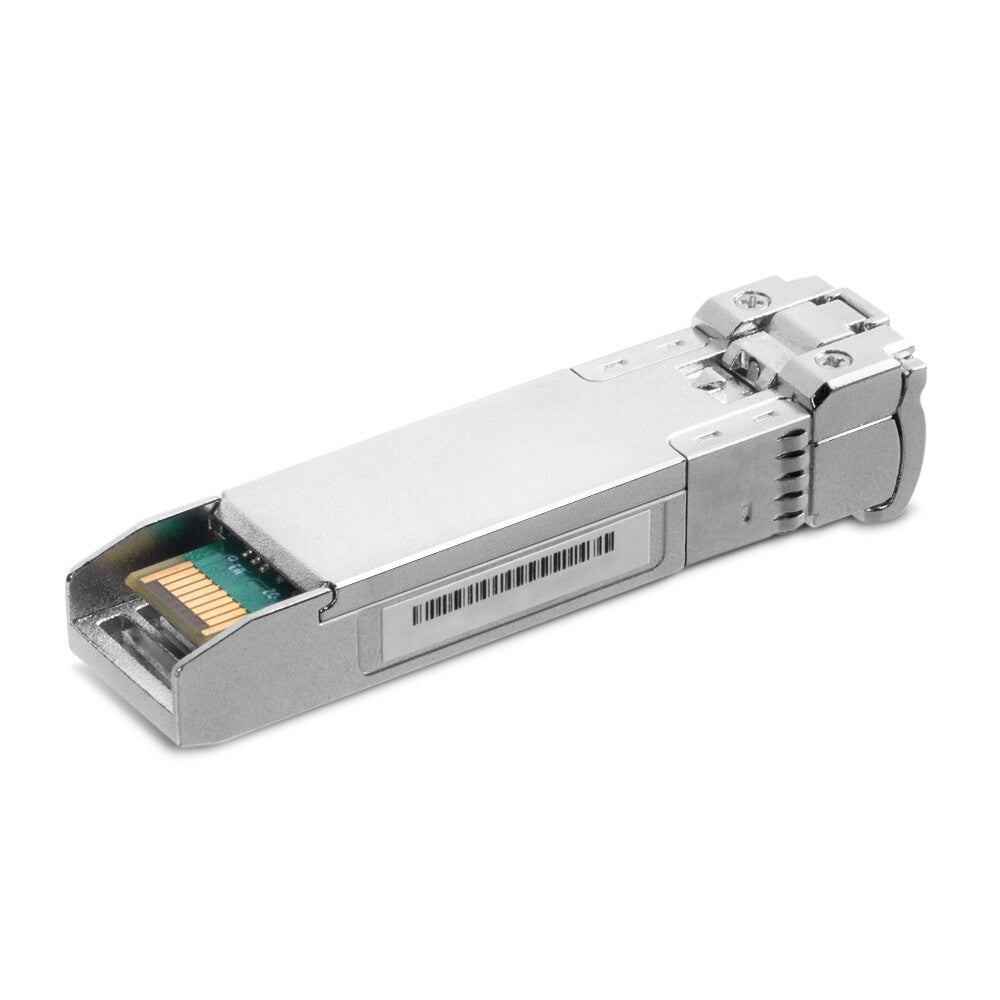

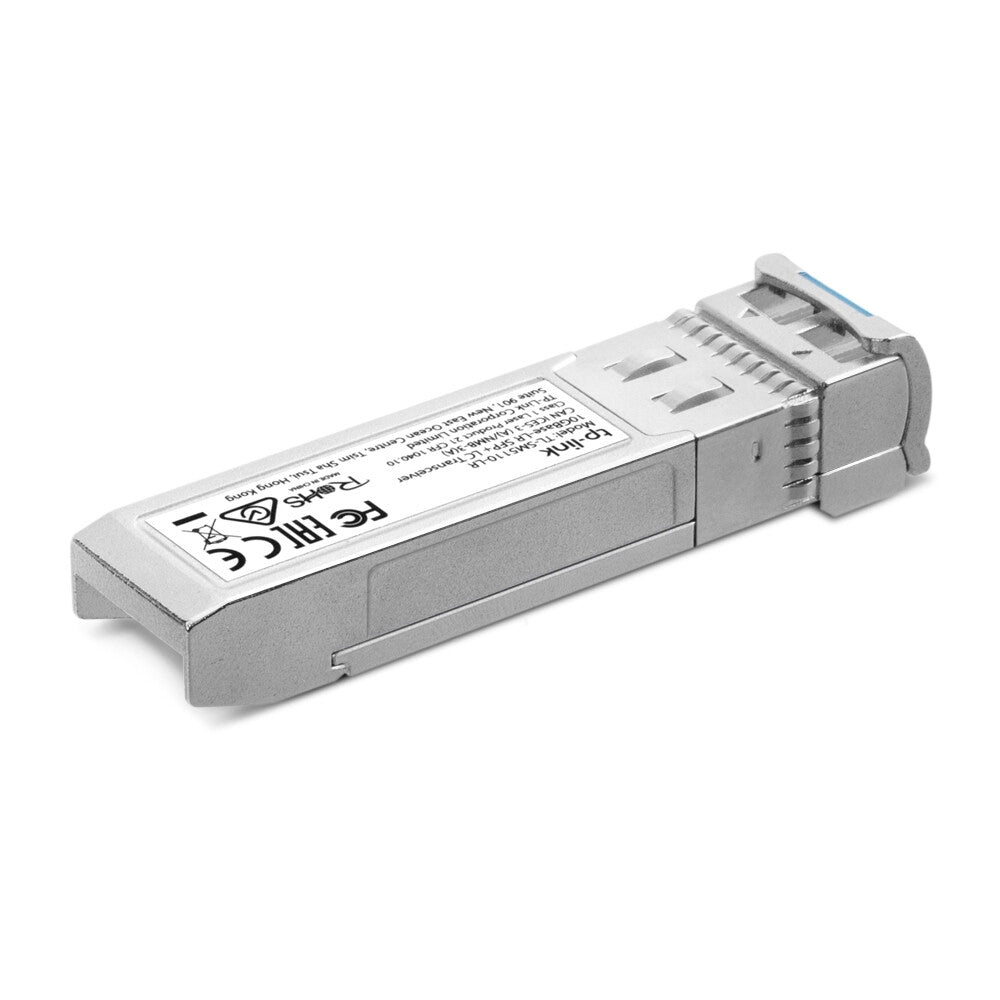

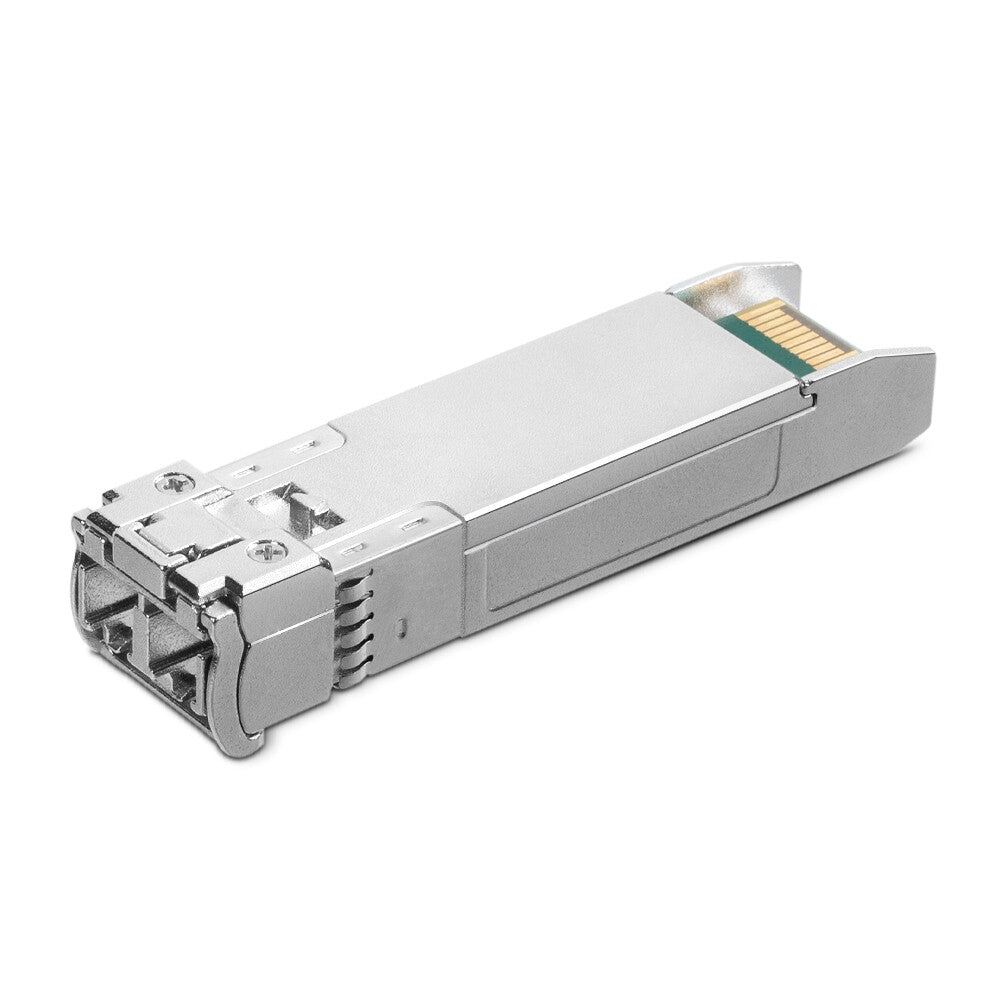

    10Gbase-LR SFP+ LC Transceiver

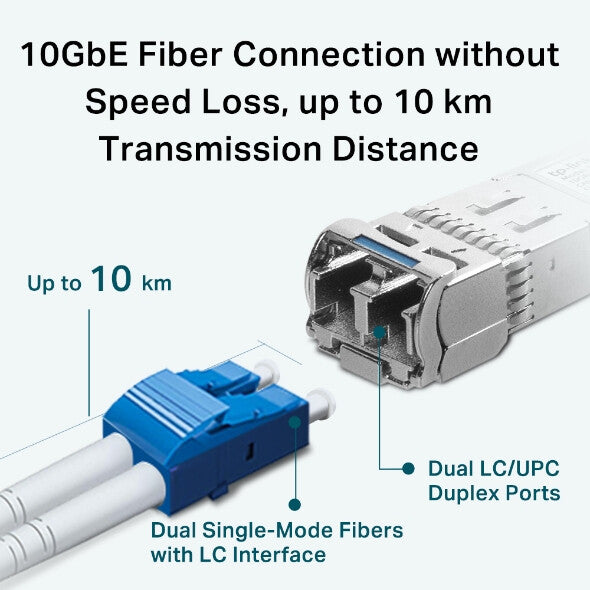

    The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.

    Performance
    SFP transceiver type Fiber optic
    Maximum data transfer rate 10000 Mbit/s
    Interface type SFP+
    Single-mode fiber (SMF) supported Yes
    Multi-mode fiber (MMF) supported No
    Fiber optic connector LC
    Fiber cable diameters supported (core/cladding) 9/125 µm
    SFP transceiver standard LR
    Maximum transfer distance 10000 m
    Wavelength 1310 nm
    Networking standards IEEE 802.3ae
    Duplex system Full
    Digital Diagnostics Monitoring (DDM) Yes
    Features
    Hot-Plug support Yes
    Hot-swap Yes
    Brand compatibility TP-Link

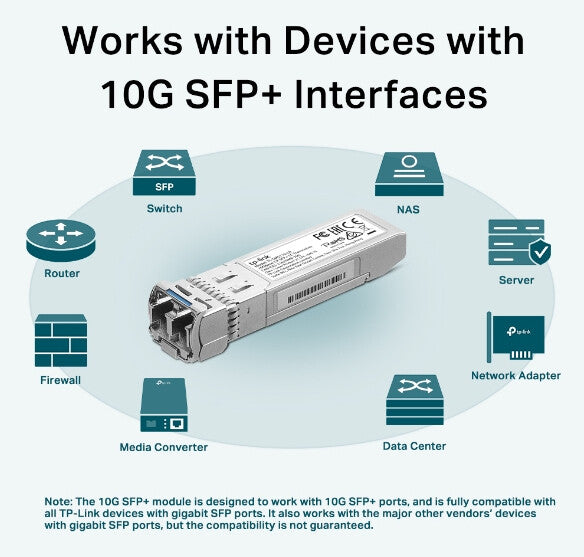

    Compatible products Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
    Certification FCC, CE
    Power
    Input voltage 3.3 V
    General
    Product family Omada
    Operational conditions
    Operating temperature (T-T) 0 - 70 °C
    Storage temperature (T-T) -40 - 85 °C
    Operating relative humidity (H-H) 10 - 90%
    Storage relative humidity (H-H) 5 - 90%
    Weight & dimensions
    Width 56.7 mm
    Depth 13.9 mm
    Height 10.3 mm
    Packaging data
    Package width 81.5 mm
    Package depth 122.5 mm
    Package height 38.5 mm
    Package weight 60 g
    Logistics data
    Quantity per pack 1 pc(s)
    Harmonized System (HS) code 85369010
