TP-LINK

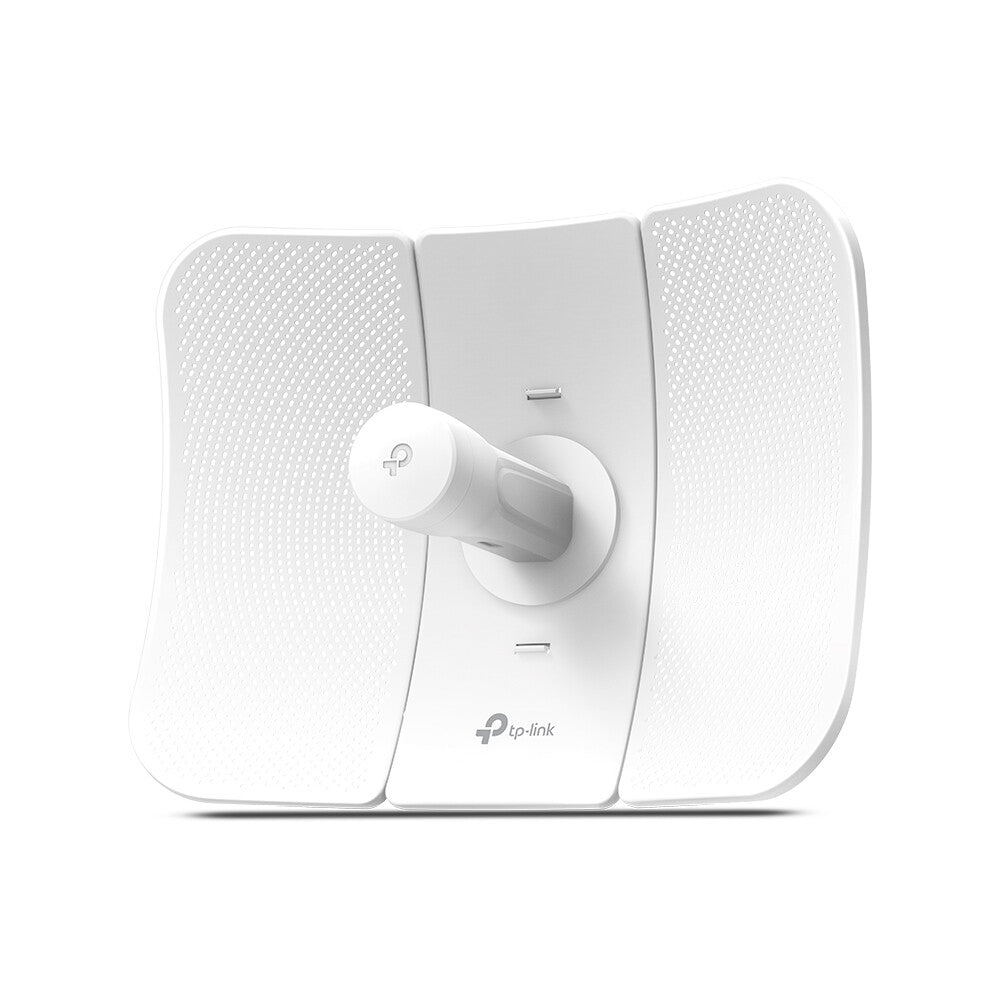

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

R 1,328.94
R 1,328.94
R 1,328.94
Shipping calculated at checkout.

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Low stock! Only 9 left
5GHz 867Mbps, 27dBm, 2x2 MIMO, 802.3a/n/ac, 23dBi, IP65

Blazing Speed without Wait
256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi.

Professional-Standard 23 dBi Directional
Antenna for Long-range Wireless Transmission
With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications.

Compact and Lightweight Packaging
Small and lightweight boxes benefit shipping, logistics, and retail.

Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.

Performance
Wi-Fi standards 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Internal memory 128 MB
Flash memory 16 MB
Processor frequency 750 MHz
Built-in processor Yes
Horizontal beam width 9°
Vertical beam width 7°
Gain 23 dBi
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Frequency band 5.15 - 5.85 GHz
Antenna gain level (max) 23 dBi
Features
LED indicators Power
International Protection (IP) code IP65
Housing material Plastic
Product colour White
Antenna connector type PoE/LAN
Antenna type Directional antenna
Power
Input voltage 24 V
Power source type PoE
Certificates
Certification CE, FCC, RoHS, IC
Operational conditions
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Height 207 mm
Depth 280 mm
Width 366 mm
Packaging data
Package type Box
Packaging content
Cables included AC
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 85176990
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
