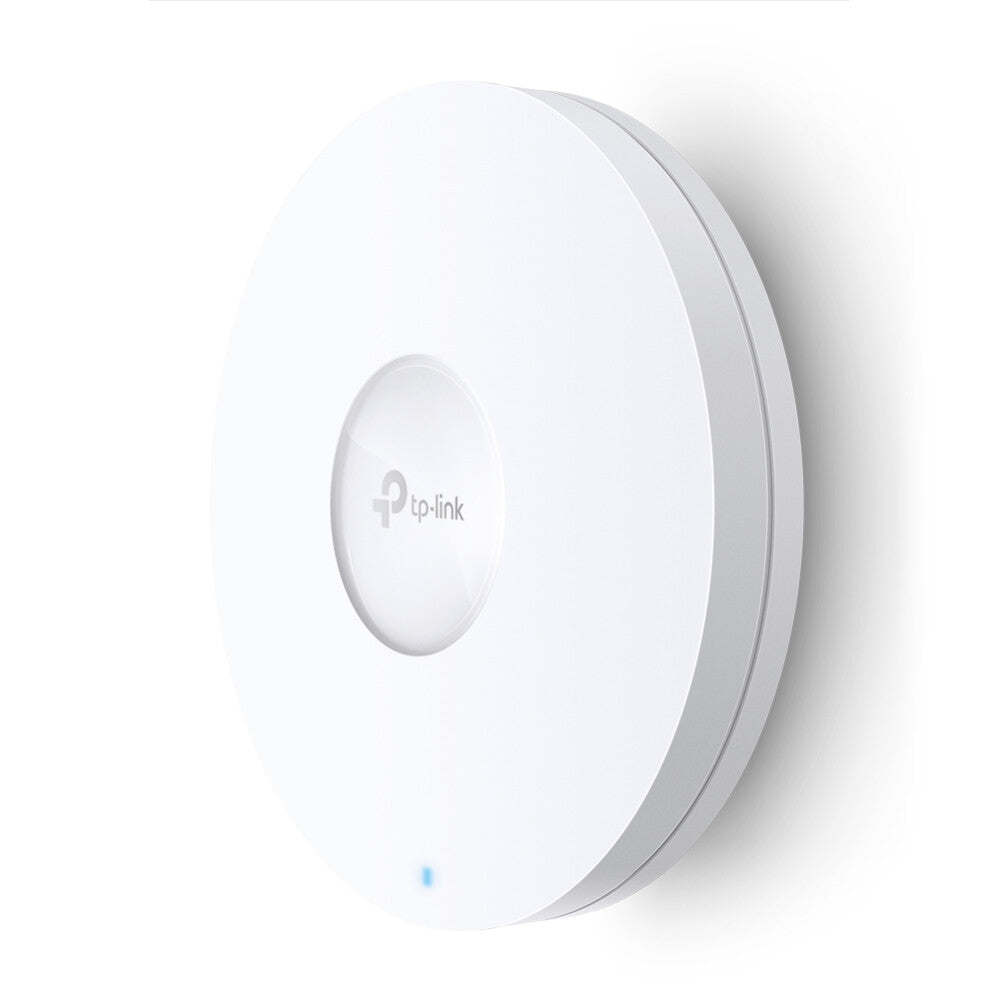

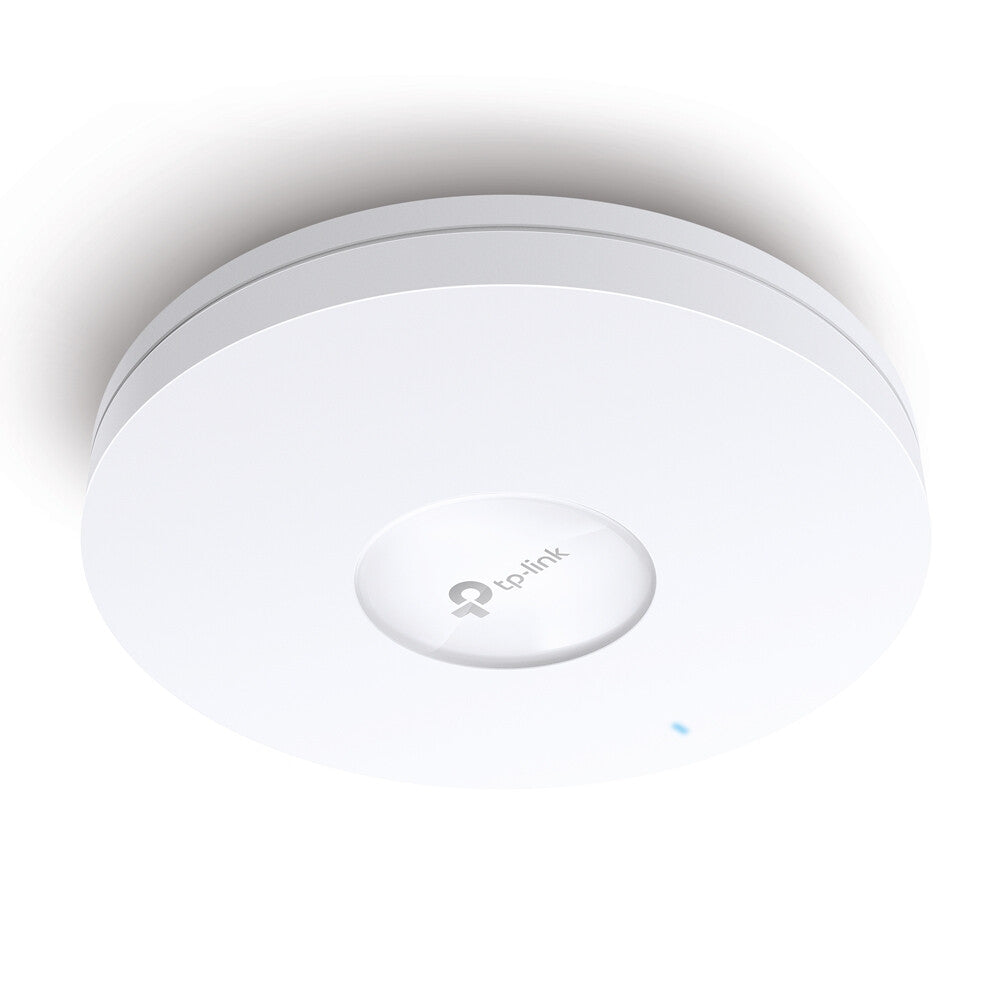

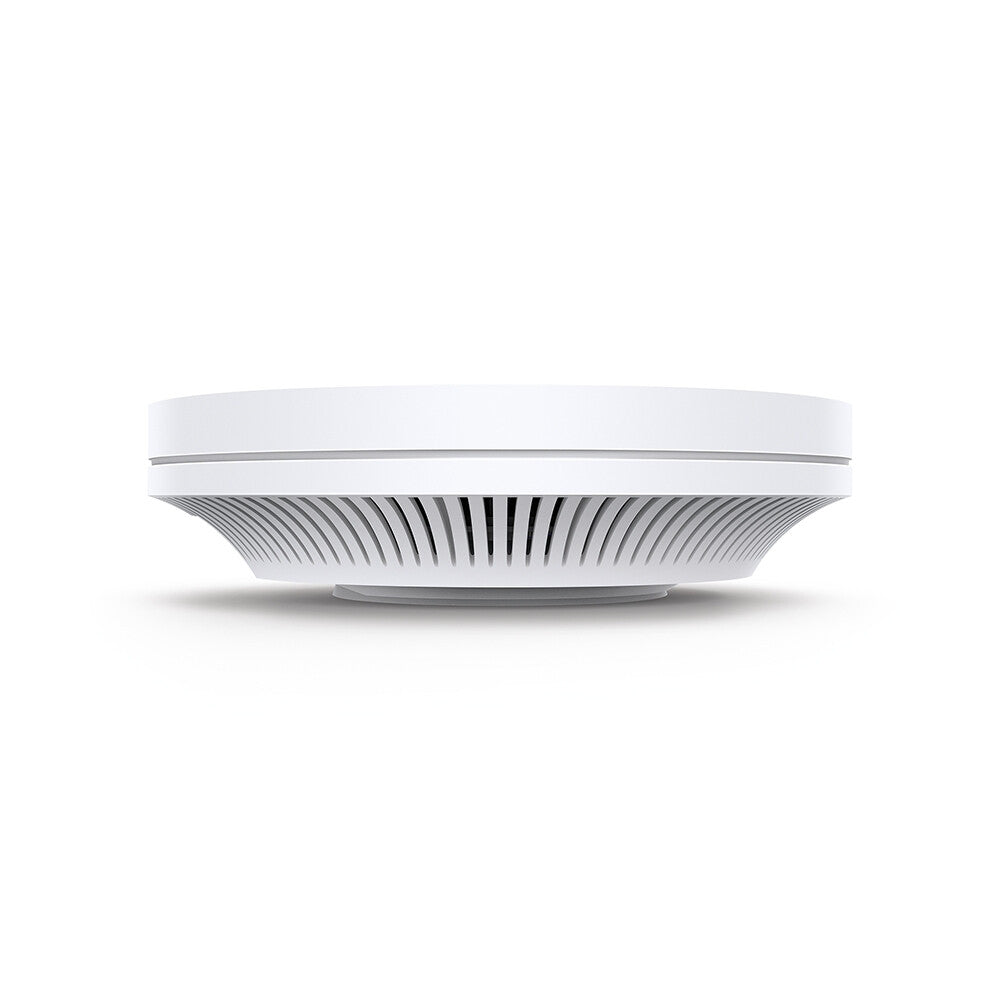

IEEE 802.11ax/ac/n/g/b/a, 1G LAN, 2.4/5 GHz, PoE, 243x243x64 mm
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
1201 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
574 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1201 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Cabling technology |
10/100/1000Base-T(X) |
| Number of users |
1020 user(s) |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Spread spectrum method |
OFDMA |
| Fit AP mode features |
Mesh networking |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Flow control support |
Yes |
| Band steering |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Quality of Service (QoS) support |
Yes |
| BeamForming |
Yes |
| Transmitting power (FCC) |
23 dBm |
| Transmitting power (CE) |
20/23 dBm |
| Security |
|---|
| Security algorithms |
SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK |
| MAC address filtering |
Yes |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Access Control List (ACL) |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |
| Firmware upgradeable |
Yes |
| Ports & interfaces |
|---|

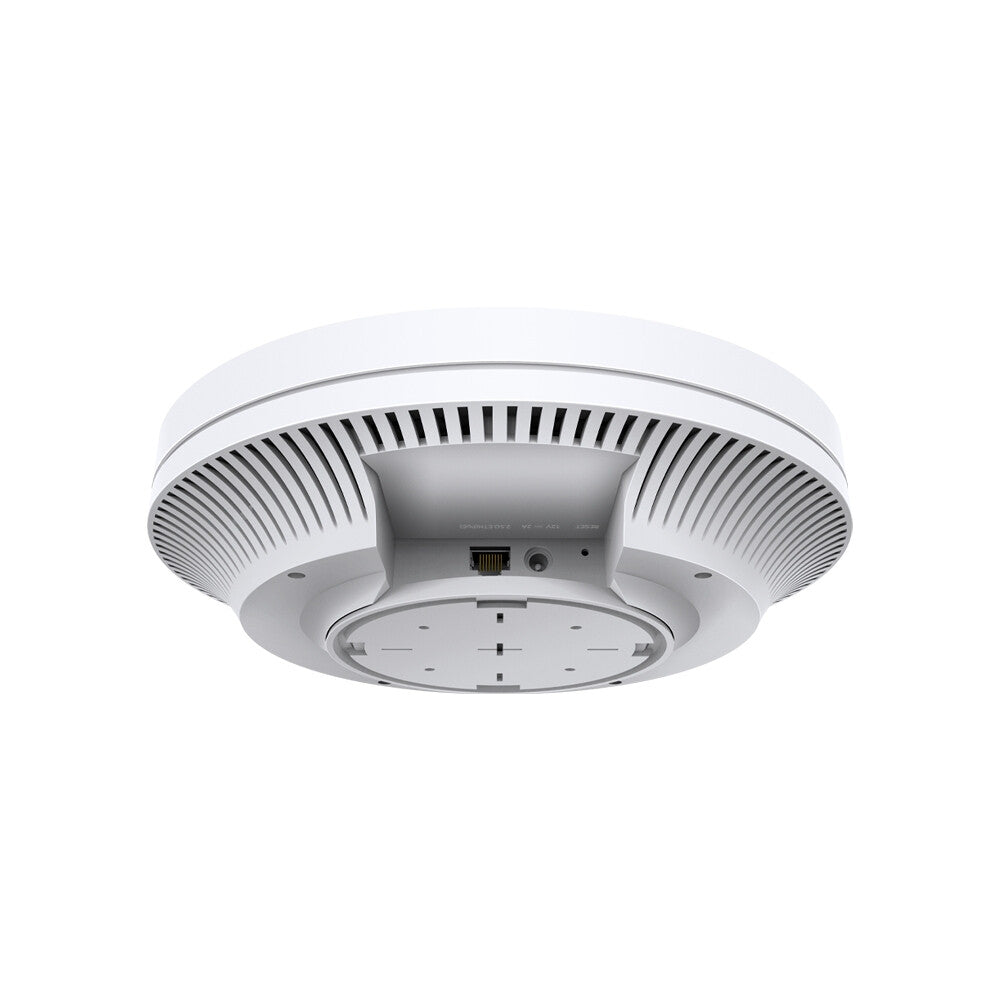

| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| DC voltage range |
12 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| General |
|---|
| Product family |
Omada |
| Weight & dimensions |
|---|
| Width |
160 mm |
| Depth |
160 mm |
| Height |
33 mm |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
