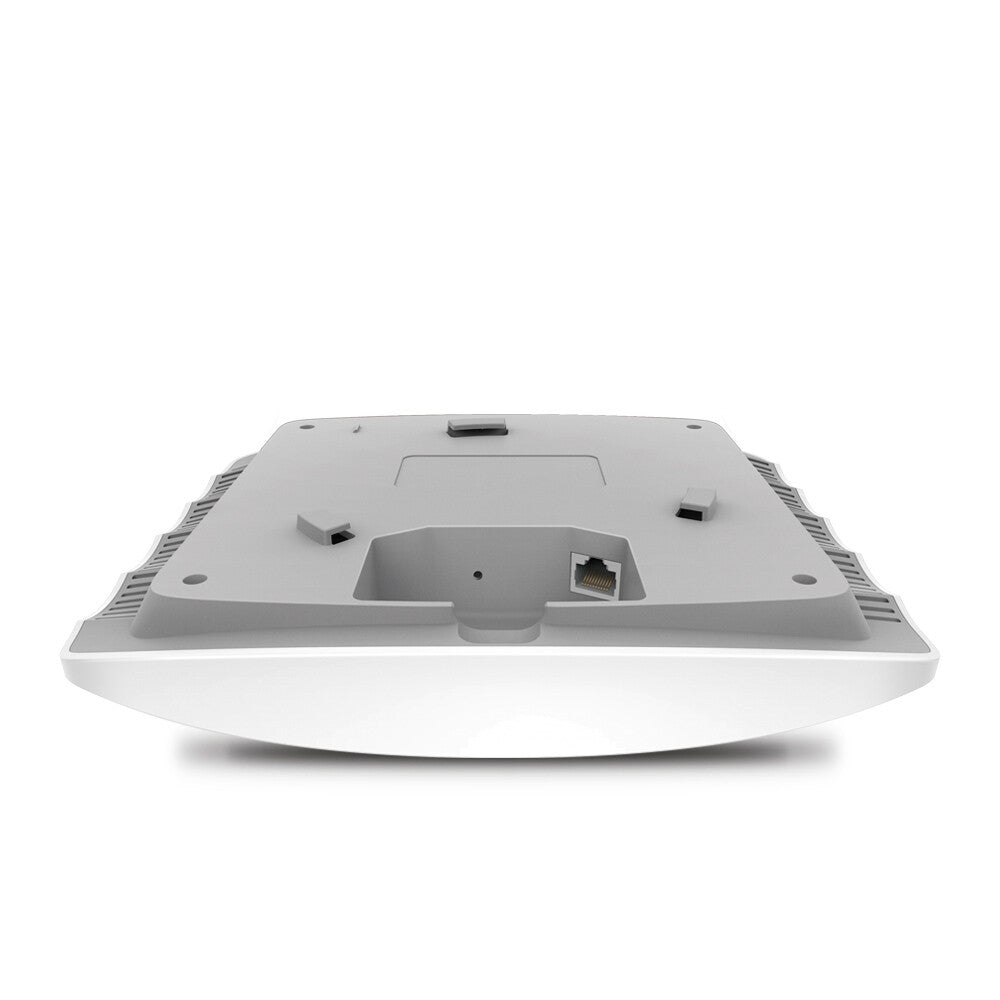

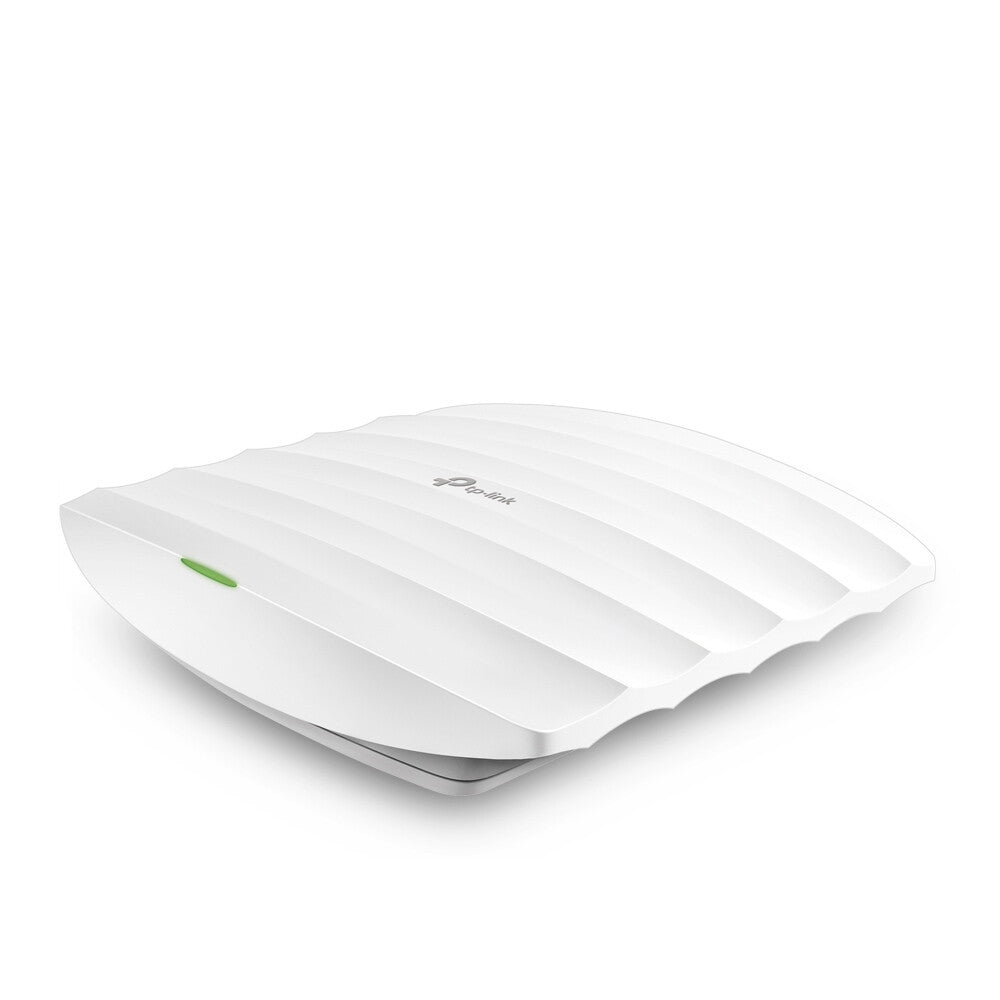

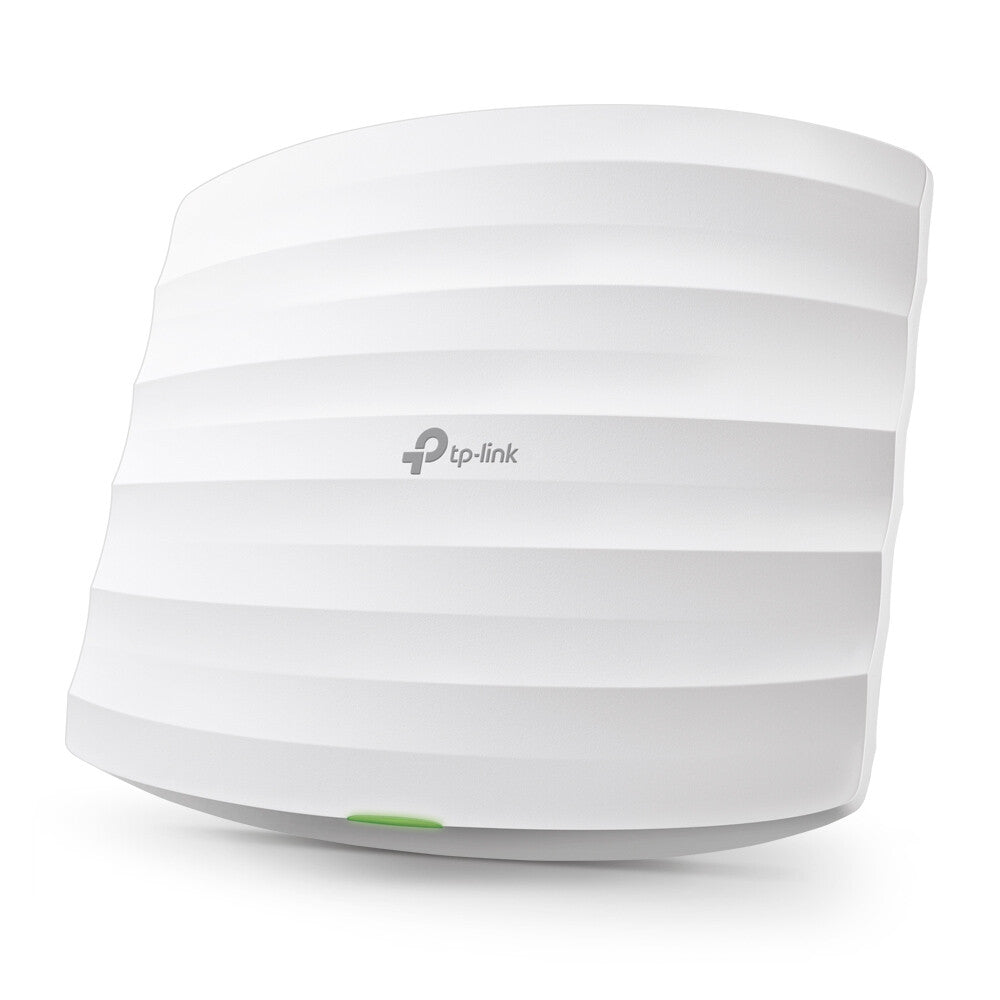

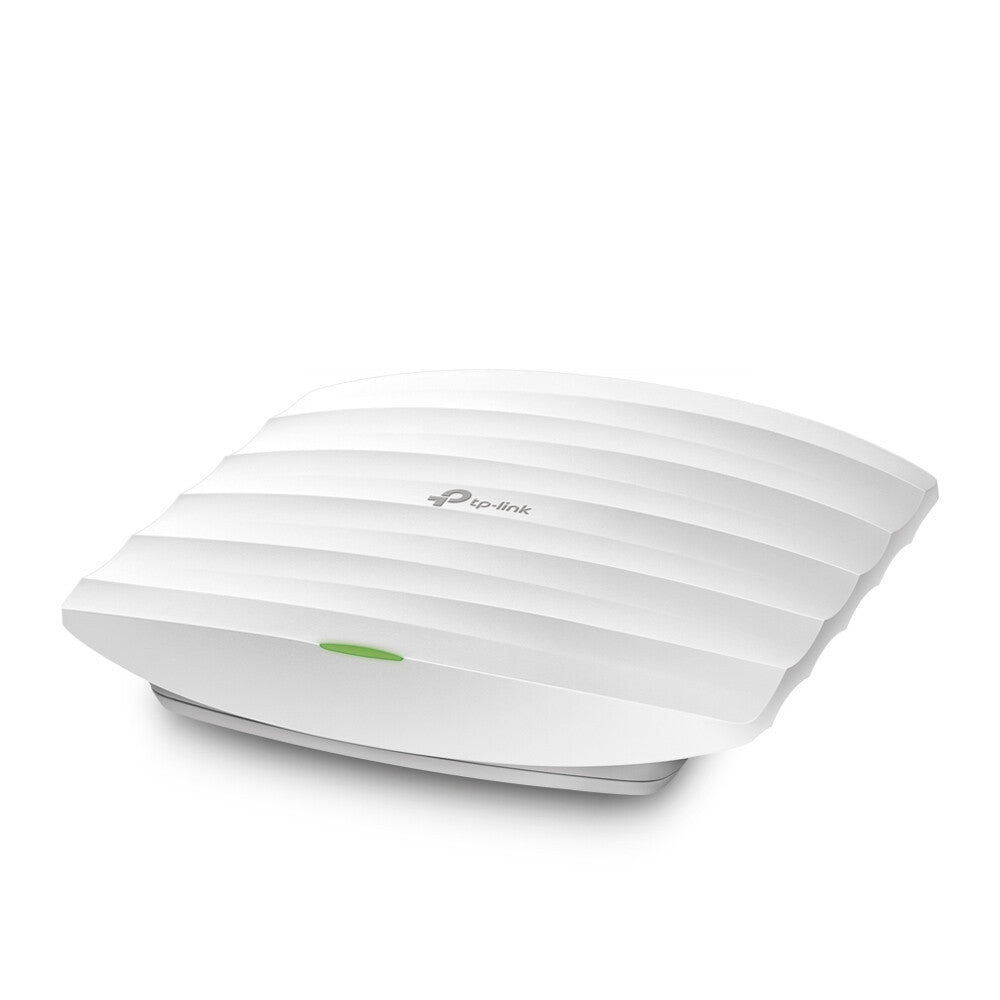

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
| Features |
|---|
| 2.4 GHz |
Yes |
| 6 GHz |
No |
| 5 GHz |
Yes |
| Maximum data transfer rate |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
450 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Wireless isolation |
Yes |
| Band steering |
Yes |
| Quality of Service (QoS) support |
Yes |
| Transmitting power (FCC) |
24, 22 dBm |
| Transmitting power (CE) |
20, 23 dBm |
| Security |
|---|
| Security algorithms |
SSID |
| MAC address filtering |
Yes |
| Number of SSID supported |
15 |
| Management features |
|---|
| Web-based management |
Yes |
| Syslog |
Yes |
| Management platform |
Omada |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Power over Ethernet (PoE) |
Yes |
| Output voltage |
48 V |
| Power consumption (typical) |
9.7 W |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Power |
| Certification |
CE, FCC, RoHS |
| Antenna |
|---|
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antennas quantity |
3 |
| Performance |
|---|
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Weight & dimensions |
|---|
| Width |
205.5 mm |
| Depth |
181.5 mm |
| Height |
37.1 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Cables included |
AC |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
