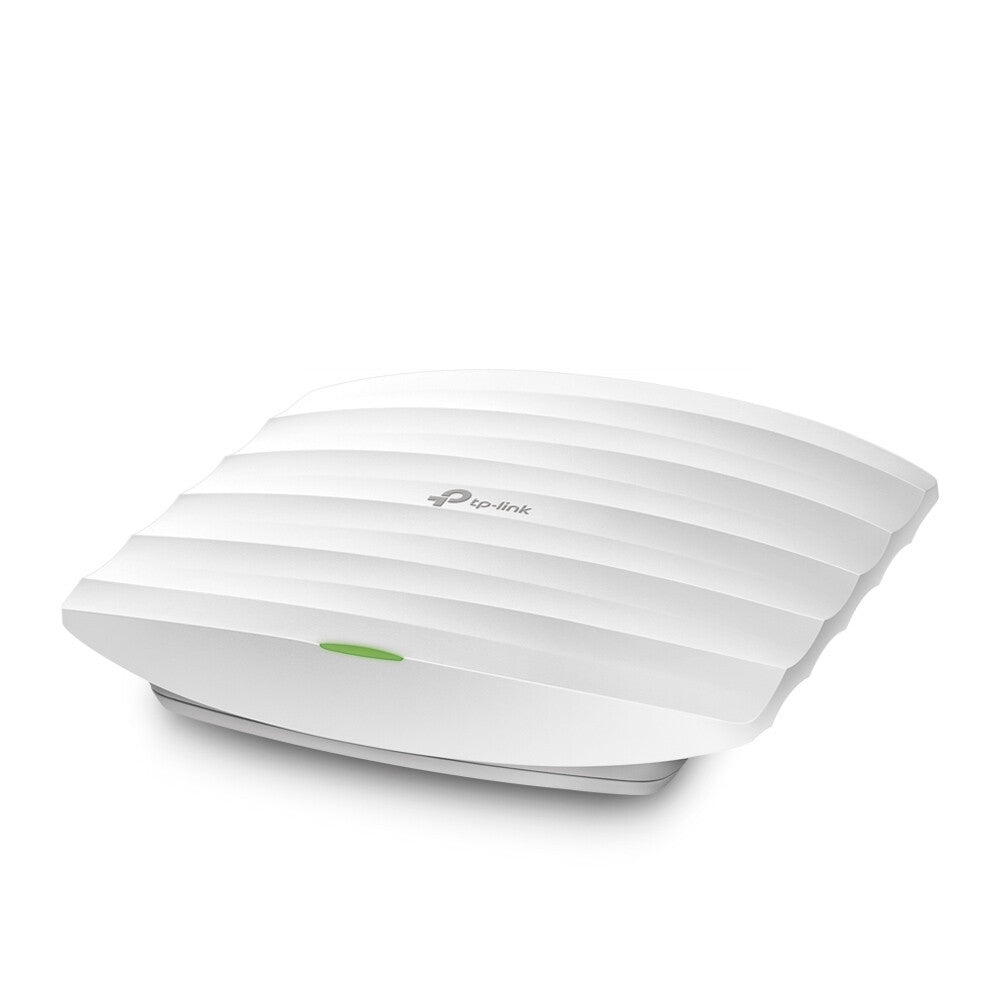

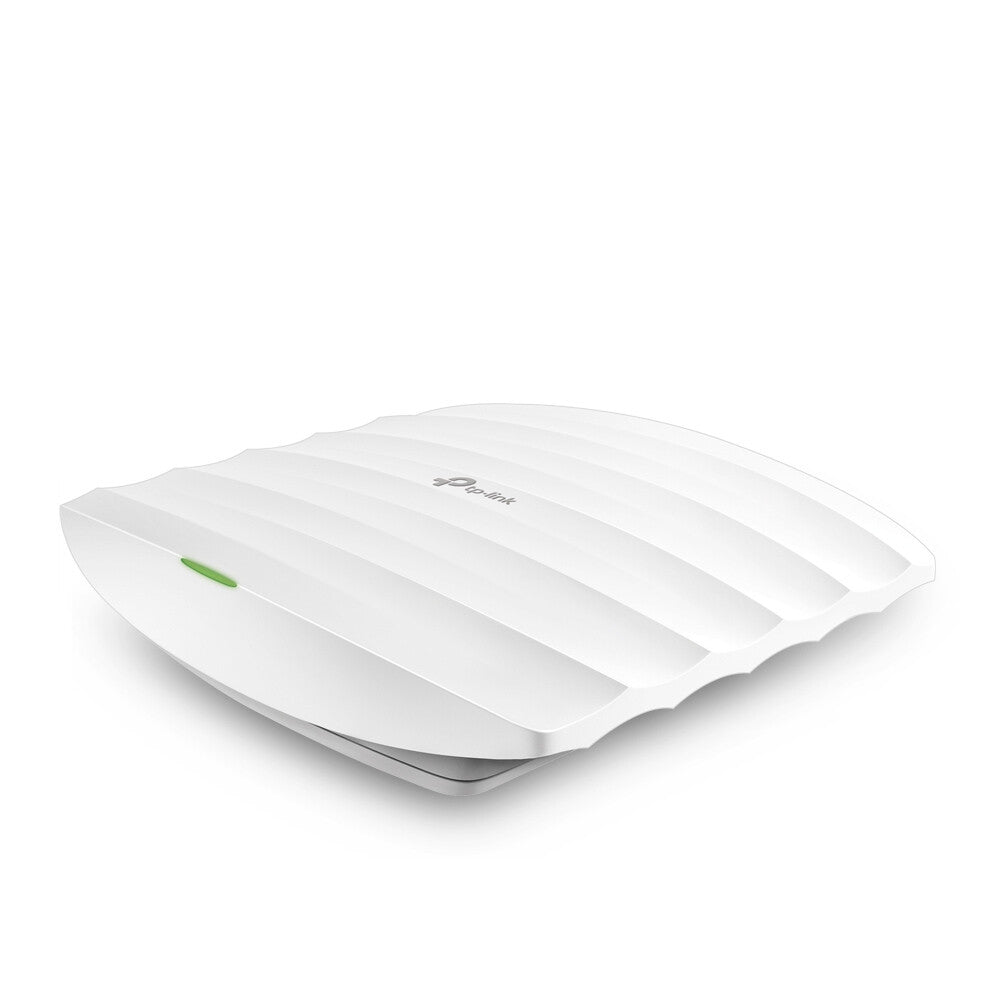

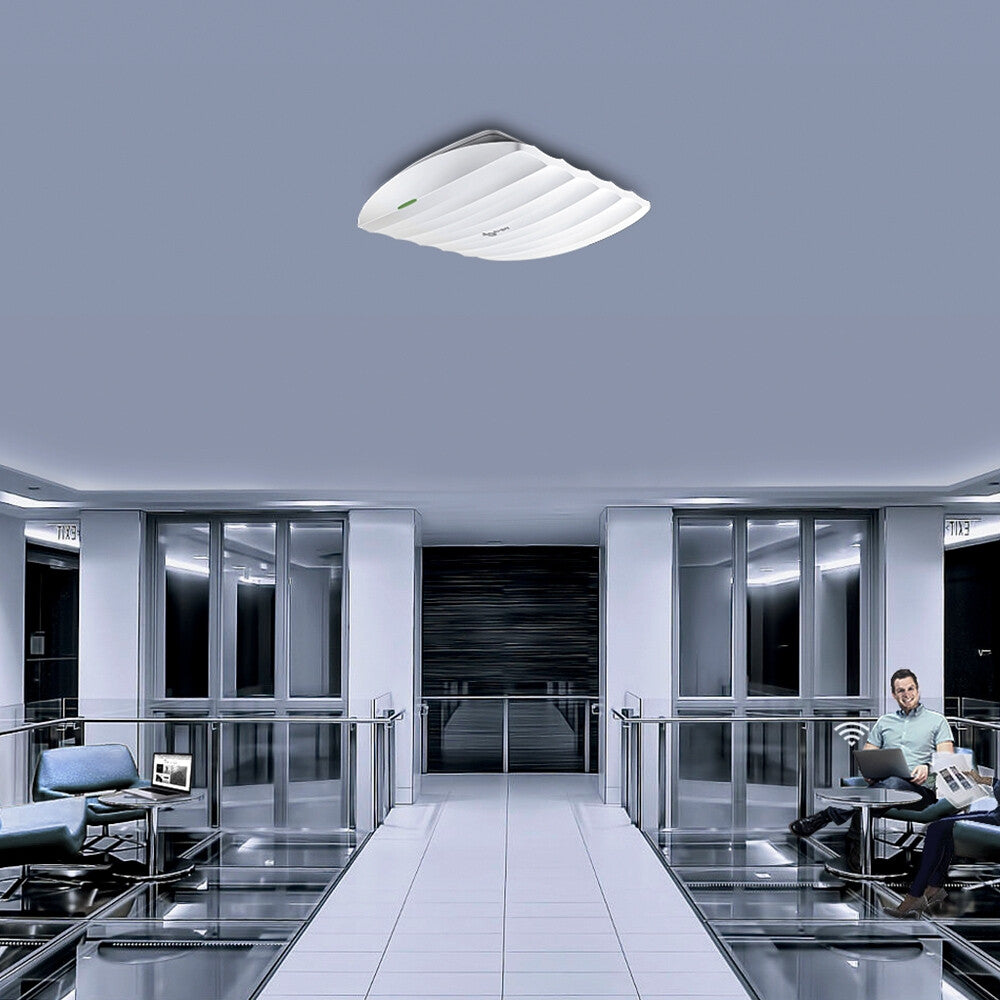

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP223 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP223 supports both 802.3af/at PoE and Passive PoE power supply, which can be either powered by a PoE switch or the PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
| Features |
|---|
| Transmitting power (CE) |
20, 23 dBm |
| Transmitting power (FCC) |
24, 22 dBm |
| Quality of Service (QoS) support |
Yes |
| Band steering |
Yes |
| Wireless isolation |
Yes |
| Rate limiting |
Yes |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Automatic channel scanning |
Yes |
| Automatic channel selection |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
450 Mbit/s |
| Maximum data transfer rate |
867 Mbit/s |
| 6 GHz |
No |
| 5 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
|---|
| Number of SSID supported |
15 |
| MAC address filtering |
Yes |
| Security algorithms |
SSID |
| Management features |
|---|
| Management platform |
Omada |
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
9.7 W |
| Output voltage |
48 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Active PoE, Passive PoE |
| Design |
|---|
| Certification |
CE, FCC, RoHS |
| LED indicators |
Power |
| Reset button |
Yes |
| Product colour |
White |
| Placement |
Ceiling, Wall |
| Antenna |
|---|
| Antennas quantity |
3 |
| Antenna direction type |
Omni-directional |
| Antenna type |
Internal |
| Performance |
|---|
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Weight & dimensions |
|---|
| Height |
37.1 mm |
| Depth |
181.5 mm |
| Width |
205.5 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Cables included |
AC |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
