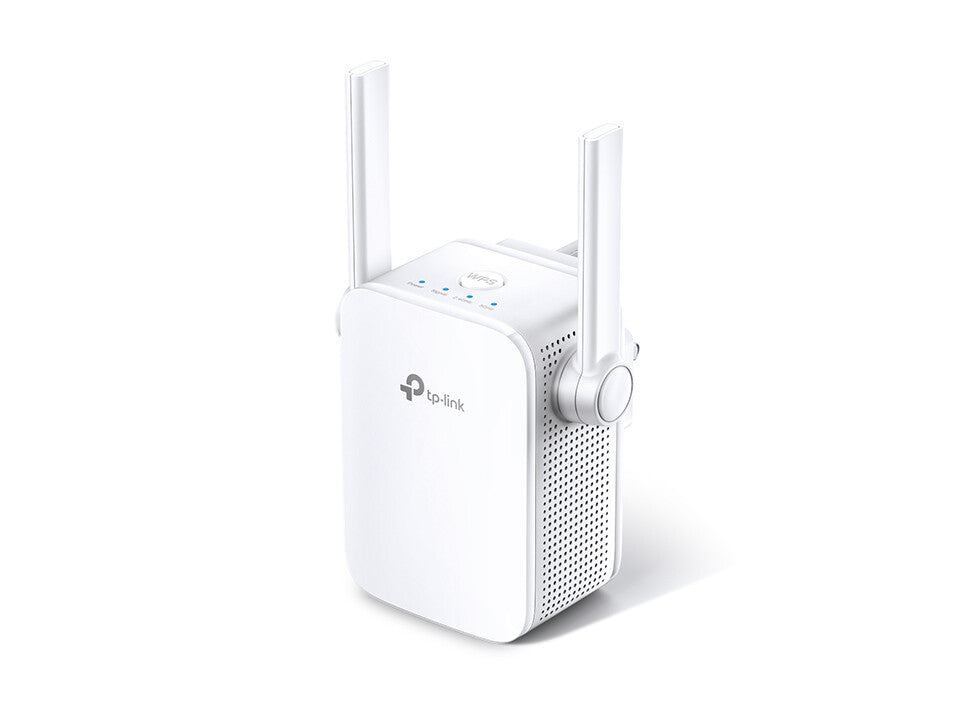

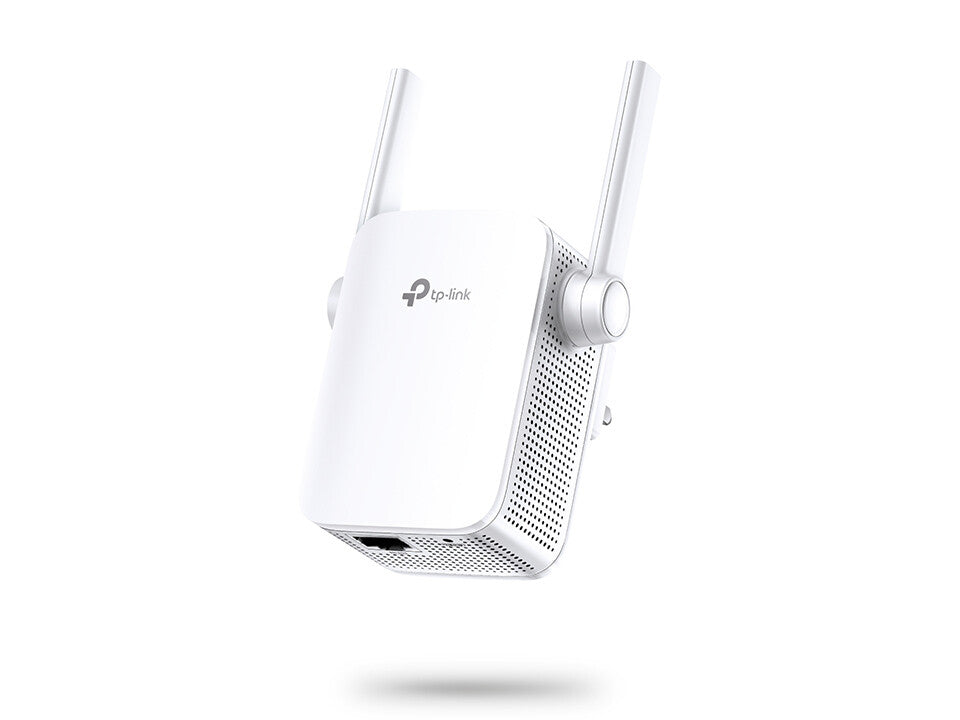

AC1200 Wi-Fi Range Extender
- Brings Wi-Fi dead zone to life with strong Wi-Fi expansion at combined speed of up to 1.2Gbps
- Operates over both the 2.4GHz band(300Mbps) and 5GHz band(867Mbps) for more stable wireless experience
- Intelligent signal light helps to find the best location for optimal Wi-Fi coverage by showing the signal strength
- Works with any Wi-Fi router or wireless access point
High-Speed Dual Band Wi-Fi for Better Connections
The RE305 lets you keep more devices connected at the same time with its 2.4GHz 300Mbps and 5GHz 867Mbps dual bands. Use the 2.4GHz band to send email and browse the web, and the 5GHz band for gaming and HD streaming.
Built-in Access Point Mode
RE305 is more than a wireless range extender. Simply plug the Ethernet cable into its Ethernet port to easily turn your wired internet connection into a dual band wireless access point.
Easy Management and Remote Control
The RE305 works with all Wi-Fi routers. You can use TP-Link's free Tether app to set up the range extender from any Android or iOS device in minutes. This feature-rich phone app allows you to enjoy not only hassle-free installation, but also access to advanced network management, all at your fingertips.
| Performance |
|---|
| Type |
Network transmitter |
| Data transfer rate |
867 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| WPS push button |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Packaging data |
|---|
| Package width |
156.5 mm |
| Package depth |
101.5 mm |
| Package height |
95 mm |
| Package weight |
250 g |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna type |
External |
| Network |
|---|
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) |
867 Mbit/s |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
|---|
| Product colour |
White |
| LED indicators |
Yes |
| Reset button |
Yes |
| Certification |
CE, FCC |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (max) |
7.3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
80 mm |
| Depth |
77.8 mm |
| Height |
77 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
