2.4-5 GHz, 300-867 Mbps, 17 dBm, OneMesh, WPS, 100-240V, 50/60Hz, 124 x 69 x 52 mm

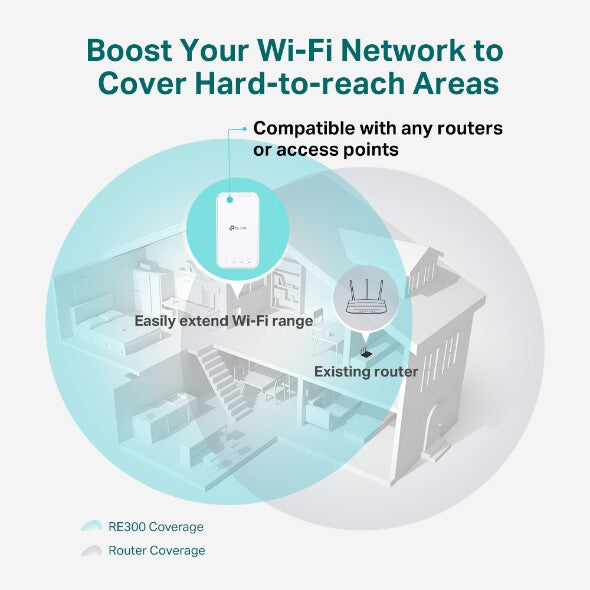

Extend Dual Band Wi-Fi across Your Home
Keep the Whole Home Connected

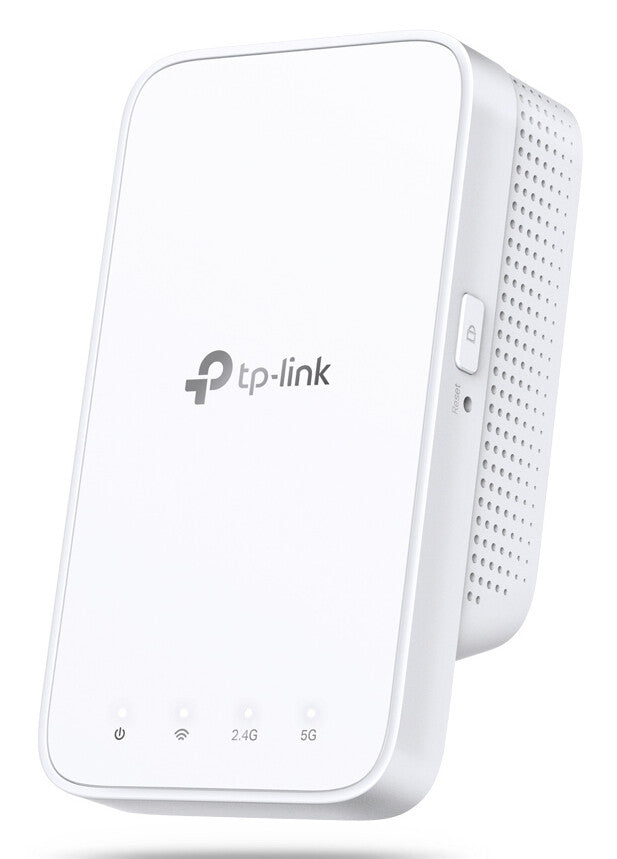

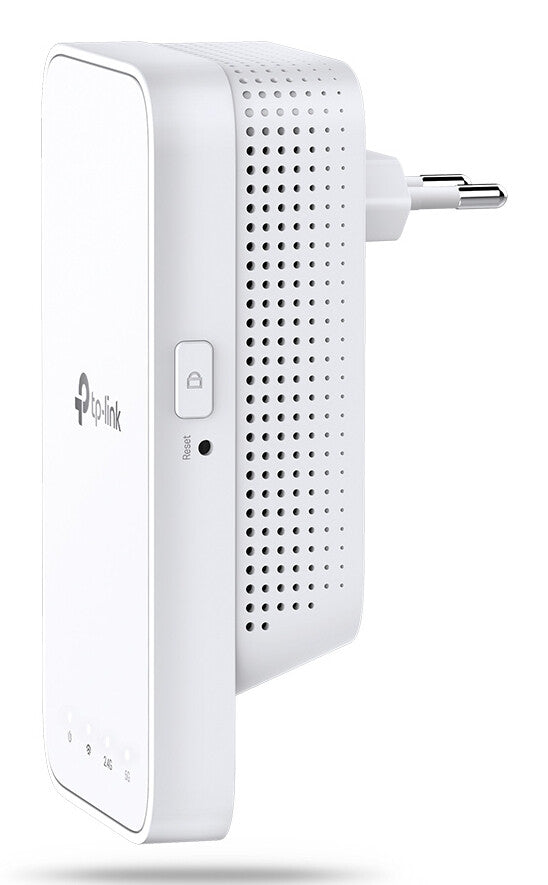

RE300 wirelessly connects to your Wi-Fi router, strengthening and expanding its signal into areas it can’t reach on its own. With speeds of up to 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz, put strong, fast Wi-Fi in every room and say goodbye to dead zones.

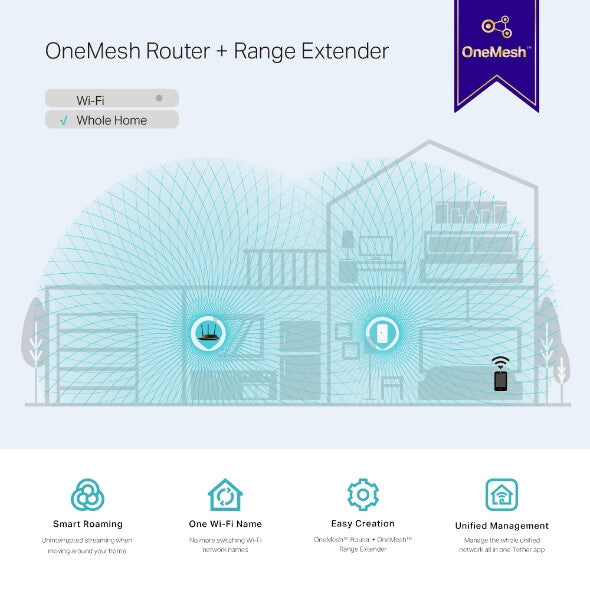

TP-Link OneMesh
OneMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching around for a stable connection.
Enjoy a Mesh Network with Your Existing Router
Want a Mesh network? Hesitate on whether to replace your existing router and buy a Mesh set?
TP-Link OneMesh resolves your dilemma.
High-Speed Dual Band Wi-Fi without Bandwidth Drop
Faster AC1200 Dual Band Wi-Fi
The RE300 lets you keep more devices connected simultaneously with its 2.4 GHz 300 Mbps and 5 GHz 867 Mbps dual bands.
Keeps Itself Fast
Adaptive Path Selection keeps your network running at top-speed by automatically choosing the fastest connection path to the router.
High Speed Mode
Use both Wi-Fi bands to establish one super-high-speed connection, ideal for HD streaming & gaming.

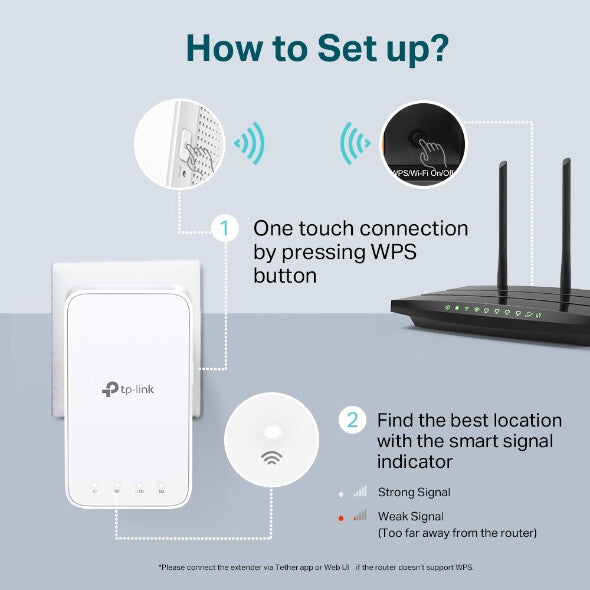

Secure One-Touch Connection for Easy Setup
Step 1: Simply press the WPS button on your router and, within 2 minutes, the WPS button on RE300 to connect to the network.
Step 2: Once connected, place RE300 to the best location—without reconfiguration.
Find the Best Location with the Smart Signal Indicator
The smart signal indicator lets you see signal strength from the existing router at a glance. Easily to find the best place to position your range extender to extend your Wi-Fi.
Feature-Rich App for Control in Your Hands
Set up and manage your Wi-Fi through the TP-Link Tether app from your smartphone (Android, iOS), including TP-Link routers and range extenders.
| Performance |
|---|
| Type |
Network repeater |
| Data transfer rate |
867 Mbit/s |
| WPS push button |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP |
| Mac compatibility |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Management features |
|---|
| Access Control List (ACL) |
Yes |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
156.5 mm |
| Package depth |
101.5 mm |
| Package height |
89 mm |
| Package weight |
290 g |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna type |
Internal |
| Transmitting power (CE) |
17 dBm |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi data rate (max) |
867 Mbit/s |
| Security algorithms |
64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Design |
|---|
| Product colour |
White |
| Quantity per pack |
1 pc(s) |
| LED indicators |
Yes |
| Reset button |
Yes |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
7.3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Width |
124 mm |
| Depth |
69 mm |
| Height |
52 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS, Federal Communications Commission (FCC), CE |
| Packaging content |
|---|
| Quick start guide |
Yes |
