5x 10/100/1000Mbps RJ-45, 10 Gbps, PoE, QoS, 99.8x98x25 mm
PoE Switches for Your Ultra Convenience

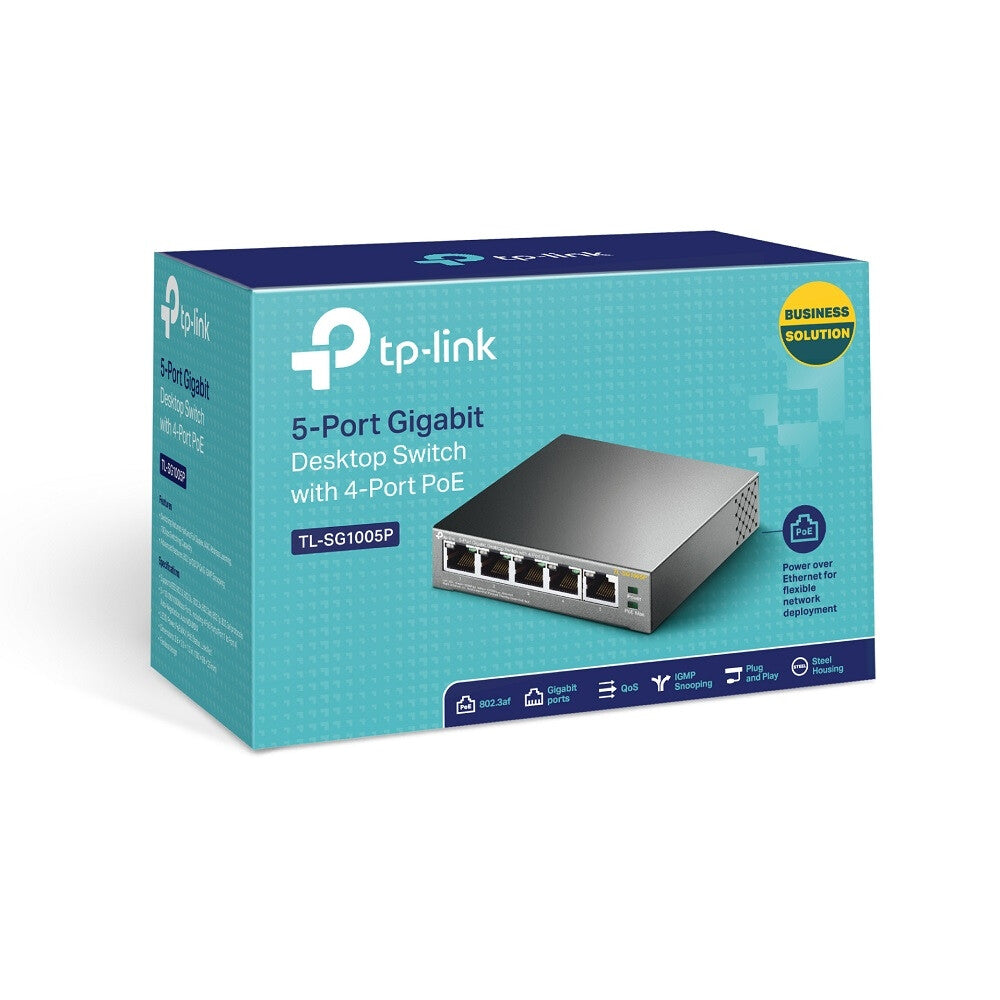

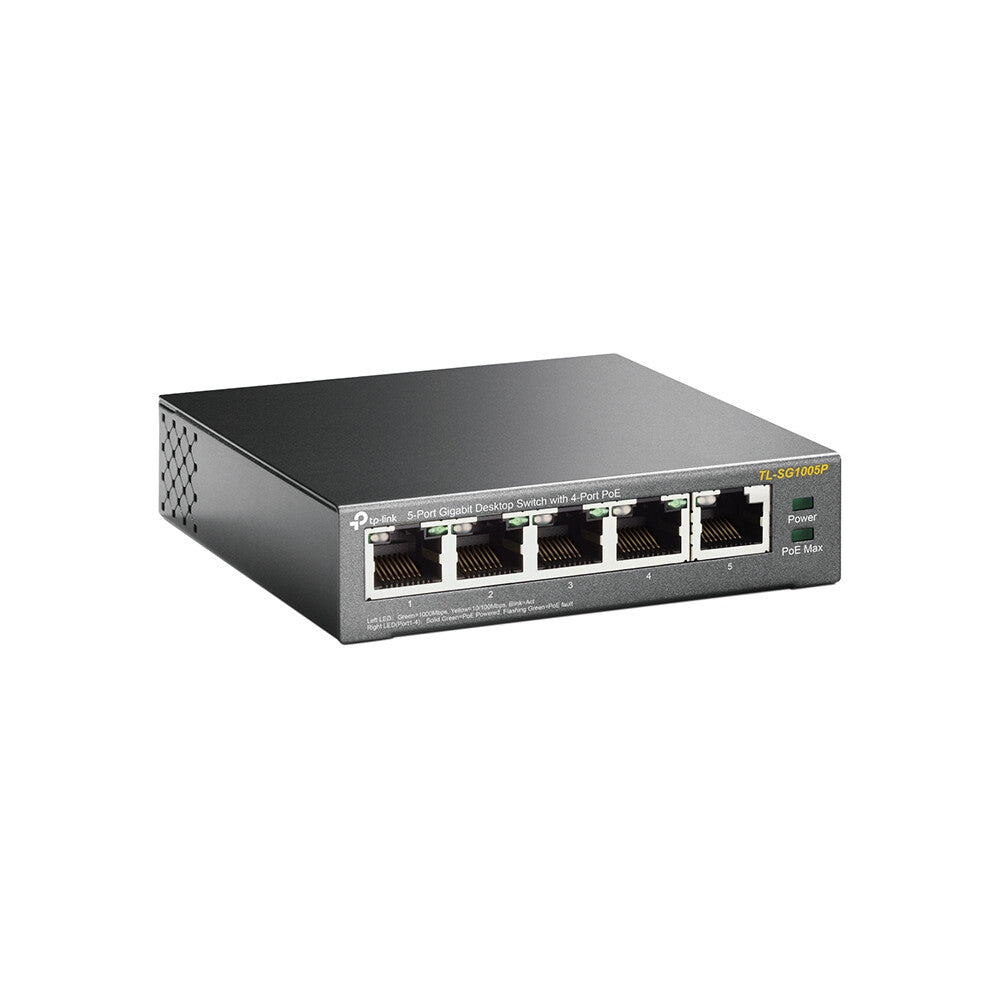

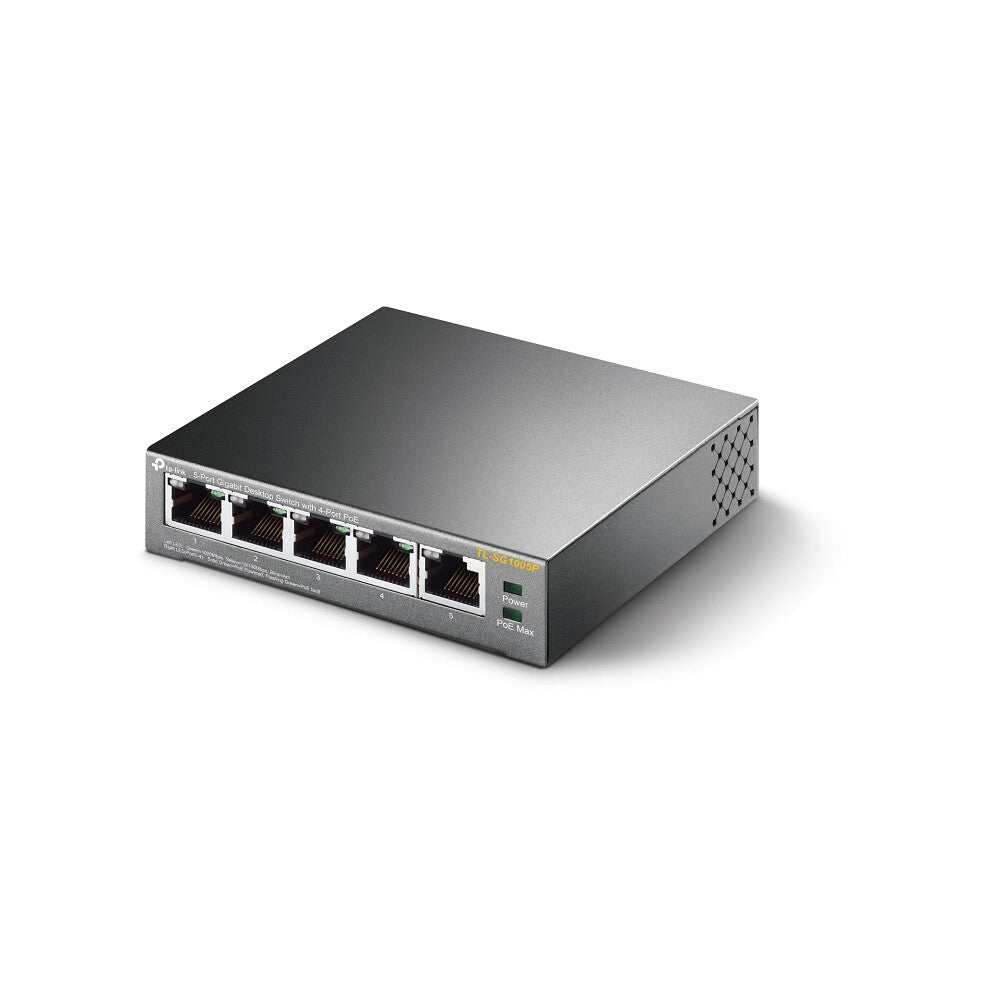

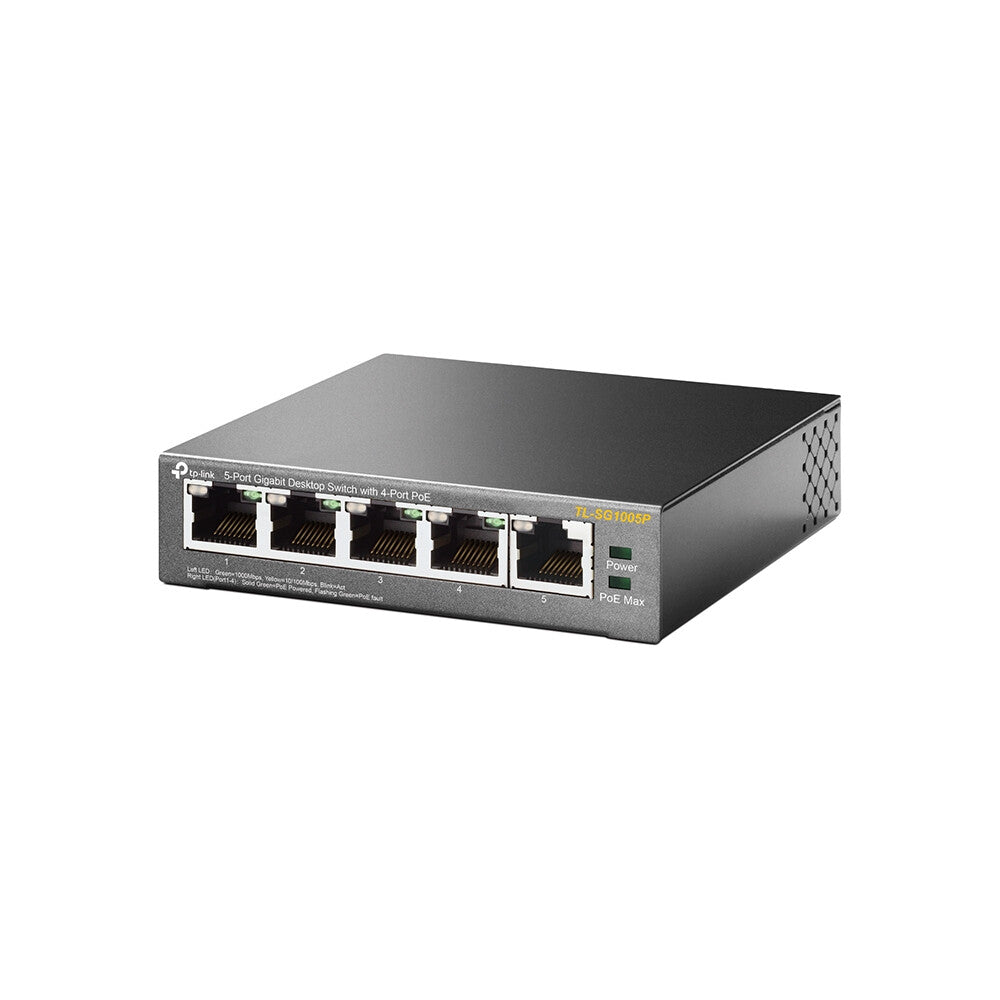

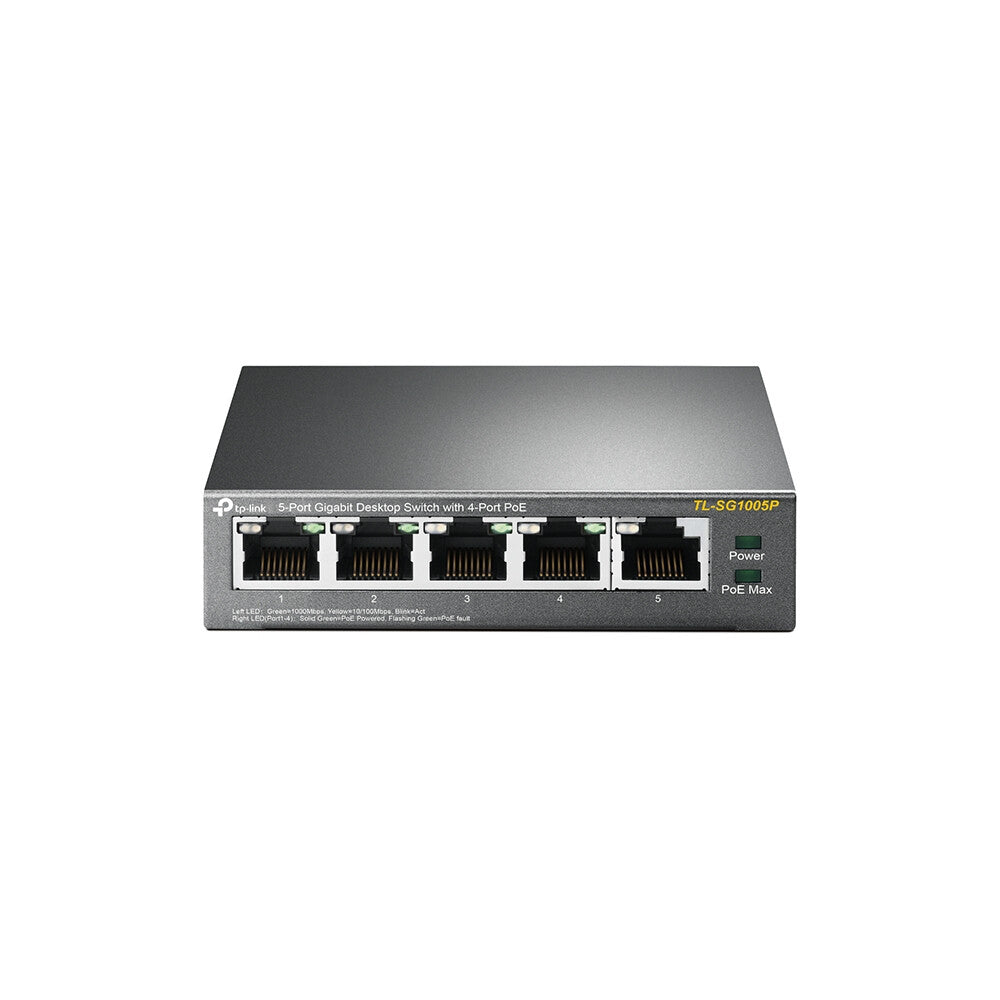

5-Port Gigabit Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
| Packaging content |
|---|
| Manual |
Yes |
| User guide |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Data transmission |
|---|
| MAC address table |
2000 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.44 Mpps |
| Store-and-forward |
Yes |
| Security |
|---|
| IGMP snooping |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Stackable |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Certification |
FCC, CE, RoHS |
| Performance |
|---|
| Maximum cable length |
100 m |
| Fanless |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Power |
|---|
| Power source |
DC/PoE |
| Power supply included |
Yes |
| AC input voltage |
100 - 220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
48 V |
| Input current |
1.25 A |
| Power consumption (max) |
64.44 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Total Power over Ethernet (PoE) budget |
56 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
219.87 BTU/h |
| Weight & dimensions |
|---|
| Width |
99.8 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Cables included |
AC |
| Quick start guide |
Yes |
| Package type |
Box |
| AC adapter included |
Yes |
| Package width |
131 mm |
| Package depth |
196 mm |
| Package height |
121 mm |
| Package weight |
761 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
