4G LTE, micro USB, SIM, 5V 1A, 94x56.7x19.8 mm
Do More with A Faster Connection

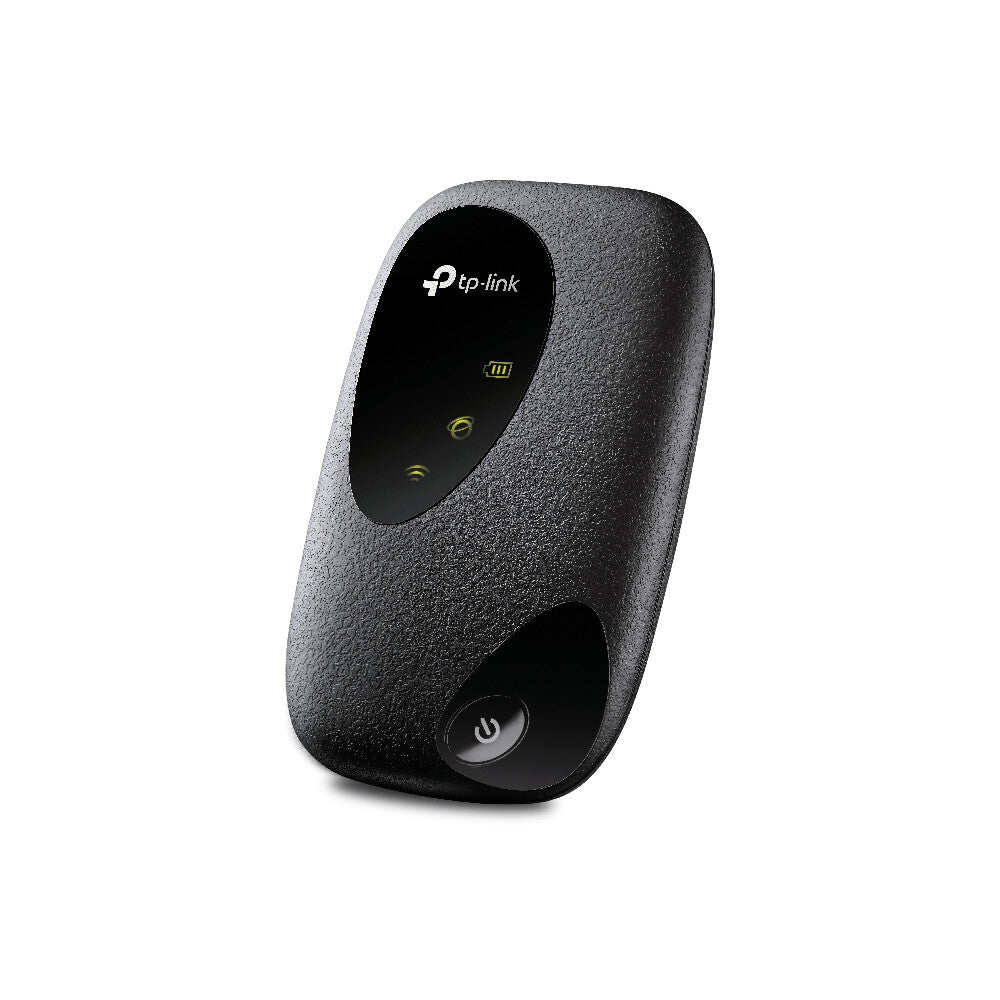

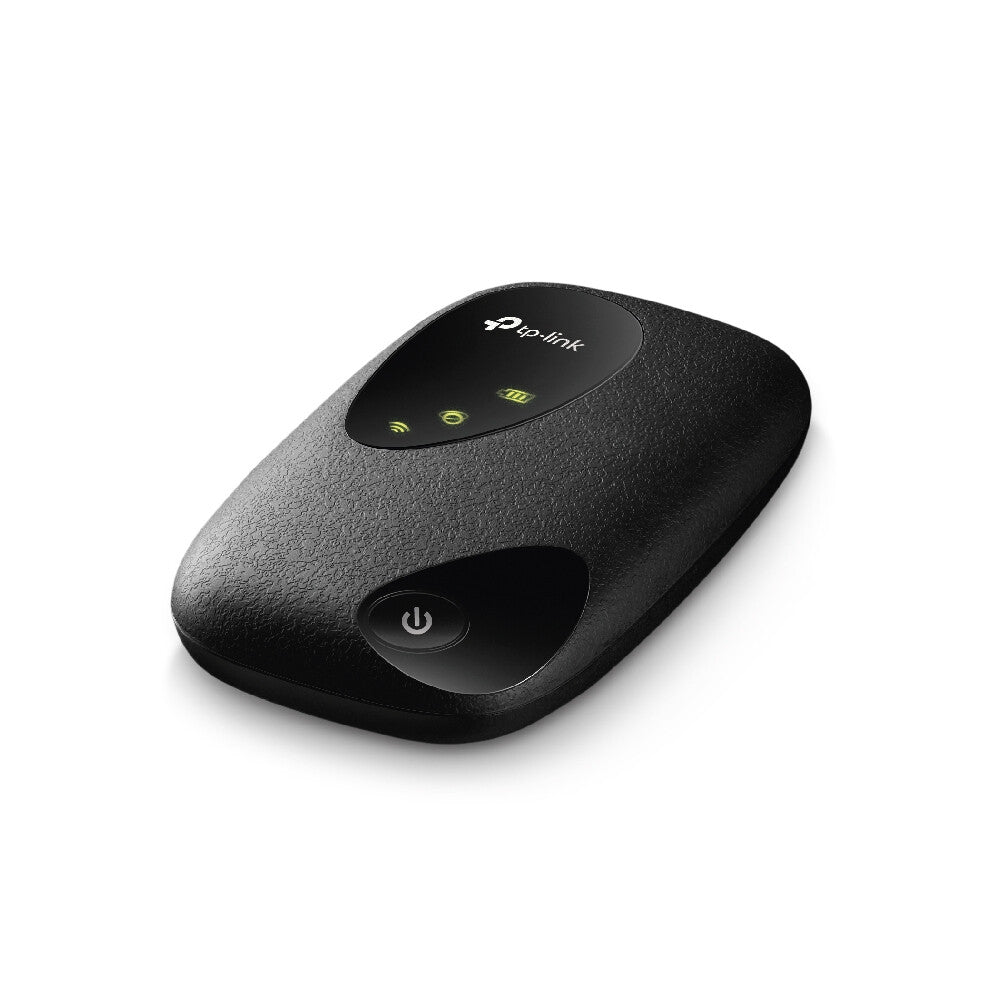

The M7000 supports the latest generation 4G FDD/TDD-LTE networks, providing convenient carry-on Wi-Fi in most countries and regions. Now you can enjoy lag-free HD video, fast file downloads, and stable video chats regardless of where life takes.
Share with Friends Internet Access for up to 10 Devices Simultaneously
This compact device works seamlessly with an impressive range of wireless gadgets. The M7000 can easily share a 4G/3G connection with up to 10 wireless devices like tablets, laptops, and mobile phones at the same time.
Power through Your Day with up to 8 Hours of Sharable 4G
With its powerful 2000mAh battery, the M7000 can provide up to 8 hours of wireless connectivity, making it the perfect companion for travel, business trips, outdoor activities, and more.
Get Your Network Up and Running in Seconds

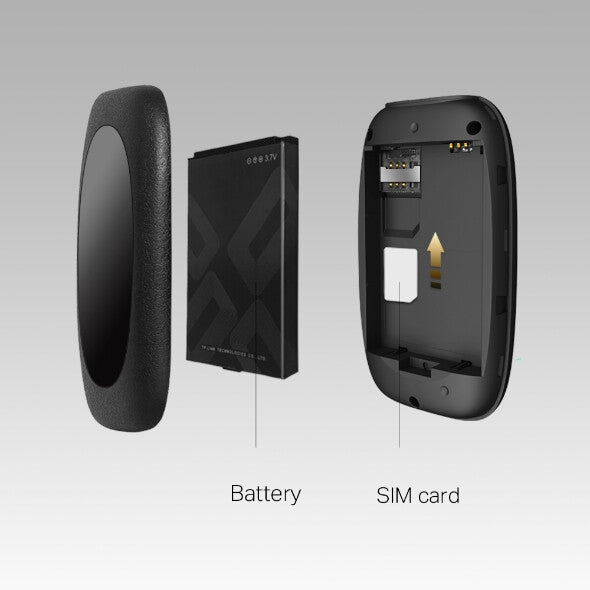

M7000 features a compact and user-friendly design, all you need is to insert a SIM card and press the power button. Your high-speed 4G hotspot will be operational within a half-minute.
Easy Management with the tpMiFi App
With the tpMiFi App, you can easily access and manage the M7000 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi and send messages.
| Design |
|---|
| Device type |
Cellular network router |
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Power, WLAN |
| Ethernet LAN features |
|---|
| Ethernet LAN |
No |
| Ethernet LAN interface type |
Not available |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| DHCP client |
Yes |
| DHCP server |
Yes |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported |
300 Mbit/s |
| Mobile network |
|---|
| Data network |
3G, 4G, LTE |
| 3G standards |
HSPA, HSPA+, UMTS |
| 4G standard |
LTE-FDD |
| 3G bands supported |
850,900,2100 MHz |
| 4G bands supported |
800,850,900,1800,2100,2300,2500,2600 MHz |
| UMTS bands supported |
850,900,2100 MHz |
| SIM card type |
MicroSIM |
| Ports & interfaces |
|---|
| USB port type |
Micro-USB |
| USB port |
Yes |
| Security |
|---|
| Security algorithms |
SSID, WPA-PSK, WPA2-PSK |
| Certificates |
|---|
| Certification |
CE, RoHS |
| Packaging content |
|---|
| Cables included |
Micro-USB |
| Performance |
|---|
| Web-based management |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mobile operating systems supported |
Android, Windows Phone, iOS |
| Power |
|---|
| Power source type |
Battery |
| Output voltage |
5 V |
| Output current |
1 A |
| Battery capacity |
2000 mAh |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Weight & dimensions |
|---|
| Width |
94 mm |
| Depth |
56.6 mm |
| Height |
19.7 mm |
| Packaging data |
|---|
| Package width |
135 mm |
| Package depth |
95 mm |
| Package height |
50 mm |
| Package weight |
150 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
