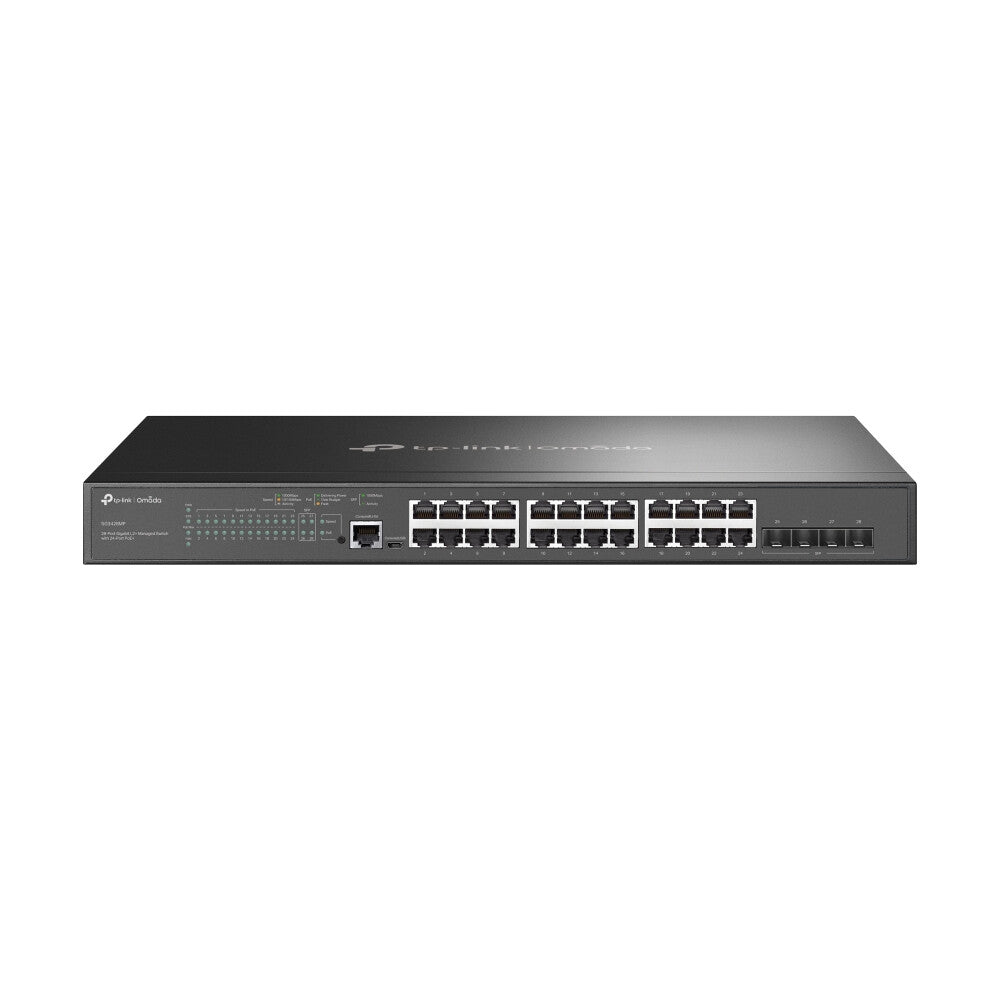

24× 10/100/1000 Mbps RJ45 PoE+, 4× Gigabit SFP, RJ45/Micro-USB, 56 Gbps, 16K MAC, 9 KB Jumbo, 440×330×44 mm
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static
routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port
Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
| Packaging content |
|---|
| User guide |
Yes |
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2+ |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| ARP inspection |
Yes |
| System event log |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
24 |
| SFP module slots quantity |
4 |
| Console port |
RJ-45/Micro-USB |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 1000BASE-T |
| Port mirroring |
Yes |
| IP routing |
Yes |
| Active link detection |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Rate limiting |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Spanning tree protocol |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs |
4000 |
| Data transmission |
|---|
| MAC address table |
16000 entries |
| Switching capacity |
56 Gbit/s |
| Forwarding rate |
41.66 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |
| Packet buffer memory |
12 MB |
| Security |
|---|
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| BPDU filtering/protection |
Yes |
| SSH/SSL support |
Yes |
| IP-MAC-Port binding |
Yes |
| Loop protection |
Yes |
| Security algorithms |
SSH, SSL/TLS |
| MAC address filtering |
Yes |
| Static port security |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1/v2c/v3, LLDP/LLDP-MED |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Number of fans |
2 fan(s) |
| Certification |
CE, FCC, RoHS |
| General |
|---|
| Product family |
Omada |
| Performance |
|---|
| Export Control Classification Number (ECCN) |
EAR99 |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
480.1 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
384 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
1637.14 BTU/h |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Packaging data |
|---|
| Quick start guide |
Yes |
