24-Port 10/100Mbps, IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP
What This Product Does

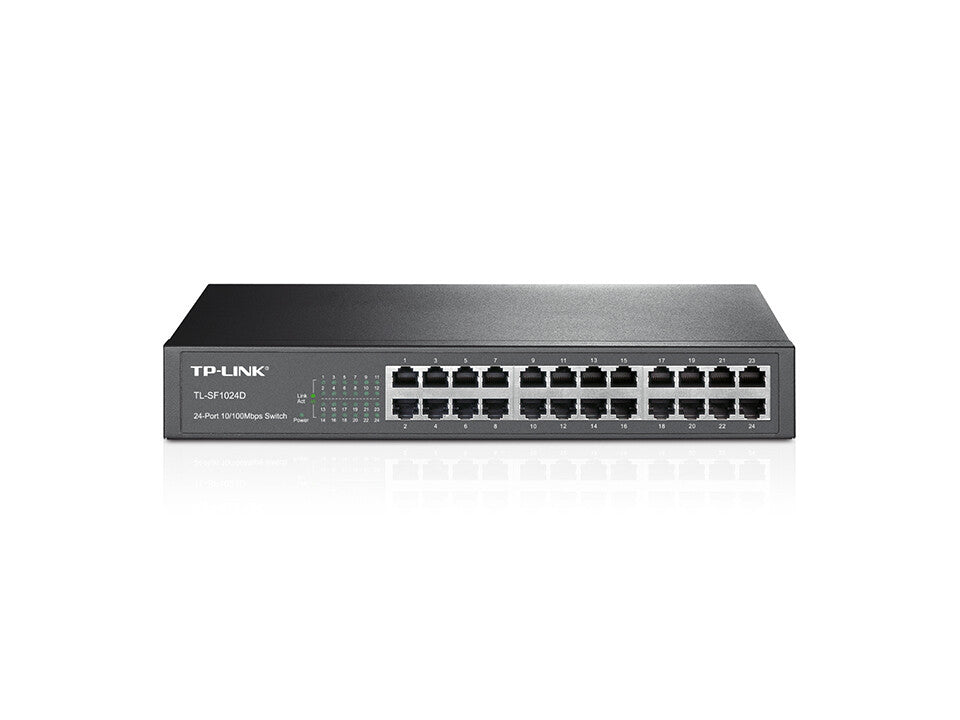

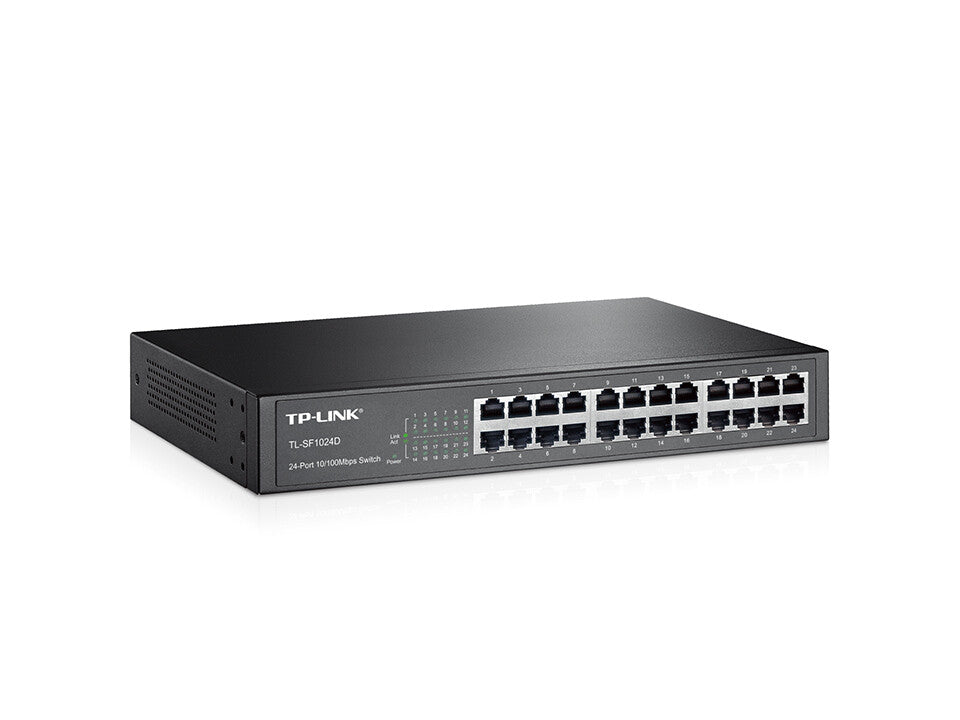

The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Management features |
|---|
| Switch type |
Unmanaged |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
|---|
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
|---|
| Packet buffer memory |
2 MB |
| Maximum data transfer rate |
0.1 Gbit/s |
| Store-and-forward |
Yes |
| Forwarding rate |
3.57 Mpps |
| Switching capacity |
4.8 Gbit/s |
| Supported data transfer rates |
10/100 Mbps |
| MAC address table |
8000 entries |
| Security |
|---|
| MAC address filtering |
Yes |
| Protocols |
|---|
| Supported network protocols |
CSMA/CD, TCP/IP |
| Design |
|---|
| Certification |
FCC, CE |
| LED indicators |
Link, Power |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
|---|
| Power consumption (max) |
3.19 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Operational conditions |
|---|
| Heat dissipation |
10.88 BTU/h |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
44 mm |
| Depth |
180 mm |
| Width |
294 mm |
| Packaging data |
|---|
| Package weight |
2 kg |
| Package height |
80 mm |
| Package depth |
250 mm |
| Package width |
400 mm |
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Power requirements |
100 - 240VAC, 50/60Hz |
| Wi-Fi |
No |
| Connectivity technology |
Wired |
| Dimensions (WxDxH) |
294 x 180 x 44 mm |
