16 x Gigabit Ethernet, 9.26W, 440 x 180 x 44mm, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p

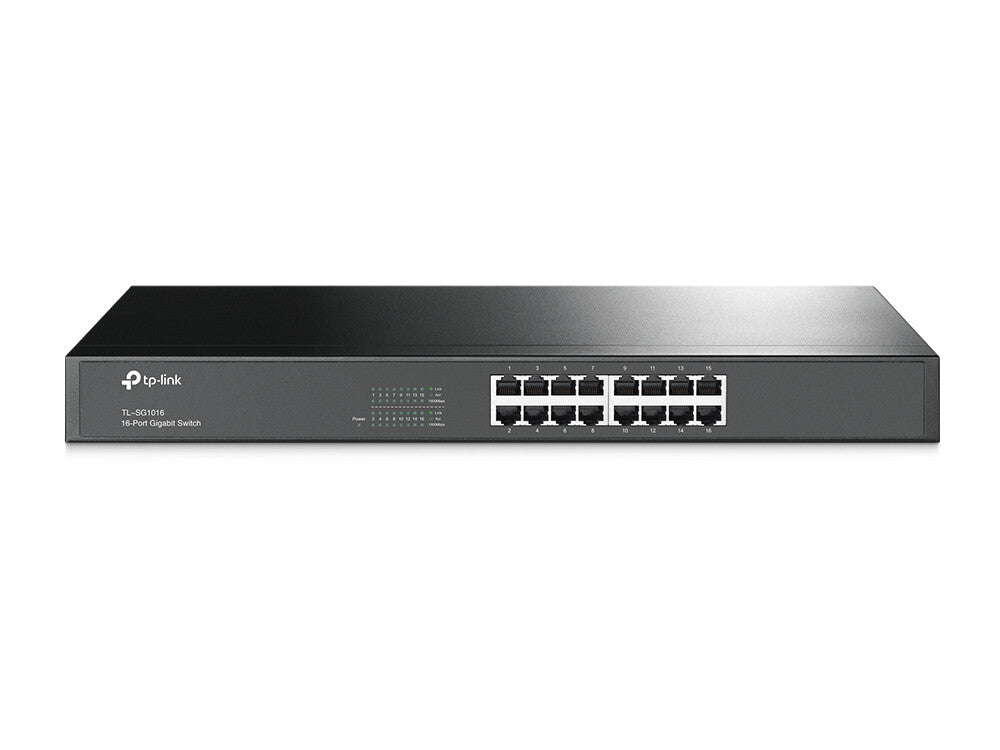

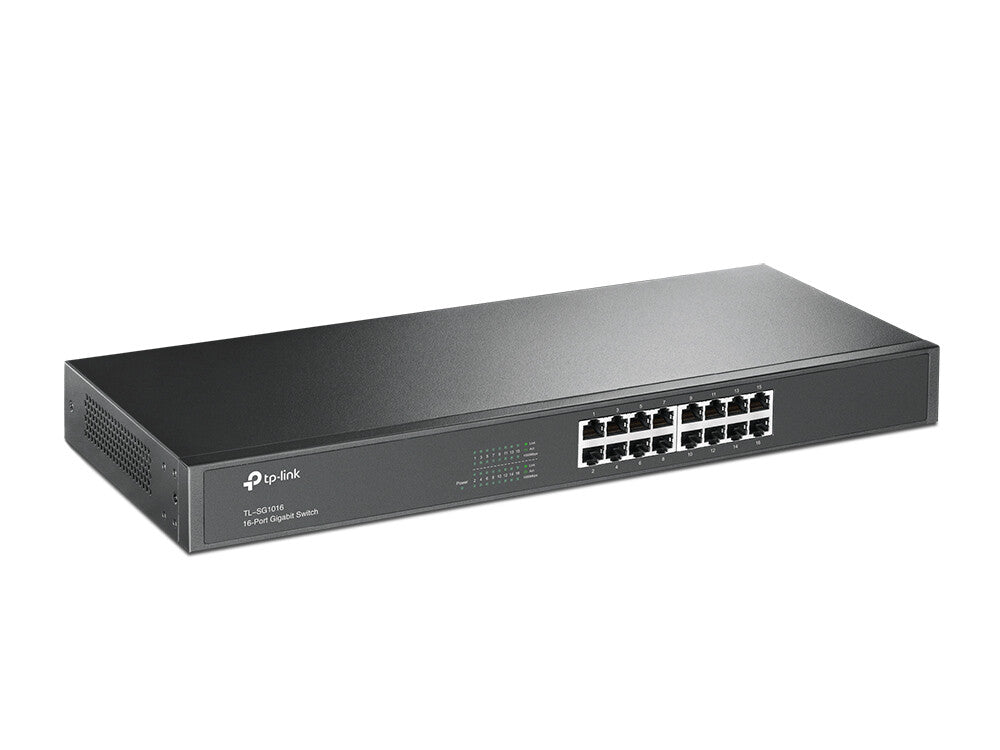

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Packaging content |
|---|
| Rack mount kit |
Yes |
| User guide |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Power connector |
AC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Design |
|---|
| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Black |
| Housing material |
Metal |
| LED indicators |
Yes |
| Performance |
|---|
| Compatible operating systems |
Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10MacOSNetWareUNIXLinux |
| Maximum cable length |
100 m |
| Fanless |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
10.44 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
35.6 BTU/h |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Packaging data |
|---|
| Cables included |
AC |
| Package type |
Box |
| Package width |
250 mm |
| Package depth |
528 mm |
| Package height |
80 mm |
| Package weight |
2.04 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
