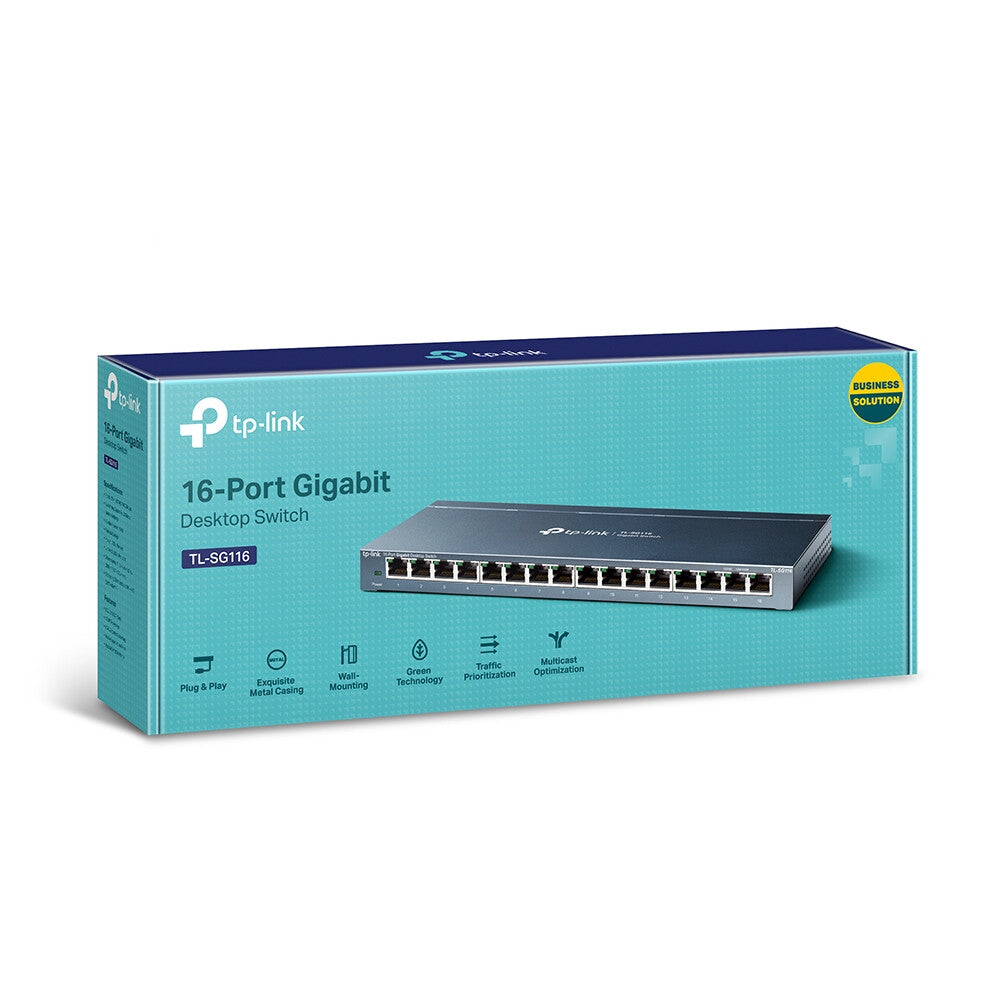

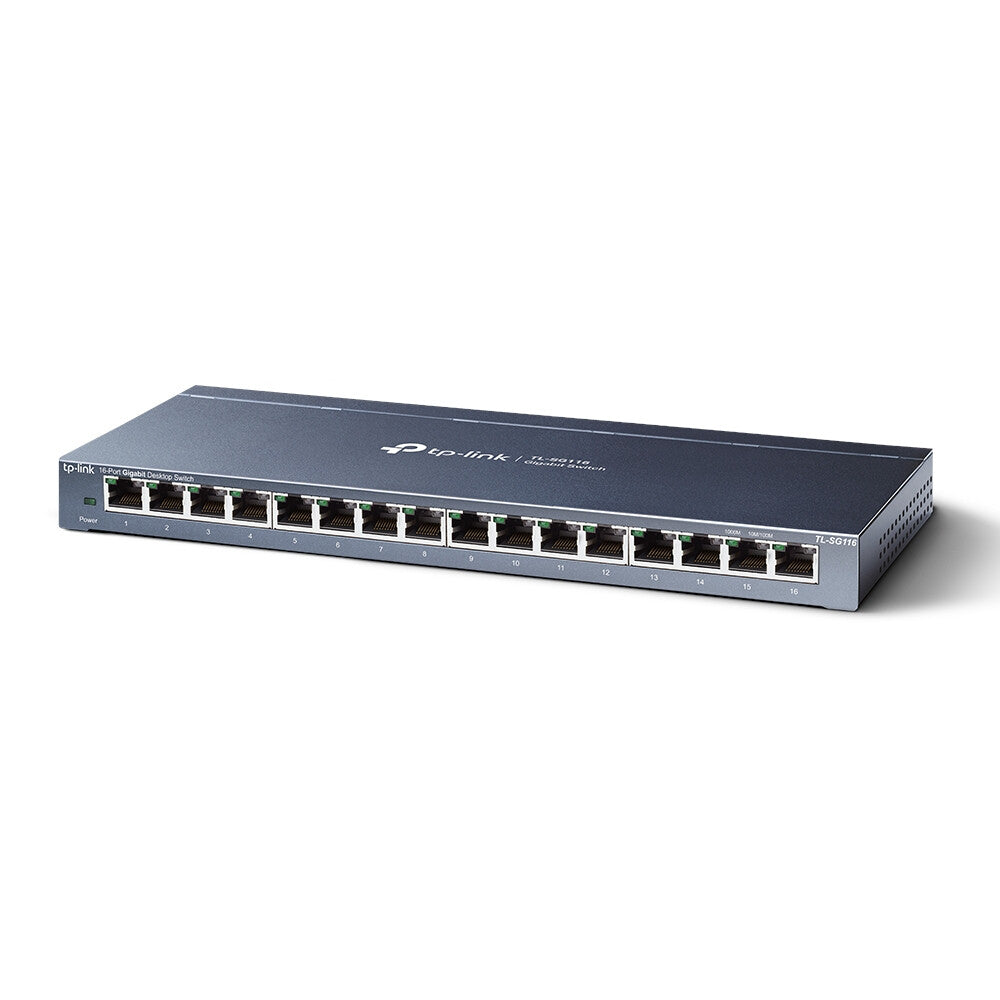

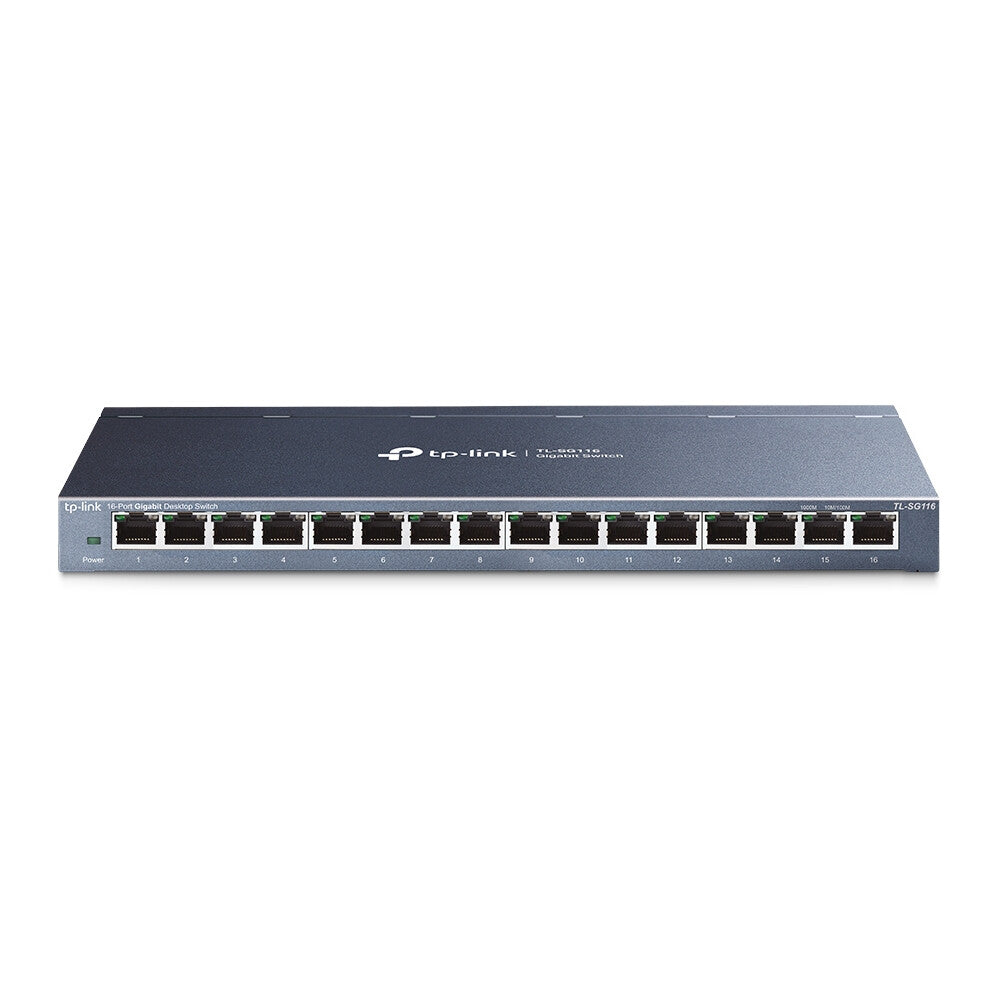

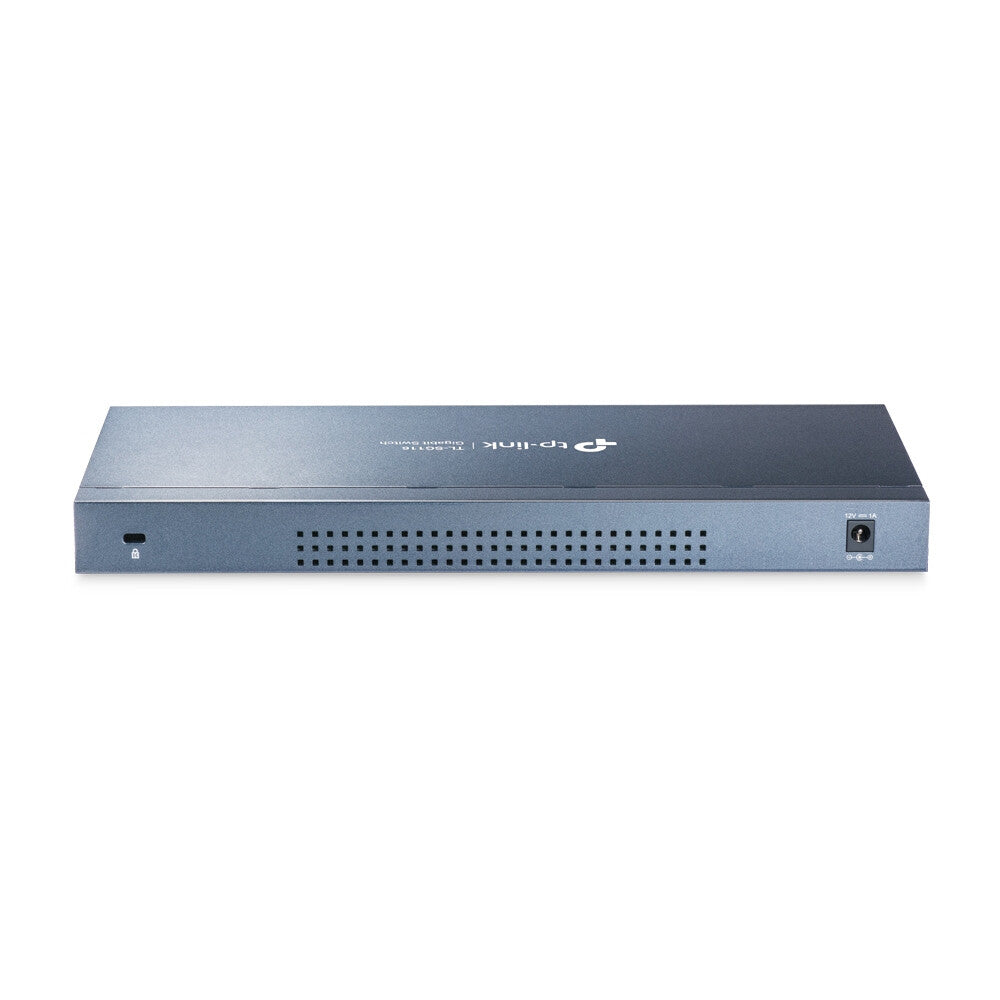

16-Port Gigabit Desktop Switch
What This Product Does
The TP-Link 16-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG116 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG116 can save power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 16 10/100/1000Mbps ports, TL-SG116 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG116 16-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Traffic Optimization
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex |
Yes |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Data transmission |
|---|
| MAC address table |
8000 entries |
| Switching capacity |
32 Gbit/s |
| Forwarding rate |
23.8 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Packet buffer memory |
4.1 MB |
| Security |
|---|
| IGMP snooping |
Yes |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Yes |
| Certification |
CE, FCC ,RoHS |
| Performance |
|---|
| Plug and Play |
Yes |
| Power |
|---|
| Power source |
DC |
| Power supply included |
Yes |
| Input current |
1 A |
| Input voltage |
12 V |
| Power consumption (max) |
10 W |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
34.12 BTU/h |
| Weight & dimensions |
|---|
| Width |
286 mm |
| Depth |
111.7 mm |
| Height |
25.4 mm |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Rubber feet |
Yes |
| Package type |
Box |
| AC adapter included |
Yes |
| Package width |
170 mm |
| Package depth |
412 mm |
| Package height |
70 mm |
| Package weight |
1.33 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
