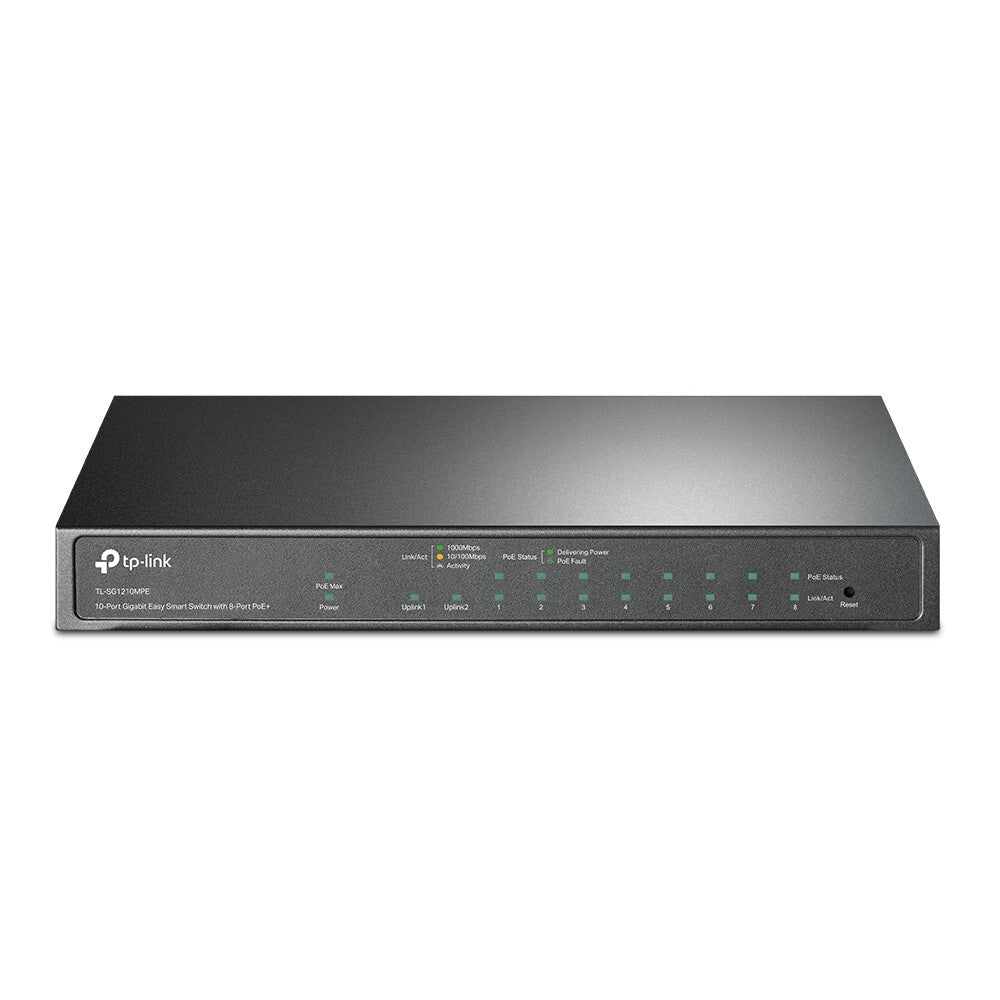

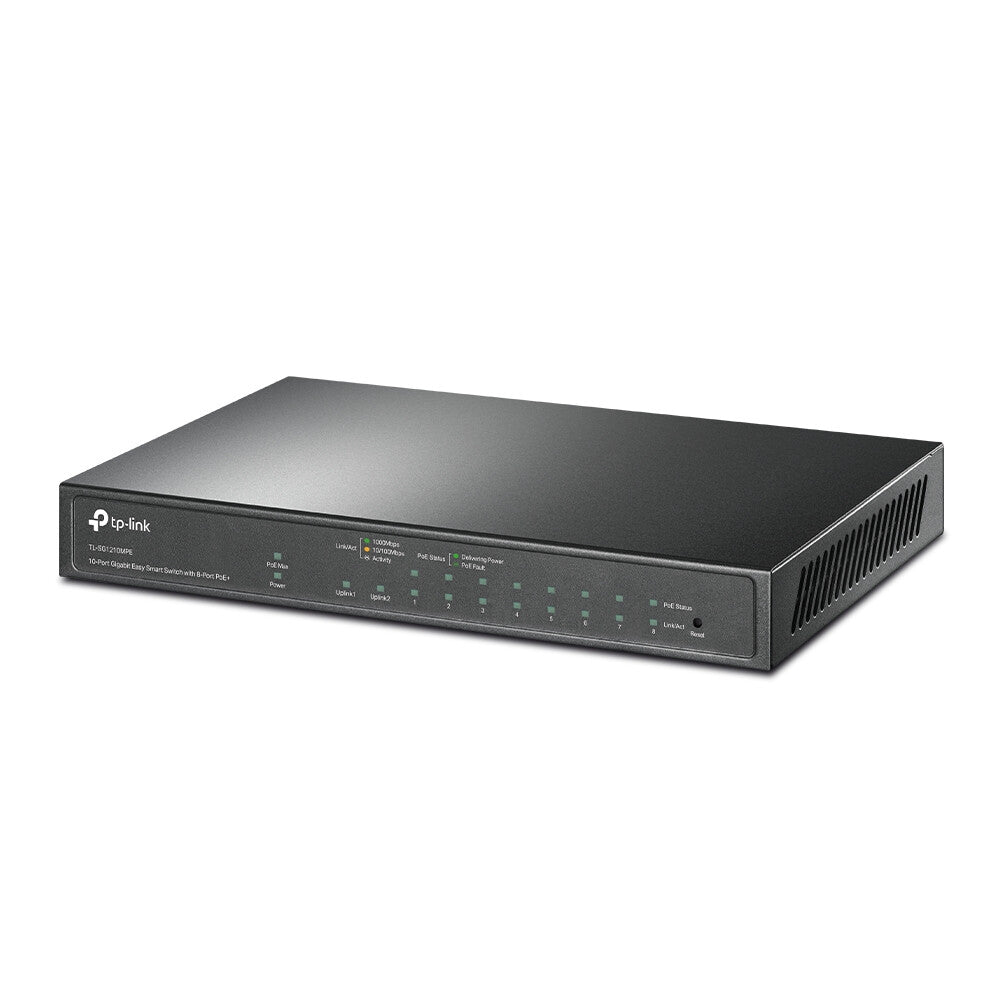

10-Port Gigabit Easy Smart Switch with 8-Port PoE+
What This Product Does
TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

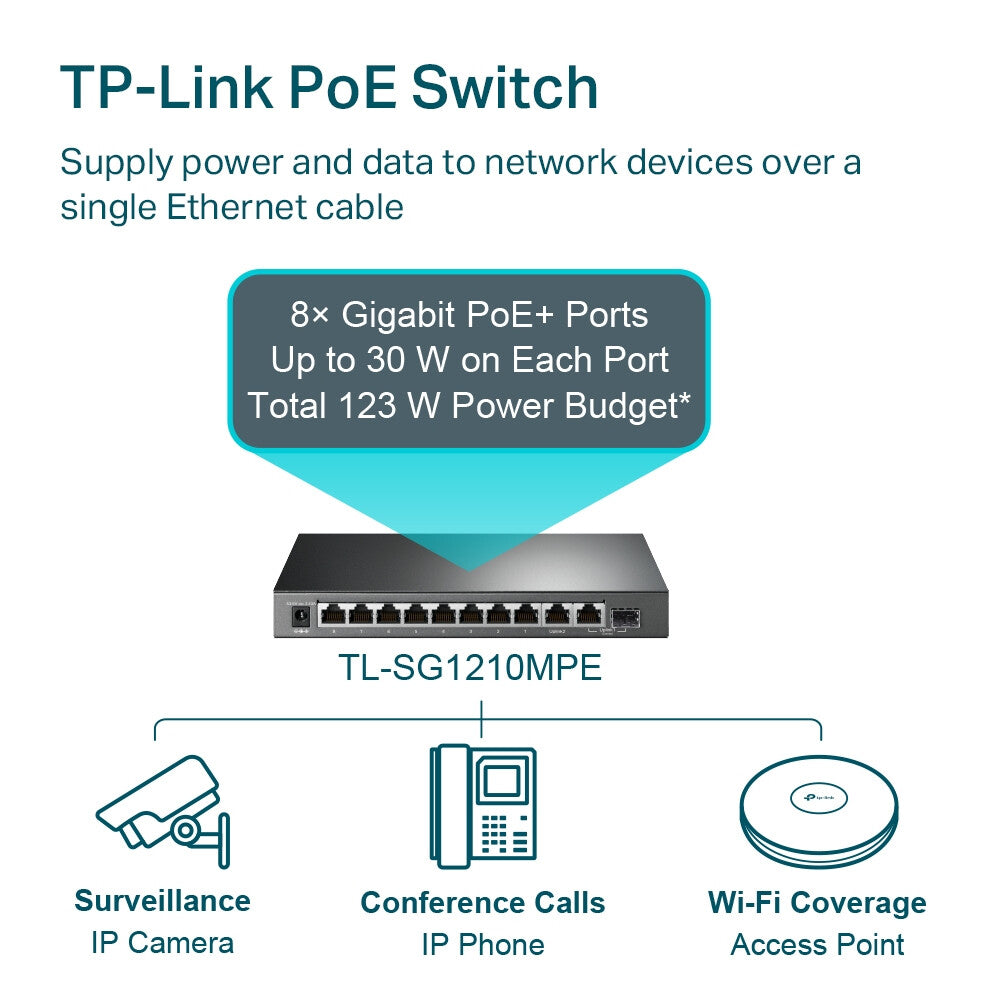

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

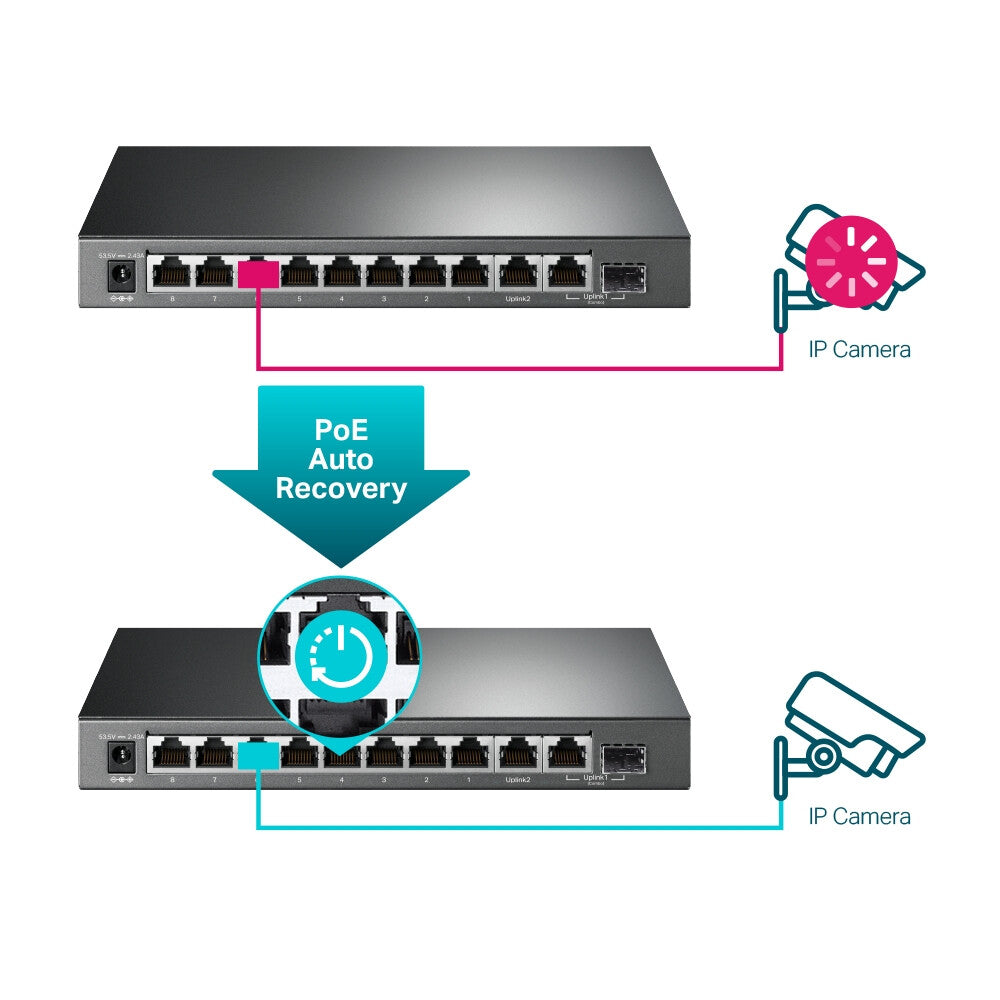

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
| Packaging content |
|---|
| Manual |
Yes |
| Management features |
|---|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Power connector |
DC-in jack |
| Fiber optic connector |
SFP |
| Fiber ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Network |
|---|
| Broadcast storm control |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
|---|
| Jumbo frames |
16000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
14.88 Mpps |
| Switching capacity |
20 Gbit/s |
| MAC address table |
4000 entries |
| Security |
|---|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Design |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Power |
|---|
| Input current |
2.43 A |
| DC input voltage |
53.5 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |

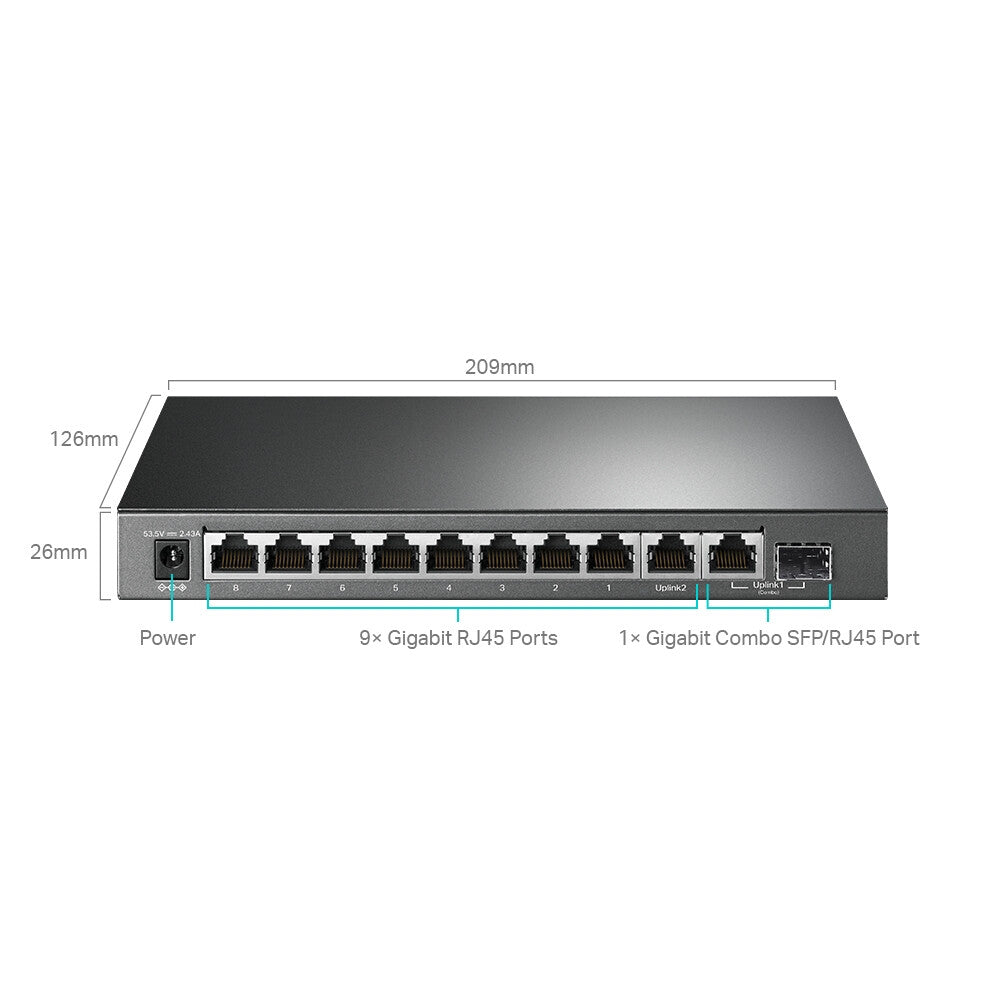

| Weight & dimensions |
|---|
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging data |
|---|
| Package weight |
1.58 kg |
| Package height |
70 mm |
| Package depth |
315 mm |
| Package width |
240 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
