750W, Active PFC, 47Hz - 63Hz, 100V – 240V, 14cm hydraulic bearing fan, 80 PLUS Gold

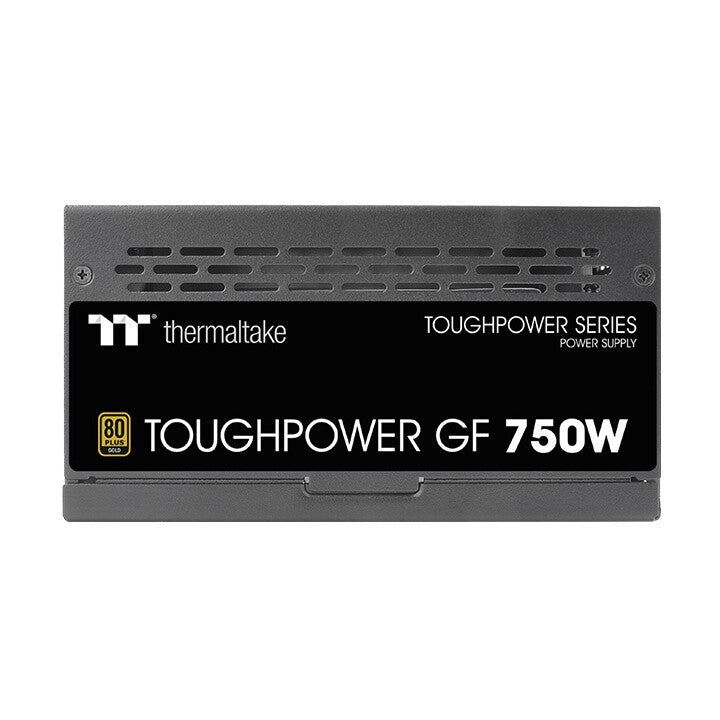

Toughpower GF 750W
The Toughpower GF 750W is built to deliver 80 PLUS Gold efficiency with up to 90% of it. Constructed with a 140mm Hydralic Bearing Fan, Japanese main capacitors and other premium components, the Toughower GF 750W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance. With an ample 10-year warranty, the Toughpower GF 750W Gold is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.

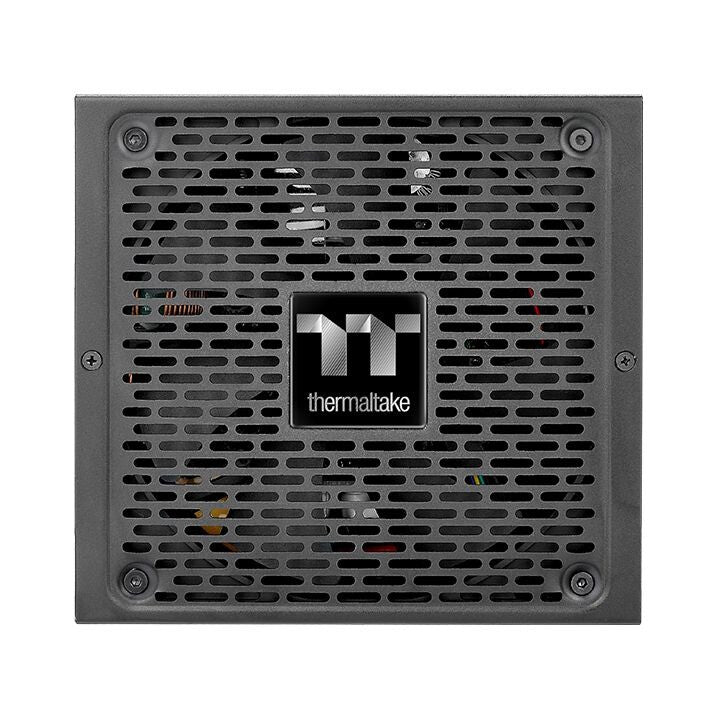

Ultra Quiet 140mm Hydralic Bearing Fan
The Toughpower GF 750W Gold adopts a 140mm ultra quiet Hydralic Bearing Fan, ensuring the overall good cooling performance and silent operation.

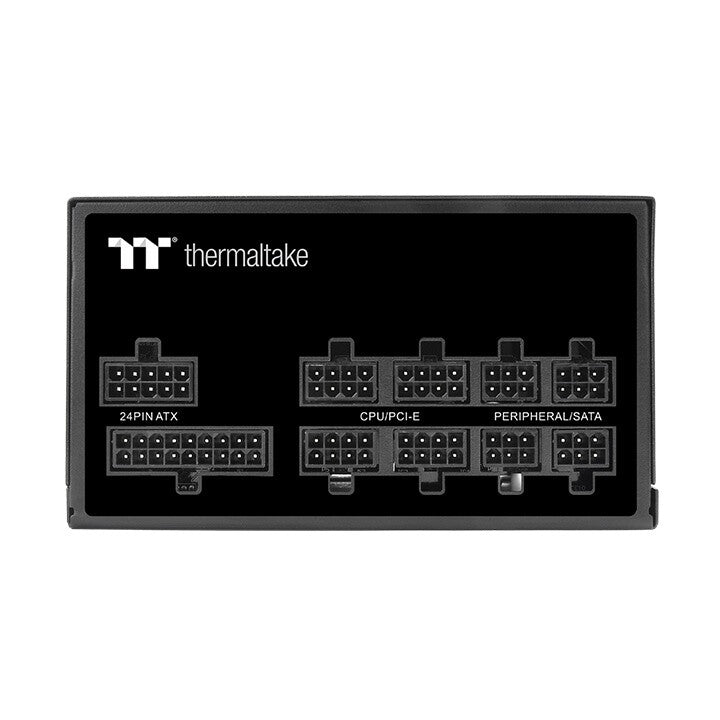

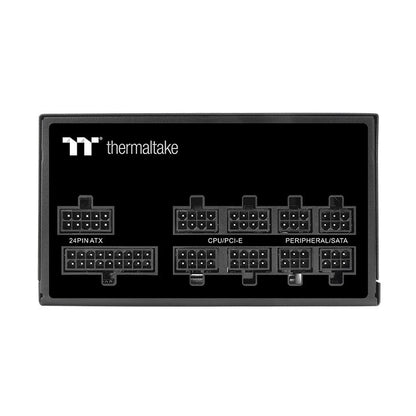

Fully Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.
High quality Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Toughpower GF 750W to have highest stability and reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Gold Certified and Lake C6/C7 States Ready
Toughpower GF 750W saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

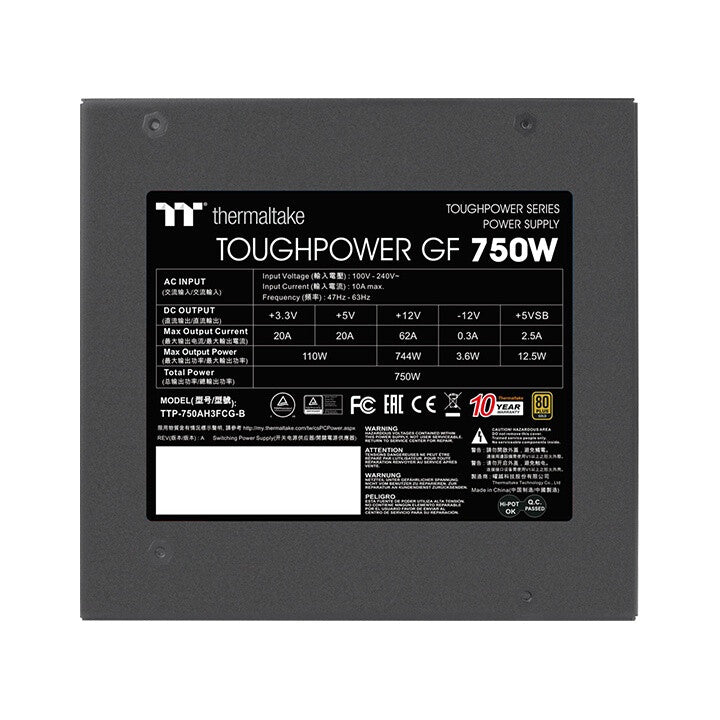

| Power |
|---|
| Total power |
750 W |
| Peak power |
900 W |
| AC input voltage |
100 - 240 V |
| AC input frequency |
47 - 63 Hz |
| Input current |
10 A |
| Power Factor Correction (PFC) type |
Active |
| Combined power (+3.3V) |
100 W |
| Combined power (+12V) |
744 W |
| Combined power (+5V) |
100 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5Vsb) |
12.5 W |
| Max output current (+3.3V) |
20 A |
| Max output current (+12V) |
62 A |
| Max output current (+5V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5Vsb) |
2.5 A |
| Hold time |
12 ms |
| Ports & interfaces |
|---|
| Motherboard power connector |
24-pin ATX |
| Motherboard power cable length |
60 cm |
| Number of SATA power connectors |
9 |
| SATA power cable length |
500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Peripheral (Molex) power cable length |
500,650,800,950 mm |
| EPS power connector (8-pin) |
Yes |
| EPS power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
4 |
| PCI Express power cable length |
65 cm |
| CPU power connector (4+4 pin) |
Yes |
| CPU power cable length |
65 cm |
| ATX Power connector (24-pin) |
Yes |
| Floppy disk drive cable length |
15 cm |
| Floppy disk drive connector |
Yes |
| PCI Express connector |
Yes |
| Cabling type |
Fully-Modular |
| Performance |
|---|
| Purpose |
PC |
| Power supply unit (PSU) form factor |
ATX |
| 80 PLUS certification |
80 PLUS Gold |
| Bearing technology |
HDB |
| Mean time between failures (MTBF) |
100000 h |
| Certification |
CE/cTUVus/TÜV/FCC/EAC |
| Design |
|---|
| Product colour |
Black |
| Cooling type |
Active |
| Fan diameter |
14 cm |
| Number of fans |
1 fan(s) |
| Fan location |
Top |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Packaging content |
|---|
| Cables included |
CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions |
|---|
| Width |
150 mm |
| Depth |
160 mm |
| Height |
86 mm |
